User manual SIPLACE E 2 Operational safety From software version SC 708.0 05/2015 Edition 2.5 Safety instru ctions for operating the machine 73 2.5.8 High temperatures on SIPLACE CP14 placement head 2 Fig. 2.5 - 3 High t…
2 Operational safety User manual SIPLACE E
2.5 Safety instructions for operating the machine From software version SC 708.0 05/2015 Edition
72
2.5.5 ESD safety of machine
2
2.5.6 Safety instructions for correct fitting of the reject bin
Observe the following instructions to avoid risk of collision between the placement head and com
-
ponent or the nozzle reject bin:
Make sure, that the reject bin is seated correctly in its mount.
Check that the reject bin does not project over the mount.
2.5.7 Safety instructions for using the nozzle changer
Observe the following instructions to avoid risk of collision between the placement head and the
nozzle changer.
2
2
PLEASE NOTE
Requirements for ESD safety of machines
Only use nozzles that are identified as conductive.
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
WARNING
Risk of head crashes with protruding lever!
A lever which projects above the magazine could lead to a placement head crash.
You should therefore make sure that the lever does not protrude over the magazines.
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 05/2015 Edition 2.5 Safety instructions for operating the machine
73
2.5.8 High temperatures on SIPLACE CP14 placement head
2

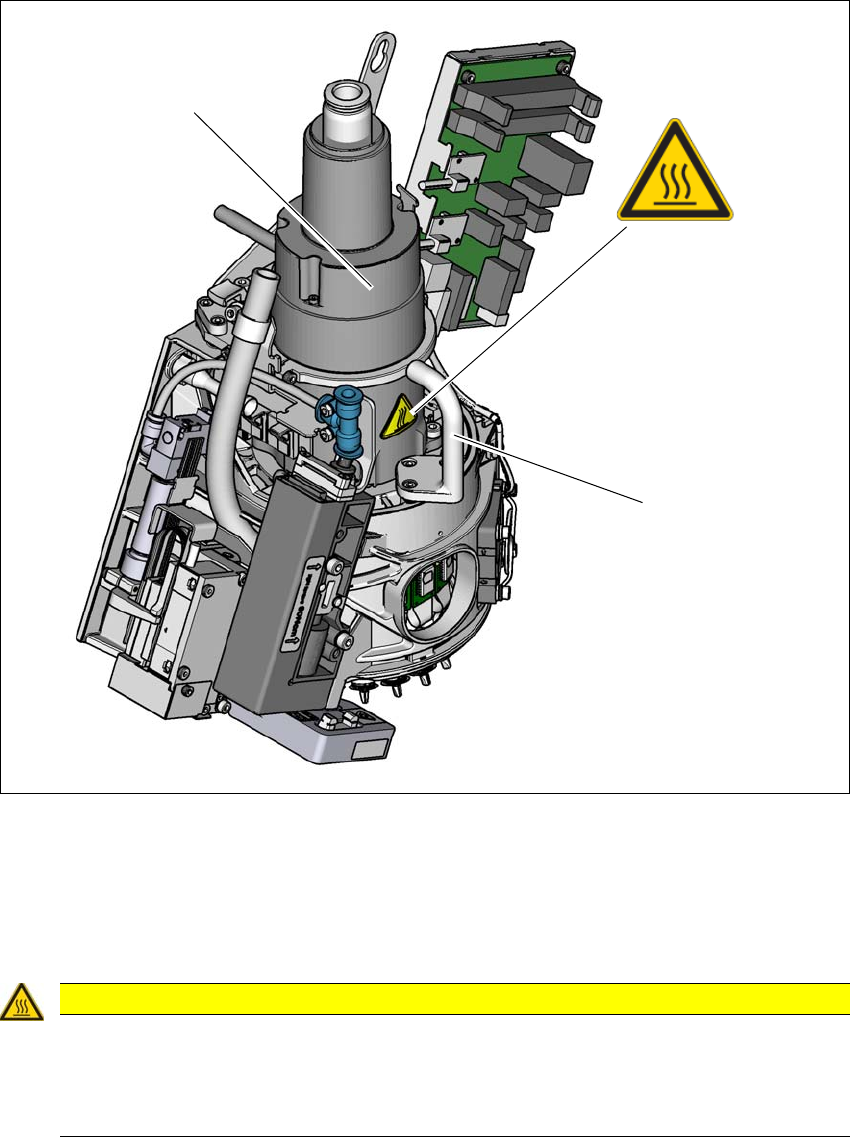

Fig. 2.5 - 3 High temperatures on SIPLACE CP14 during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
2
CAUTION
Risk of burns due to high temperatures!
The housing of the star motor and the handle on the placement head may become very
hot during continuous operation and in ambient temperature in excess of 22 °C.
Be careful when touching the parts.
(1)
(2)
(3)
2 Operational safety User manual SIPLACE E
2.5 Safety instructions for operating the machine From software version SC 708.0 05/2015 Edition
74
2.5.9 High temperatures on the SIPLACE SmartFeeder E
2

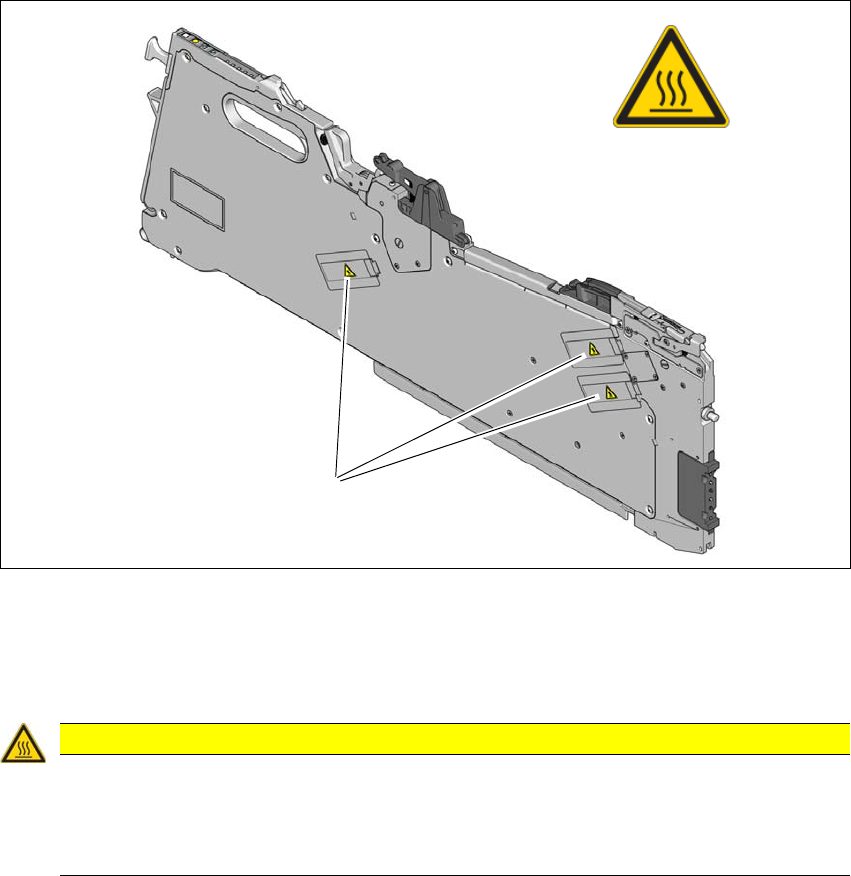

Fig. 2.5 - 4 High temperatures on the SIPLACE SmartFeeder E during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Stepping motor
2
CAUTION
Risk of burns due to high temperatures!
The stepping motors can become very hot during continuous operation and in an ambient
temperature in excess of 22 °C.
Be careful when touching the motors.
(1)
(2)
