2.8 Residual voltages and discharge times in the machine
2
2
DANGER
Dangerous voltage levels!
The machine is supplied with 3 x 200 V~, up to 3 x 415 V~ mains voltage.
This means that some parts of the system carry potentially lethal voltages - even when
switched off at the main power switch.
Incorrect handling of this machine can therefore result in death or severe injury or consid
-
erable damage to equipment.
Always follow the applicable accident prevention and DIN regulations (particularly EN
60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own coun
-
try.
The covers of the power supply unit may ONLY be opened by appropriately qualified
personnel.
CAUTION
Data loss!
To avoid losing data, assess the following criteria before switching off your machine (apart
from in emergencies):
– Has the machine finished transmitting machine, setup and panel data?
– Has the machine finished processing the PCB?
– Has the machine completed the run-up phase?
2 Operational safety User manual SIPLACE E
2.8 Residual voltages and discharge times in the machine From software version SC 708.0 05/2015 Edition
88
2

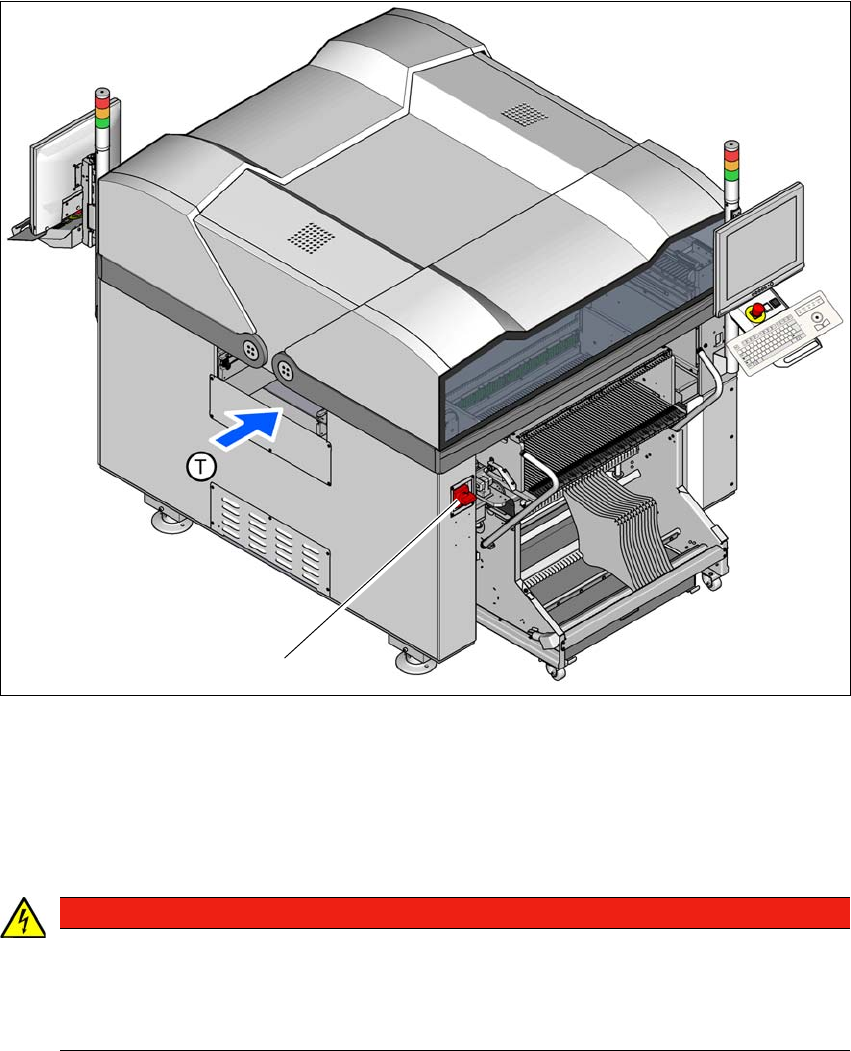

Fig. 2.8 - 1 Position of the main power switch
(1) Main power switch
2.8.1 Machine switched off at the main power switch
2
(1)
DANGER
Dangerous voltages at the main switch after switching off the machine
The input terminals of the main switch carry dangerous voltages after the machine has
been switched off at the main switch.
Never open the cover at the main switch.
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 05/2015 Edition 2.8 Residual voltages and discharge times in the machine
89
2.8.1.1 Residual voltages and discharge times after switching off the main switch
2
Fig. 2.8 - 2 Overview of the power supply unit
(1) Fuses
(2) Mains input terminals
(3) Connector to safety unit
(4) Safety contactors (behind the cover)
(5) Capacitor Module
DANGER
Dangerous voltages at the safety contactors after switching off the machine
After switching off the machine at the main switch,
Pos 4 - fig. 2.8 - 2 various compo
-
nents (e.g. capacitors) at the power supply unit can carry dangerous voltages for approx.
5 minutes. The contactor unit is safely protected behind a cover.
Never open the cover of the safety contractors Pos 4 - fig. 2.8 - 2.
(2)
(1)
(3)
(4)
(5)
