Safety Precautions
10
Tg1407-ID-SO
Notes on Machine Operations
This machine uses energetic driving systems and high voltage. This power and
voltage is high enough to cause death or serious injury. To avoid this danger,
respect the following guideline.
•
The machine must be used with the covers being attached.
•
Be sure to close the door before operating the machine.
•
Do not disengage the interlock mechanism of the door.
Whenever you feel danger or abnormality, immediately press the
[EMERGENCY STOP] switch to stop the machine.
If the machine is kept running in abnormal condition, an accident or a
breakdown will result.
When there is a problem with the machine, locate the cause and assess the
condition. Set the power breaker to "OFF".
After the problem has been rectified completely, reset the machine to its
normal condition.
When some industrial alcohol spills out of the solvent tank or the pan during
the operation, immediately stop the operation, turn off the power supply, and
wipe the spills with a rag, etc.
Do not bring such a tank close to any heat of fire to evaporate the spilt alcohol
because it can catch fire very easily.
When the green lamp of the light tower is ON or flickering (ON and OFF), it indicates
that the static machine is in the "Automatic" mode (standby mode).
In case of a disaster of any kind, earthquake, storm, flood, fire, or lightning,
immediately stop the machine and turn off the power supply.
0605-001
Contents
11
Page
Tg1407-ID-SO
Before Use ............................................................................................ 1
About the Instruction Manual ................................................................ 2
Caution and Warning ............................................................................ 3
Limited Warranty .............................................................................. 3
About Specification Change ............................................................. 4
Safety Precautions
1. About Safety Precaution Labels ..................................................... 5
2. Common Precautionary Items ........................................................ 7
Basic Precautions ............................................................................ 7
Precautions before Use ................................................................... 8
Notes on Machine Operations ......................................................... 10
Contents .............................................................................................. 11
1. Scope ............................................................................................. 12

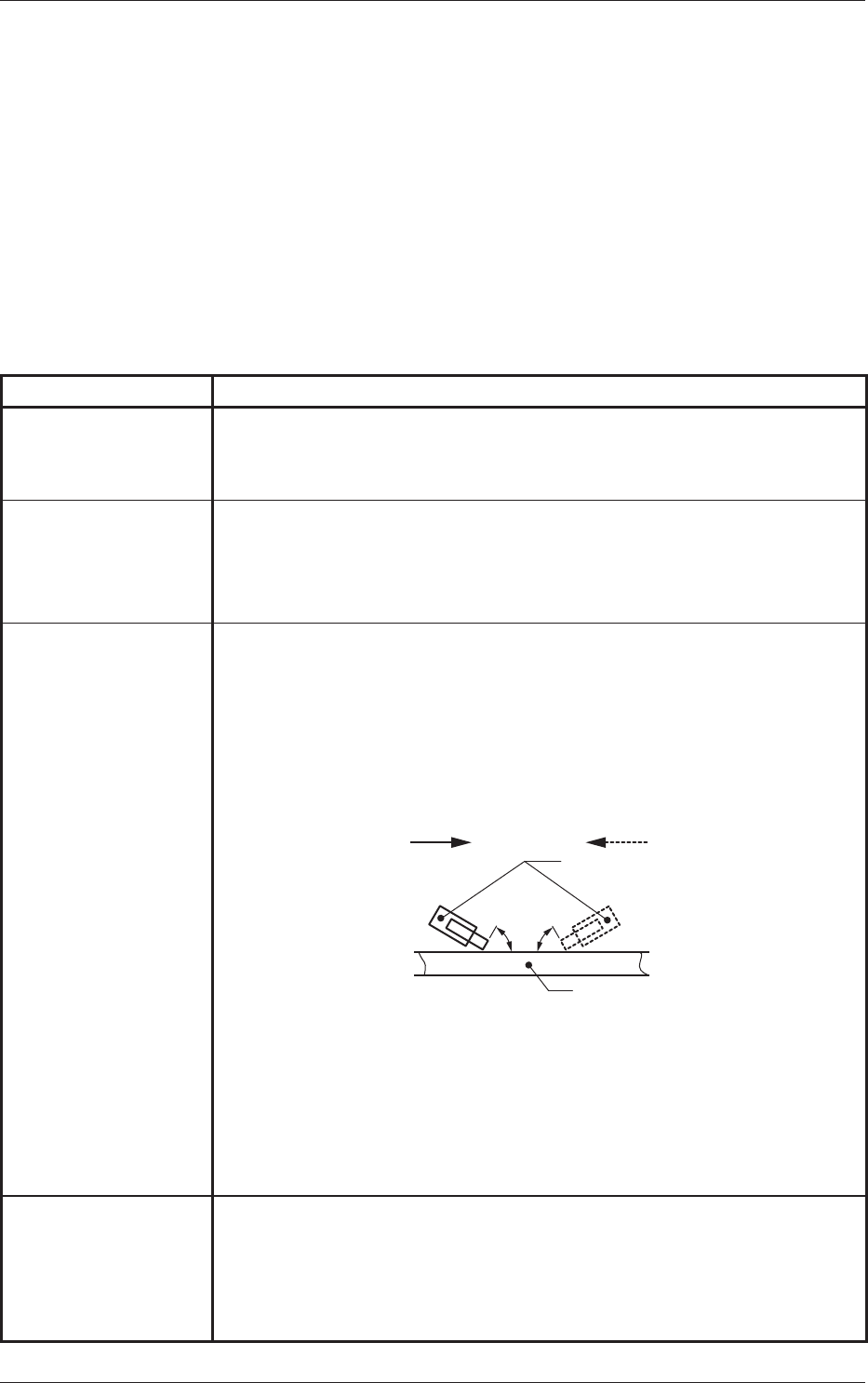

2.
Specifications
................................................................................. 12
3. Rough View .................................................................................... 14
4. Preparation before Pattern Program Creation ............................... 15
4.1. "Squeegee"Tab ....................................................................... 15
5. Creation of Pattern Program .......................................................... 16
0605-001
12
Tg1407-ID-SO
0605-001
1. Scope
The HR Squeegee enables high-speed printing by enhancing the rolling
solder paste with its unique mechanism.
This squeegee diminishes solder paste degradation by decreasing the contact
area between the solder paste and the squeegee, so reducing the adhesion of
the solder paste when the squeegee is lifted.
2.
Specifications
Table 1
Item Description
1.Features
•
High speed printing is possible.
•
Solder paste is minimally deteriorated.
2.Construction
•
Squeegee Holder
•
Squeegee Rubber
•
Screen Contact Type Run-Out Prevention
3.Squeegee to be used Material : Urethane Rubber, Hardness: 90° B
Geometry : Plane 6
×
30 mm
Setting Angle : About 60° (Fixed)
Printing Pressure : About 10 to 147N
(1.0 to 15 kgf)
PCB
Squeegee
60°
Squeegee Backing
Squeegee Forwarding
Front Side
Note :
(a) The solid lines show the squeegee when it is backing and the
dotted lines show the squeegee when it is forwarding.
(b) If the printing pressure is low, good printing might not be obtained,
depending on the size of the PCB. In such case, change the
printing conditions, including printing pressure.
4.Printable Patterns The fine patterns including 0603, 0402 components and P0.5CSP, are
available.
Note :
For half etching mask, consult with the marketing department or sales
agency for details.
1. Scope
