4. Preparation before Pattern Program Creation

The settings are so set that the HR squeegee can be selected on the pattern

program.

4.1

"Squeegee" Tab

•

Sheet Layout

When the [WIZARD] button in the "PLAN MODE" on the Product Change

submenu bar is pressed and then the [USER SETTING] button is also

pressed, the following tab sheet appears.

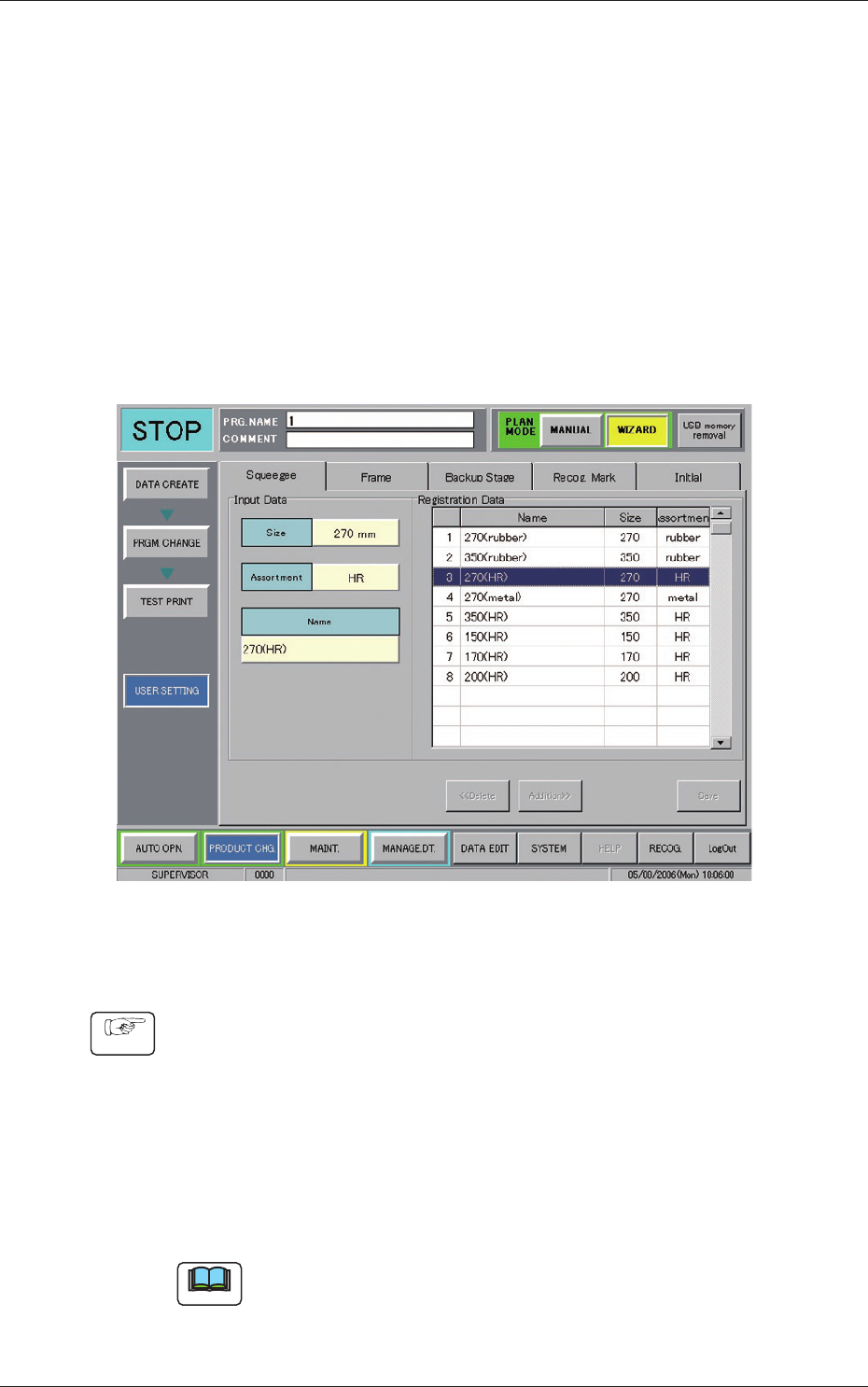

Fig. 1 "Squeegee" Tab

•

Squeegee Entry Procedure

Procedure

(1) Press the [Size] button and select the length of the squeegee to be

entered.

(2) Press the [Assortment] button and set the type of squeegee to be

entered to "HR".

(3) When the [Addition>>] button is pressed, the selected squeegee

is entered.

Note

The entered data is reﬂected on the "Squeegee Select" under the

"Print" tab on the "Pattern Program" edit window.

4. Preparation before Pattern Program Creation

Tg1407-ID-SO

0605-001

5. Creation of Pattern Program

•

"Pattern Program" edit window Layout

When the "Print" tab is pressed on the "Pattern Program" edit window and

then the "Squeegee Select" tab is pressed, the following window appears.

Fig. 2 "Pattern Program" edit window

Select the entered squeegee from the "Ten-key" display.

Reference

Refer to the main machine instruction manual for how to install the

squeegee.
