5. Creation of Pattern Program

•

"Pattern Program" edit window Layout

When the "Print" tab is pressed on the "Pattern Program" edit window and

then the "Squeegee Select" tab is pressed, the following window appears.

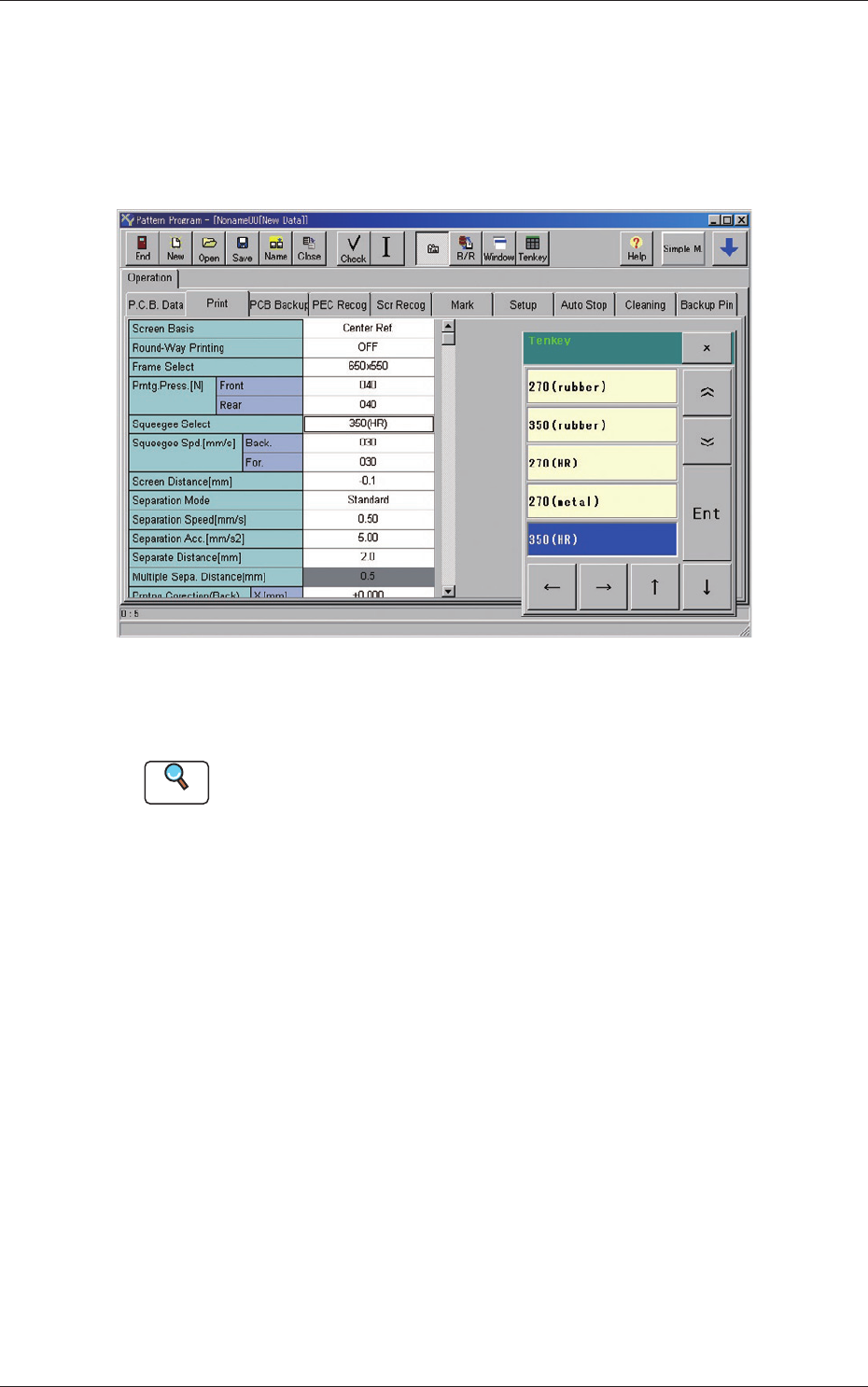

Fig. 2 "Pattern Program" edit window

Select the entered squeegee from the "Ten-key" display.

Reference

Refer to the main machine instruction manual for how to install the

squeegee.
