Page 1 of 2 The in - line Thermal Cure oven is ideal for mid - to - high volume p roduction and is designed for easy integration with all Nordson ASYMTEK co nformal coating system s. The CE - compliant oven feature s pre…

100%1 / 2
Page 1 of 2
The in-line Thermal Cure oven is ideal for mid-to-
high volume production and is designed for easy
integration with all Nordson ASYMTEK conformal
coating systems. The CE-compliant oven features
precise control of the conveyor speed and internal
thermal environment. As an IR/convection oven,
the infrared panels and exclusive heat dispersion
plates transfer heat by convection.
The TC oven is equipped with a unique downdraft
exhaust design. Plenums below the conveyor rails,
and close to the coated substrate, efficiently remove
volatile organic compounds (VOCs). This provides
a safe operating environment when coupled to an
external, customer-supplied exhaust system.
A touch-screen monitor makes it convenient to
operate the Windows
®
-based user interface, which
includes multi-language support, alarm log, event
history, auto-diagnostics, help files, and the ability
to store over 100 profiles. In addition, the TC oven
comes with two of the most popular temperature
profiling software tools in the industry (KIC and
ECD).
The oven accommodates substrates that contain tall
components on both the top and bottom sides. The
SMEMA-compatible chain conveyor allows double-
sided board processing, and can be easily integrated
into existing conformal coating lines. The
conveyor’s left-to-right workflow can be manually
adjusted.
The TC oven’s easy-access design makes it possible
to dismantle and replace heating elements and
convection units in under five minutes.
Features and Benefits
Flexibility is increased with four different
lengths available to match your production
requirements
Unique downdraft exhaust design provides
an efficient, safe path for VOC removal
Control your process with individual
heating zones that can be programmed
for specific drying or curing profiles
Increase productivity with a fast warm-up
and cool-down
Easy access to interior subassemblies
aids preventive maintenance and
cleaning
CE-certified to ensure conformity to the
safety and quality standards of the
European Community

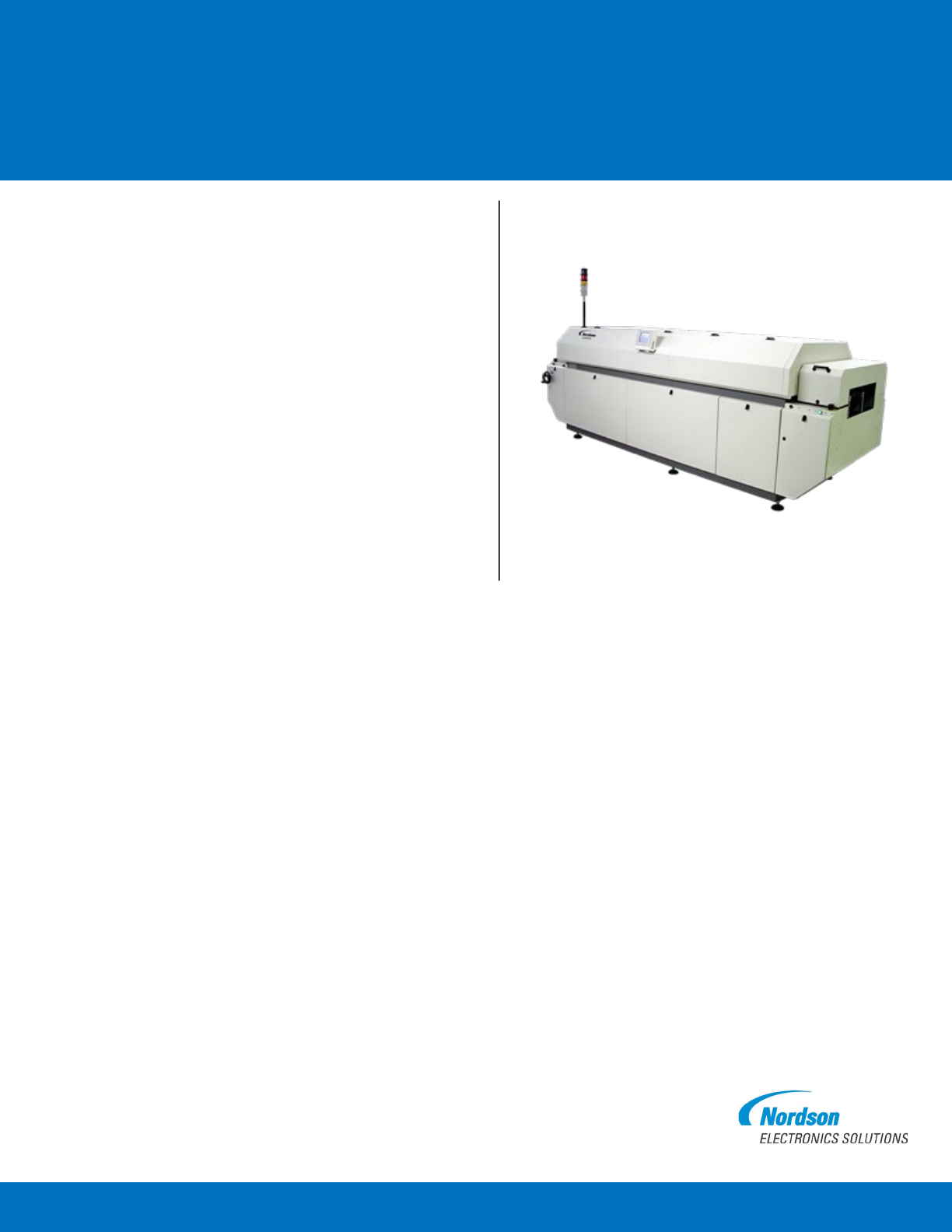

ASYMTEK Thermal Cure (TC) Oven
IR/Convection Oven for Conformal Coating Applications
Page 2 of 2
For more information, visit our website to find your local regional office or
representative.
We have several global locations to serve you.
North America
| Asia Pacific | EMEA
nordsonasymtek.com/global
-locations
info@nordsonasymtek.com
Thermal Cure (TC) Oven Specifications and Configurations
Thermal Environment
Maximum process temperature: 500 °C
Process profile repeatability: ±5 %
Heat-up time: 30 minutes (includes stabilization)
Conveyor
Board width
(1)
: 50-450 mm (2-17.7 in.)
Board clearance (above and under): 100 mm (3.9 in.)
Standard speed
(2)
: 165-1100 mm/min. (6.5-43.3 in./min.)
Pin/chain conveyor: 5 mm (0.2 in.)
Conveyor height: 900-980 mm (35.4-38.6 in.)
Other Standard Features
Portable computer control system, touch screen, Windows
®
operating system, KIC/ECD profiling software, 3-color light
tower, SMEMA compatible, CE compliant
Oven Configurations
Parameter TC-2400 TC-3000 TC-3600 TC-4800 TC-6600
Number of heating
zones
6
6
6
10 10
Heating length
2,400 mm
(94.5 in.)
3,000 mm
(118.0 in.)
3,600 mm
(141.7 in.)
4,800 mm
(189.0 in.)
6,600 mm
(259.8 in.)
Overall length
3,200 mm
(126.0 in.)
3,800 mm
(149.6 in.)
4,400 mm
(173.2 in.)
5,600 mm
(220.5 in.)
7,400 mm
(291.3 in.)
Overall width
1,250 mm
(49.2 in.)
1,250 mm
(49.2 in.)
1,250 mm
(49.2 in.)
1,250 mm
(49.2 in.)
1,250 mm
(49.2 in.)
Height excluding
monitor and light
beacon
1,380 mm
(72.8 in.)
1,380 mm
(72.8 in.)
1,380 mm
(72.8 in.)
1,380 mm
(72.8 in.)
1,380 mm
(72.8 in.)
Weight (without crate) 1,045 kg
(2,304 lbs.)
2,100 kg
(4,630 lbs.)
2,224 kg
(4,903 lbs.)
2,514 kg
(5,542 lbs.)
3,400 kg
(7,496 lbs.)
Voltage: Standard
400 VAC,
3-phase, 5-wire
400 VAC,
3-phase, 5-wire
400 VAC,
3-phase, 5-wire
400 VAC,
3-phase, 5-wire
400 VAC,
3-phase, 5-wire
Voltage: Americas
480VAC,
3-Phase, +
E 50/60 Hz
480VAC,
3-Phase, +
E 50/60 Hz
480VAC,
3-Phase, +
E 50/60 Hz
480VAC,
3-Phase, +
E 50/60 Hz
480VAC,
3-Phase, +
E 50/60 Hz
Power input
33 kW
39 kW
45 kW
57 kW
75 kW
Exhaust
requirements
(3)
600 m
3
/hr
(353 CFM)
650 m
3
/hr
(383 CFM)
700 m
3
/hr
(412 CFM)
750 m
3
/hr
(441 CFM)
800 m
3
/hr
(471 CFM)
(1)
Contact factory for widths up to 480 mm (18.9 in.)
(2)
Contact factory for speeds of 80-480 mm/min. (3.2-18.9 in./min.), or 300-1800 mm/min. (11.8-70.9 in./min.)
(3)
Customer-supplied exhaust requirements @ 40 mm (1.6 in.) water column, T= 90 °C
2747 Loker Avenue West
Carlsbad, CA USA 92010-6603
+1.760.431.1919
Published November 2020
