TS5622VU-DVD-Spare-Part-Guide

 TS5622VU ‐ DVD  Vertical  Diaphragm  Valve                  Item  Part  Number  Description  Item  Part  Number  Description  1  5620 ‐ 000 ‐ 004  End  Cap  11  TSD1103 ‐ 336  Fluid  …



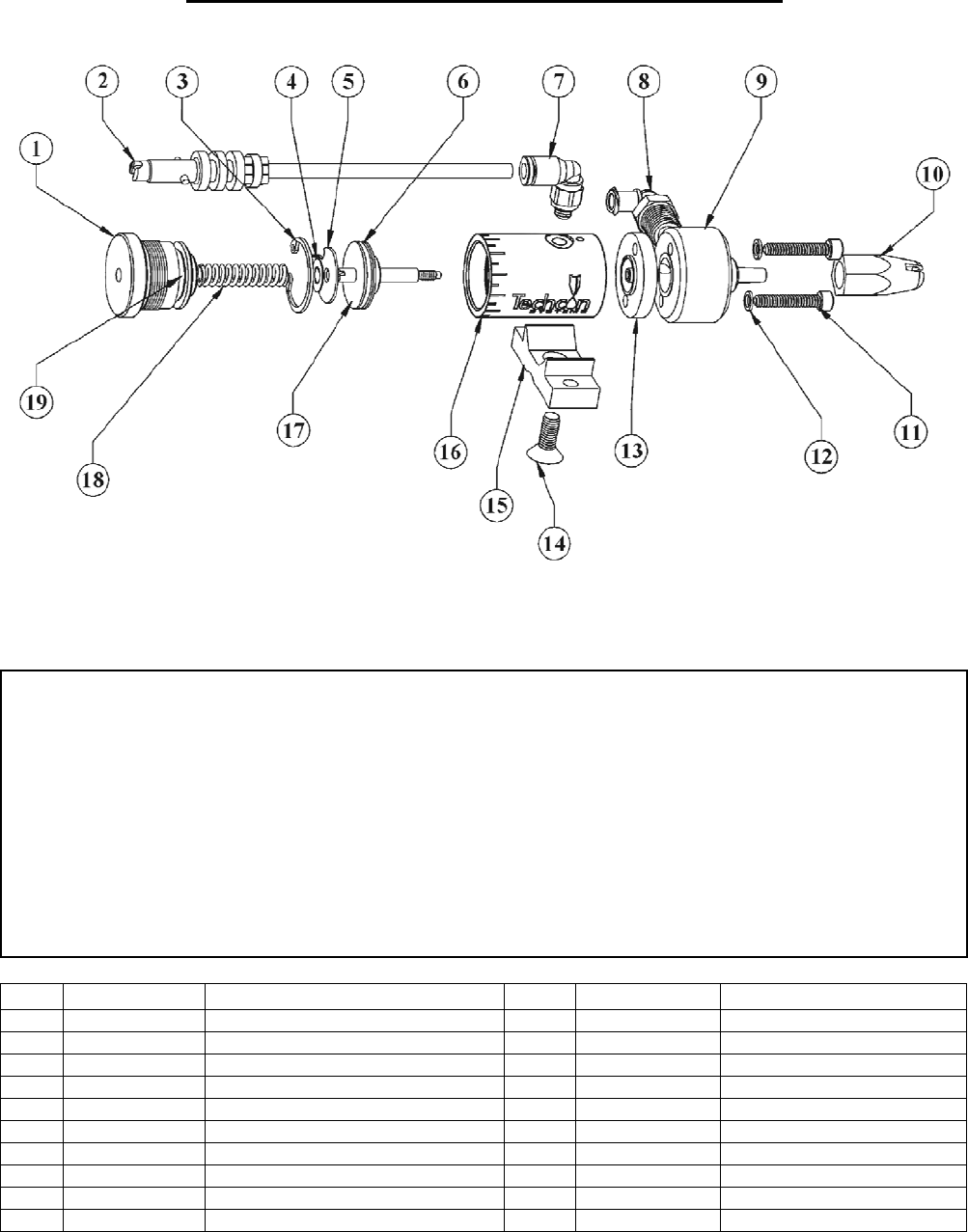

TS5622VU‐DVDVerticalDiaphragmValve



Item PartNumber Description Item PartNumber Description

1 5620‐000‐004 EndCap 11 TSD1103‐336 FluidHousingScrew

2 A0100478 AirHose/ConnectorAssy,4mm 12 TSD1109‐53 FlatWasher

3 TSD1120‐11 RetainingRing 13 5620‐000‐002 Diaphragm

4 TSD1109‐43 MylarWasher 14 TSD1106‐13 MountingScrew

5 5620‐000‐006 Anti‐RotateWasher 15 918‐000‐048 MountingBracket

6 TSD1400‐016A PistonO‐Ring 16 5620‐000‐003 AirCylinderAssy

7 TSD1003‐20 AirFitting,4mm,Elbow 17 5620‐000‐005 Piston

8 TSD931‐75 LuerLockAdaptor,Elbow 18 TSD1150‐40 Spring

9 5620‐000‐012 FluidHousing 19 TSD1400‐111A EndCapO‐Ring

10 5440‐000‐004 TipCap,FullBlock

DiaphragmKit=5620UHMW‐DKIT

Includes1x6,13,18and19



FluidHousingKit=5622VU‐DVD‐FHKIT

Includes1x8,9,10,2x11and2x12



Lubrication:AllO‐Rings&sealsmustbelubricatedwithBimbaHT‐99,orequivalent,withthe

exceptionof

theDiaphragm,whichmustremaindry.



BodyMountingScrewTorque:StainlessSteelrequires14inlb(1.58N‐m).
