INSTALLATION APPENDIX
SAFETY FEATURES
Chapter Issue 1 Feb 15 Appendix to Micron Technical Manuals 2.5
• Screen Alignment
• Rising Table
Only one button is required to drive the selected mechanism, the two buttons
are used to drive the mechanism in opposite directions, ie jog forward or jog
back.
Emergency
Shutdown
If an emergency stop is initiated via an EMO, all power and pneumatics to the
paired machines are removed. Electrical power remains to the M39 EMO
enclosure via the mains isolator but is removed from there to the M37 power
supply unit. Switching mains isolator to OFF removes electrical power from the
M39 EMO enclosure. Pneumatic supply is also closed off and any pressurised
air remaining within the machine’s system is vented via the pneumatic dump
valve.

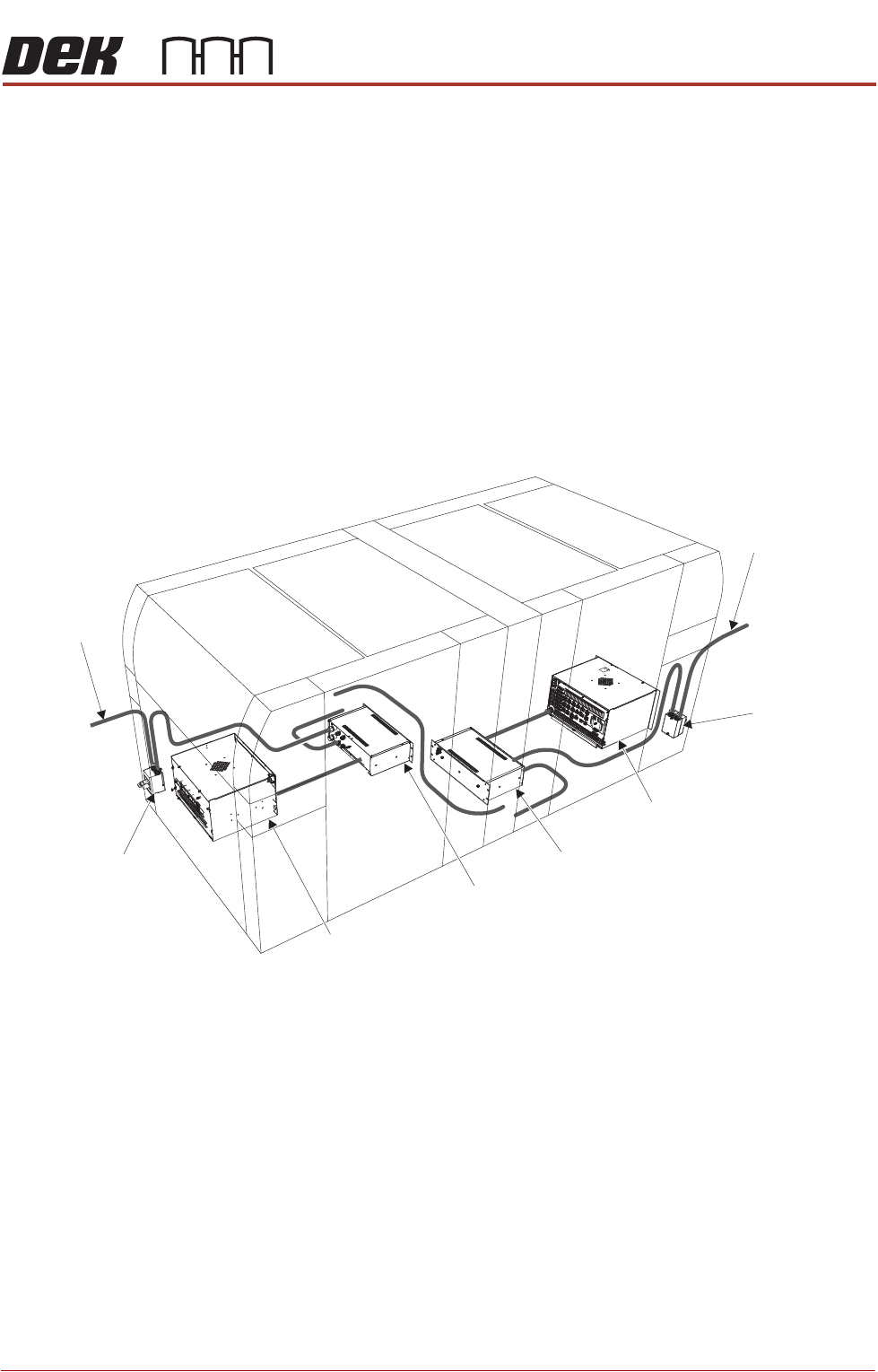

Figure 2-2 Mains Electrical Supply
From Factory
Mains Supply
Mains Isolator
Switch
M39 EMO Enclosure
M37 Power
Supply Enclosure
M37 Power
Supply Enclosure
Mains Isolator
Switch
From Factory
Mains Supply
M39 EMO Enclosure
INSTALLATION APPENDIX
SAFETY FEATURES
2.6 Appendix to Micron Technical Manuals Chapter Issue 1 Feb 15

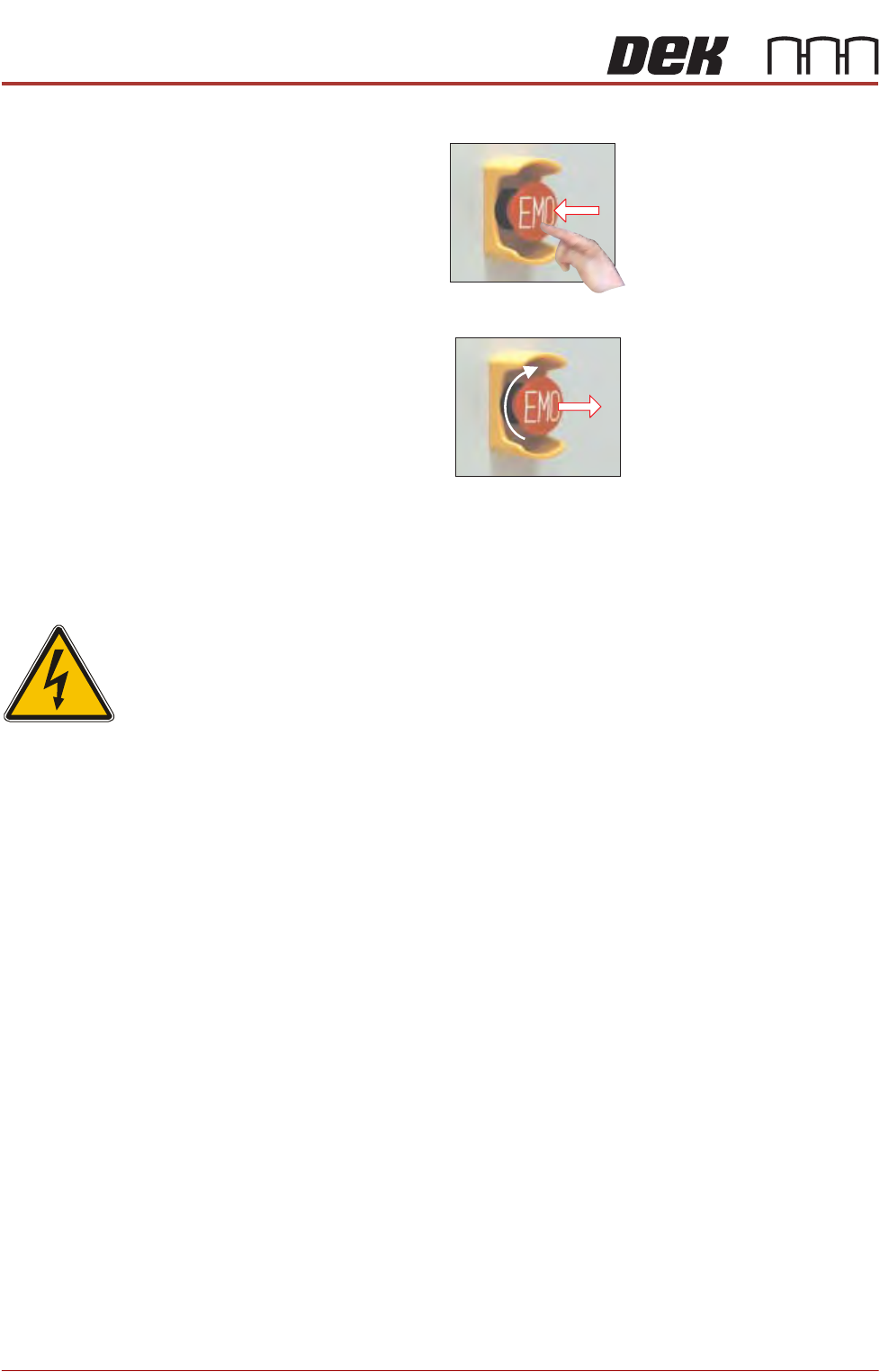

The EMO switch, once pressed, is a latching switch and requires resetting.
Recovery To reset the EMO, turn the button clockwise until it unlatches.
Press the Start button, to restore electrical and pneumatic power to the
machine. When prompted by a screen message press the System button.
Electrical Lockout
WARNING
LETHAL VOLTAGE. DANGEROUS VOLTAGES EXIST IN THIS EQUIPMENT.
ENSURE ALL ELECTRONIC COVERS AND MAIN MACHINE COVERS ARE
FITTED BEFORE OPERATING THIS EQUIPMENT.
Electrical lockout of the machine is achieved by applying a padlock, or any other
suitable locking device, through the centre pull-out section of the mains isolator
switch. This can only be achieved when the switch is in the OFF position.
To electrically lockout the machine, carry out the following procedure:
1. Close down the machine software.
2. Switch the mains isolator to the OFF position.
3. Pull the yellow centre section of the mains isolator switch out.
4. Fit a padlock or suitable locking device through the lockout point in the
INSTALLATION APPENDIX
SAFETY FEATURES
Chapter Issue 1 Feb 15 Appendix to Micron Technical Manuals 2.7
centre section of the switch.
5. This completes the electrical lockout.

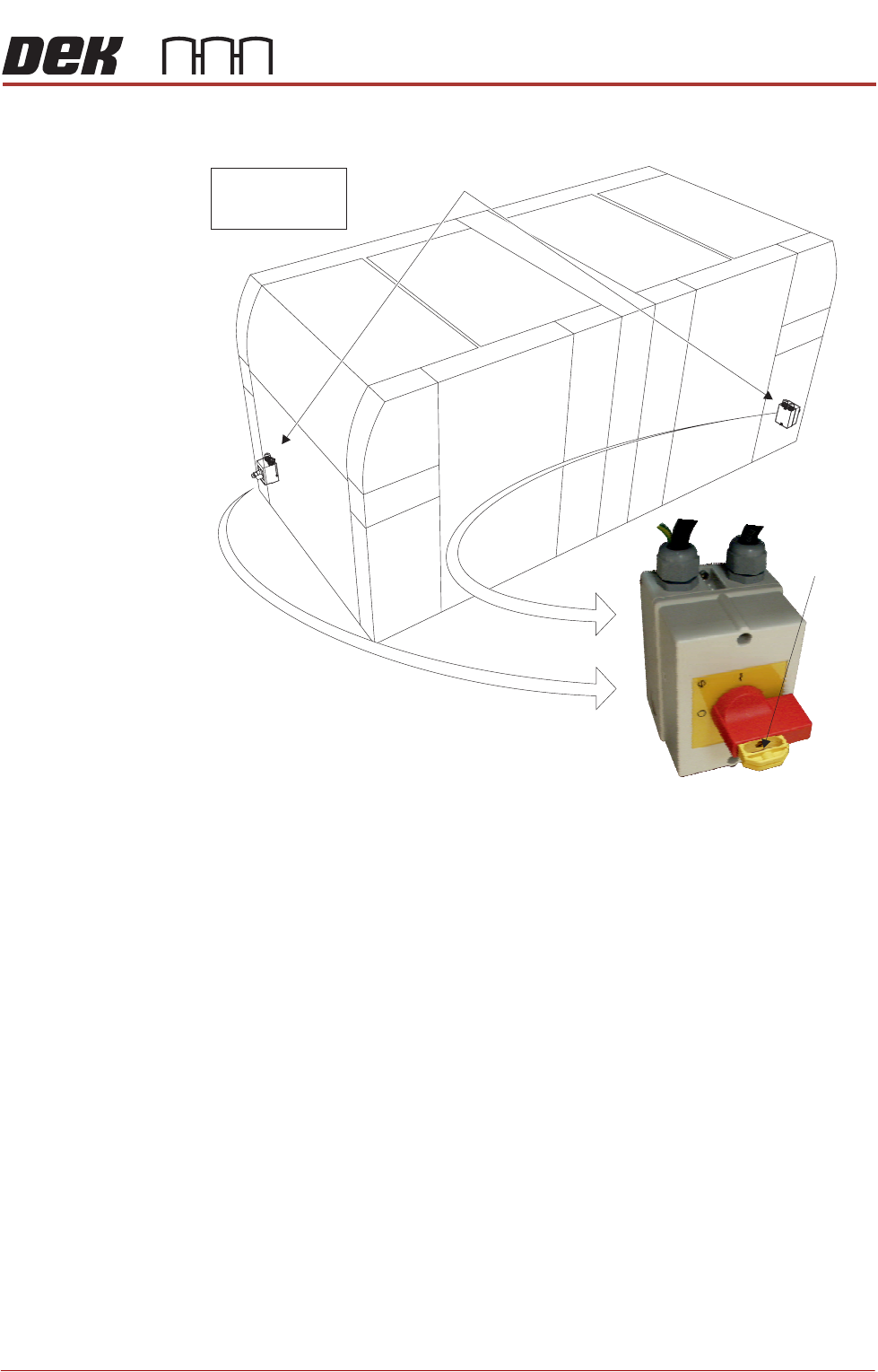

Mains Isolator Switch
NOTE
Switch shown in
the OFF position
Lockout
Point
