TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 4 Jan 10 Technical Reference Manual 16.15
8. Remove the H jigs and carry out the Front Rail Parallelism check as detailed
earlier in this chapter.
9. Refit the H jigs.
10. If both sets of linear guides fit snugly in the slots of the jigs, the rear transport
rail is parallel to the front rail, go to Step 15.
11. Loosen the four bolts securing the rear right hand side rail leg to the bearing
block.
12. Repeat Step 11 on the left hand side.
13. Reposition the rear rail until the linear guides fit snugly in the jig slots.
14. Tighten all eight securing bolts loosened in Steps 11 and 12.
15. Remove the H jigs.
16. Refit the machine panels removed in Step 4.
View on Right Hand Side of Transport Rails
Securing Bolts Securing Bolts
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
16.16 Technical Reference Manual Chapter Issue 4 Jan 10
Board Clamp Setting
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
NOTE
Board clamps are used in the following procedure, the procedure is identical for
foil-less clamps and snuggers.
1. Remove the belt guide from either side of the belt support plate.
2. Using feeler gauges, check that the gap between the rear board clamp and
the belt support plate is 0.325mm ±0.025mm. Ensure that the rear board
clamp is parallel to the belt support plate.
3. If adjustment is necessary, go to Step 8 for 250mm board clamps and
continue with Step 4 for 500mm board clamps.
Belt Support Plate
Belt Guide
Belt Guide
View on Rear Rail
Cross Section of Rear Rail Assembly
View on Rear Board Clamp
Rear Board Clamp
Belt Support Plate
Belt Support Plate
Rear Board Clamp
Moving Rail
0.325mm 0.025mm±
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 4 Jan 10 Technical Reference Manual 16.17
4. Remove the four board clamp securing screws and lift off the board clamp.
Retain the four screws.
5. Slacken the two location plate securing screws.
6. Place the board clamp in position, but do not fit the securing screws.
7. Go to Step 9.

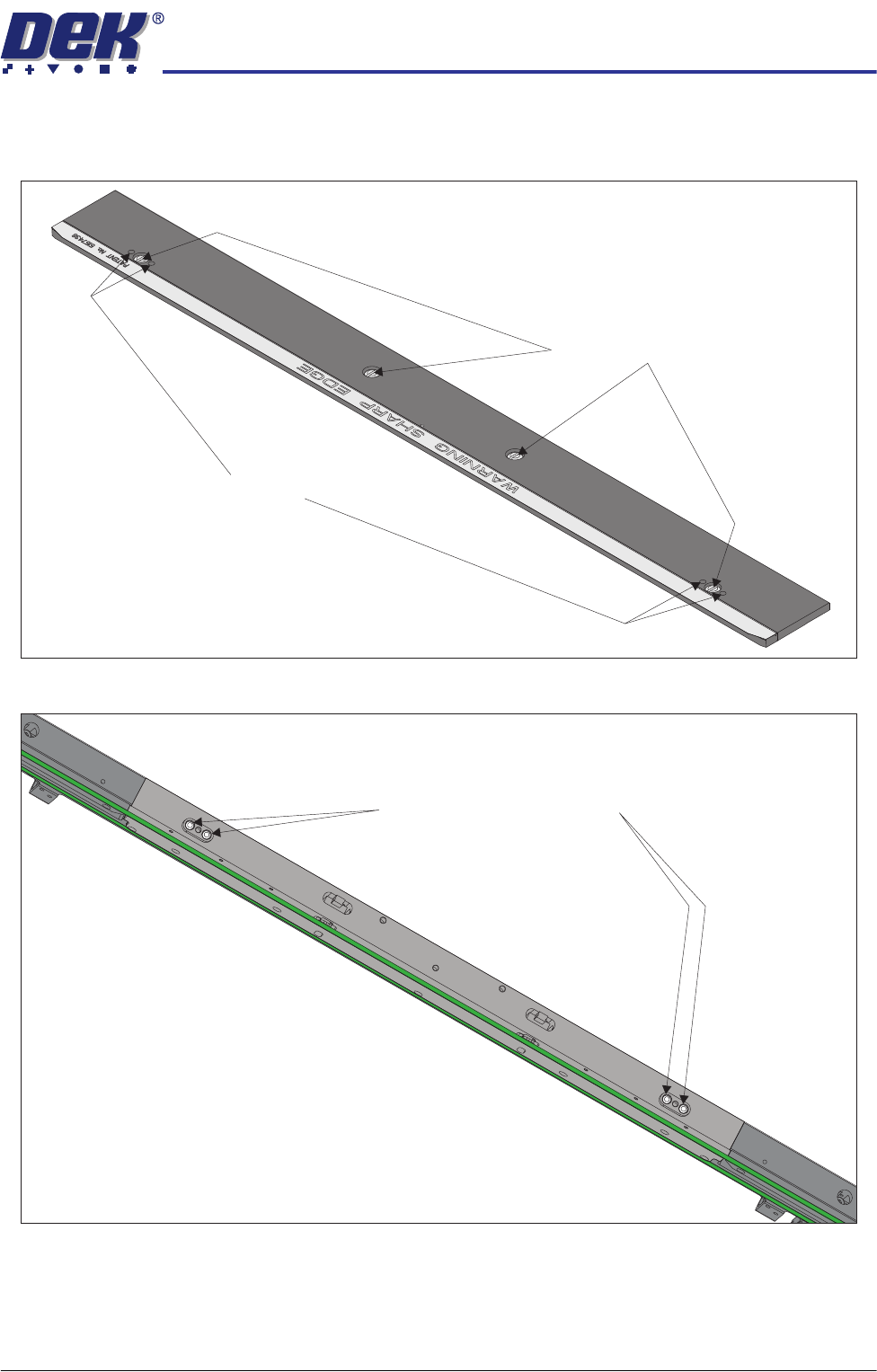

500mm Board Clamp Mechanism
Board Clamp Securing Screws
Access Holes
View on Rear Rail (Board Clamp Removed)
Location Plate Securing Screws
