TRANSPORT RAILS MODULE
REPLACEMENT PROCEDURES
Chapter Issue 4 Jan 10 Technical Reference Manual 16.33
Clamps to Snuggers
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
NOTE
This procedure is valid when converting from either board clamps or foil-less
clamps.
1. Select Open Cover Commands.
2. Select Carriage To Rear.
3. Select Unload Screen.
4. Open the front printhead cover.
5. Remove the screen from the machine.
TRANSPORT RAILS MODULE
REPLACEMENT PROCEDURES
16.34 Technical Reference Manual Chapter Issue 4 Jan 10
6. Remove the securing screws from the rear board clamp and remove the
board clamp.
7. Repeat Step 6 for the front board clamp.
8. Fit the appropriate snugger base plate to the rear rail and secure using the
M4 pan head screws.

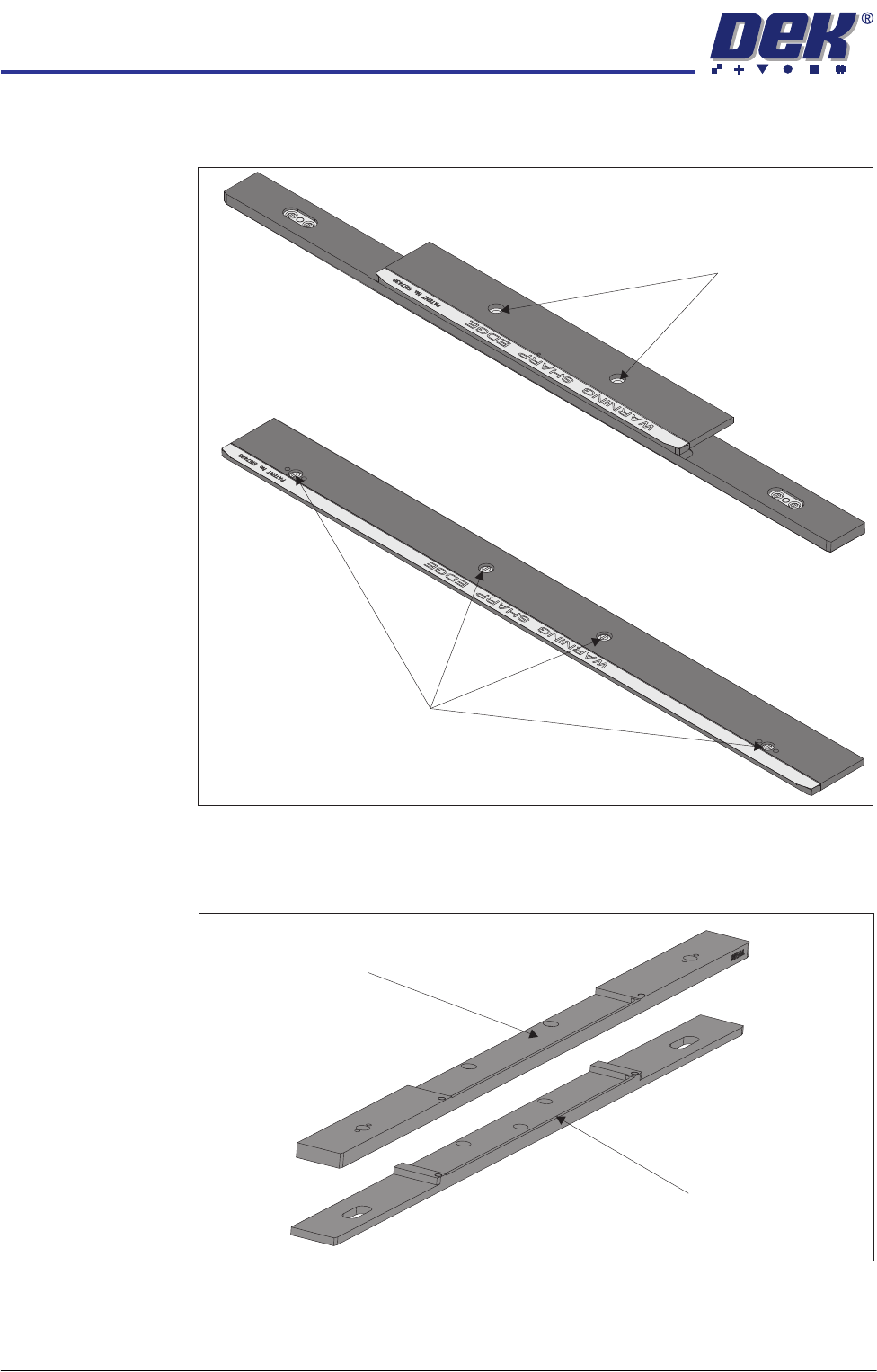

500mm Board Clamp Mechanism
Board Clamp Securing Screws
250mm Board Clamp Mechanism
Board Clamp Securing Screws
Snugger Base Plate -
Fixed Width Chase
Snugger Base Plate -
Adjustable Screen Mount (ASM)
TRANSPORT RAILS MODULE
REPLACEMENT PROCEDURES
Chapter Issue 4 Jan 10 Technical Reference Manual 16.35
9. Fit the appropriate front snugger plate to the front rail and secure using the
M4 pan head screws.
10. Fit the rear snugger plate, don’t tighten the M4 pan head securing screws.
11. Close the front printhead cover.
12. Press the System button.

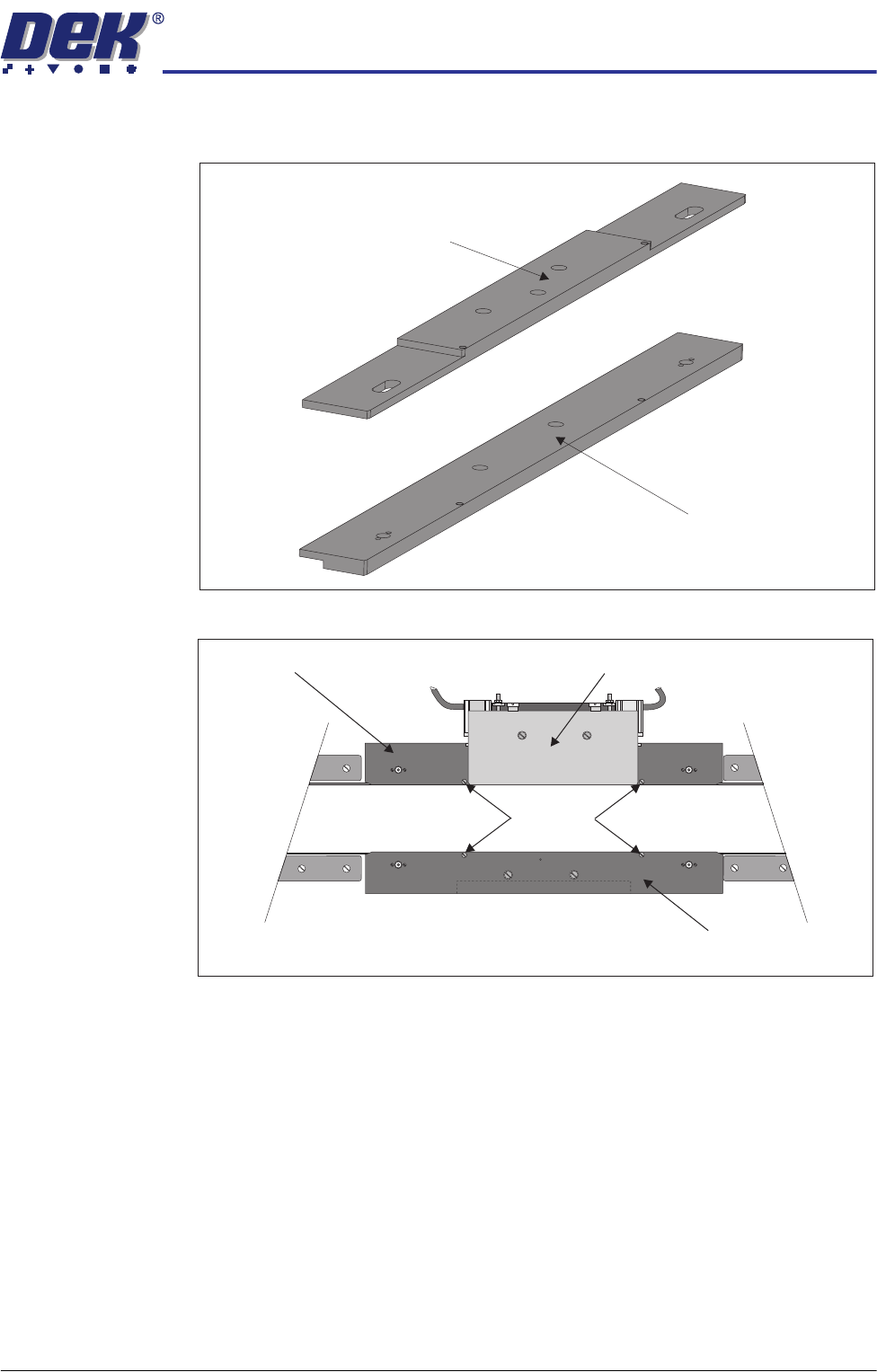

Front Snugger Plate -
Fixed Width Chase
Front Snugger Plate -
Adjustable Screen Mount (ASM)
Rear Snugger Plate
Front Snugger Plate
Downstops
Plan View of Rail System
Snugger Base Plate
