TRANSPORT RAILS MODULE
OVERVIEW
Chapter Issue 4 Jan 10 Technical Reference Manual 16.3
Figure 16-1 Board Clamping Arrangements
Board
Transport Belts
Rear Board Clamp
Board Clamps
Board
Transport Belts
Rear Snugger Plate
Counterweight Block
Board Snuggers
Board
Transport Belts
Rear Foil-less Clamp
Foil-less Clamps
TRANSPORT RAILS MODULE
ELECTRICAL SCHEMATIC
16.4 Technical Reference Manual Chapter Issue 4 Jan 10
ELECTRICAL SCHEMATIC
Machine PC
Motherboard
Machine Control Enclosure
Front Belt
Drive (8M03)
Rear Belt
Drive (8M04)
DIG IN 10
DIG IN 11
Rail Lift Left
(8SE5)
Board at Right
Sensor (8SE7)
Board at Left
Sensor (8SE8)
8PL10
8PL04
M36PL17
8PL03
Sig
Sig
+12V
+12V
+12V
(L)
0V
0V
8PL12
DIG IN 6
Sig
0V
M36PL22
Moving Rail
Stepper
Motor 2B-
Motor 2A-
Motor 2B+
Motor 2A+
8PL20
8M2
Dual Stepper
X3
NextMove
Interface Card
X4
M
Enable
Direction
24V SW
0V
M
Enable
Direction
24V SW
0V
8SK21
8PL22
8SK23
M36PL18
!DIG OUT 3
DIG OUT 3
DIG OUT 2
DIG OUT 2
NextMove ES
(I/O Node 1)
X5
Board Clamp/
Snugger Solenoid
(16SOL10)
DIG OUT 9
GND
Main Machine
I/O Node 2
N2PL4
CAN Bus
N2SK2
USB
Moving Rail
Home (8SE6)
8PL26
M36PL19
+12V
0V
Sig
DIG IN 5
Rail Lift Right
(8SE4)
+12V
(L)
8PL15
DIG IN 7
Sig
0V
NOTE
The breaks in the CAN Bus
chain reflect that additional
I/O Nodes may be fitted,
refer to Machine Control
chapter for the complete
CAN Bus chain.
N/C
N/C
(L)
TRANSPORT RAILS MODULE
ADJUSTMENTS AND SETTINGS
Chapter Issue 4 Jan 10 Technical Reference Manual 16.5
ADJUSTMENTS AND SETTINGS
Rail Lifted
Sensors
1. Select Maintenance.
2. Select Diagnostics.
3. Use Next or Previous to highlight Rising Table.
4. Select Select Module.
5. Ensure that Home Rising Table is highlighted.
6. Select Run Diagnost.
7. Select Exit.
8. Use Next or Previous to highlight Rail System.
9. Select Select Module.
10. Ensure that Home Rail Width is highlighted.
11. Select Run Diagnost.

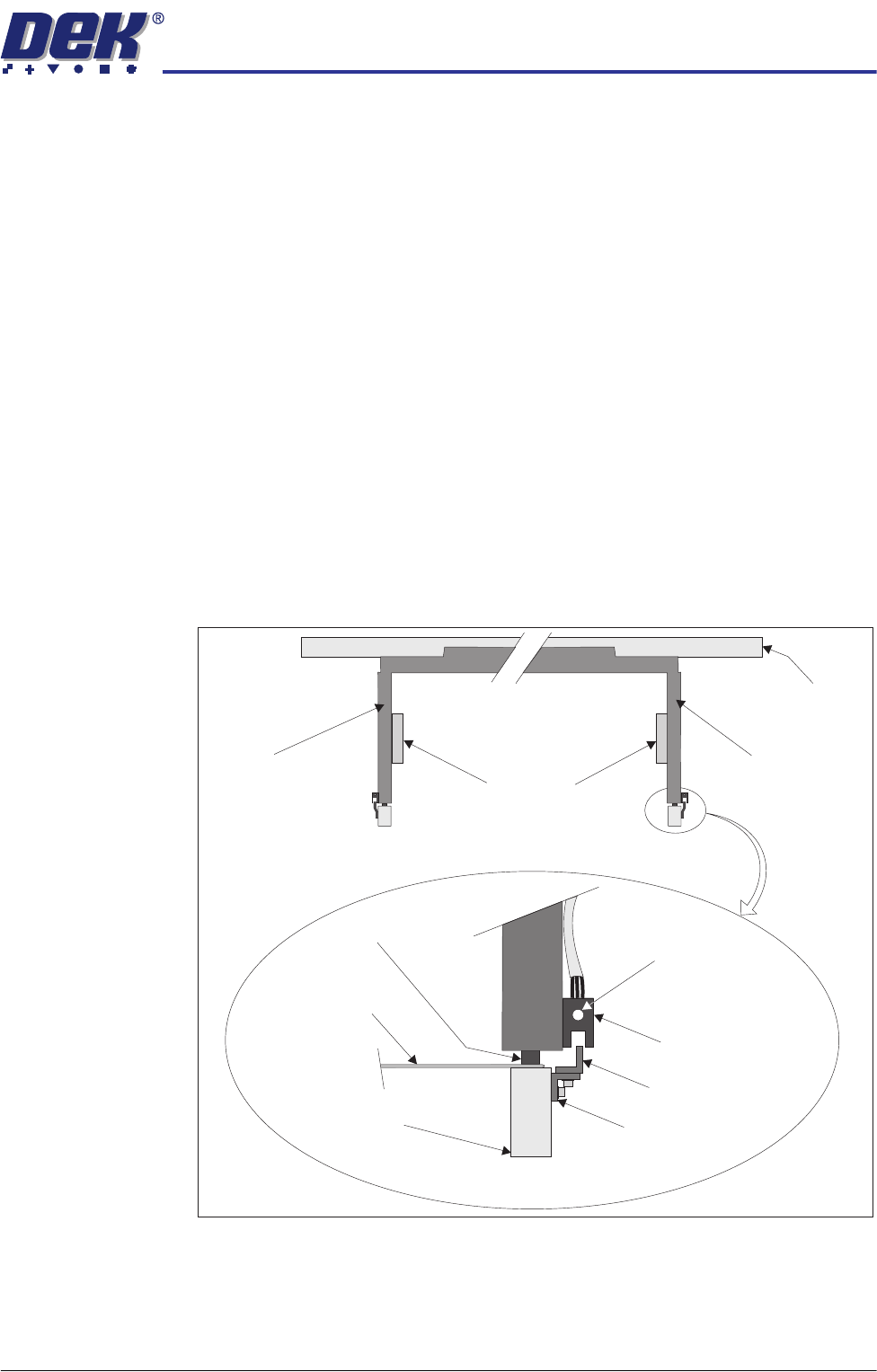

12. Remove the left and right hand safety covers to gain access to the rear rail.
13. Place a 0.5mm feeler gauge between the rail shock absorber on the rear
right rail transport leg and the rail stop bar (clatter bar).
Right Transport Leg
Rear Rail
Front View of Rail System
Left Transport Leg
Linear Bearing
Feeler Gauge
Rail Stop Bar
(Clatter Bar)
Opto Vane
Bracket
Opto Vane
Opto
Shock Absorber
Sensor LED
Enlarged View of Right Rail Opto
