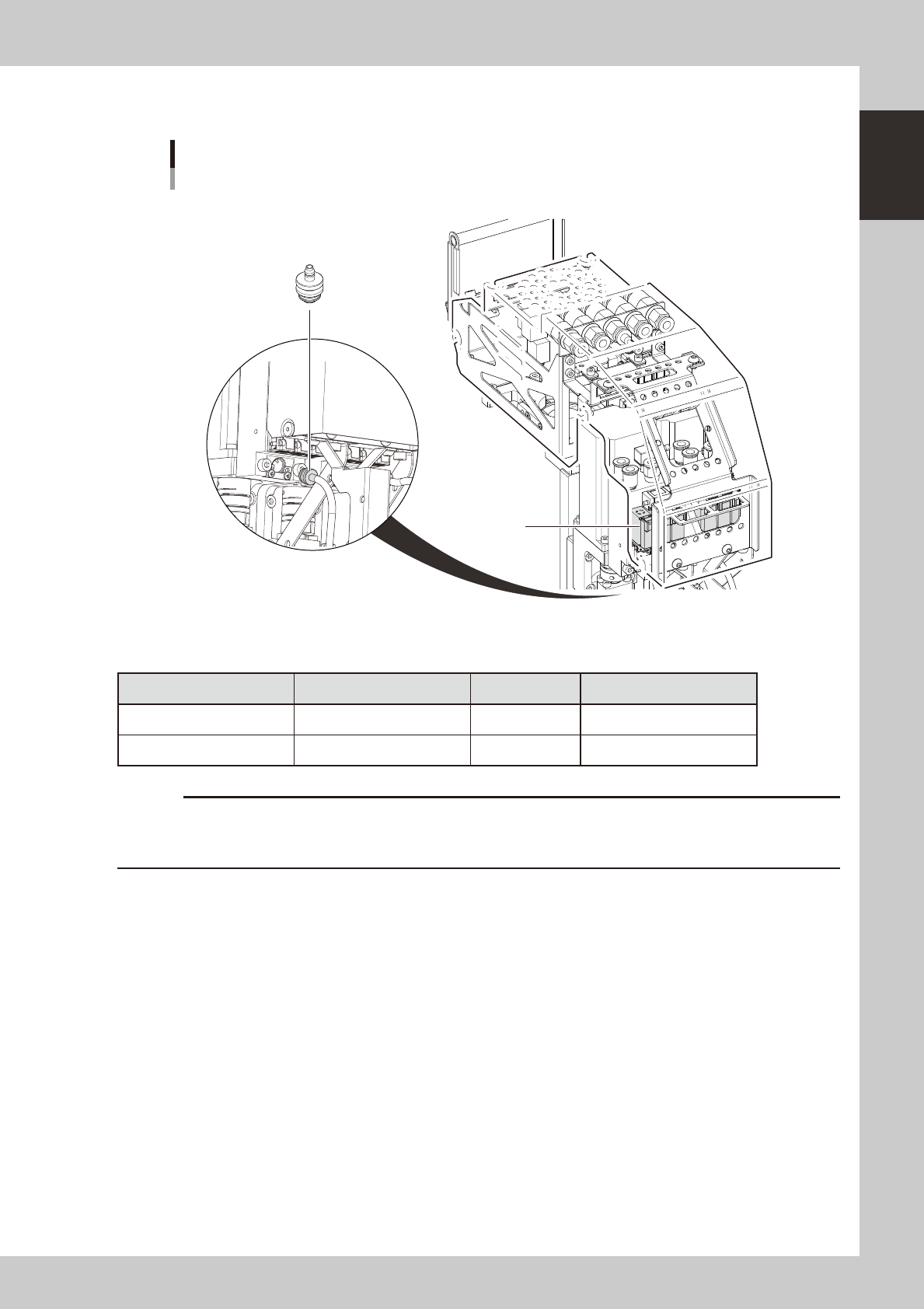

2.3.3 FL head unit
Replaceable parts
FL head (illustration shows connector, and air hose detached)
Switching valve
Filter-side joint
53113-N5-00
Product Name Parts List Designation Parts No. Note
Switching valve VALVE KLF-M7153-00X
Filter-side joint FILTER JOINT KLF-M7155-00X
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
1-12
1
Maintenance
2.3.4 Replaceable parts for all models
Product Name Parts List Designation Parts No. Note
Conveyor belt (conveyance)
BELT, CONVEYOR 1 KLF-M9110-00X Lane 1 side, length: 1180mm
BELT, CONVEYOR 2 KLF-M9117-00X Lane 2 side, length: 1256mm
Filter for blow station INLINE FILTER KGR-M9934-01X
Controller dust filter MEDIA FILTER KLA-M53A9-00X System
Controller dust filter FILTER KLA-M53A8-00X Servo
Top cover fan filter FILTER,TOP COVER FAN KLF-M130J-00X
Circuit protector fan filter FILTER,CP,FAN KLF-M115J-00X
Rear base fan filter FILTER,REAR BASE FAN KLF-M131J-00X
Filter element FILTER ELEMENT KLF-M8502-50X Air filter
Element assembly MIST FILTER ELEMENT KLF-M8502-70X Mist filter
Vacuum pump maintenance set PUMP SPARE SET
KLF-M86P0-00X
Cup packing, etc.
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
1-13
1
Maintenance
2.4 Maintenance tools

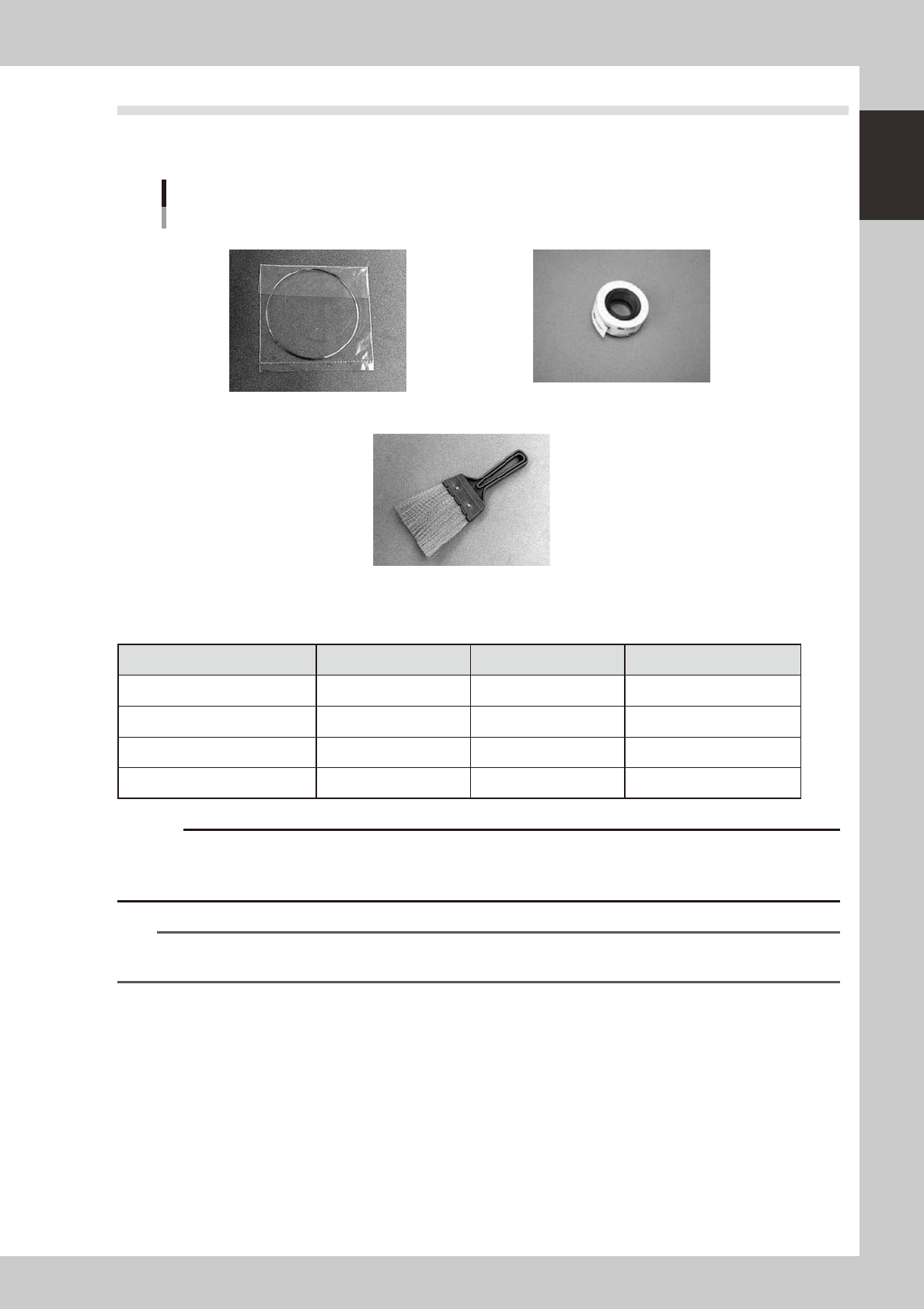

2.4.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Feeder plate cleaning brush
Nozzle cleaning wire
Nozzle tip cleaning tape
53105-N5-10
n
Cleaning tools
Partssuppliedwithmachine
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8880-20X
Hook for cleaning brush HOOK KGA-M13B9-00X
c

The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was

ordering parts.
n
NOTE
Nozzle tip cleaning tape (double-sided tape) is used for nozzle tip cleaning. Nozzles must also be cleaned with an
ultrasonic cleaner (option) or IPA before they are used.
