3-40 3 Periodic maintenance items 4.1.4 Side-view camera (HS head) T helightdiffuserplate(springholder)andmirroroftheside-viewcameraareattachedtothehead.Sincethelightdiffuser plateormirrorofthes…

100%1 / 160
3-39
3
Periodic maintenance items
4.1.3 Side-view camera (multi-camera installed type)
Thecleaningprocedurefortheside-viewcamera'slightingunit(multi-camerainstalledtype)isgivenbelow.
1
Clean the mirrors at both sides.
1. Turn the machine air OFF.
2. Grasp the lighting UP/DOWN area and lift
it up, then clean the mirrors using a cloth
or cotton swab dampened with a small
amount of lens cleaner.
53345-N5-00
2
Clean the lighting side.
As shown in the figure at right, wipe the
lighting with a cotton swab dampened with
a small amount of lens cleaner.
53346-N5-00
3
Clean the camera side.
As shown in the figure at right, wipe the
cover with a cotton swab dampened with a
small amount of lens cleaner.
53347-N5-00
TIP
The optical brush and lens cleaner are optional
purchase items.
Cleaning the mirrors
Step 1
Grasp here and
lift upward
Cotton swab dampened
with lens cleaner
Cleaning the lighting
Step 2
Grasp here and
lift upward
Cotton swab dampened
with lens cleaner
Cleaning the camera side
Step 3
Clean this area
(top side)
Camera
Cotton swab dampened
with lens cleaner
3-40
3
Periodic maintenance items

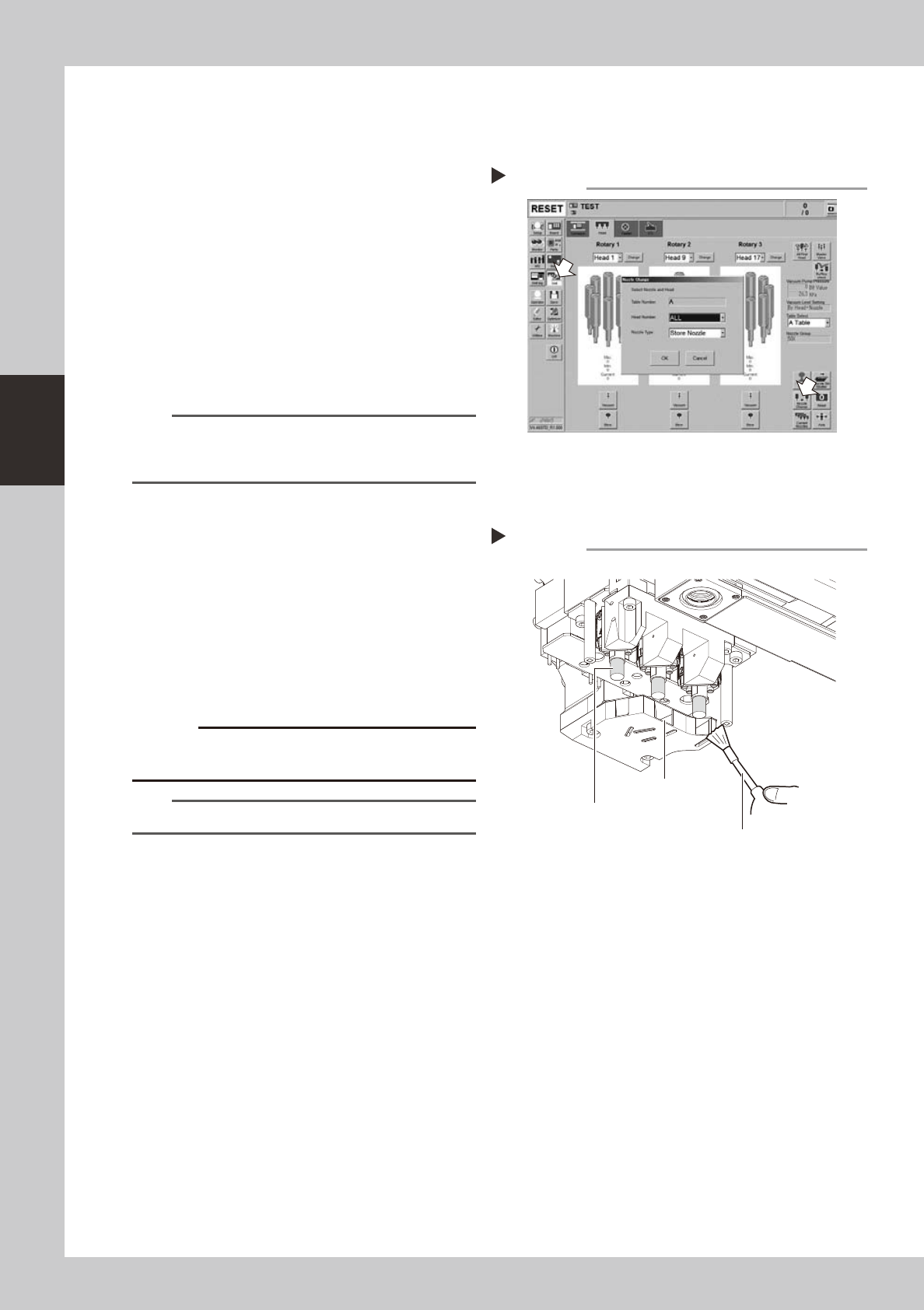

4.1.4 Side-view camera (HS head)
Thelightdiffuserplate(springholder)andmirroroftheside-viewcameraareattachedtothehead.Sincethelightdiffuser
plateormirroroftheside-viewcameramaybecontaminatedbydust,itisrecommendedtocleanthemperiodically.
1
Store all nozzles.
1. Press the [Unit] button to open the [Head]
tab screen. Press the [Nozzle Change]
button.
2. In the “Nozzle Change” dialog box,
select “ALL” in the “Head Number” field
and “Store nozzle” in the ”Nozzle Type”
field.
3. Press the [OK] button to store the nozzles
of all heads.
54313-N2-00
n
NOTE
When the machine is not equipped with a nozzle
station, press the [Emergency Stop] button and remove
the nozzles by hand.
e
2
Move the head.
Press the [Emergency Stop] button and
move the head unit to an easy work position
by hand.
3
Clean the opening and spring
holder.
Use an optical brush to remove the dust
from the opening and spring holder.
533G1-N2-00
c


surface of the diffuser plate to be discolored.
TIP
The optical brush is an optional purchase product.
Storing the nozzles
Step 1
Cleaning the opening and spring holder
Step 3
Opening
Spring holder (diffuser plate)
Optical brush
3-41
3
Periodic maintenance items
5. One-year inspection
n
When carrying out inspection without removing the head
e
Takethefollowingprecautionstocarryoutinspection.
1.Takeoffthewristwatch,magneticIDcards,andanyitemssusceptibletomagneticfields.
2.Presstheemergencystopbuttontostopthemachine.
3.Placeasquareclothunderthelocationwhereinspectionistobecarriedout.
c



5.1 MU head
5.1.1 Cleaning the spline shaft
Adheredforeignmatterandsoilinginsidethesplineshaft'sairpassagescancausepickupandplacement
errors.Topreventthis,thespineshaftinteriorshouldbecleanedonceperyear(generalguideline),although
thismayvarysomewhatdependingonthesuppliedairconditionandtheoperatingtime.
1
Remove the nozzles from all heads.
Either remove the nozzles by hand, or place
all nozzles in the nozzle station.
2
Disconnect the air hose from each
spline shaft.
Disconnect all air hoses from the bearing
holders at each head.
53334-N5-00
3
Prepare the cleaning kit (KHN-
M8860-00X).
1. Pour IPA (isopropyl alcohol) into the
container of the cleaning kit.
2. Spread a cloth directly below the
working position, or place a paper cup,
etc., there.
53335-N5-00
c



Disconnecting the air hoses
Step 2
Air hose
Bearing holder
Cleaning kit
Step 3
Pump
Nozzle
IPA
