3-53 3 Periodic maintenance items 5.5.2 Cleaning and lubricating the W-axis guide 1 Make the prepar ation for cleaning. e 1. Remove all items that are affected by magnetism, such as a watch and ID card. 2. Press the emer…
3-52
3
Periodic maintenance items
5.5 W-axis
5.5.1 Cleaning and lubricating the W-axis ball screw
1
Make the preparation for cleaning.
e
1. Remove all items that are affected by
magnetism, such as a watch and ID
card.
2. Press the emergency stop button.
3. Lower the feeder exchange carriage by
using the clamp switch and remove the
feeder exchange carriage.
2
Set the Lane 1 conveyor to its
maximum width.
1. Press the [Device] button to perform axis
movement and set the Lane 1 conveyor
to its maximum width.
2. Lower the push-up plate.
3
Remove the push-up plate.
e
1. Press the [Emergency Stop] button.
2. Use a hexagon wrench (4) to remove the
4 bolts which secure the push-up plate,
then remove the push-up plate.
53350-N5-00
w
WARNING
4
Clean the ball screw.
Using a cloth, etc., which produces no lint,
clean the entire ball screw, wiping off all
soiling and old grease.
53351-N5-00
c
Carefully wipe the lead grooves of the ball screw during
is not produced.
5
Apply grease.
Apply the specified grease (NSL) by hand
uniformly over the surface and lead grooves
of the ball screw.
53352-N5-00
6
Remount the push-up plate.
n
NOTE
Perform the Lane 2 cleaning and lubrication in the
same manner as the Lane 1 procedures.

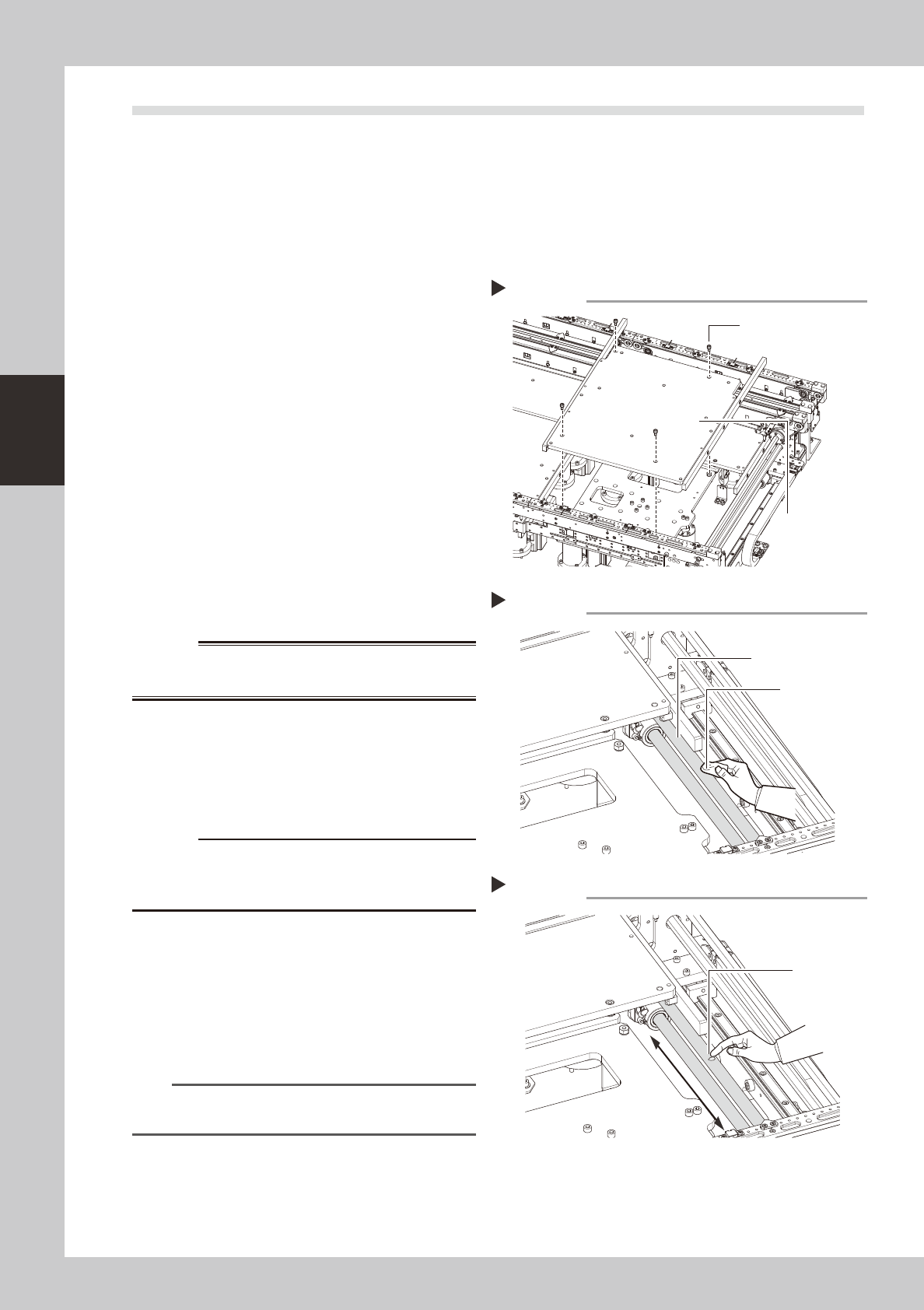

Removing the push-up plate
Step 3
Push-up plate securing
bolts (4 bolts)
Push-up plate
Cleaning the ball screw
Step 4
Cleaning cloth
Ball screw
Applying grease
Step 5
Apply a uniform
coating.
Grease
3-53
3
Periodic maintenance items
5.5.2 Cleaning and lubricating the W-axis guide
1
Make the preparation for cleaning.
e
1. Remove all items that are affected by
magnetism, such as a watch and ID
card.
2. Press the emergency stop button.
3. Lower the feeder exchange carriage by
using the clamp switch and remove the
feeder exchange carriage.
2
Set the Lane 1 conveyor to its
maximum width.
1. Press the [Device] button to perform axis
movement and set the Lane 1 conveyor
to its maximum width.
2. Lower the push-up plate.
3
Remove the push-up plate.
e
1. Press the [Emergency Stop] button.
2. Use a hexagon wrench (4) to remove the
4 bolts which secure the push-up plate,
then remove the push-up plate.
53350-N5-00
w
WARNING
4
Clean the guide.
Using a cloth, etc., which produces no lint,
clean the entire guide, wiping off all soiling
and old grease.
53353-N5-00
5
Apply grease.
Use a grease gun (30° bend type) to inject
the prescribed grease (NSL) at the W-axis
guide's grease nipples.
53354-N5-00
6
Remount the push-up plate.
n
NOTE
Perform the Lane 2 cleaning and lubrication in the
same manner as the Lane 1 procedures.
Removing the push-up plate
Step 3
Push-up plate securing
bolts (4 bolts)
Push-up plate
Cleaning the guide
Step 4
Cleaning cloth
Guide
Applying grease
Step 5
Grease nipple
Grease gun (30° bend type)
3-54
3
Periodic maintenance items
5.6 PU axis
5.6.1 Cleaning and lubricating the PU axis ball screw
1
Make the preparation for cleaning.
e
1. Remove all items that are affected by
magnetism, such as a watch and ID
card.
2. Press the emergency stop button.
3. Lower the feeder exchange carriage by
using the clamp switch and remove the
feeder exchange carriage.
2
Set the Lane 1 conveyor to its
maximum width.
1. Press the [Device] button to perform axis
movement and set the Lane 1 conveyor
to its maximum width.
2. Lower the push-up plate.
3
Remove the push-up plates (at
Lanes 1 & 2).
e
1. Press the [Emergency Stop] button.
2. Use a hexagon wrench (4) to remove the
4 bolts which secure the push-up plate,
then remove the push-up plate.
3. Release the Emergency Stop status, then
press the [Device] button to perform axis
movement which raises the PU axis to its
maximum height.
53350-N5-00
w
WARNING
4
Clean the ball screw.
e
1. Press the [Emergency Stop] button.
2. Using a cloth, etc., which produces no
lint, clean the entire ball screw, wiping
off all soiling and old grease.
53355-N5-00
c
Carefully wipe the lead grooves of the ball screw during
is not produced.
5
Apply grease.
Apply the specified grease (NSL) by hand
uniformly over the surface and lead grooves
of the ball screw.
53356-N5-00
6
Remount the push-up plate.
e
Cancel emergency stop and lower the push-
up unit. Then press the emergency stop
again and reinstall the push-up plate.
Removing the push-up plate
Step 3
Push-up plate securing
bolts (4 bolts)
Push-up plate
Cleaning the ball screw
Step 4
Cleaning cloth
Ball screw
Applying grease
Step 5
Grease
