5-4 5 Lubrication points and schedule 2.2 Y -axis 2.2.1 4-beam type Y -axis lubrication points Guide Grease gun: Manual lubrication: Y -axis guide (D-table) Y -axis guide (C-table) Y -axis guide (B-table) Y -axis guide (…
5-3
5
Lubrication points and schedule
2.1.2 2-beam type
X-axis lubrication points (2-beam)
Ball screw & guide
X-axis ball screw
X-axis guide
Top-side grease nipple
X-axis guide
Bottom-side grease nipple
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Ball screw 1 (each table) Monthly Grease gun: Standard nozzle
Guide 3 (each table) Monthly Grease gun: Standard nozzle
53512-N5-00
5-4
5
Lubrication points and schedule

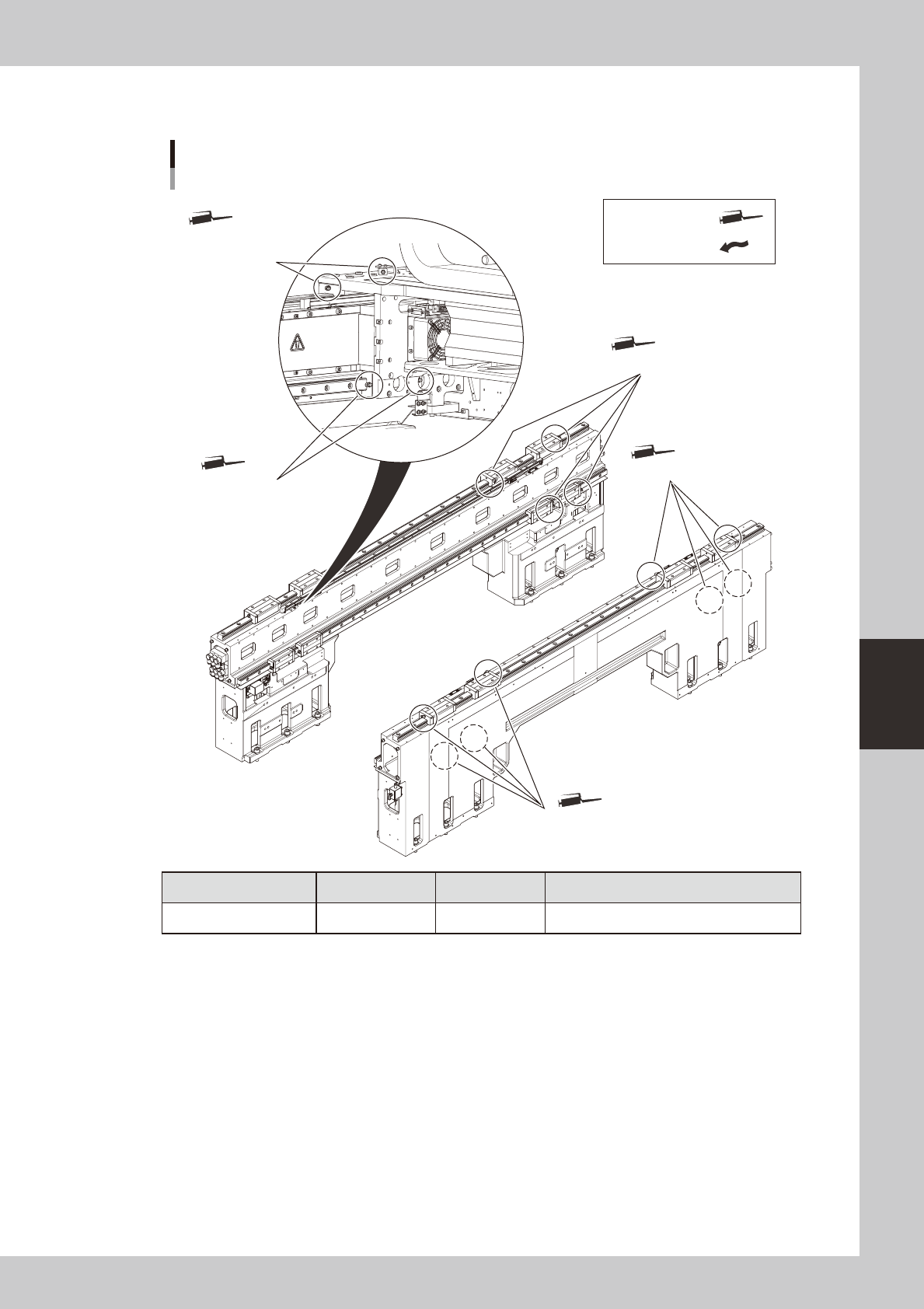

2.2 Y-axis
2.2.1 4-beam type
Y-axis lubrication points
Guide
Grease gun:
Manual lubrication:
Y-axis guide (D-table)
Y-axis guide (C-table)
Y-axis guide (B-table)
Y-axis guide (A-table)
Lubrication section Lubrication point Interval Procedure
Guide 4 (each table) Monthly Grease gun: Standard nozzle
53503-N5-00
5-5
5
Lubrication points and schedule
2.2.2 2-beam type
Y-axis lubrication points (2-beam)
Guide
Y-axis guide (B-table)
Y-axis guide
(Upper side of A-table)
Y-axis guide
(Lower side of A-table)
Y-axis guide (B-table)
Y-axis guide (A-table)
Grease gun:
Manual lubrication:
Lubrication section Lubrication point Interval Procedure
Guide 8 (each table) Monthly Grease gun: Standard nozzle
53513-N5-00
