Installation Hardware Installation Motorola MC70/MC75 1D/2D barcode scanner 34 Installation Manual SIPLACE Setup Center 5.1 ► The installa tion of Symbol AppCenter has finished. Press Cancel to continue with Setup Center…
Installation
Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 5.1 33
► Please put the scanner into cradle, and press Continue to start the installation of Symbol AppCenter.

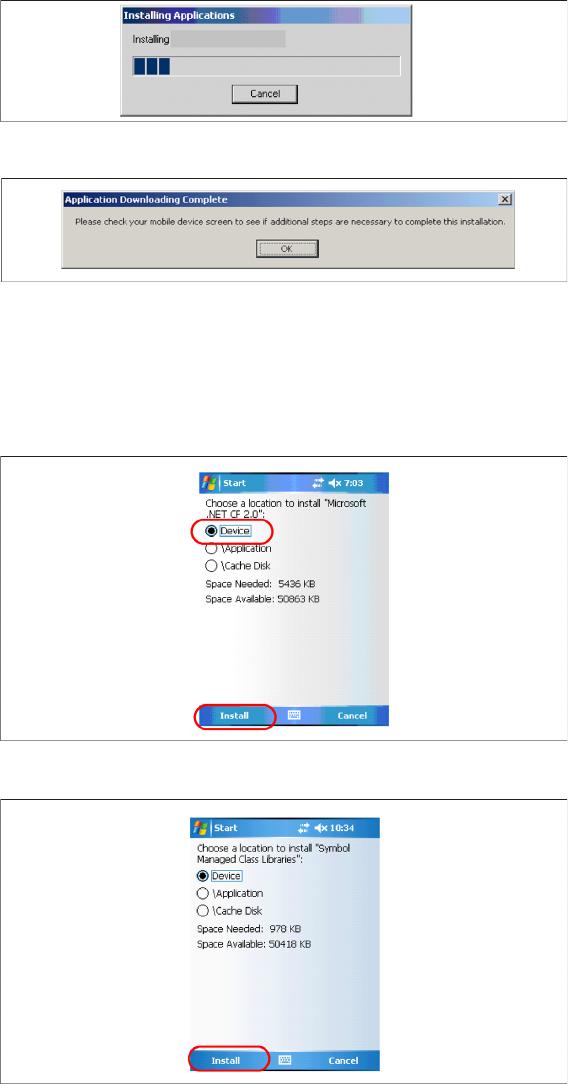

The transfer of the components to the scanner is beginning.
► After completion of the data transfer to the device click on OK to close the window.
Steps on MC7x screen
The following steps must be carried out on the scanner to complete the installation. If all components
were successfully transferred to the scanner the installation of the components will start automatically.
► Press Install to continue with Microsoft Compact Framework 2.0 installation.
► Press Install to continue with Symbol Managed Class Libraries installation.
Installation
Hardware Installation Motorola MC70/MC75 1D/2D barcode scanner
34 Installation Manual SIPLACE Setup Center 5.1
► The installation of Symbol AppCenter has finished. Press Cancel to continue with Setup Center Mo
-
bileScanner installation.
See also
4.2.4.4 Setup Center Client Installation [ ➙ 35]
Installation
Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 5.1 35
4.2.4.4 Setup Center Client Installation
The installation for Setup Center – MobileScanner is located in the directory "\MobileScanner\MC70\" of
the CD. Execute the file "TransferToPDA.exe" to start the installation.
► Place the scanner in its cradle if this has not already been done. The installation program automat
-
ically detects the scanner type (Device type) and lists the necessary software packages for the in
-
stallation.
► Click on Install to start the installation of the software packages.
► Select "Continue" to proceed with the installation.
NOTICE
In case of an upgrade installation exit the Setup Center Client before you start with the instal
-
lation procedure.
► Exit Setup Center Client with "File → Exit".
► Confirm any upcoming message which refers to an upgrade installation with "Yes" or "OK".
NOTICE
The installation program checks if the firmware version of the scanner complies with the mini
-
mum requirement. If this is not the case, update your scanner firmware first.
