Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration
88 Installation Manual SIPLACE Setup Center 5.1

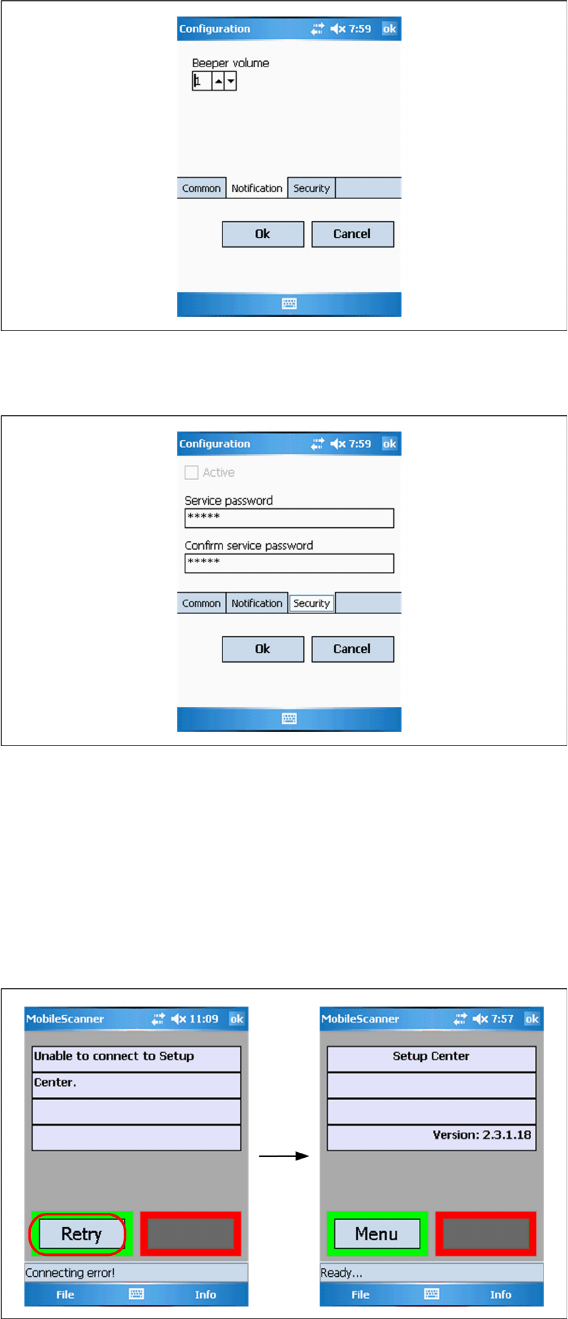

► Configurate the volume of the buzzer. The buzzer gives accustical feedback in operation mode of
Setup Center.
► Here you can set a password to prevent modification on the scanner configuration.
For the first editing of the configuration the password is empty. In this case safety is deactivated. You
can set a password now. By confirmation with "OK" all settings were saved.
4.4.5.3 Establishing Connection
► Start Setup Center.
► Click on "Connect" to establish a connection to Setup Center.
In case the connection fails check the network settings again.
The software is now successfully configured.
Installation
Motorola / Symbol MC70/MC75 Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 5.1 89
4.4.5.4 SIPLACE Scanner Config Tool
Scanning problems with 1D barcodes
If the MC70/MC75 is unable to scan most of your 1D barcodes, use the following configuration utility, to
resolve the problems.
► Please exit all running applications on scanner and Symbol AppCenter to continue.
Legende
1. MC 70
2. MC 75
► Select Start->Programs to show present applications on scanner.
Legende
1. MC 70
2. MC 75
► Select SIPLACE Scanner Config Tool to continue.
Installation
Steps to Perform After Installation Motorola / Symbol MC70/MC75 Scanner Configuration
90 Installation Manual SIPLACE Setup Center 5.1
You can change the following scan parameters here:
▪ Start scan operation:
– By pressing the scan button
– By releasing the scan button (recommended)
▪ Aiming Duration (ms):
Sets the time, how long a user is able to target a barcode with target laser.
▪ Focus Position:
– Far: You have to focus a barcode in scan range of about 23 cm (9 inches).
– Near: You have to focus a barcode in scan range of about 13 cm (5 inches).
▪ Allow poor printed 1D barcodes (slow rate scanning):
Use this setting, if most of your barcodes cannot be read in case of light damage.
► Press Ok or Apply to save the settings.
Setting 1D or 2D barcodes for MC70 Scanner
► Select the Barcode tab
► Choose the allowed 1D or 2D barcodes for your MC70 Scanner here.
NOTICE
This setting is depending on barcode size. If you have problems to read your 1D barcodes with
small size, change the setting to “Near”.
