YSM40R_2-Beam_KMB_PL - 第13页
5 2 Base Cover KMB-100-1607 15 21 20 16 13 12 16 18 18 18 1 9 10 20 21 20 14 21 15 15 16 17 17 17 13 16 18 18 2 7 19 3 21 20 4 5 6 8 18 1 1 22 17 16 18 23 22 22 22 23 16 17 23 13 13 24 26 25 No. Part No. Part Name Q&apos…
4
2

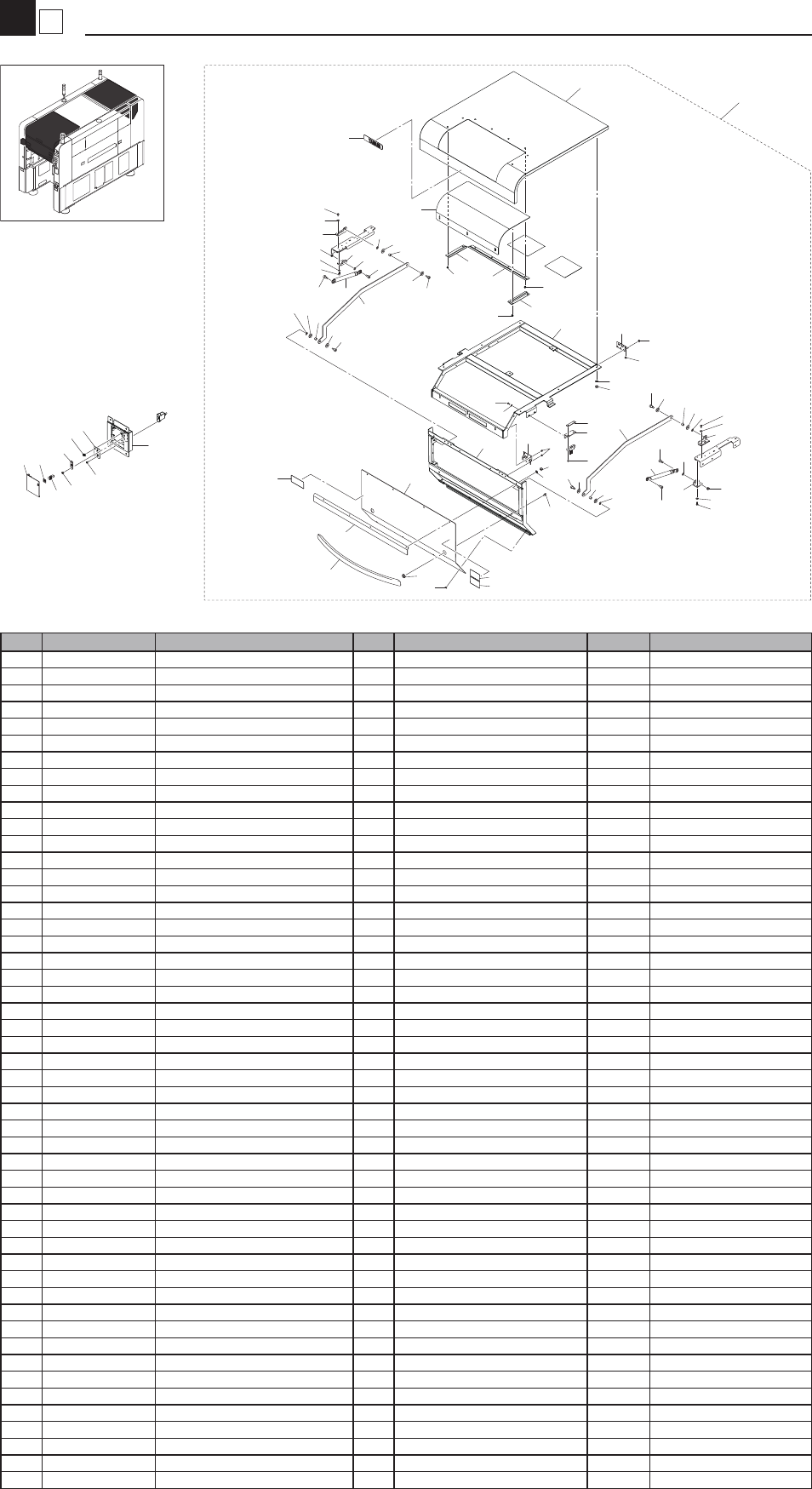

Door / USB-Box
Cover
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1309-01 COVER 9-1 1
2 KMB-M130A-00 COVER 9-2 1
3 KMB-M130K-00 BRKT. 1,COVER 9 1
4 KMB-M130L-00 BRKT. 2,COVER 9 1
5 KLF-M1347-00 COVER 9-4 1
6 KMB-M130R-00 WINDOW,COVER 9 1
7 KLF-M1345-00 PLATE,LINK 2
8 KLF-M1324-00 KNOB 1
9 KLF-M134A-00 BRKT. NUT L 1
10 KLF-M134B-00 BRKT. NUT R 1
11 KLF-M1328-00 BRACKET, GAS DAMPER 2
12 KGS-M1348-00 GAS SPRING 2
13 K46-M1374-12 HINGE 2 3
14 KLF-M1374-00 HINGE 2
15 KLF-M1373-00 BRACKET 1, SCHMEASAL 1
16 KL0-M1374-00 PLATE 1 SCHMESAL 1
17 KGS-M1360-00 BOLT 4
18 90990-28J166 WASHER PLAIN 8
19 KHT-M1346-00 BUSH 4
20 KKX-M13D7-00 SEAL 2(YAMAHA) 1
21 90K41-001250 LABEL,WARNING 1
22 90K41-001420 LABEL,WARNING 1
23 KLF-M1392-00 LABEL,WARNING 1
24 KMB-M130E-00 BOX,USB 1
25 KLF-M130E-00 DOOR,USB 1
26 KLF-M1348-00 PLATE,USB 1
27 KW3-M1349-00 MINI LATCH 1
28 KGJ-M1350-00 SPACER,MINI LATCH 1
29 KGJ-M1351-01 PLATE,MINI LATCH 1
30 KMB-M1309-A0 COVER 9 ASSY 2
31 90990-12J001 SCREW BIN.HEAD W/W 2
32 90990-12J003 SCREW BIN.HEAD W/W 20
33 98902-03008 SCREW BINDING HEAD 2
34 98902-04006 SCREW BINDING HEAD 2
35 90990-28J003 WASHER,PLAIN 2
36 90990-31J006 BOLT,SHOULDER 8
37 90990-46J001 BOLT,THIN HEAD 4
38 91312-04005 BOLT HEX.SOCKET HEAD 17 M4X5
39 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
40 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
41 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
42 92902-04200 WASHER PLAIN 2
43 92902-05200 WASHER PLAIN 8
44 92902-06200 WASHER PLAIN 6
45 95307-06600 NUT HEXAGON 2
46 95702-04500 NUT FLANGE 13
47 90172-00J040 WASHER,EXTL.TOOTHED 38
48 KMB-M130S-00 PLATE,WINDOW 1 2
49 KMB-M130T-00 PLATE,WINDOW 2 1
50 97602-04306 SCREW,PAN HEAD W/W 8
20
39
43
43
45
40
9
2
36
36
44
44
18
18
19
50
6
48
48
50
50
49
12
44
18
18
18
18
44
41
47
46
38
14
17
42
16
15
46
47
17
36
36
18
36
23
26
33
24
29
31
34
27
28
25
1
4
5
8
35
37
21
22
19
19
18
44
39
43
10
19
45
43
40
36
11
44
12
36
7
7
11
30
36
3
13
32
32
5
2

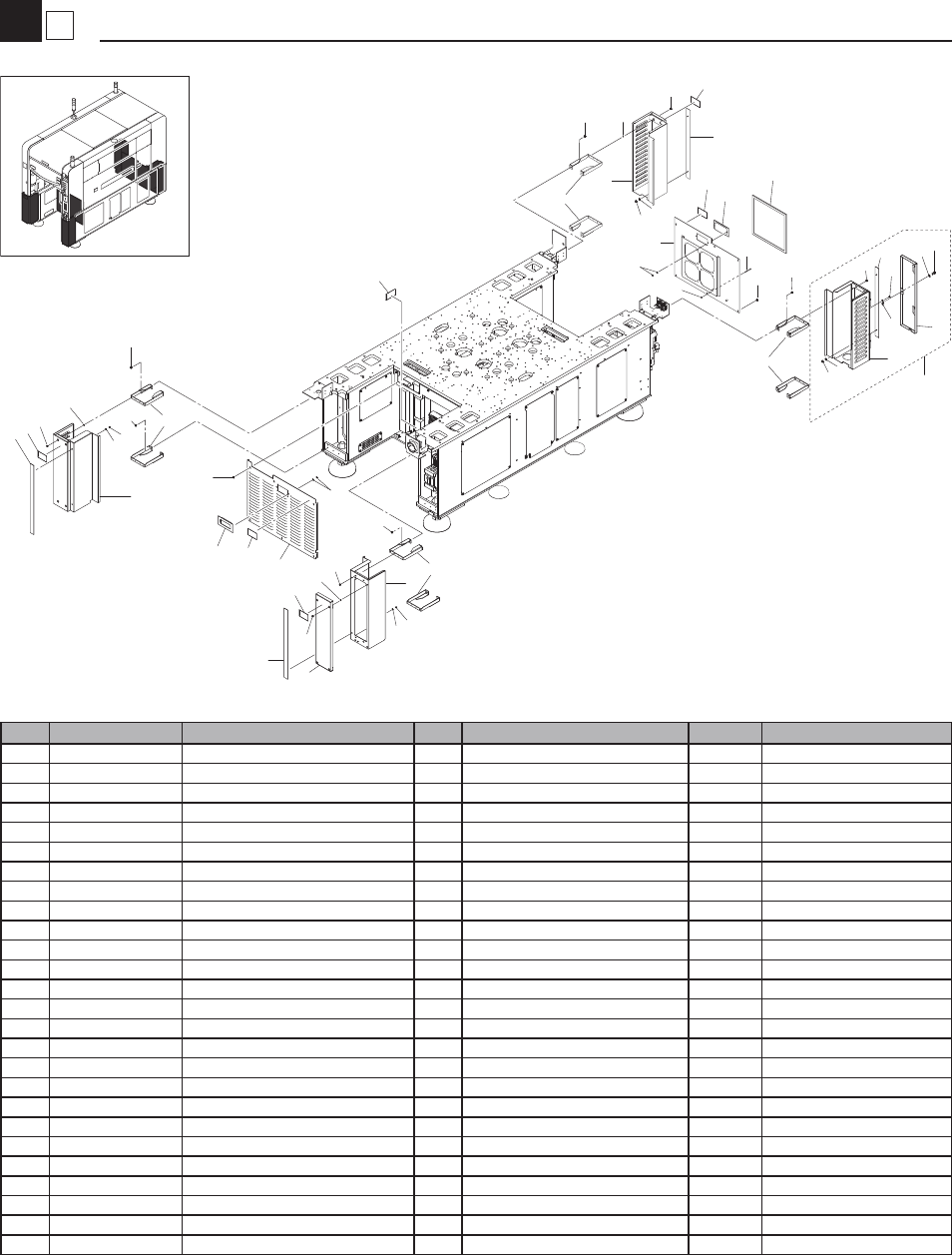

Base
Cover
KMB-100-1607
15
21
20
16
13
12
16
18
18
18
1
9
10
20
21
20
14
21
15
15
16
17
17
17
13
16
18
18
2
7
19
3
21
20
4
5
6
8
18
11
22
17
16
18
23
22
22
22
23
16
17
23
13
13
24
26
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1310-02 COVER 10 1
2 KLF-M1311-A1 COVER 11 ASSY. 1
3 KLF-M1311-02 COVER 11 1
4 KLF-M132D-01 COVER 11-1 1
5 KLF-M137A-01 COVER,PANEL A 1
6 KGJ-M1350-00 SPACER,MINI LATCH 1
7 KGJ-M1351-01 PLATE,MINI LATCH 1
8 KW3-M1349-00 MINI LATCH 1
9 KLF-M1312-00 COVER,12 1
10 KLF-M1313-02 COVER 13 1
11 KLF-M1314-02 COVER 14 1
12 KLF-M1315-04 COVER,15 1
13 KHU-M1117-00 PULL 2
14 KLF-M132A-01 COVER 10-1 1
15 KLF-M137A-01 COVER,PANEL A 3
16 90K41-001270 LABEL,WARNING 6
17 90990-12J001 SCREW BIN.HEAD W/W 16
18 90990-12J004 SCREW BIN.HEAD W/W 28
19 90990-12J006 SCREW BIND HEAD W/W 2
20 90172-00J040 WASHER,EXTL.TOOTHED 8
21 95702-04500 NUT FLANGE 8
22 KLF-M13E1-00 BRKT.,COVER 8
23 KH1-M1396-00 WASHER 12
24 KLF-M131J-00 FILTER,REAR BASE FAN 1
25 98502-04050 SCREW PAN HEAD (+) 16
26 95302-04600 NUT, HEXAGON 16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3751-00 PLATE,FEEDER 1
2 KLF-M3754-01 PLATE,FRONT 2
3 KMB-M3755-00 PLATE,UPPER 2
4 KLF-M3757-00 SHAFT,GUIDE 2
5 KLF-M375H-00 RAIL,GUIDE 12P 1
6 KLF-M375N-00 GUIDE,FEEDER UNDER 1
7 KMB-M375T-00 PLATE,UPPER L 1
8 KMB-M375T-50 PLATE,UPPER R 1
9 KLF-M375X-00 GUIDE,FEEDER UNDER 3
10 KLF-M375X-50 GUIDE,FEEDER UNDER 1
11 KMB-M3761-00 PLATE,MAIN 1
12 KLF-M3763-00 CAM FOLLOWER 1
13 KLF-M3764-00 PIN 2
14 KMB-M3765-00 TAPE 2
15 KMB-M3714-00 PIN,MARK 2
16 KHY-M371R-00 RAIL GUIDE 12P 3
17 KHY-M372P-00 SUPPORT,LEVER 46
18 KHY-M372R-00 GUIDE,FEEDER UNDER 3
19 KHY-M372S-01 SPRING,SUPPORT 46
20 91312-03012 BOLT,HEX.SOCKET HEAD 2
21 91312-03018 BOLT,HEX.SOCKET HEAD 10
22 91312-05014 BOLT,HEX.SOCKET HEAD 2
23 91312-05016 BOLT,HEX.SOCKET HEAD 8
24 91312-06014 BOLT,HEX.SOCKET HEAD 10
25 91312-06020 BOLT,HEX.SOCKET HEAD 4
26 91609-20005 PIN, SPRING 2
27 95302-08700 NUT, HEXAGON 1
28 98702-03006 SCREW, FLAT HEAD 40
29 98902-03004 SCREW, BINDING HEAD 101
30 99480-04012 PIN, PARALLEL 2
31 99480-06012 PIN, PARALLEL 2
32 99480-06020 PIN, PARALLEL 8
33 90990-30J097 SHIMS 1
1
3
Bank FES46 Rail Guide
Feeder Holder
KMB-100-1607
1
2
4
30
30
31
32
32
32
5
8
7
6
4
9
10
11
22
2
13
20
20
21
21
3
12
23
23
24
25
29
29
24
23
23
26
33
14
3
14
15
15
17
17
19
19
18
16
28
25
26
27
28
29
29
