YSM40R_2-Beam_KMB_PL - 第18页

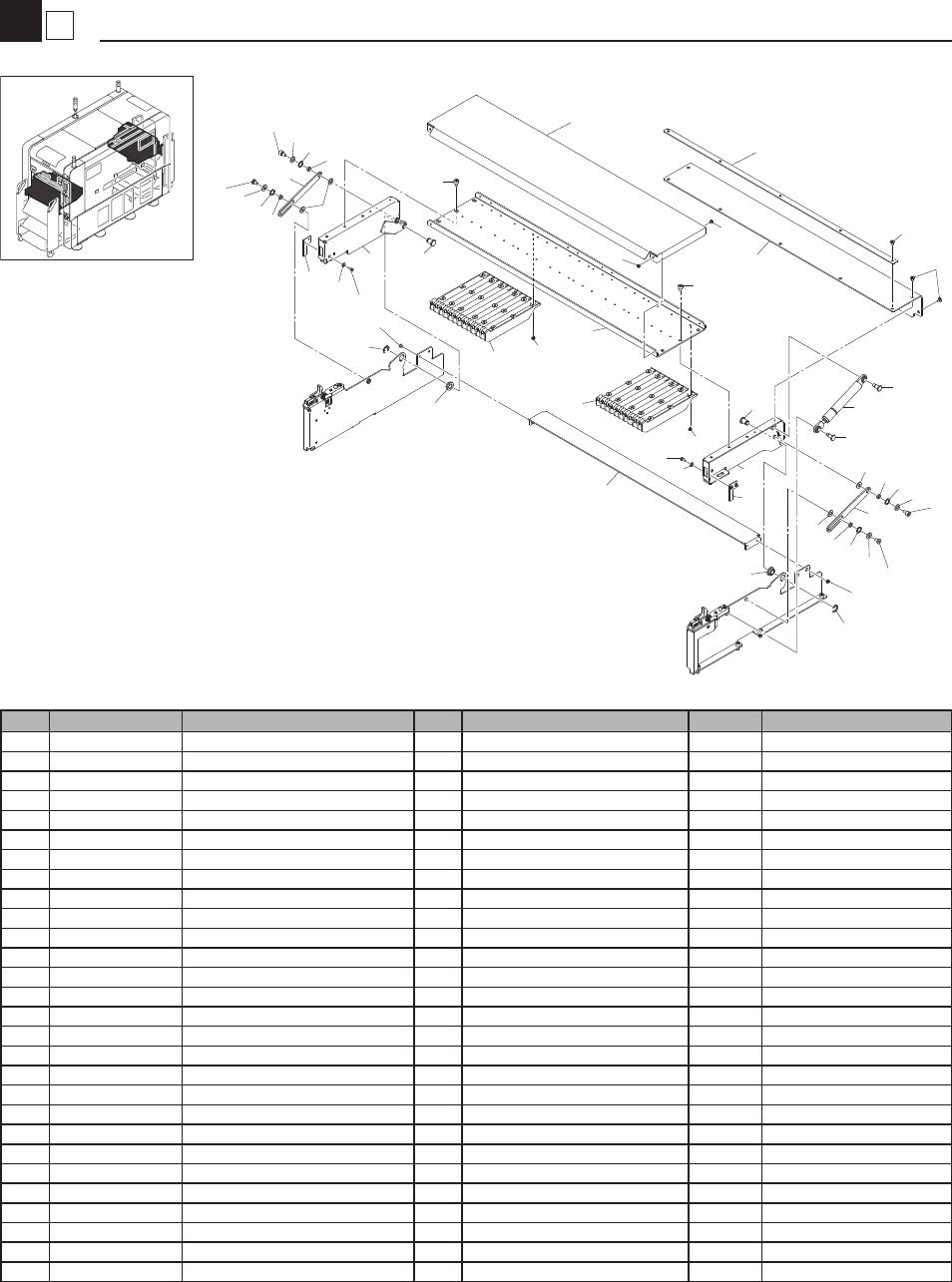

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M3748-00 W ASHER 4 2 KLF-M374A-00 BASE,CLAMP 2 3 KLF-M374B-00 LEVER,CLAMP 2 4 KLF-M374C-00 SPRING,CLAMP 2 5 KLF-M374F-00 STOPPER,ARM 2 6 KLF-M374K…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3741-00 PLATE,STOPPER 2
2 KLF-M3742-00 WASHER 4
3 KMB-M3743-00 STOPPER,TAPE GUIDE 1
4 KMB-M3744-00 PLATE,HOLD 1
5 KLF-M3745-00 BOLT,DAMPER 2
6 KLF-M374D-00 BUSH,FLANGE 2
7 KMB-M374H-00 PLATE,OBSTRUCTIVE 1
8 KLF-M374J-00 GAS DAMPER 1
9 KMB-M374M-00 COVER,TOP 1
10 KLF-M374N-00 DOG,SENSOR R 1
11 KLF-M374N-50 DOG,SENSOR L 1
12 KLF-M374P-01 PLATE,UPPER 1
13 KMB-M374R-00 ARM,UPPER GUIDE R 1
14 KMB-M374R-50 ARM,UPPER GUIDE L 1
15 KLF-M374S-00 GUIDE,FEEDER UPPER 3
16 KLF-M374T-00 GUIDE,FEEDER UPPER 1
17 KLF-M374X-00 PIN,HINGE 2
18 90990-28J193 WASHER,PLAIN 4
19 99002-07600 CIRCLIP 2
20 90990-01J071 BOLT, HEX. SOCKETHEAD 4
21 90990-01J074 BOLT, HEX. SOCKETHEAD 2
22 90990-46J005 BOLT, THIN HEAD 9
23 91312-05006 BOLT,HEX.SOCKET HEAD 6
24 91312-05008 BOLT,HEX.SOCKET HEAD 2
25 92902-03200 WASHER, PLAIN 4
26 92902-05200 WASHER, PLAIN 8
27 98702-03004 SCREW, FLAT HEAD 4
28 98902-03004 SCREW, BINDING HEAD 73
4
3
Cover FES46 Moving Part
Feeder Holder
KMB-100-1607
2
1
4
2
5
2
18
18
21
2
9
5
6
10
13
8
6
11
14
17
15
1
3
7
16
17
12
18
19
18
19
20
25
20
21
26
26
26
22
22
23
23
24
26
24
26
26
26
25
27
27
28
28
28
28

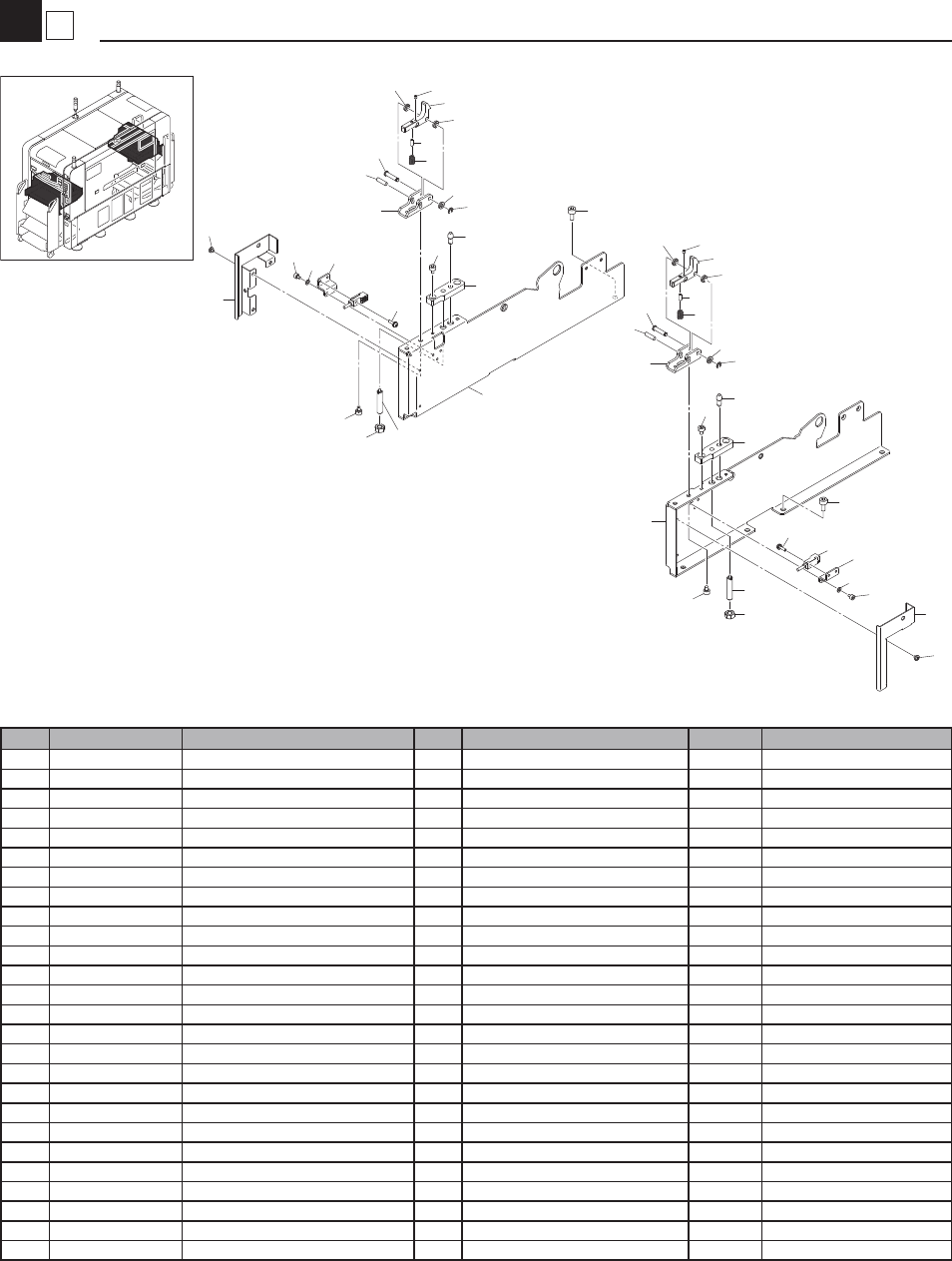

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3748-00 WASHER 4
2 KLF-M374A-00 BASE,CLAMP 2
3 KLF-M374B-00 LEVER,CLAMP 2
4 KLF-M374C-00 SPRING,CLAMP 2
5 KLF-M374F-00 STOPPER,ARM 2
6 KLF-M374K-00 PLUNGER 2
7 KLF-M374L-00 BRKT.,SENSOR 2
8 KMB-M374U-00 COVER,R SENSOR 1
9 KMB-M374V-00 COVER,L SENSOR 1
10 KMB-M374Y-00 BASE,ARM R 1
11 KMB-M374Y-50 BASE,ARM Ｌ 1
12 KLF-M652W-00 SENSOR COVER DIASSY 2
13 KHJ-MC10S-01 PIN,LOCATE 1 2
14 KHJ-MC289-00 PIN,CLAMP 2
15 90440-01J030 CIRCLIP 2
16 90990-10J008 SCREW, BINDING HEAD 6
17 90990-28J038 WASHER, PLAIN 2
18 91312-03004 BOLT,HEX.SOCKET HEAD 4
19 91312-04005 BOLT,HEX.SOCKET HEAD 8
20 91312-05010 BOLT,HEX.SOCKET HEAD 8
21 91609-25008 PIN, SPRING 2
22 92902-03600 WASHER, PLAIN 4
23 92A08-03303 SCREW, SET 2
24 95302-06600 NUT, HEXAGON 2
25 97602-03310 SCREW,PAN HEAD W/W 2
26 99480-04014 PIN, PARALLEL 2
5
3
Cover FES46 Base / Sensor
Feeder Holder
KMB-100-1607
1
1
3
23
23
1
1
2
4
21
21
2
3
4
5
5
13
14
14
26
26
15
15
17
17
16
18
22
16
18
22
19
20
20
13
19
19
19
24
6
6
24
10
12
11
8
7
25
25
7
9

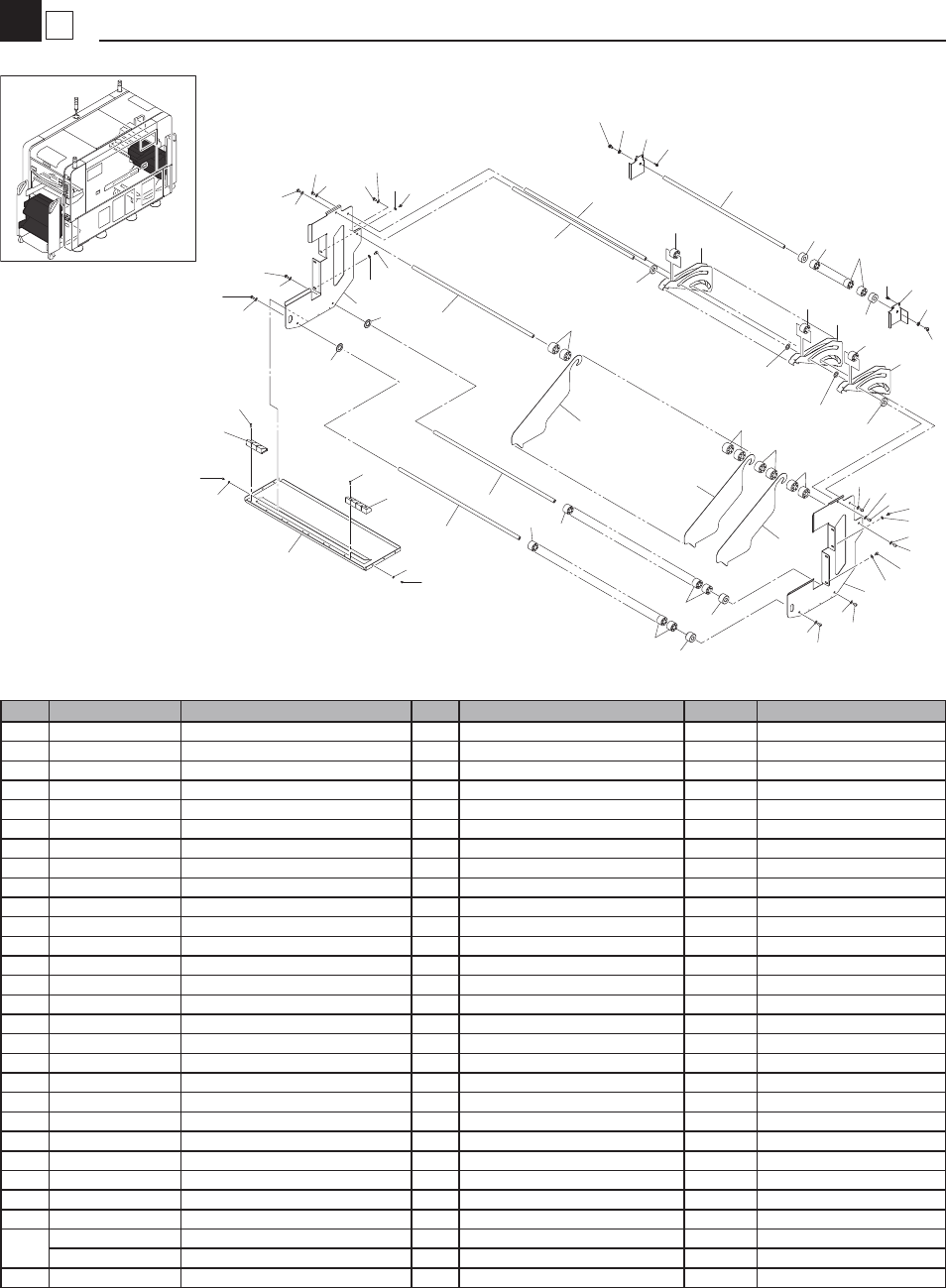

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3R03-00 BRKT.,REEL HOLDER R 1
2 KMB-M3R04-00 BRKT.,REEL HOLDER L 1
3 KLF-M3R09-00 SHAFT,ROLLER 6
4 KHY-M3S15-00 ROLLER 2 2
5 KHY-M3R15-00 ROLLER 100
6 KLF-M3R01-02 PLATE,SIDE R 1
7 KLF-M3R02-02 PLATE,SIDE L 1
8 KLF-M3R05-00 GUIDE,PATITION 1
9 KLF-M3R08-00 COVER,UNDER 1
10 KLF-M3R10-01 REEL HOLDER 23
11 KLF-M3R13-00 COLLAR 2
12 KLF-M3R14-00 COLLAR 2
13 KHY-M3R14-11 WASHER 22
14 KHY-M3R16-00 PARTITION 11
15 KHY-M3R22-00 GUIDE,PARTITION 5
16 KHY-M3R23-00 COLLAR,PARTITION 23
17 91312-03004 BOLT HEX.SOCKET HEAD 6 M3X4
18 91312-03012 BOLT,HEX.SOCKET HEAD 11 M3X12
19 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X8
20 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
21 92012-06010 BOLT,BUTTON HEAD 12
22 92902-03200 WASHER PLAIN 6
23 92902-04200 WASHER PLAIN 4
24 92902-05200 WASHER PLAIN 4
25 92902-06600 WASHER PLAIN 12
26 91312-04008 BOLT,HEX.SOCKET HEAD 4
27
KHY-M3R14-11 WASHER 1 t=1.1mm
KHW-M1385-00 SPACER 1 t=0.5mm
28 KMB-M3R09-00 SHAFT,ROLLER 1
6
3
Reel Holder
Feeder Holder
KMB-100-1607
21
25
25
21
21
25
21
21
25
25
23
24
7
20
3
3
3
28
26
21
25
1
3
12
5
5
5
26
25
21
4
2
4
10
13
16
16
16
16
14
5
5
11
17
17
22
22
18
18
9
8
15
11
14
14
21
25
11
11
25
21
25
21
21
25
23
19
24
6
20
13
12
5
5
10
10
19
3
27
27
21
