YSM40R_2-Beam_KMB_PL - 第22页
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M3771-00 BASE,LINK 2 2 KLF-M3773-00 ARM,CLAMP L 1 3 KLF-M3773-50 ARM,CLAMP R 1 4 KLF-M3774-00 HOLDER,ARM 2 5 KLF-M3775-00 LINK,CLAMP MAIN 2 6 KLF-…
8
3

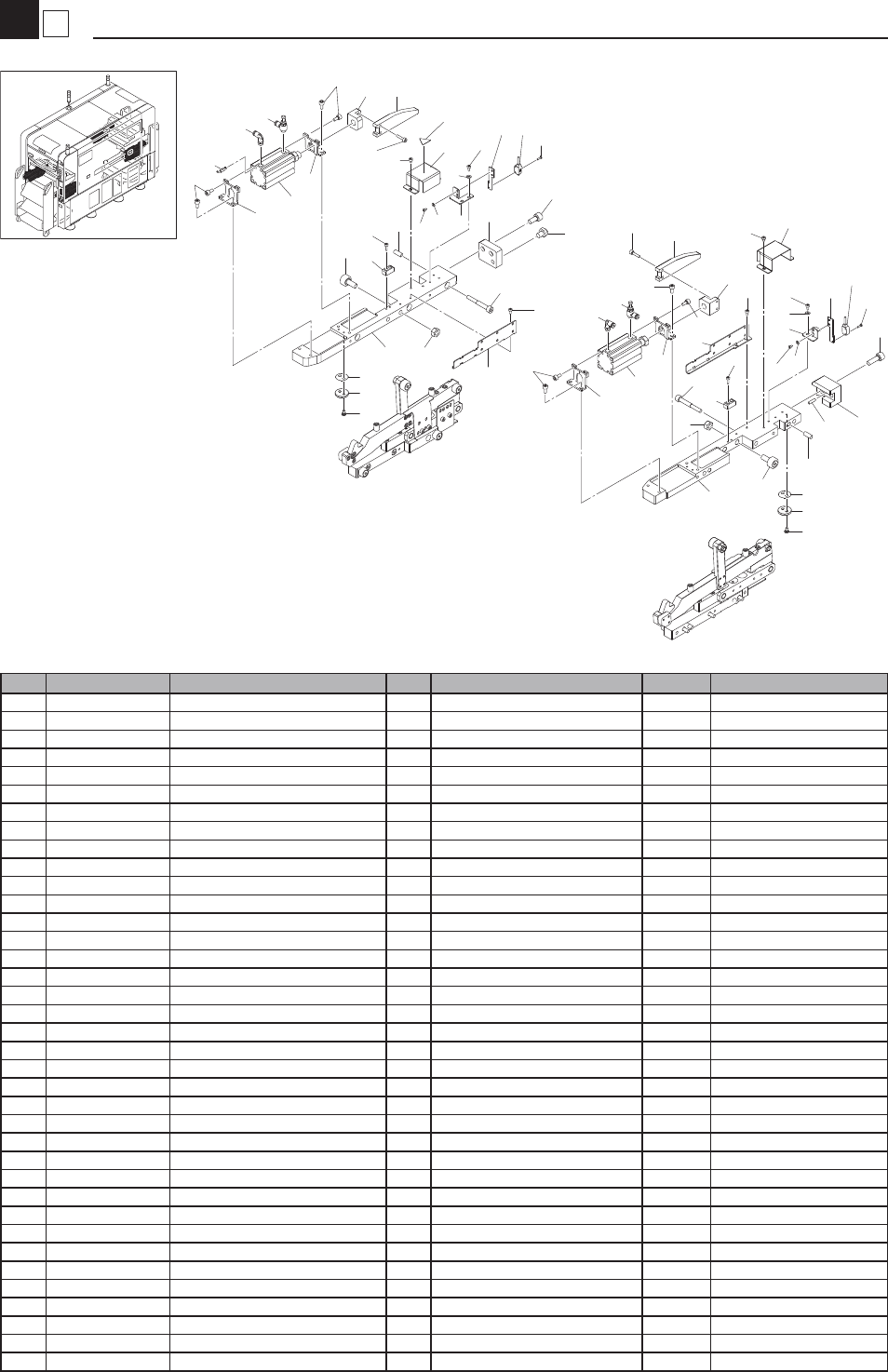

Clamp FES46 Cylinder / Guide
Feeder Holder
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3772-02 PLATE,BASE L 1
2 KLF-M3772-52 PLATE,BASE R 1
3 KLF-M3778-02 BRKT.,CYLINDER 4
4 KLF-M377B-00 CAM FOLLOWER 6
5 KLF-M377C-00 CYLINDER 2
6 KLF-M377D-00 BOLT,STOPPER 1
7 KLF-M377H-01 GUIDE,FOLLOWER 2
8 KLF-M377K-01 STOPPER,V 1
9 KLF-M377L-00 JOINT,CYLINDER. 2
10 KLF-M377P-00 BLOCK,STOPPER 1
11 KLF-M377S-00 GUIDE,HNS. L 1
12 KLF-M377S-50 GUIDE,HNS. R 1
13 KLF-M377U-03 BRKT.,SENSOR 2 L=60mm
14 KLF-M377V-01 BRKT.,SENSOR 2L 1 H=27mm
15 KLF-M377V-51 BRKT.,SENSOR 2R 1 H=27mm
16 KLF-M377W-01 COVER,SENSOR 2
17 KHY-M3AA6-00 SAFETY PAD 2
18 90K41-001620 LABEL,CAUTION 1
19 $SC4-01A SPEED CONTROLLER 2
20 $TL4-01 JOINT 2
21 90112-10J020 BOLT HEX SOCKET HEAD 2
22 90112-10J030 BOLT HEX.S.H.:M10X30 2
23 KLF-M378D-XX SHIM SELECTION 4 -10_T0.01, -20_T0.02, -30,-50
24 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
25 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
26 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
27 91312-06012 BOLT HEX.SOCKET HEAD 16 M6X12
28 91312-08060 BOLT HEX.SOCKET HEAD 6 M8X60
29 92902-04200 WASHER PLAIN 12
30 98502-03010 SCREW PAN HEAD (+) 4
31 99480-05018 PIN,PARALLEL 1
32 99480-08018 PIN PARALLEL: 8X18 2
33 KLF-M654A-00 SENSOR,FDR FLT ASSY 1
34 KLF-M654B-00 SEN.FES CLAMP ASSY 1
35 91312-04005 BOLT HEX.SOCKET HEAD 8
36 KLF-M377X-00 PAD 4
37 90990-01J074 BOLT, HEX. SOCKET HEAD 8 IMGK-C03-008
19
20
34
27
27
9 7
7
26
26
27
27
27
3
3
3
3
35
35
18
16
16
29
29
15
35
29
22
8
32
23
4
4
28
17
25
12
5
5
2
31
24
24
24
9
35
29
14
10
21
6
4
17
25
32
1
4
11
28
24
13
33
30
13
33
30
19
20
36
37
23
36
37

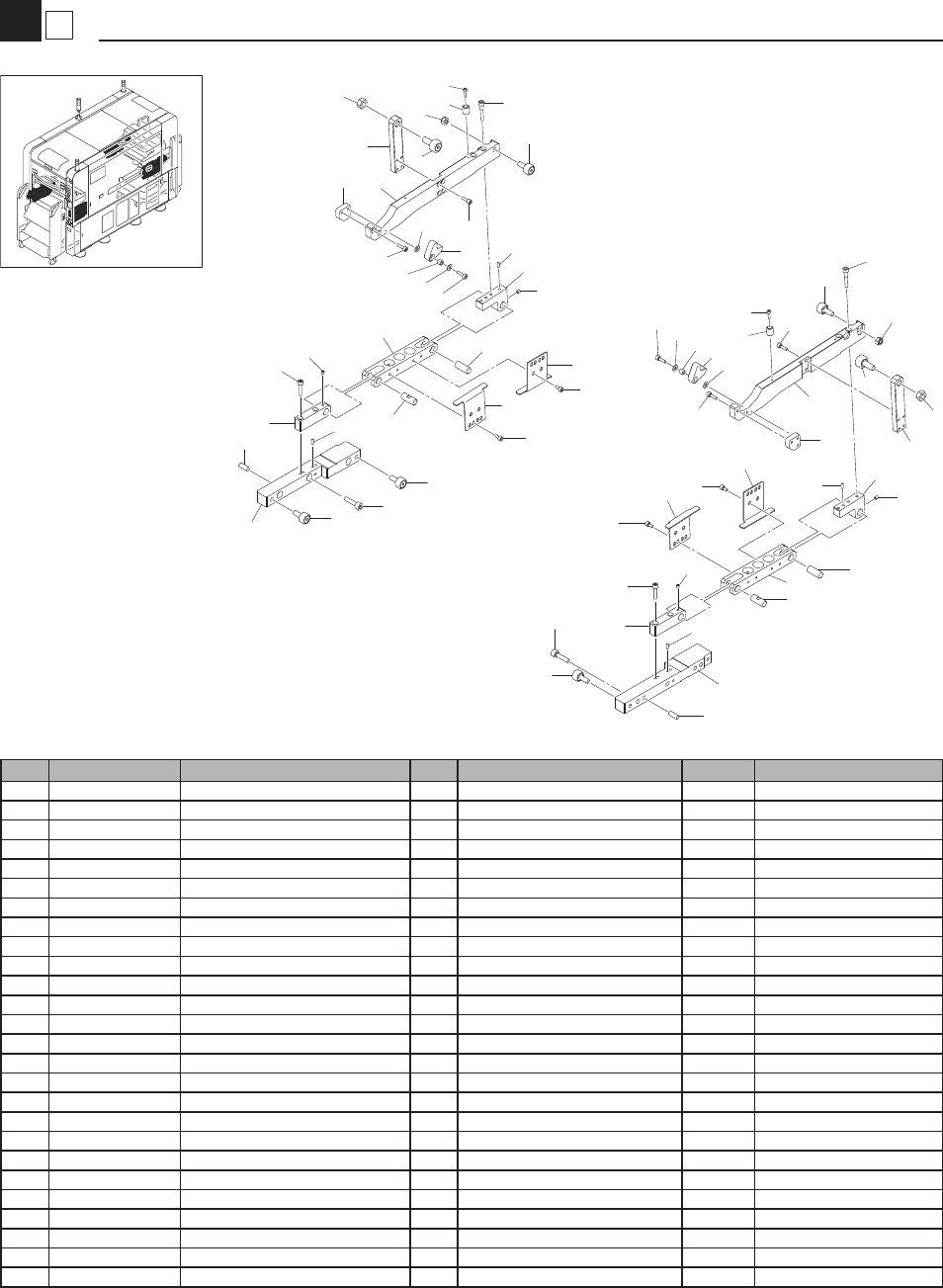

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3771-00 BASE,LINK 2
2 KLF-M3773-00 ARM,CLAMP L 1
3 KLF-M3773-50 ARM,CLAMP R 1
4 KLF-M3774-00 HOLDER,ARM 2
5 KLF-M3775-00 LINK,CLAMP MAIN 2
6 KLF-M3776-00 BASE,LINK 2 2
7 KLF-M3777-00 HOLDER,FOLLOWER 2
8 KLF-M3779-00 CLAMP,FOLLOWER 2
9 KLF-M377B-00 CAM FOLLOWER 2
10 KMB-M377E-00 COLLAR 2
11 KLF-M377F-00 PIN,HINGE 4
12 KLF-M377M-00 PA D 4
13 KLF-M377N-00 HOLDER,CLAMPER 2
14 KLF-M378C-00 BRKT.,CLAMP FIX 4
15 KKU-M1138-00 CAM FOLLOWER 6
16 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
17 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
18 91312-05016 BOLT HEX.SOCKET HEAD 14 M5X16
19 91312-06025 BOLT HEX.SOCKET HEAD 4 M6X25
20 91312-06035 BOLT HEX,SOCKET HEAD 4 M6X35
21 91312-08030 BOLT HEX.SOCKET HEAD 6 M8X30
22 92902-05200 WASHER PLAIN 4
23 90152-05J06 SCREW,SET 4
24 95602-08100 NUT U 2
25 99480-04010 PIN PARALLEL: 4X10 8
26 99480-08018 PIN PARALLEL: 8X18 4
9
3
Clamp FES46 ARM / Cam Follower
Feeder Holder
KMB-100-1607
9
9
9
7
3
13
8
22
18
14
14
17
25
4
23
11
11
26
25
19
23
21
15
6
5
1
17
9
7
24
24
12
16
12
16
20
20
15
15
18
18
8
18
19
23
25
26
15
1
15
21
22
18
25
23
14
14
17
17
11
11
5
6
4
13
2
18
22
22
10
10
1
4
X-Motor / BS (2-Beam)
Moving-axis
KMB-100-1607
A
B
42
11
42
4
10
29
15
2
5
38
23
34
28
43
17
16
6
10
19
41
21
32
35
22
5
13
24
39
18
31
3
42
6
6
22
40
21
19
43
39
12
36
3
35
5
7
5
27
25
8
14
46
5
48
5
48
47
1
14
9
20
26
41
37
44
45
30
33
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90933-01J000 BEARING 2
2 90KA1-303303 AC SERVO MOTOR 1
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-04005 BOLT HEX,SOCKET HEAD 2
5 91312-04008 BOLT HEX,SOCKET HEAD 14
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04030 BOLT HEX,SOCKET HEAD 4
8 91312-05014 BOLT HEX,SOCKET HEAD 4
9 91312-05016 BOLT HEX,SOCKET HEAD 4
10 91312-06022 BOLT HEX,SOCKET HEAD 8
11 KG2-M9173-00 LOCK NUT 1
12 KLF-M4187-10 FAN GUARD 1
13 KGS-M2628-00 LOCK NUT 1
14 KHN-M2248-00 SPACER 2
15 KHN-M2221-00 SUPPORT UNIT 1
16 KLF-M653A-10 SENSOR 1 X ORG
17 KLF-M653B-10 SENSOR 1 X OT1
18 KHN-M224D-00 SPACER 1
19 KHN-M22AD-00 GREASE NIPPLE 2
20 KHY-M2240-00 SLEEVE,BRG. 1
21 KHY-M266C-00 BLOCK,JOINT 2
22 $BF4U JOINT 1
23 KLF-M653C-10 SENSOR 1 X OT2
24 KLF-M653J-10 SENSOR 1 Y SAFE
25 KMB-M2212-10 BALL SCREW,XL 1
26 KLF-M2214-00 HOLDER,BRG 1
27 KLF-M221N-00 COVER,B CABLE 1 Type B
28 KLF-M222B-00 HOLDER,MOTOR XB 1 Type B
29 KLF-M222D-00 PLATE,NUT X MOTOR 2
30 KLF-M222E-00 BRKT.,A FAN XM 1 Type A
31 KLF-M222E-50 BRKT.,B FAN XM 1 Type B
32 KLF-M222F-00 COUPLING,X-AXIS 1
33 KLF-M2239-00 BRKT.,XA 2ND-LIMIT 1 Type A
34 KLF-M2239-50 BRKT.,XB 2ND-LIMIT 1 Type B
35 KLF-M224L-00 BRKT.,CONN. 2
36 KLF-M227G-00 COVER,1 B.S. 1
37 KLF-M227H-00 COVER,2-F B.S. 1 Type A
38 KLF-M227H-50 COVER,2-R B.S. 1 Type B
39 KLF-M266A-00 PLATE,PIPE 2
40 KLF-M6185-A0 FAN MOTOR ASSY 1
41 91312-06025 BOLT HEX,SOCKET HEAD 3
42 97602-03108 SCREW PAN HEAD W/WASHER 8
43 98902-04008 SCREW BINDING HEAD 6
44 KLF-M222A-00 HOLDER,MOTOR XA 1 Type A
45 KLF-M221M-00 COVER,A CABLE 1 Type A
46 KLF-M221S-10 DAMPER,1 1
47 KMB-M221U-10 DAMPER,2 1
48 90990-41J181 COLLAR 4
Type B
Type A
