2 4 X-Guide / Manufold (2-Beam) Moving-axis KMB-100-1607 26 27 25 2 2 8 22 10 24 22 21 21 1 17 27 20 4 12 15 7 6 14 13 21 23 23 11 22 21 26 4 22 5 4 2 19 3 2 5 4 18 16 A B 28 28 9 No. Part No. Part Name Q'ty Remarks…
1
4

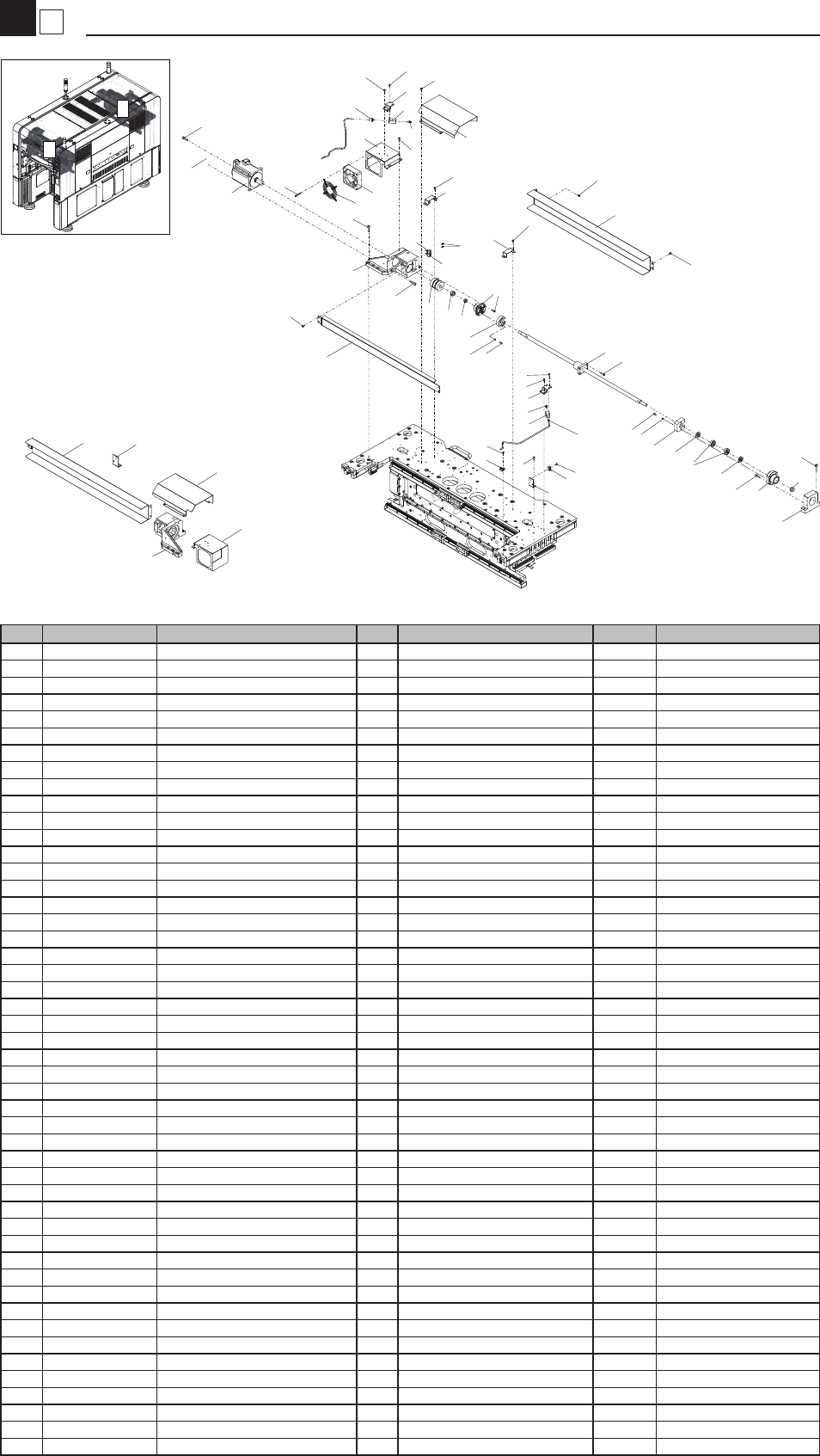

X-Motor / BS (2-Beam)
Moving-axis
KMB-100-1607
A
B
42
11
42
4
10
29
15
2
5
38
23
34
28
43
17
16
6
10
19
41
21
32
35
22
5
13
24
39
18
31
3
42
6
6
22
40
21
19
43
39
12
36
3
35
5
7
5
27
25
8
14
46
5
48
5
48
47
1
14
9
20
26
41
37
44
45
30
33
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90933-01J000 BEARING 2
2 90KA1-303303 AC SERVO MOTOR 1
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-04005 BOLT HEX,SOCKET HEAD 2
5 91312-04008 BOLT HEX,SOCKET HEAD 14
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04030 BOLT HEX,SOCKET HEAD 4
8 91312-05014 BOLT HEX,SOCKET HEAD 4
9 91312-05016 BOLT HEX,SOCKET HEAD 4
10 91312-06022 BOLT HEX,SOCKET HEAD 8
11 KG2-M9173-00 LOCK NUT 1
12 KLF-M4187-10 FAN GUARD 1
13 KGS-M2628-00 LOCK NUT 1
14 KHN-M2248-00 SPACER 2
15 KHN-M2221-00 SUPPORT UNIT 1
16 KLF-M653A-10 SENSOR 1 X ORG
17 KLF-M653B-10 SENSOR 1 X OT1
18 KHN-M224D-00 SPACER 1
19 KHN-M22AD-00 GREASE NIPPLE 2
20 KHY-M2240-00 SLEEVE,BRG. 1
21 KHY-M266C-00 BLOCK,JOINT 2
22 $BF4U JOINT 1
23 KLF-M653C-10 SENSOR 1 X OT2
24 KLF-M653J-10 SENSOR 1 Y SAFE
25 KMB-M2212-10 BALL SCREW,XL 1
26 KLF-M2214-00 HOLDER,BRG 1
27 KLF-M221N-00 COVER,B CABLE 1 Type B
28 KLF-M222B-00 HOLDER,MOTOR XB 1 Type B
29 KLF-M222D-00 PLATE,NUT X MOTOR 2
30 KLF-M222E-00 BRKT.,A FAN XM 1 Type A
31 KLF-M222E-50 BRKT.,B FAN XM 1 Type B
32 KLF-M222F-00 COUPLING,X-AXIS 1
33 KLF-M2239-00 BRKT.,XA 2ND-LIMIT 1 Type A
34 KLF-M2239-50 BRKT.,XB 2ND-LIMIT 1 Type B
35 KLF-M224L-00 BRKT.,CONN. 2
36 KLF-M227G-00 COVER,1 B.S. 1
37 KLF-M227H-00 COVER,2-F B.S. 1 Type A
38 KLF-M227H-50 COVER,2-R B.S. 1 Type B
39 KLF-M266A-00 PLATE,PIPE 2
40 KLF-M6185-A0 FAN MOTOR ASSY 1
41 91312-06025 BOLT HEX,SOCKET HEAD 3
42 97602-03108 SCREW PAN HEAD W/WASHER 8
43 98902-04008 SCREW BINDING HEAD 6
44 KLF-M222A-00 HOLDER,MOTOR XA 1 Type A
45 KLF-M221M-00 COVER,A CABLE 1 Type A
46 KLF-M221S-10 DAMPER,1 1
47 KMB-M221U-10 DAMPER,2 1
48 90990-41J181 COLLAR 4
Type B
Type A
2
4

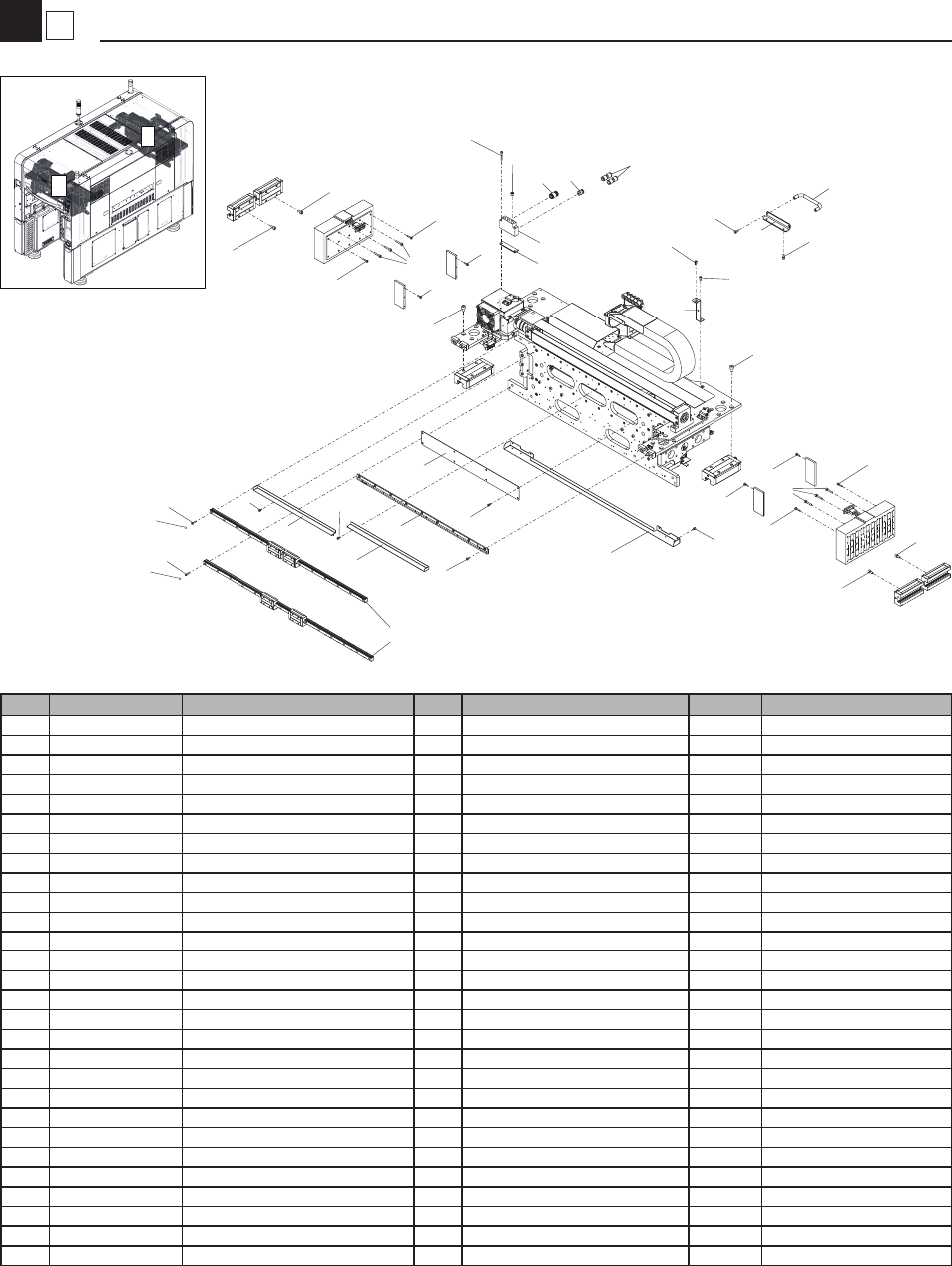

X-Guide / Manufold (2-Beam)
Moving-axis
KMB-100-1607
26
27
25
2
2
8
22
10
24
22
21
21
1
17
27
20
4
12
15
7
6
14
13
21
23
23
11
22
21
26
4
22
5
4
2
19
3
2
5
4
18
16
A
B
28
28
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $ATSH8-02 JOINT 3
2 91312-06012 BOLT HEX,SOCKET HEAD 16
3 90990-01J038 BOLT HEX,SOCKET HEAD 9
4 91312-04008 BOLT HEX,SOCKET HEAD 18
5 91312-04016 BOLT HEX,SOCKET HEAD 27
6 91312-04040 BOLT HEX,SOCKET HEAD 4
7 K40-M8598-10 PLUG 1 5
8 KH2-M1324-01 GRIP 1
9 $US8 JOINT 2
10 KKE-M2659-00 BRACKET,HANDLE 1
11 KLF-M22T1-E0 X SCALE ASSY 1
12 KLF-M224A-02 MANUFOLD,XY 1
13 KLF-M2258-10 BRKT.,FIX XL AXIS 1
14 KLF-M220G-00 COVER,F 1
15 KLF-M224B-00 SPACER,MANIFOLD 1
16 KLF-M2211-11 GUIDE,XL AXIS 2
17 KLF-M223J-00 JOINT 3
18 KLF-M2225-L0 COVER,L GUIDE X 1
19 KLF-M2225-R0 COVER,R GUIDE X 1
20 KLF-M2229-00 COVER,D GUIDE X 1
21 91312-04012 BOLT HEX,SOCKET HEAD 12
22 91312-04018 BOLT HEX,SOCKET HEAD 8
23 91312-05008 BOLT HEX,SOCKET HEAD 2
24 91312-05010 BOLT HEX,SOCKET HEAD 2
25 91312-05012 BOLT HEX,SOCKET HEAD 2
26 91312-05025 BOLT HEX,SOCKET HEAD 18
27 91312-08012 BOLT HEX,SOCKET HEAD 16
28 90K81-200004 CAP C4 27
3
4

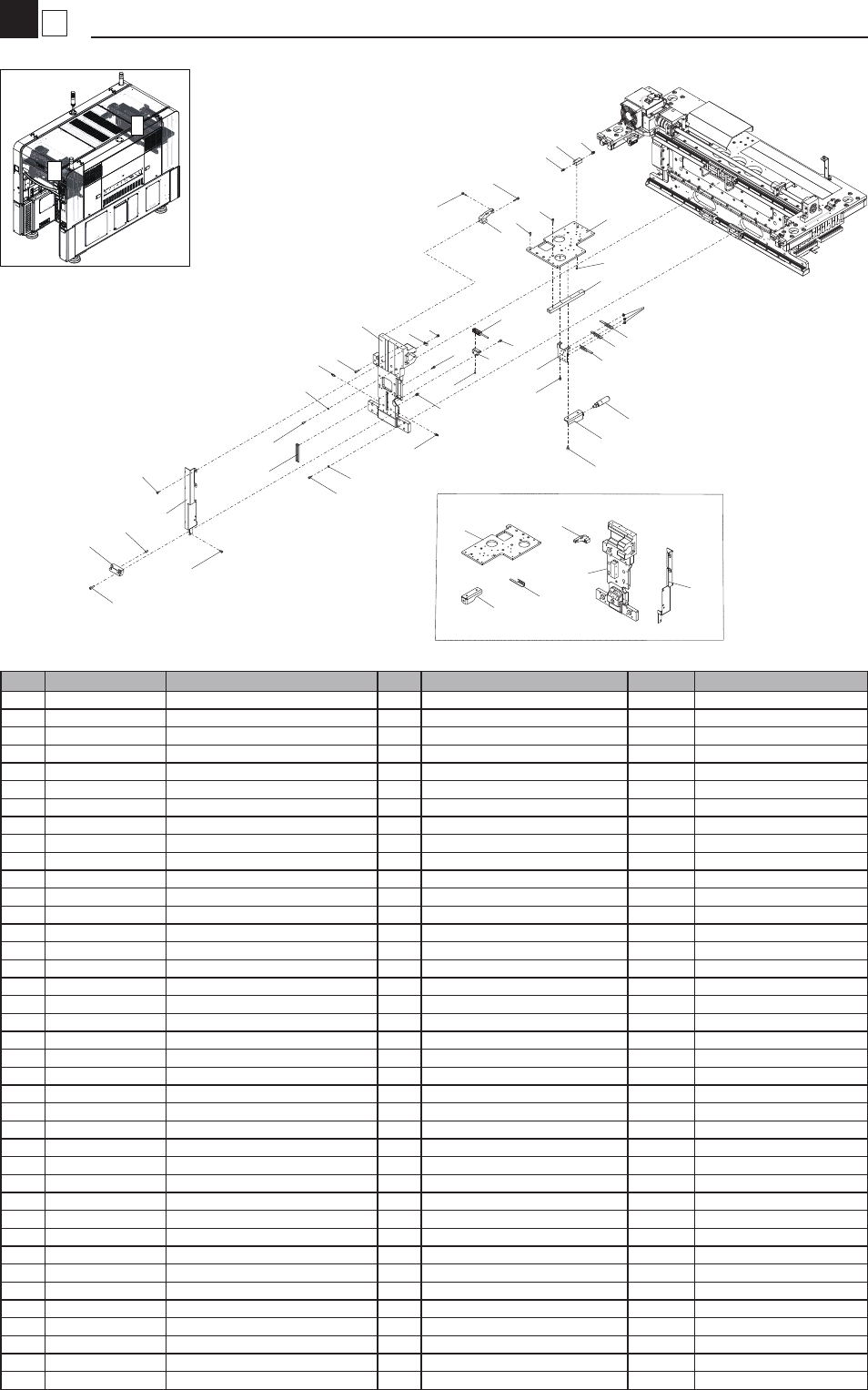

X-Holder Head (2-Beam)
Moving-axis
KMB-100-1607
26
30
14
3
35
31
27
25
5
24
9
8
23
22
4
21
29
2
6
15
6
10
13
34
12
6
13
6
10
37
1
13
17
11
19
6
7
11
6
39
5
33
18
36
38
28
16
32
20
Type A
A
B
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $NK-2N NYLON CLIP 5
2 90112-2AJ012 BOLT, HEX.SOCKET HEAD 2
3 90990-11J001 SCREW, PAN HEAD W/W 6
4 91312-03012 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 5
6 91312-04010 BOLT HEX,SOCKET HEAD 29
7 91312-04014 BOLT HEX,SOCKET HEAD 1
8 91312-04016 BOLT HEX,SOCKET HEAD 2
9 91312-04022 BOLT HEX,SOCKET HEAD 2
10 KHN-M22AD-00 GREASE NIPPLE 3
11 KHN-M22F4-00 WASHER,SWR04 16
12 KHY-M266C-00 BLOCK,JOINT 2
13 KHY-M266E-00 JOINT 4
14 KLF-M2256-00 GRIP 1 M8
15 KLF-M2237-10 HOLDER,X READ HEAD 1
16 KLF-M223A-00 PLATE,HEAD A 1 Type A
17 KLF-M223B-00 PLATE,HEAD B 1 Type B
18 KLF-M223C-01 BLOCK,LOCATE 1
19 KLF-M223D-00 PLATE,KEYWAY 1
20 KLF-M223E-00 STAY,R HEAD 1 Type A
21 KLF-M223E-50 STAY,L HEAD 1 Type B
22 KLF-M223F-10 LIB,L 1
23 KLF-M223G-10 BRKT.,L DOG X 1
24 KLF-M223K-00 DOG,X1 2ND-LM 1
25 KLF-M223K-50 DOG,X2 2ND-LM 1
26 KLF-M223L-00 DOG,XA ORG. 1 Type A
27 KLF-M223L-50 DOG,XB ORG. 1 Type B
28 KLF-M2244-F0 STAY,F DUCT X 1 Type A
29 KLF-M2244-R0 STAY,R DUCT X 1 Type B
30 KLF-M224F-01 STAY,A GRIP 1 Type A
31 KLF-M224F-51 STAY,B GRIP 1 Type B
32 KLF-M225A-00 COVER,A-1 CAM.CABLE 1 Type A
33 KLF-M225A-50 COVER,B-1 CAM.CABLE 1 Type B
34 KLF-M22T4-02 HEAD,LINEAR SCALE X 1
35 91312-05008 BOLT HEX,SOCKET HEAD 2
36 91312-05016 BOLT HEX,SOCKET HEAD 2
37 97602-04308 SCREW PAN HEAD W/WASHER 5
38 98902-04008 SCREW BINDING HEAD 2
39 99480-05010 PIN,PARALLEL 1
