YSM40R_2-Beam_KMB_PL - 第32页
9 9 10 10 14 15 17 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 9 9 10 10 14 15 16 15 1 9 13 11 12 9 10 10 2 3 4 5 6 13 11 12 13 11 12 13 11 12 2 5 6 5 6 2 1 1 4 3 13 11 12 13 11 12 7 7 8 8 8 8 14…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7101-00 HOUSING,HEAD 1
2 KLF-M7102-00 PLATE,R MOTOR 1
3 KLF-M7113-00 PLATE 2,BRG. 1
4 KLF-M7114-00 PLATE 3,BRG. 10
5 KLF-M7118-00 PLATE 4,BRG. 1
6 KLF-M7125-00 BRACKET,STOPPER 2
7 KLF-M7126-00 SHAFT,TENSION 3
8 KLF-M7127-00 BLOCK 1,ADJUST 1
9 KLF-M7128-00 BLOCK 2,ADJUST 1
10 KLF-M7129-00 BLOCK 3,ADJUST 1
11 KLF-M7130-00 BLOCK 4,ADJUST 1
12 KLF-M7131-00 BELT 1 2
13 KLF-M7132-00 BELT 2 2
14 KLF-M7133-00 SHEET,SCREEN 1
15 KLF-M7134-00 PULLEY,R MOTOR 2
16 KLF-M7139-00 STOPPER R 2
17 90KB0-113503 AC SERVO MOTOR R1 1
18 90KB0-113504 AC SERVO MOTOR R2 1
19 KGV-M7157-00 BLOCK2,STOPPER R 2
20 KHN-M7132-A0 BLOCK STOPPER ASSY 2
21 KV8-M7115-00 SHAFT 1,TENSION 4
22 91312-03006 BOLT HEX.SOCKET HEAD 28 M3X6
23 91312-03010 BOLT HEX.SOCKET HEAD 6 M3X10
24 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
25 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
26 91312-03035 BOLT,HEX.SOCKET HEAD 2 M3X35
27 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
28 91312-05018 BOLT HEX.SOCKET HEAD 2 M5X18
29 98702-03006 SCREW FLAT HEAD 14
30 92A08-04304 SET SCREW M4X4 4
31 99009-07800 CIRCLIP : 3
32 99480-04008 PIN,PARALLEL:4X8 2
33 90990-25J016 BEARING 20
34 92902-03200 WASHER PLAIN 8
35 92902-04200 WASHER PLAIN 4
36 90990-28J157 WASHER,PLAIN 3
37 91312-04006 BOLT HEX.SOCKET HEAD 2
38 91312-04008 BOLT HEX.SOCKET HEAD 2
2
5

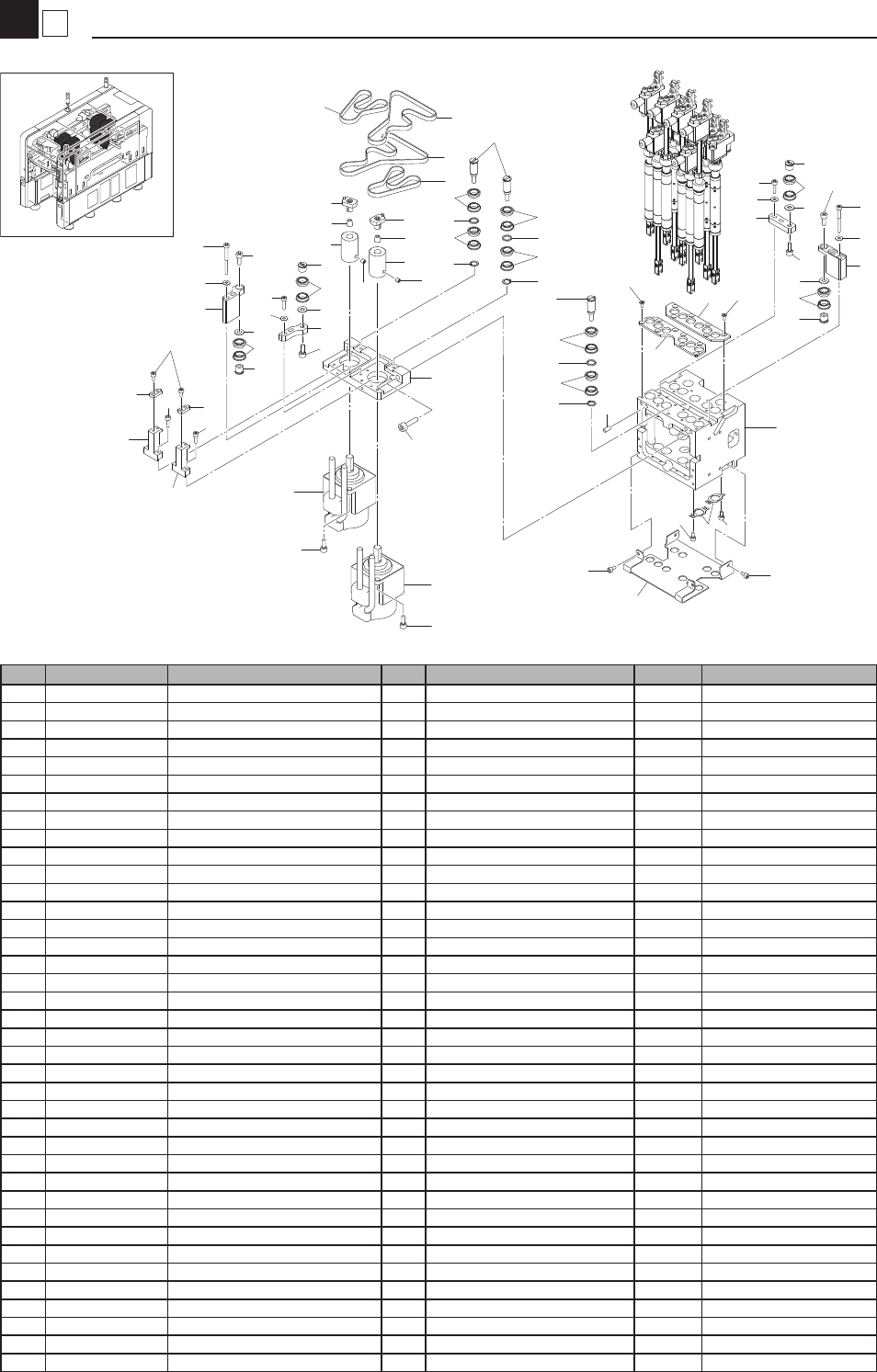

R-axis Assy (MU)
Head
KMB-100-1607
12
13
21
33
24
25
34
35
38
37
29
29
3
1
22
22
22
14
22
4
5
33
21
9
34
11
35
20
19
15
20
19
15
21
33
24
27
34
35
35
10
22
23
23
6
6
16
16
18
28
17
27
27
26
33
21
8
27
35
30
30
7
33
33
31
32
36
33
33
31
36
7
33
33
31
36
13
12
2
9
9
10
10
14
15
17
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
9
9
10
10
14
15
16
15
1
9
13
11
12
9
10
10
2
3
4
5
6
13
11
12
13
11
12
13
11
12
2
5
6
5
6
2
1
1
4
3
13
11
12
13
11
12
7
7
8
8
8
8
14
15
17
15
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7106-A0 HEAD SHAFT 1 ASSY. 2
2 KLF-M7106-B0 HEAD SHAFT 1 ASSY. 2
3 KLF-M7106-C0 HEAD SHAFT 1 ASSY. 1
4 KLF-M7106-D0 HEAD SHAFT 1 ASSY. 1
5 KLF-M7107-A0 HEAD SHAFT 2 ASSY. 2
6 KLF-M7107-B0 HEAD SHAFT 2 ASSY. 2
7 KLF-M711S-A0 SHAFT 1,SPARE 1 Spare
8 KLF-M712S-A0 SHAFT 2,SPARE 1 Spare
9 KG7-M7137-A0 LEAF SPRING 20
10 90990-08J016 SCREW,PAN HEAD 20
11 91317-03005 BOLT HEX.SOCKET HEAD 10 M3X5
12 90990-36J007 WASHER,SEAL 10
13 $TSH4-M5M JOINT 4
14 90990-17J053 O-RING 12
15 90990-08J016 SCREW,PAN HEAD 12
16 KLF-M7105-00 HOLDER,NOZZLE 4
17 KLF-M7105-10 HOLDER,NOZZLE 2 V-groove
3
5

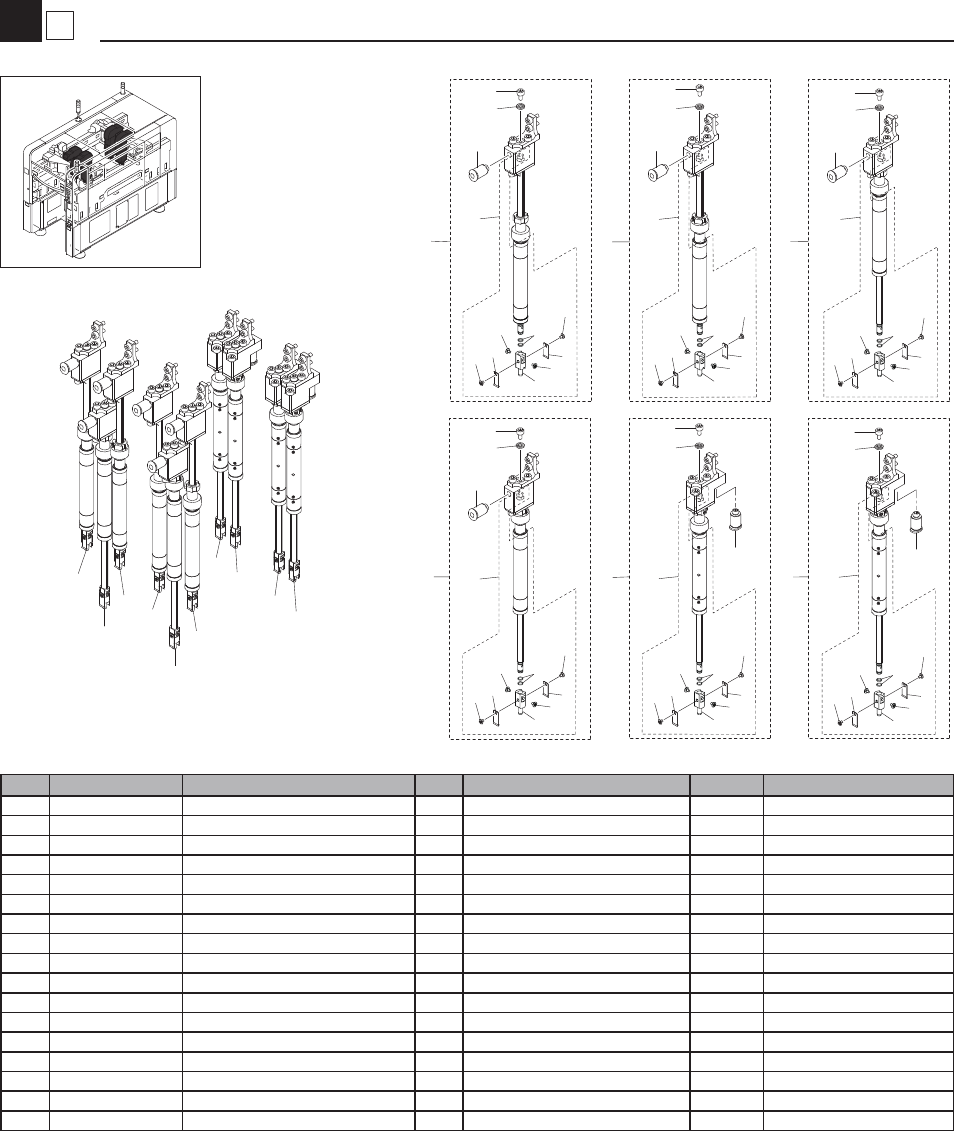

Head Shaft Assy (MU)
Head
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7103-01 PLATE A 1
2 KLF-M7104-00 PLATE,MANIFOLD 1
3 KLF-M7108-00 BASE,MOTOR 1
4 KLF-M7122-01 CAP 1 2
5 KLF-M7123-01 CAP 2 2
6 KLF-M7143-01 KEY,PARALLEL 1
7 KLF-M711R-00 BLOCK,HEAD 1
8 KLF-M71CF-00 CLAMP,CABLE 2
9 KLF-M7117-00 BASE,VALVE 1
10 KLF-M7191-01 BOX,SERVO BRD. 1
11 KLF-M7196-00 BASE,FAN MOTOR 1
12 KLF-M71C5-00 BRACKET,VALVE 1
13 KLF-M71C6-00 BRACKET,SERVO BOX 1
14 KLF-M71C7-00 BRACKET,JOINT 1
15 KLF-M71CB-00 PLATE,NUT 2
16 KLF-M71CE-00 CLAMP,CONNECTOR 1
17 KLF-M6185-00 FAN MOTOR ASSY. 1
18 KLA-M5802-37 HEAD SERVO UNIT ASSY 2
19 97602-04306 SCREW,BIN.HEAD W/W. 4
20 90112-02J010 BOLT HEX.SOCKET HEAD 6
21 91312-03006 BOLT HEX.SOCKET HEAD 12 M3X3
22 91312-03018 BOLT HEX.SOCKET HEAD 4 M3X18
23 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
24 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
25 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
26 91312-05016 BOLT HEX.SOCKET HEAD 3 M5X16
27 91312-05020 BOLT HEX.SOCKET HEAD 4 M6X20
28 91312-05035 BOLT HEX.SOCKET HEAD 2 M6X35
29 90990-23J030 GROMMET 5
30 99480-05010 PIN,PARALLEL 5
31 90990-18J005 PIN PARALLEL 4
32 90990-17J066 O RING 4
33 90947-30JA00 BALL STEEL 8
34 $TL4-M5M JOINT 2
35 $TLL4-M5M JOINT 2
36 $TSH4-M5M JOINT 4
37 $TL6-01 JOINT 2
38 $TS8-01 JOINT 3
39 $UP8 PLUG 1
40 $TSM8-01 JOINT 5
41 $NK-4N NYLON CLIP 4
4
5
Body Head Sub Assy (MU)
Head
KMB-100-1607
26
20
26
3
5
4
33
33
36
31
30
31
35
35
1
34
34
28
8
8
30
30
24
7
6
20
19
41
12
23
21
15
25
11
22
17
15
21
9
18
10
21
21
21
23
37
39
38
29
14
40
23
13
23
16
27
32
2
18
