YSM40R_2-Beam_KMB_PL - 第37页
21 14 19 19 23 8 7 17 15 11 12 12 11 15 16 26 22 6 4 25 13 20 20 1 23 3 24 23 23 27 28 18 23 2 5 9 10 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M741K-00 COVER,MOTOR 1 2 KLF-M741T -00 BRKT …
22
16
22
15
8
2
22
21
18
14
13
11
12
3
27
21
29
24
17
28
21
20
9
7
23
31
26
26
1
10
19
4
5
30
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7412-00 PLATE,HEAD 1
2 KLF-M7414-00 HOLDER,MOTOR Z 1
3 KLF-M7421-01 BALL SCREW 1
4 KLF-M7422-00 GUIDE,Z AXIS 1
5 KLF-M7423-00 BLOCK,SCREW 1
6 KLF-M742A-00 DAMPER 1 1
7 KLF-M742B-00 DAMPER 2 1
8 KLF-M748B-01 COUPLING 1
9 KJX-M7C15-00 HOLDER,BEARING 1
10 KJX-M7C2C-00 PLATE,HOLDER BRG. 1
11 KLH-M7C2A-00 BEARING 1
12 KLH-M7C2G-00 PLATE,BEARING 1
13 KLH-M7C2N-00 LOCK NUT,SCREW 1
14 KLH-M7C2P-00 SPACER 2
15 90K2F-032003 AC SERVO MOTOR Z1 1 Z1
16 90K2F-032004 AC SERVO MOTOR Z2 1 Z2
17 90933-02J624 BEARING 1
18 90990-02J004 SET SCREW 2
19 91312-03005 BOLT HEX.SOCKET HEAD 3 M3X5
20 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
21 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
22 91312-03014 BOLT,HEX.SOCKET HEAD 8 M3X14
23 91312-03018 BOLT HEX.SOCKET HEAD 2 M3X18
24 91312-03020 BOLT,HEX.SOCKET HEAD 4 M3X20
26 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
27 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
28 99009-04400 CIRCLIP 1
29 99480-03008 PIN,PARALLEL 2
30 99480-04010 PIN PARALLEL: 4X10 4
31 99480-04012 PIN,PARALLEL 2
7
5
Z-axis Assy (FL)
Head
KMB-100-1607
21
14
19
19
23
8
7
17
15
11
12
12
11
15
16
26
22
6
4
25
13
20
20
1
23
3
24
23
23
27
28
18
23
2
5
9
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M741K-00 COVER,MOTOR 1
2 KLF-M741T-00 BRKT.,COVER 1
3 KLF-M7424-00 COLLAR,SPRING 1
4 KLF-M7481-00 GEAR,MOTOR R 1
5 KLF-M7482-00 GEAR 1 ,R 1
6 KLF-M7486-00 PLATE,MOTOR 1
7 KLF-M7487-00 HOLDER,BEARING 1
8 KLF-M748A-00 COVER,GEAR 1
9 KLF-M654L-00 SENSOR R1 ORG ASSY 1 R1
10 KLF-M654L-10 SENSOR R2 ORG ASSY 1 R2
11 KLF-M7032-00 GEAR 2,R 2
12 KLF-M7035-00 SPRING,TORTION 2
13 90KB0-113103 AC SERVO MOTOR R1 1 R1
14 90KB0-113104 AC SERVO MOTOR R2 1 R2
15 90440-01J060 CIRCLIP 2
16 90933-02J694 BEARING 1
17 90933-02J695 BEARING 1
18 90990-11J003 SCREW,PAN HEAD W/W 1
19 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
20 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X14
21 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
22 91312-04040 BOLT HEX.SOCKET HEAD 2 M4X40
23 91317-03006 BOLT HEX.SOCKET HEAD 10 M3X6
24 92907-03200 WASHER PLAIN 2
25 92A08-04303 SET SCREW 2
26 99480-03008 PIN,PARALLEL 2
27 99480-04010 PIN PARALLEL: 4X10 2
28 $NK-3N NYLON CLIP 1
8
5

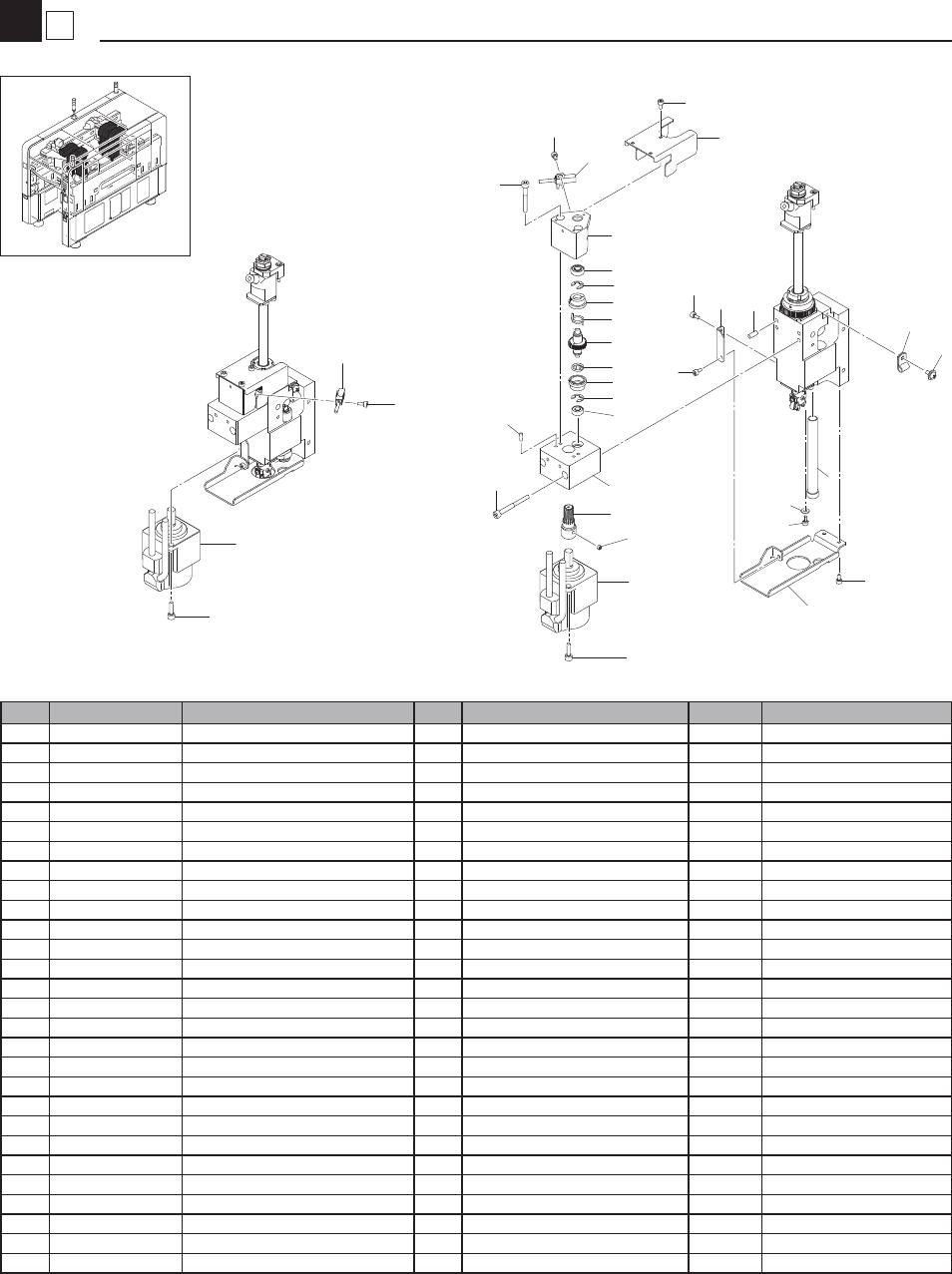

R-axis Assy 1 (FL)
Head
KMB-100-1607
28
23
27
26
1
7
37
36
36
36
34
34
33
31
35
32
32 31
35
30
33
38
38
36
36
8
3
21
24
10
11
2
9
14
17
12
18
16
16
15
13
6
19
25
20
22
5
29
4
7
7
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7413-00 BLOCK,SHAFT 1
2 KLF-M7419-00 PLATE,BEARING TOP 1
3 KLF-M741S-00 PLATE,STOPPER 1
4 KLF-M742M-01 ARM 1
5 KLF-M742S-00 BLOCK,SPLINE 1
6 KLF-M742V-00 PLATE,BRG 1
7 KLF-M7441-01 SPLINE SHAFT 1
8 KLF-M744A-00 COLLAR,BEARING 1
9 KLF-M7460-00 NUT,SPLINE 1
10 KLF-M7480-00 COLLAR,DOG 1
11 KLF-M7483-00 GEAR,HEAD R 1
12 KGS-M715A-02 WAVE WASHER 1
13 90933-02J605 BEARING 1
14 90990-16J002 NUT,U 1
15 90990-22J009 PACKING 1
16 90990-28J045 WASHER,PLAIN 2
17 90990-28J046 WASHER,PLAIN 1
18 90990-29J033 SHIM 1
19 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
20 91312-03016 BOLT,HEX.SOCKET HEAD 2 M3X16
21 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
22 91609-12006 PIN SPRING 1
23 92A08-03003 SET SCREW M3X3 2
24 92A08-03005 SET SCREW M3X5 2
25 95602-05100 NUT U 1
26 98702-03008 SCREW FLAT HEAD 4
27 99009-17800 CIRCLIP (IS) 1
28 $PF PLUG 1
29 $TSH4-M5M JOINT 1
30 KLF-M74D3-01 BLOCK,NOZZLE HOLDER 1
31 KV7-M81D1-00 ARM,NOZZLE 2
32 KV7-M81D4-00 ROLLER 2
33 KV7-M81D3-01 PIN 4
34 KV7-M8171-00 PLATE,SPLING 4
35 90440-10J008 CIRCLIP 4
36 90115-02J004 BOLT,HEX.SOCKET HEAD 6
37 90990-17J079 O-RING 2
38 90990-28J002 WASHER PLAIN 2
39 KLF-M74A0-01 ROLLER LOCK ASSY. 1
9
5

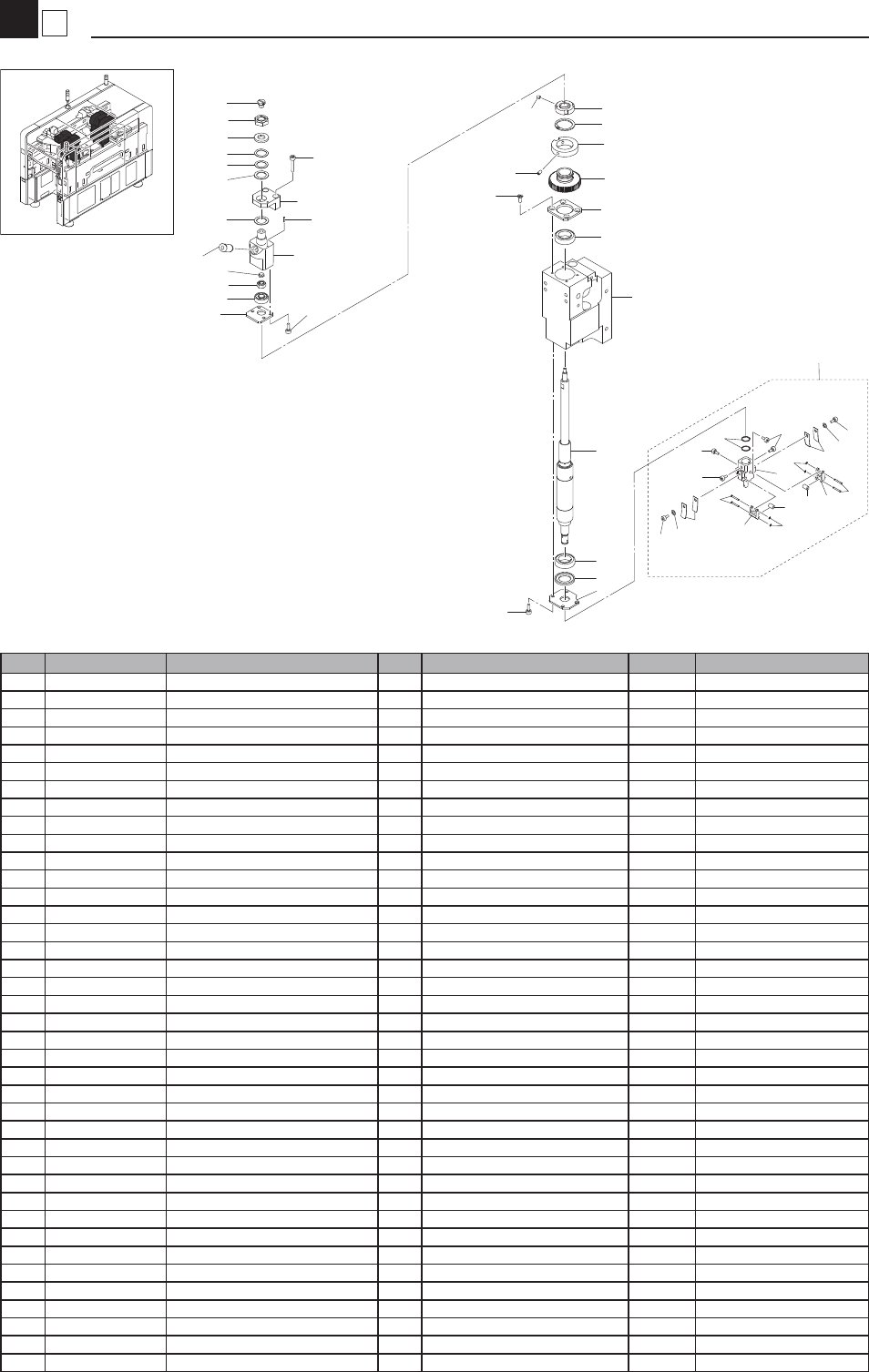

R-axis Assy 2 (FL)
Head
KMB-100-1607
