No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KMB-M920A-10 PLA TE 3(220X335) 1 B-T able 2 KMB-M920A-10 PLA TE 4(220X335) 1 D-T able 3 KLF-M920B-10 S TAY 1 4 KLF-M920D-00 PLA TE,ARM 2 5 KLF-M9212-0…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M920A-00 PLATE 1(357X400) 1 A-Table
2 KLF-M920B-00 STAY 1
3 KLF-M920C-00 PLATE,ARM 2
4 KLF-M9212-00 HOUSING 1
5 KLF-M921D-00 BELT 342-3GT-15 1
6 KLF-M921G-00 PLATE 2
7 KLF-M921H-01 PLATE,DOG 1 L=58mm
8 KLF-M921N-00 JOINT A 1
9 KLF-M921S-00 BRKT.,MOTOR 1
10 KLF-M9226-00 SHAFT 3
11 KLF-M9227-02 HOUSING SLEEVE 3
12 KLF-M9232-00 BALL BUSH 3
13 KLF-M9238-00 COLLAR 1
14 KGA-M921T-00 BOLT 4
15 KHW-M9215-00 PULLEY:P60-3GT 1
16 KHW-M921K-00 BRKT.,SENSOR 1
17 KHY-M9211-00 HOUSING,BRG. 1
18 KHY-M921M-01 WASHER 1
19 KHY-M921P-00 JOINT B 1
20 KLF-M653L-10 SENSOR PU1 ORG ASSY 1 A-Table
21 KLF-M653L-20 SENSOR PU2 ORG ASSY 1 C-Table
22 KKE-M9218-00 GROMMET 1
23 KKE-M9B00-00 BALL SCREW PU 1
24 KKT-M921G-00 BRKT.,DOG 1
25 KV7-M9205-01 PULLEY 1:P22-3GT 1
26 90K65-332625 AC SERVO MOTOR 1 A-Table
27 90K65-332626 AC SERVO MOTOR 1 C-Table
28 90440-01J090 CIRCLIP 1
29 90933-01J007 BEARING 2
30 90990-28J076 WASHER 1
31 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
32 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
34 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
35 91312-04012 BOLT,HEX.SOCKET HEAD 5 M4X12
36 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
37 91312-05012 BOLT HEX.SOCKET HEAD 22 M5X12
38 91312-05014 BOLT HEX.SOCKET HEAD 10 M5X14
39 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
40 91312-05020 BOLT HEX.SOCKET HEAD 12 M5X20
41 92902-04200 WASHER PLAIN 6
42 92902-05200 WASHER PLAIN 8
43 95602-10100 NUT U 4
44 KKV-M920D-00 PUSH UP PIN UNIT 1
45 KMB-M920A-00 PLATE 1(357X400) 1 C-Table ( Plate only )
46 KMB-M9221-00 DAMPER PU 3
1
7

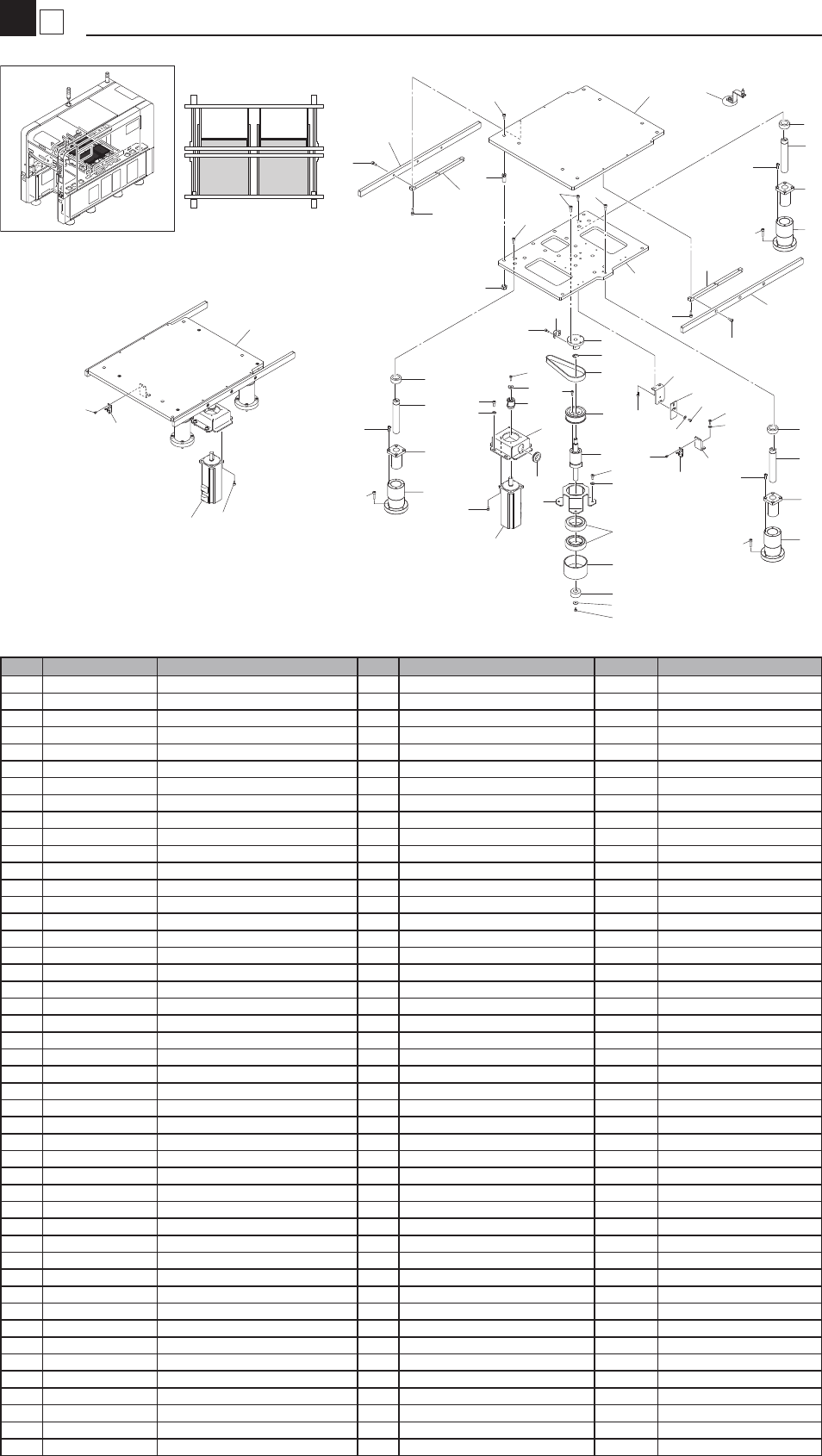

Push-Up A / C
Conveyor
KMB-100-1607
44
3
3
6
6
2
1
37
D
A
B
C
37
39
39
38
38
38
43
35
35
5
15
23
36
42
29
17
10
10
13
18
32
28
8
34
34
31
34
16
20
31
21
41
24
7
32
41
19
37
42
33
33
26
27
22
4
9
30
25
36
14
46
46
45
10
46
12
11
37
40
12
11
37
40
12
11
37
40
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M920A-10 PLATE 3(220X335) 1 B-Table
2 KMB-M920A-10 PLATE 4(220X335) 1 D-Table
3 KLF-M920B-10 STAY 1
4 KLF-M920D-00 PLATE,ARM 2
5 KLF-M9212-00 HOUSING 1
6 KLF-M921D-00 BELT 342-3GT-15 1
7 KLF-M921G-00 PLATE 2
8 KLF-M921H-01 PLATE,DOG 1
9 KLF-M921N-00 JOINT A 1
10 KLF-M921S-00 BRKT.,MOTOR 1
11 KLF-M9226-00 SHAFT 3
12 KLF-M9227-02 HOUSING SLEEVE 3
13 KLF-M9232-00 BALL BUSH 3
14 KLF-M9238-00 COLLAR 1
15 KGA-M921T-00 BOLT 4
16 KHW-M9215-00 PULLEY:P60-3GT 1
17 KHW-M921K-00 BRKT.,SENSOR 1
18 KHY-M9211-00 HOUSING,BRG. 1
19 KHY-M921M-01 WASHER 1
20 KHY-M921P-00 JOINT B 1
21 KLF-M653L-30 SENSOR PU3 ORG ASSY 1 B-Table
22 KLF-M653L-40 SENSOR PU1 ORG ASSY 1 D-Table
23 KKE-M9218-00 GROMMET 1
24 KKE-M9B00-00 BALL SCREW PU 1
25 KKT-M921G-00 BRKT.,DOG 1
26 KV7-M9205-01 PULLEY 1:P22-3GT 1
27 90K65-332670 AC SERVO MOTOR 1 B-Table
28 90K65-332671 AC SERVO MOTOR 1 D-Table
29 90440-01J090 CIRCLIP 1
30 90933-01J007 BEARING 2
31 90990-28J076 WASHER 1 M3X5
32 91312-03005 BOLT HEX.SOCKET HEAD 2 M4X6
33 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X8
34 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X10
35 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
36 91312-04012 BOLT,HEX.SOCKET HEAD 5 M4X14
37 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X12
38 91312-05012 BOLT HEX.SOCKET HEAD 22 M5X12
39 91312-05014 BOLT HEX.SOCKET HEAD 10 M5X16
40 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X20
41 91312-05020 BOLT HEX.SOCKET HEAD 12
42 92902-04200 WASHER PLAIN 6
43 92902-05200 WASHER PLAIN 8
44 95602-10100 NUT U 4
45 KKV-M920D-00 PUSH UP PIN UNIT 1
46 KMB-M9221-00 DAMPER PU 3
2
7

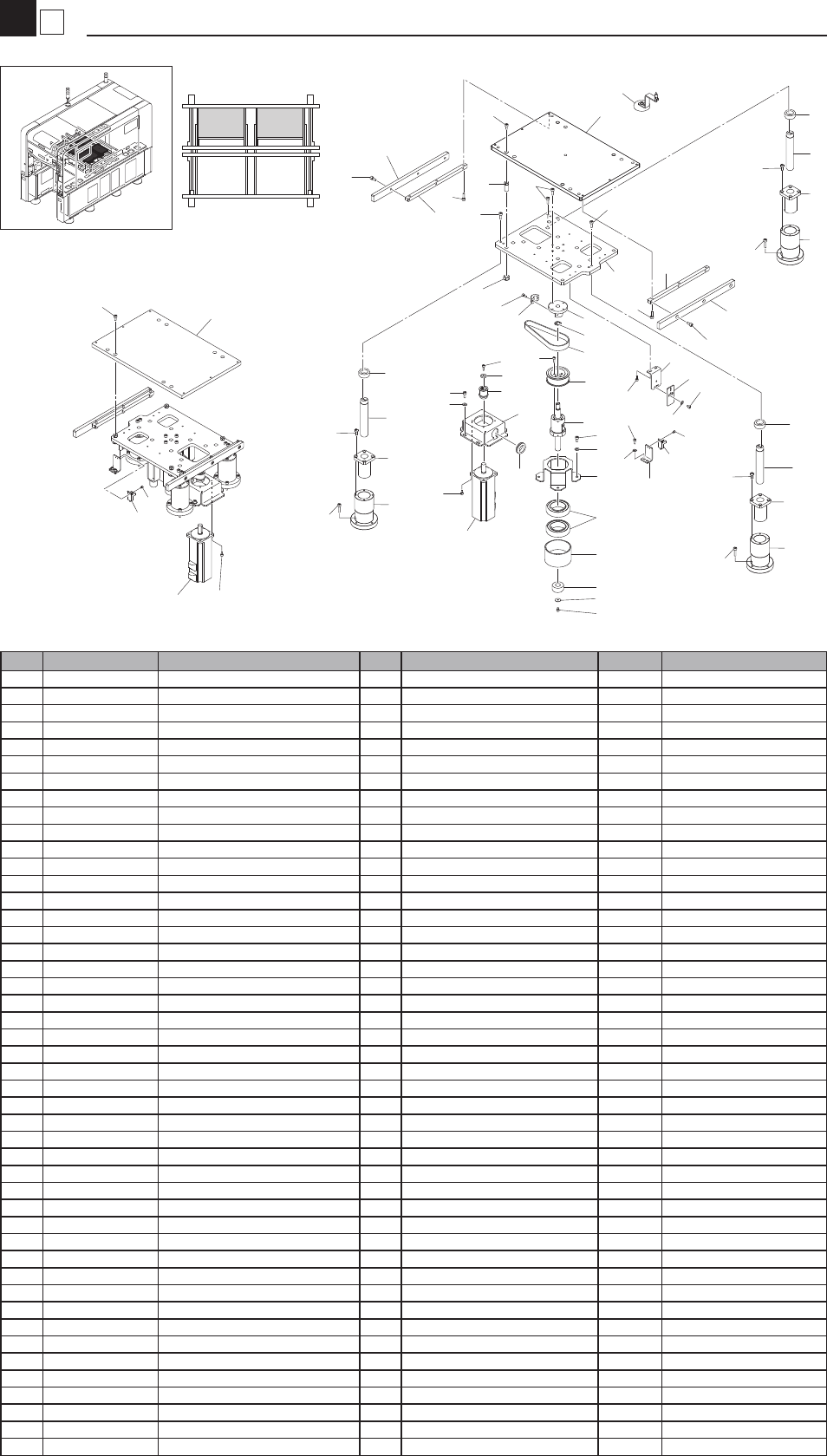

Push-Up B / D
Conveyor
KMB-100-1607
45
4
4
7
7
3
1
38
38
39
40
40
39
39
44
36
36
6
16
24
37
43
5
42
30
18
11
46
11
46
11
46
14
19
33
29
9
35
35
35
21
17
32
22
25
8
33
42
20
38
43
34
34
27
28
23
10
31
26
37
15
37
2
32
D
A
B
C
13
12
38
41
13
12
38
41
13
12
38
41
3
7

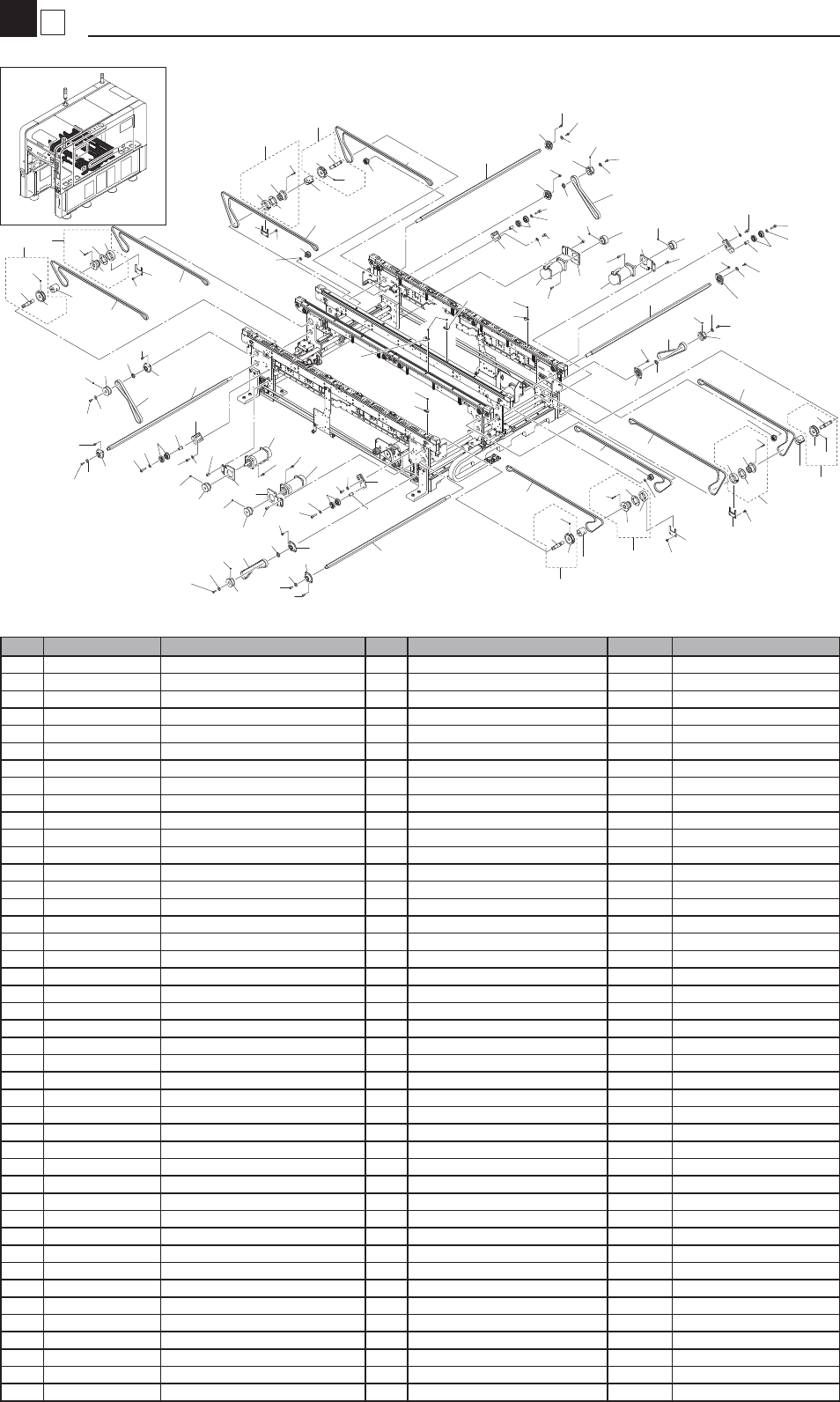

Trasport
Conveyor
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9106-00 SPLINE 1 4
2 KLF-M9107-00 COUPLING 4
3 KLF-M911A-00 BELT,CONVEYOR 1 4
4 KLF-M9111-00 STAY,MOTOR 1 1
5 KLF-M9111-10 STAY,MOTOR 2 1
6 KLF-M9115-00 BELT 387-3GT-9 2
7 KLF-M9116-00 BELT 399-3GT-9 2
8 KLF-M911B-00 BELT,CONVEYOR 2 4
9 KLF-M9118-00 STAY,MOTOR 3 1
10 KLF-M9118-10 STAY,MOTOR 4 1
11 KLF-M911E-A0 PULLEY,SPLINE ASSY 4
12 KLF-M911E-00 PULLEY 2,CONVEYOR 1
13 KLF-M911G-00 GUIDE 1,PULLEY 1
14 KG2-M9108-11 COLLAR,CONVEYOR 1
15 KLF-M911H-A0 PULLEY SUB ASSY. 4
16 KLF-M911K-00 SHAFT,DRIVE 1
17 KLF-M911H-00 PULLEY 1,CONVEYOR 1
18 KLF-M9128-00 SPACER 4
19 KLF-M9137-00 BRKT.,TENSIONER 4
20 KLF-M9150-A0 PULLEY,CONV. ASSY 4
21 KG7-M9111-01 PULLEY 1 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 4
23 KH2-M9121-00 BEARING 8
24 KHW-M9137-00 COLLAR,BRG. 4
25 KKE-M9135-01 PLATE,EDGE 2 16
26 KLF-M9135-01 PLATE,EDGE 2 16
27 90KC1-011502 AC SERVO MOTOR CV1 1
28 90KC1-011503 AC SERVO MOTOR CV2 1
29 90KC1-011504 AC SERVO MOTOR CV3 1
30 90KC1-011505 AC SERVO MOTOR CV4 1
31 90990-25J024 BEARING 8
32 90990-28J016 WASHER,PLAIN 2
33 90990-28J070 WASHER,PLAIN 8
34 90990-28J110 WASHER,PLAIN 4
35 91312-03016 BOLT,HEX.SOCKET HEAD 4 M3X6
36 91312-04008 BOLT HEX.SOCKET HEAD 24 M4X8
37 91312-04010 BOLT HEX.SOCKET HEAD 24 M4X10
38 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
39 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
40 92902-05200 WASHER PLAIN 12
41 92A08-04306 SCREW. SET 12
42 92A08-03304 SET SCREW 2
43 98702-03005 SCREW FLAT HEAD 32
16
16
17
37
37
37
37
39
40
40
39
40
21
41
41
5
4
37
37
28
27
21
38
38
38
36
38
40
31
31
24
24
19
19
36
33
33
33
23
23
23
33
36
36
37
37
33
33
7
23
22
36
34
39
40
38
38
38
19
40
38
40
19
30
43
25
26
43
26
43
25
29
37
10
21
9
21
41
41
37
31
24
37
33
36
34
41
22
7
23
36
37
33
23
23
1
1
41
36
23
6
6
1
1
34
34
41
41
22
22
17
2
2
11
11
15
15
35
35
13
13
12
12
18
18
20
20
20
20
36
36
32
32
18
36
18
36
14
11
11
35
35
13
13
12
12
14
14
14
3
3
8
8
41
16
16
17
17
15
2
42
42
42
3
3
8
8
15
2
39
40
31
24
