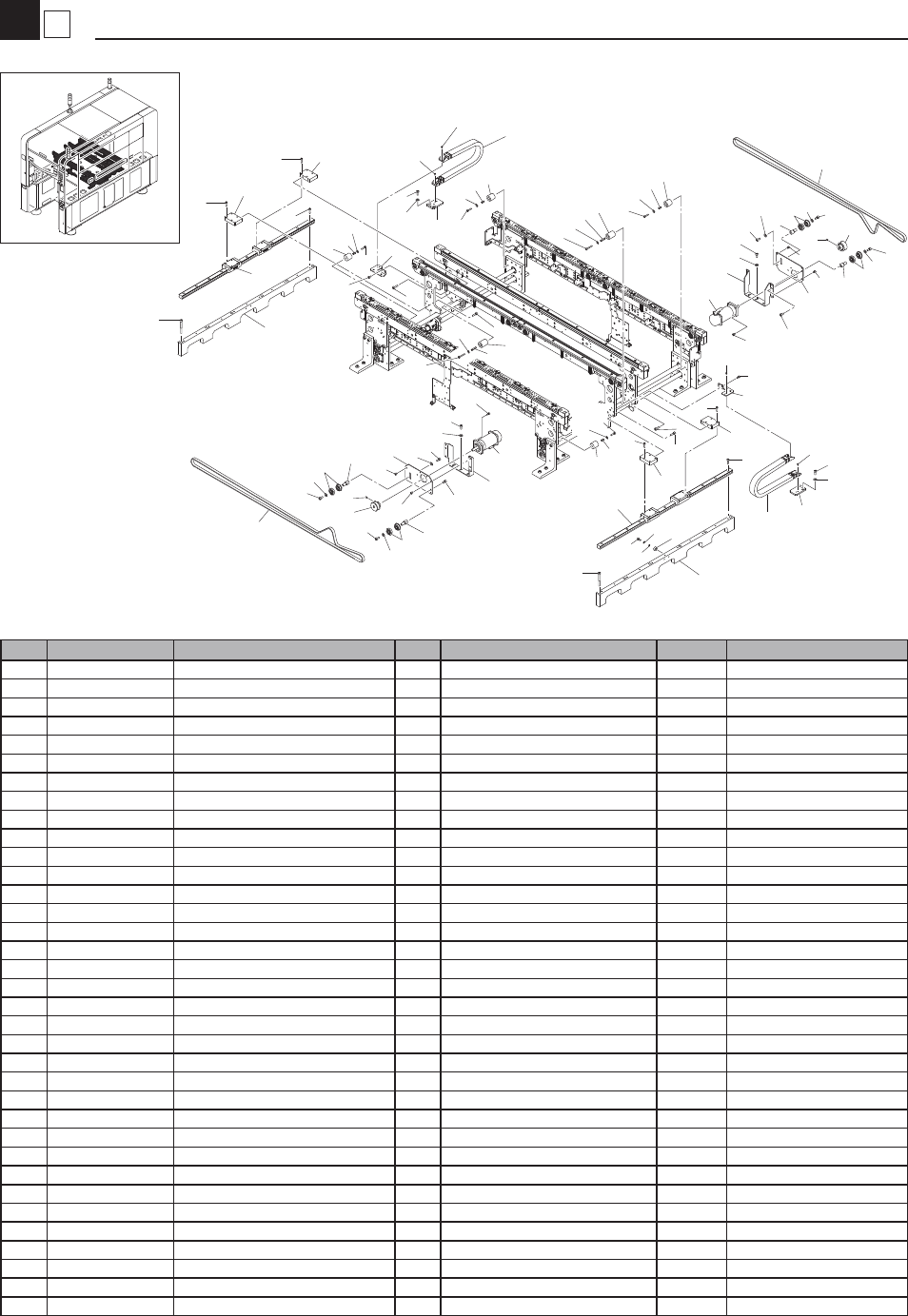

Trasport
Conveyor
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9106-00 SPLINE 1 4
2 KLF-M9107-00 COUPLING 4
3 KLF-M911A-00 BELT,CONVEYOR 1 4
4 KLF-M9111-00 STAY,MOTOR 1 1
5 KLF-M9111-10 STAY,MOTOR 2 1
6 KLF-M9115-00 BELT 387-3GT-9 2
7 KLF-M9116-00 BELT 399-3GT-9 2
8 KLF-M911B-00 BELT,CONVEYOR 2 4
9 KLF-M9118-00 STAY,MOTOR 3 1
10 KLF-M9118-10 STAY,MOTOR 4 1
11 KLF-M911E-A0 PULLEY,SPLINE ASSY 4
12 KLF-M911E-00 PULLEY 2,CONVEYOR 1
13 KLF-M911G-00 GUIDE 1,PULLEY 1
14 KG2-M9108-11 COLLAR,CONVEYOR 1
15 KLF-M911H-A0 PULLEY SUB ASSY. 4
16 KLF-M911K-00 SHAFT,DRIVE 1
17 KLF-M911H-00 PULLEY 1,CONVEYOR 1
18 KLF-M9128-00 SPACER 4
19 KLF-M9137-00 BRKT.,TENSIONER 4
20 KLF-M9150-A0 PULLEY,CONV. ASSY 4
21 KG7-M9111-01 PULLEY 1 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 4
23 KH2-M9121-00 BEARING 8
24 KHW-M9137-00 COLLAR,BRG. 4
25 KKE-M9135-01 PLATE,EDGE 2 16
26 KLF-M9135-01 PLATE,EDGE 2 16
27 90KC1-011502 AC SERVO MOTOR CV1 1
28 90KC1-011503 AC SERVO MOTOR CV2 1
29 90KC1-011504 AC SERVO MOTOR CV3 1
30 90KC1-011505 AC SERVO MOTOR CV4 1
31 90990-25J024 BEARING 8
32 90990-28J016 WASHER,PLAIN 2
33 90990-28J070 WASHER,PLAIN 8
34 90990-28J110 WASHER,PLAIN 4
35 91312-03016 BOLT,HEX.SOCKET HEAD 4 M3X6
36 91312-04008 BOLT HEX.SOCKET HEAD 24 M4X8
37 91312-04010 BOLT HEX.SOCKET HEAD 24 M4X10
38 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
39 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
40 92902-05200 WASHER PLAIN 12
41 92A08-04306 SCREW. SET 12
42 92A08-03304 SET SCREW 2
43 98702-03005 SCREW FLAT HEAD 32
16
16
17
37
37
37
37
39
40
40
39
40
21
41
41
5
4
37
37
28
27
21
38
38
38
36
38
40
31
31
24
24
19
19
36
33
33
33
23
23
23
33
36
36
37
37
33
33
7
23
22
36
34
39
40
38
38
38
19
40
38
40
19
30
43
25
26
43
26
43
25
29
37
10
21
9
21
41
41
37
31
24
37
33
36
34
41
22
7
23
36
37
33
23
23
1
1
41
36
23
6
6
1
1
34
34
41
41
22
22
17
2
2
11
11
15
15
35
35
13
13
12
12
18
18
20
20
20
20
36
36
32
32
18
36
18
36
14
11
11
35
35
13
13
12
12
14
14
14
3
3
8
8
41
16
16
17
17
15
2
42
42
42
3
3
8
8
15
2
39
40
31
24
25
7
7
25
25
10
18
23
27
32
11
12
30
30
23
32
32
26
26
29
33
13
20
20
10
15
15
32
26
10
15
32
27
11
19
23
28
6
33
33
3
22
14
28
28
12
10
9
8
28
28
28
33
33
3
22
22
4
4
21
33
21
33
4
21
33
4
21
33
35
22
28
28
28
28
35
14
5
5
6
32
26
15
25
26
13
8
33
29
20
30
30
7
7
9
23
20
26
2
2
24
17
34
16
31
31
1
1
4
7
Width Adjut-Guide / Motor
Conveyor
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9102-00 STAY,GUIDE 2
2 KLF-M9103-00 LM RAIL&BLOCK 15,630 2
3 KLF-M9112-00 PLATE,MOTOR 2
4 KLF-M9113-00 COLLAR,BRG.2 4
5 KKT-M9128-00 BELT 1722-3GT-9 2
6 KLF-M9119-00 BRACKET,MOTOR 2
7 KLF-M9127-00 PLATE ,GUIDE 4
8 KLF-M9133-01 PLATE,DUCT 2
9 KLF-M9134-00 BRKT.,DUCT 2
10 KLF-M9159-00 DAMPER 4
11 KLF-M915A-00 DAMPER 2
12 KLF-M915B-00 SPACER 2
13 KLF-M9194-00 DUCT,CABLE 2
14 KG7-M9111-01 PULLEY 1 2
15 KHY-M9154-00 SPACER 4
16 KLC-M910M-00 DAMPER 2 1
17 KLC-M910N-00 SPACER 1
18 90KC1-011506 AC SERVO MOTOR W1 1
19 90KC1-011507 AC SERVO MOTOR W2 1
20 90112-2AJ005 BOLT,HEX.SOCKET HEAD 8
21 90990-25J024 BEARING 8
22 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
23 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
24 91312-04010 BOLT HEX.SOCKET HEAD 1 M4X10
25 91312-04014 BOLT HEX.SOCKET HEAD 16 M4X14
26 91312-04016 BOLT,HEX.SOCKET HEAD 26 M4X16
27 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
28 91312-05010 BOLT HEX.SOCKET HEAD 10 M5X10
29 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
30 91312-05016 BOLT HEX.SOCKET HEAD 8 M5X16
31 91312-05050 BOLT HEX.SOCKET HEAD 12 M5X50
32 92902-04200 WASHER PLAIN 6
33 92902-05200 WASHER PLAIN 18
34 92902-04600 WASHER PLAIN 1
35 92A08-04306 SCREW. SET 4
5
7

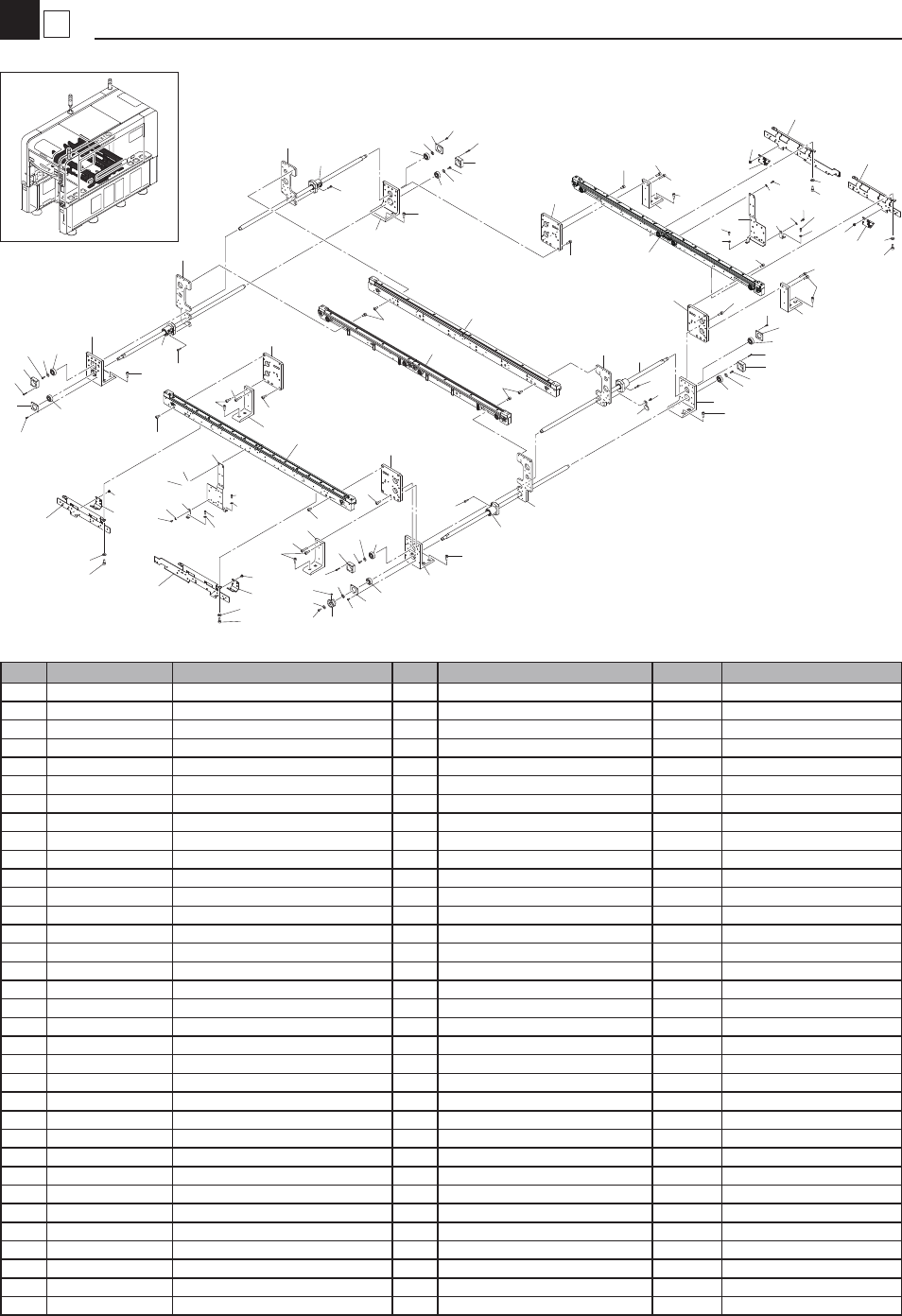

Base / Plate / Ball Screw
Conveyor
KMB-100-1607
18
19
25
23
22
5
18
1
28
29
28
28
15
29
28
15
4
23
25
19
18
20
32
19
25
17
18
28
27
27
7
8
8
9
16
26
24
28
3
18
18
22
15
28
28
29
28
5
19
25
4
23
14
28
2
26
16
10
1
22
5
2
27
27
31
25
27
31
25
13
30
21
25
25
2
25
23
4
22
5
20
18
9
16
26
18
19
31
27
28
28
28
3
28
29
2
31
31
6
25
6
31
30
21
13
26
16
10
4
7
15
31
25
12
11
31
25
33
34
31
25
31
25
11
12
33
34
33
34
33
34
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M9101-00 S TAY 1 2
2 KMB-M9104-00 PLATE 1 4
3 KMB-M9105-00 S TAY 2 2
4 KLF-M9108-00 HOLDER 4
5 KLF-M9109-00 PLATE 4
6 KMB-M911L-00 BRKT.,HNS. 2
7 KLF-M9120-A1 FRAME ASSY. 2 See page 7-8
8 KLF-M9120-B0 FRAME ASSY. 2 See page 7-8
9 KMB-M9124-00 PLATE 3 2
10 KMB-M9125-00 PLATE 4 2
11 KMB-M912J-00 STAY 1, SENSOR 2
12 KMB-M912K-00 STAY 2, SENSOR 2
13 KLF-M9136-00 STAY 2
14 KLF-M9151-00 PLATE,STOPPER 1
15 KMB-M9193-00 S TAY 2 4
16 KLF-M9A00-00 BALL SCREW W 4
17 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 1
18 90933-01J000 BEARING 8
19 90990-28J070 WASHER,PLAIN 4
20 90990-28J130 WASHER,PLAIN 4
21 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
22 91312-03008 BOLT HEX.SOCKET HEAD 16 M3X8
23 91312-03016 BOLT,HEX.SOCKET HEAD 16 M3X16
24 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
25 91312-04010 BOLT HEX.SOCKET HEAD 26 M4X10
26 91312-04016 BOLT,HEX.SOCKET HEAD 16 M4X16
27 91312-06012 BOLT HEX.SOCKET HEAD 16 M6X12
28 91312-06016 BOLT HEX.SOCKET HEAD 16 M6X16
29 91312-06025 BOLT HEX.SOCKET HEAD 4 M6X25
30 92902-03200 WASHER PLAIN 2
31 92902-04200 WASHER PLAIN 8
32 92A08-04306 SCREW. SET 2
33 KMB-M99D3-00 STAY, SENSOR 4
34 98902-04006 SCREW, BINDING HEAD 8
