YSM40R_2-Beam_KMB_PL - 第53页

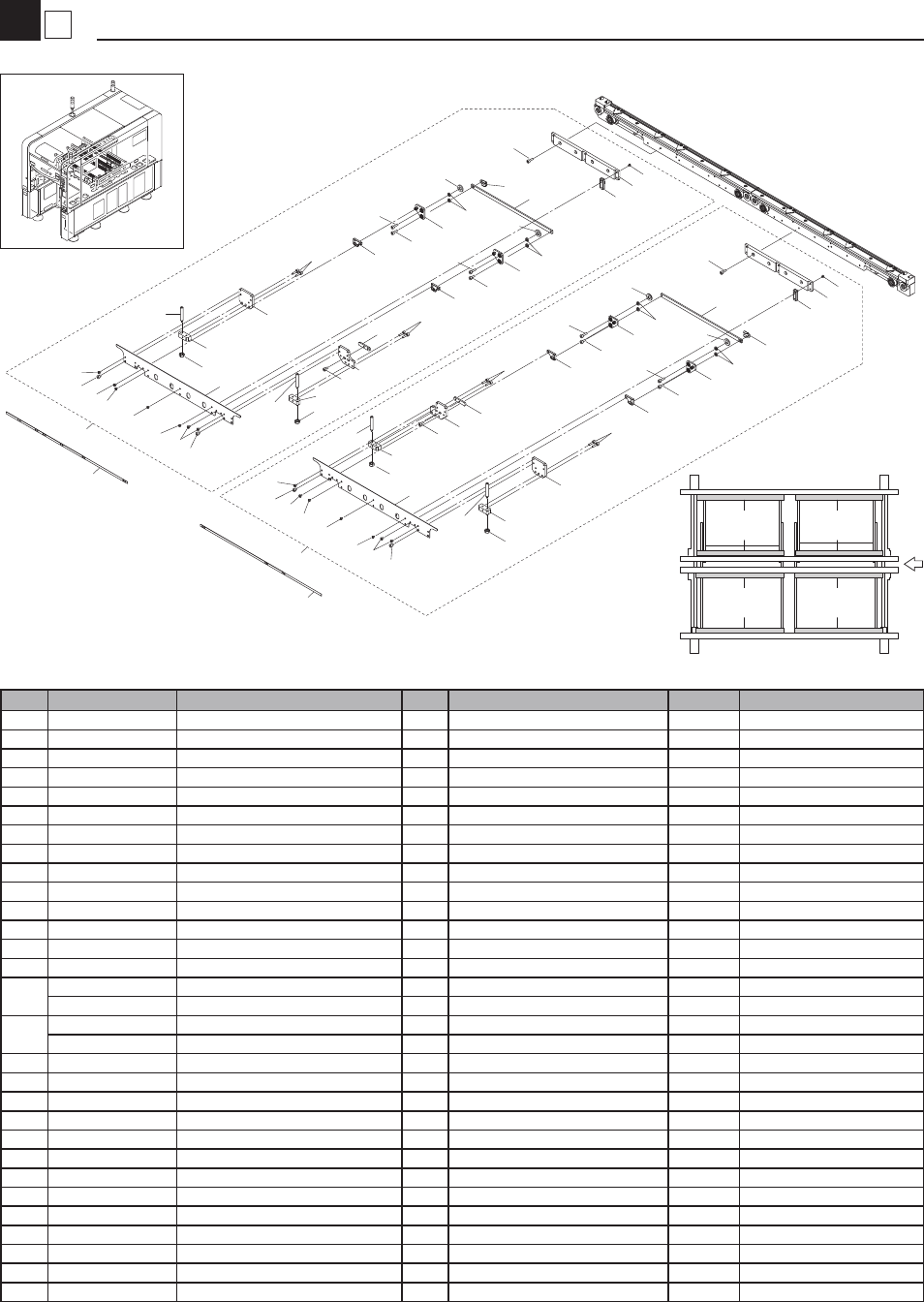

10 7 Clamp Board 2 Conveyor KMB-100-1607 27 26 26 27 29 28 28 29 6 7 8 22 25 11 8 17 5 4 3 22 23 1 23 14 12 24 11 19 18 18 18 25 19 25 10 12 24 11 9 13 20 23 5 4 3 21 8 1 23 14 12 24 5 4 2 22 8 1 10 8 11 24 12 9 23 13 20…
9
7
Clamp Board 1
Conveyor
KMB-100-1607
27
26
26
27
29
28
28
29
6
7
8
22
25
11
8
17
5
4
3
22
23
1
23
14
12
24
11
19
18
18
18
25
19
25
10
12
24
11
9
13
20
23
5
4
3
21
8
1
23
14
12
24
5
4
2
22
8
1
10
8
11
24
12
9
23
13
20
25
18
18
18
25
19
25
19
4
2
21
1
23
5
7
22
8
17
27
26
16
15
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M9261-01 PLATE1,LINK 4
2 KHW-M9264-A0 LINK A ASSY. 2
3 KHW-M9264-B0 LINK B ASSY. 2
4 KHW-M9265-00 SPACER 8
5 KHW-M926A-00 COLLAR 4
6 KHW-M926E-00 NUT 2
7 KKE-M9262-00 PLATE,BASE S 2
8 KLF-M926G-00 PLATE 2,LINK 2
9 KLF-M9267-00 STOPPER 2
10 KLF-M926C-00 PLATE,BOARD CLAMP 2
11 KLF-M926E-00 SPRING PLUNGER 4
12 KLF-M926F-00 HOLDER,PLUNGER 4
13 KLF-M926H-00 PLATE 2
14 KLF-M926J-00 PLATE 2
15
KLF-M926P-00 SEAL,CP BOARD 1 1 4 Beams
KLF-M926V-00 SEAL,CP BOARD 1 1 2 Beams
16
KLF-M926R-00 SEAL,CP BOARD 2 1 4 Beams
KLF-M926W-00 SEAL,CP BOARD 2 1 2 Beams
17 KV7-M9266-01 GUIDE 6
18 90169-02JB04 SCREW, BINDING HEAD 24
19 91312-04005 BOLT HEX,SOCKET HEAD 8
20 91312-04008 BOLT HEX,SOCKET HEAD 4
21 91312-04010 BOLT HEX,SOCKET HEAD 2
22 91312-04012 BOLT HEX,SOCKET HEAD 10
23 91312-04014 BOLT HEX,SOCKET HEAD 12
24 95302-06600 NUT HEXAGON 4
25 98902-03005 SCREW BINDING HEAD 16
26 KLF-M9260-A0 CP BOARD A SUB ASSY. 2
27 KLF-M9260-B0 CP BOARD B SUB ASSY. 2
28 KLF-M9260-C0 CP BOARD C SUB ASSY. 2
29 KLF-M9260-D0 CP BOARD D SUB ASSY. 2
10
7
Clamp Board 2
Conveyor
KMB-100-1607
27
26
26
27
29
28
28
29
6
7
8
22
25
11
8
17
5
4
3
22
23
1
23
14
12
24
11
19
18
18
18
25
19
25
10
12
24
11
9
13
20
23
5
4
3
21
8
1
23
14
12
24
5
4
2
22
8
1
10
8
11
24
12
9
23
13
20
25
18
18
18
25
19
25
19
4
2
21
1
23
5
7
22
8
17
29
28
16
15
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHW-M9261-01 PLATE1,LINK 4
2 KHW-M9264-A0 LINK A ASSY. 2
3 KHW-M9264-B0 LINK B ASSY. 2
4 KHW-M9265-00 SPACER 8
5 KHW-M926A-00 COLLAR 4
6 KHW-M926E-00 NUT 2
7 KKE-M9262-00 PLATE,BASE S 2
8 KLF-M926G-00 PLATE 2,LINK 2
9 KLF-M9267-00 STOPPER 2
10 KLF-M926C-00 PLATE,BOARD CLAMP 2
11 KLF-M926E-00 SPRING PLUNGER 4
12 KLF-M926F-00 HOLDER,PLUNGER 4
13 KLF-M926H-00 PLATE 2
14 KLF-M926J-00 PLATE 2
15
KLF-M926T-00 SEAL,CP BOARD 3 1 4 Beams
KLF-M926X-00 SEAL,CP BOARD 3 1 2 Beams
16
KLF-M926U-00 SEAL,CP BOARD 4 1 4 Beams
KLF-M926Y-00 SEAL,CP BOARD 4 1 2 Beams
17 KV7-M9266-01 GUIDE 6
18 90169-02JB04 SCREW, BINDING HEAD 24
19 91312-04005 BOLT HEX,SOCKET HEAD 8
20 91312-04008 BOLT HEX,SOCKET HEAD 4
21 91312-04010 BOLT HEX,SOCKET HEAD 2
22 91312-04012 BOLT HEX,SOCKET HEAD 10
23 91312-04014 BOLT HEX,SOCKET HEAD 12
24 95302-06600 NUT HEXAGON 4
25 98902-03005 SCREW BINDING HEAD 16
26 KLF-M9260-A0 CP BOARD A SUB ASSY. 2
27 KLF-M9260-B0 CP BOARD B SUB ASSY. 2
28 KLF-M9260-C0 CP BOARD C SUB ASSY. 2
29 KLF-M9260-D0 CP BOARD D SUB ASSY. 2
11
7
Extension
Conveyor
KMB-100-1607
22
16
4
17
2
19
11
14
16
15
18
9
15
8
23
5
4
21
20
15
18
9
15
17
1
12
22
6
7
15
18
9
15
2
17
8
8
5
20
4
21
16
4
10
24
15
18
9
15
8
17
1
19
13
23
16
3
12
3
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGA-M9113-00 GUIDE 1,END 2
2 KGA-M9114-00 GUIDE 2,END 2
3 KLF-M653M-01 SENSOR ENT ASSY 2
4 KLF-M913A-A1 PULLEY,ASSY 8
5 KLF-M9150-A0 PULLEY,CONV. ASSY 8
6 KLF-M9171-02 FRAME,CONVEYOR 1
7 KLF-M9172-02 FRAME,CONVEYOR 1
8 KLF-M9173-00 PLATE 1A,GUIDE 4
9 KLF-M9174-00 GUIDE 1-1 4
10 KLF-M9175-00 STAY,PLY 1 2
11 KLF-M9176-00 STAY,PLY 2 2
12 KLF-M9177-01 BELT,CV 1 4
13 KLF-M9178-00 STAY,SENS.1 1
14 KLF-M9179-00 STAY,SENS.2 1
15 91312-03008 BOLT HEX,SOCKET HEAD 16
16 91312-04010 BOLT HEX,SOCKET HEAD 12
17 91312-04012 BOLT HEX,SOCKET HEAD 8
18 92902-03200 WASHER,PLAIN 8
19 92902-04200 WASHER,PLAIN 4
20 92902-05200 WASHER,PLAIN 8
21 92902-05600 WASHER,PLAIN 4
22 95302-05600 NUT HEXAGON 4
23 97602-03310 SCREW PAN HEAD W/WASHER 4
24 KMB-M9171-01 FRAME,CONVEYOR 1
25 KMB-M9172-01 FRAME,CONVEYOR 1
