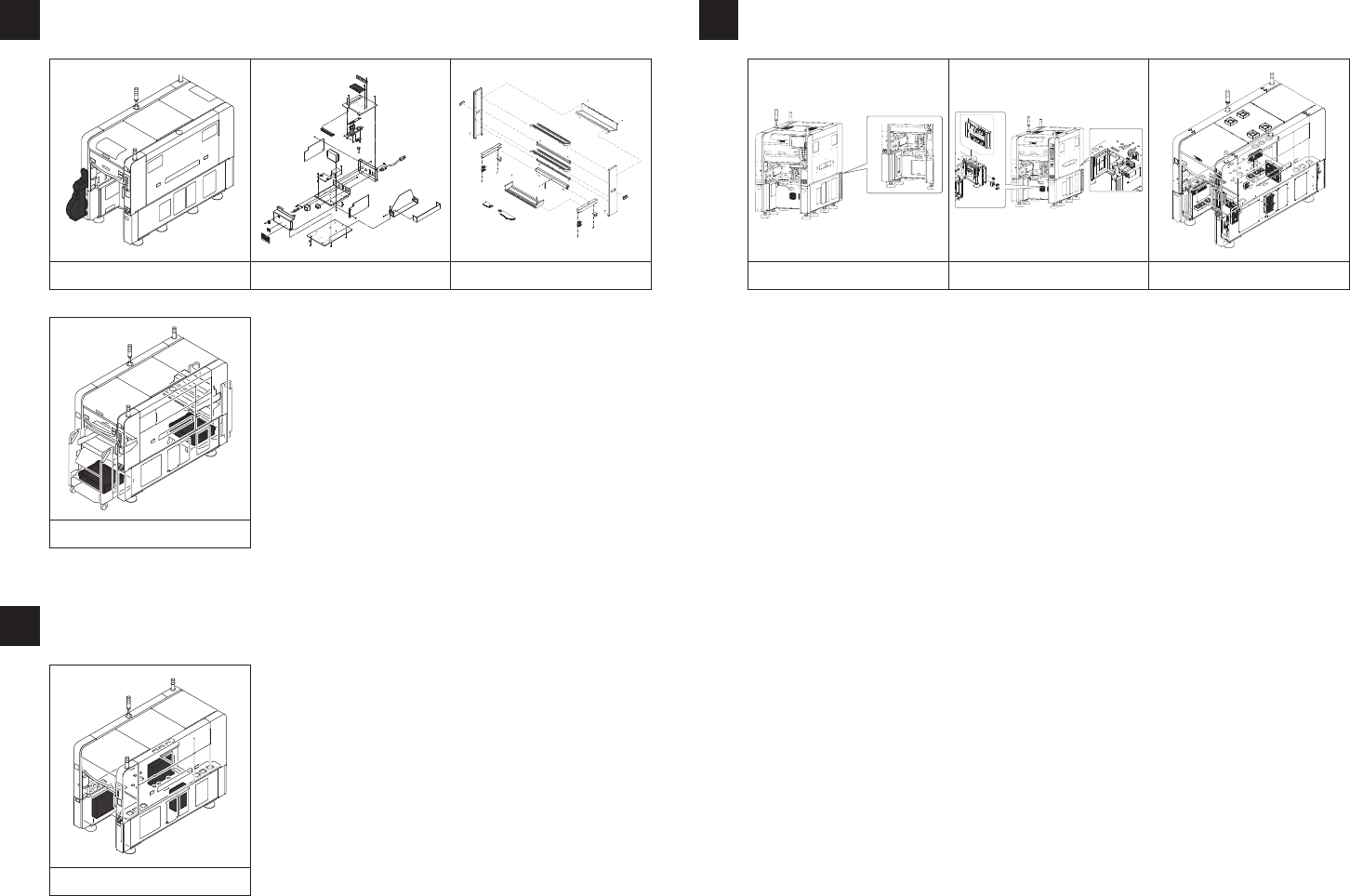

KMB-100-1607 5 / 5 Contents 1 1-1 Set Up ST on MC 1 1-2 FDR Power ST 1 1-3 F .S.T ype 100 1 1-4 Dust Box 11 FDR 13-1 Exterior , etc. 1 13-2 Exterior , etc. 2 13-3 Fan 13 Exterior , etc. Section 12 Controller Section 12-1…
KMB-100-1607
4 / 5

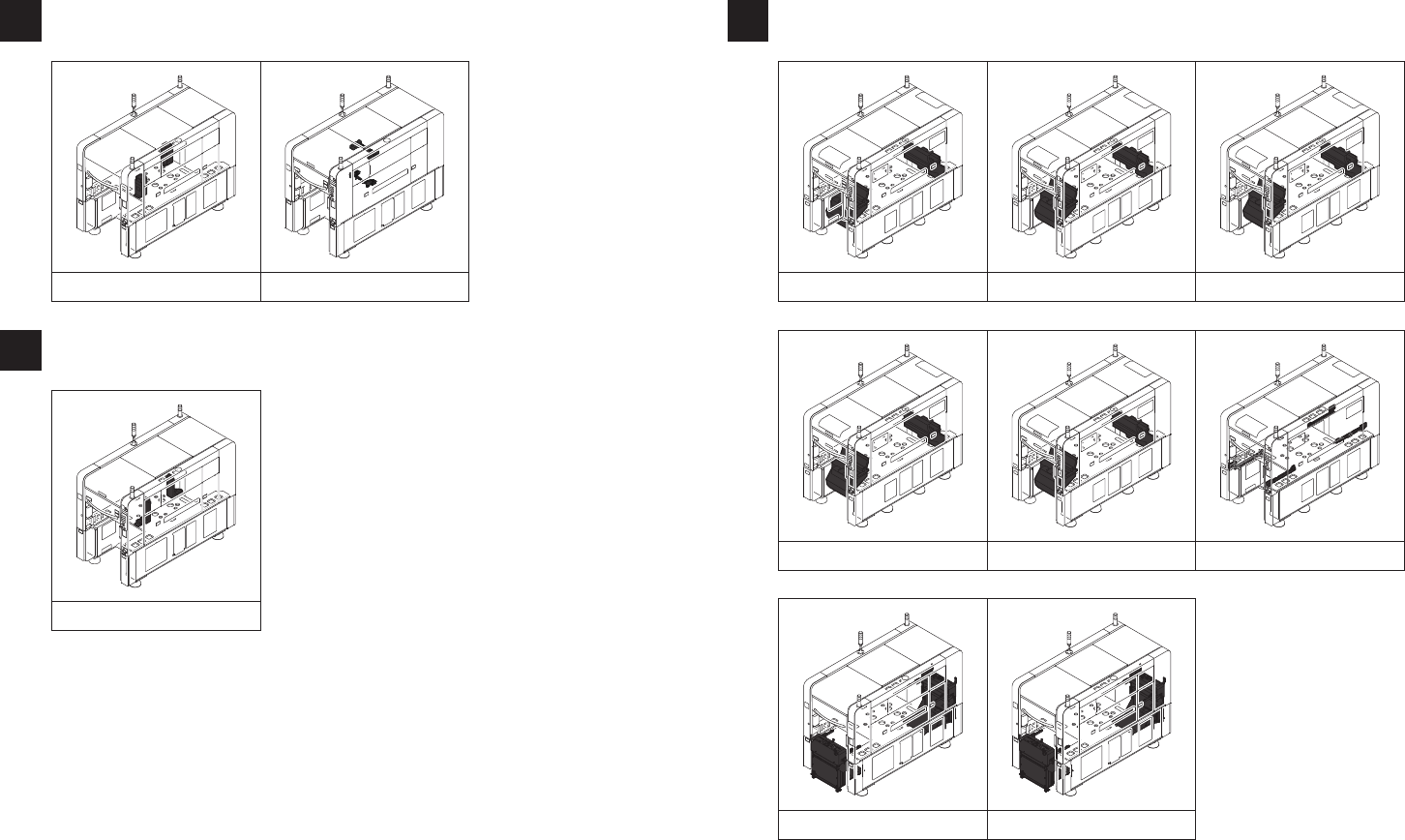

Contents
10 Tape Cutter Section
10-1 Main Cutter Assy 46-Fix
Cylinder / Valve
10-2 Main Cutter Assy 46-Fix
Cutter / Guide
10-3 FES Joint Assy / Upper
Cover
10-4 Base / Side Block
9-1 Blow Station (Fix)
9 Blow Station Section
10-5
RMV(Desorption) / Clamp
10-6
RMV(Desorption) / R Base
10-7
Cutter Carriage 1 (2-Beam)
10-8
Cutter Carriage 2 (2-Beam)
8 Camera Section
8-1
Multi Camera & Light Assy
8-2
Fiducial Camera (
2-Beam
)
1
1
Base
Base
KMB-100-1607

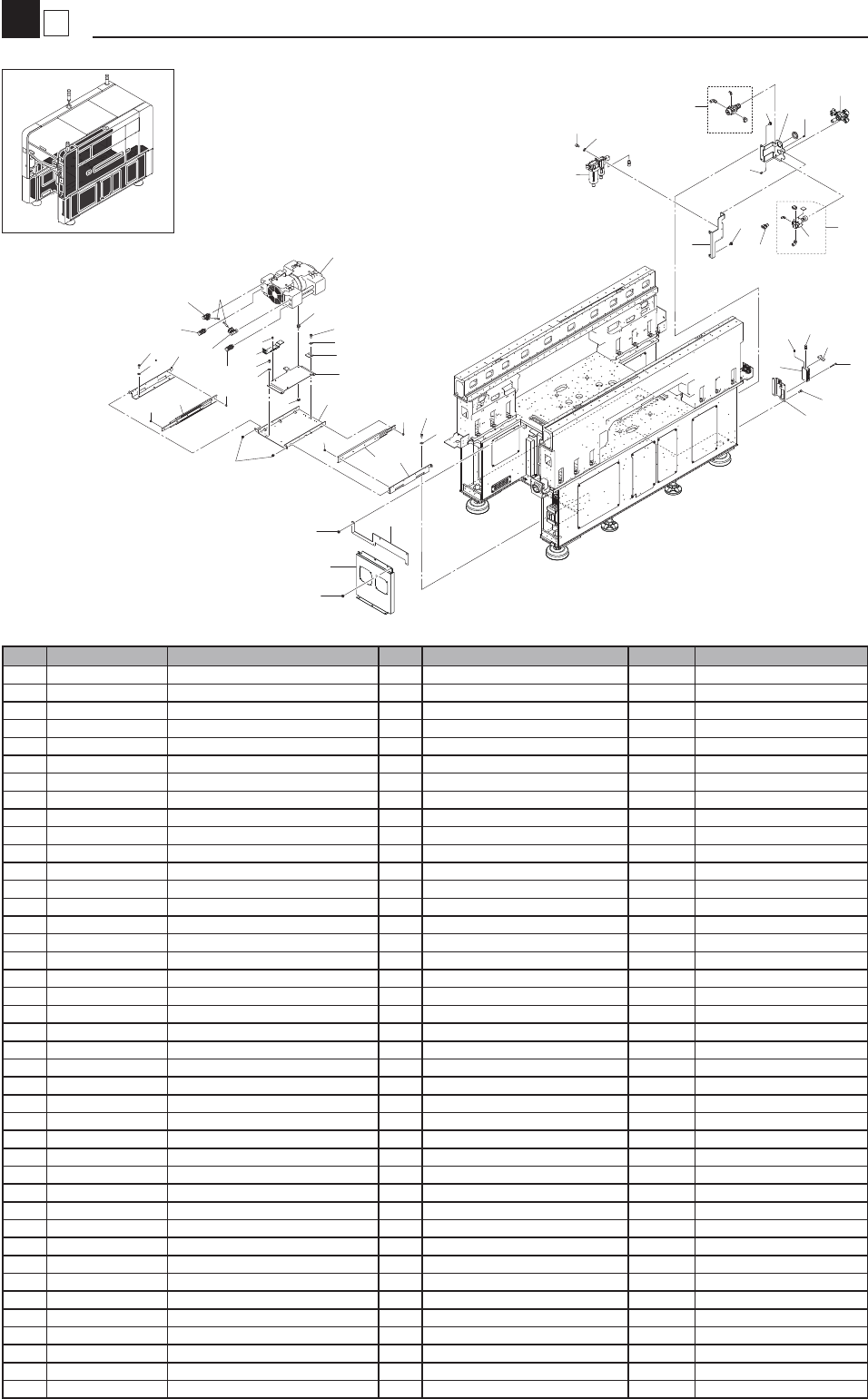

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M8501-00 PUMP,VACUUM 2
2 KLF-M8536-01 MUFFLER 4
3 KLF-M8537-00 JOINT 4
4 KLF-M11K3-00 ANTIVIB.RUBBER 8
5 KLF-M11N1-00 BRKT.,PUMP 1 2
6 KLF-M11N2-00 PLATE,PUMP 1
7 KLF-M11N3-01 PLATE,PUMP 1
8 KLF-M11N4-00 SLIDE RAIL 2
9 KLF-M11N7-01 PLATE,CONNECTOR 1
10 KJX-M1105-00 PLATE,HOLD R 1
11 KLF-M1111-02 PLATE 11 1
12 KLF-M1125-01 PLATE 25 1
13 KLW-M8502-01 FILTER SET 1
14 KLF-M8511-00 EXT.VALVE 1
15 KLF-M8512-00 REGULATOR 1
16 KLF-M8513-01 PRECISION REGULATOR 1
17 KLF-M8582-00 VALVE 1
18 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
19 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
20 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
21 91312-05006 BOLT HEX.SOCKET HEAD 6 M5X6
22 91312-05010 BOLT HEX.SOCKET HEAD 12 M5X10
23 91312-06010 BOLT HEX.SOCKET HEAD 6 M6X10
24 92012-04006 BOLT, BUTTON HEAD 16
25 90990-12J004 SCREW BIN.HEAD W/W 4
26 97602-04308 SCREW,PAN HEAD W/W 2
27 92902-04200 WASHER PLAIN 2
28 92902-05200 WASHER PLAIN 14
29 92902-06200 WASHER PLAIN 2
30 95302-06600 NUT HEXAGON 8
31 $UP10 JOINT 4
32 $UYD10-8 JOINT 2
33 $SL8-01 JOINT 1
34 $KM-10 MUFFLER 1
35 KLF-M11M7-03 COVER,PUMP 3 1
36 90990-11J003 SCREW,PAN HEAD W/W 6
37 KLF-M11P4-00 BRKT.,COVER 12 1
38 90990-12J004 SCREW BIN.HEAD W/W 3
39 KHW-M8582-40 VALVE 1 Spare
40 KLF-M8513-00 PRECISION REGULATOR 1
41 KLF-M1113-00 PLATE 13 1
19
31
3
3
2
2
4
22
21
28
22
28
5
24
24
24
24
26
8
8
37
38
35
36
22
28
28
10
15
32
16
40
20
23
13
25
12
33
18
17
22
34
29
11
25
20
7
6
5
30
1
39
9
14
41
