YSM40R_2-Beam_KMB_PL - 第70页

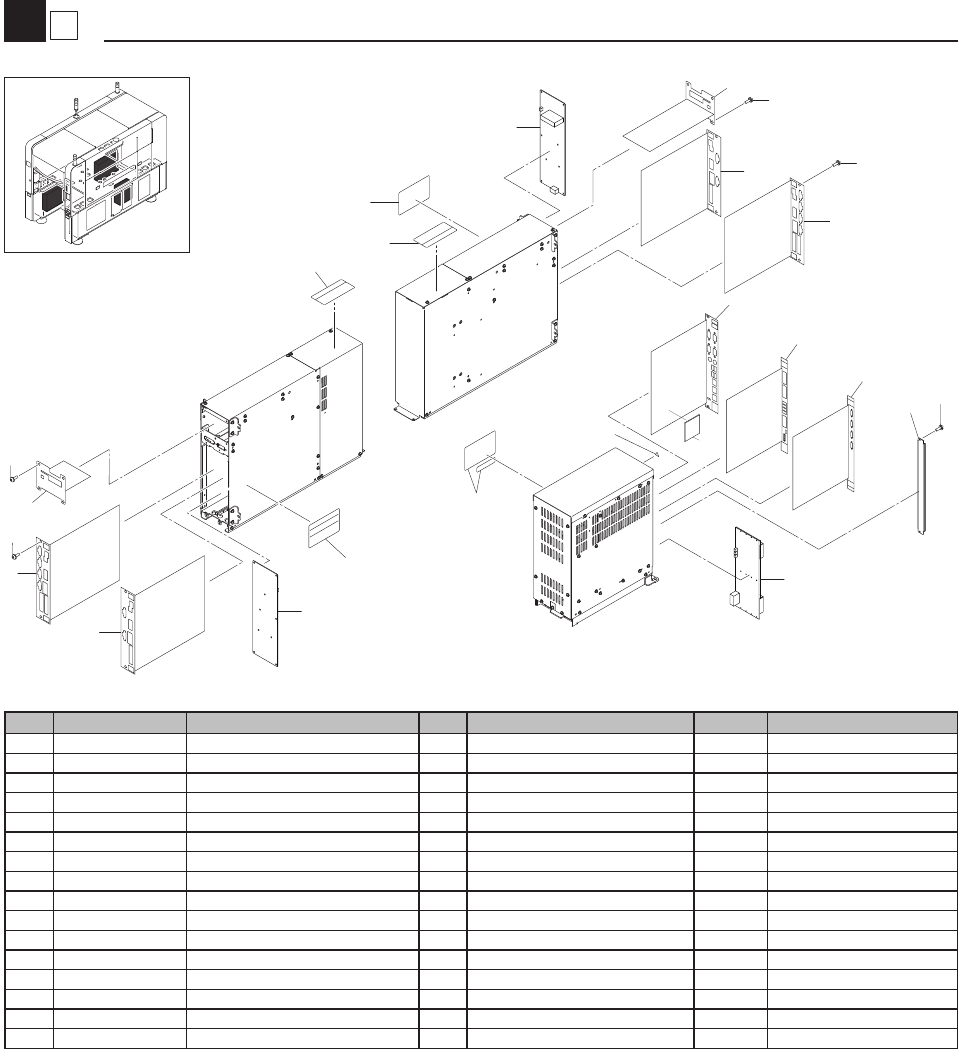

1 12 Controller Controller KMB-100-1607 16 4 5 5 4 11 10 14 6 7 8 12 12 3 3 2 2 1 1 12 15 13 12 9 9 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLA-M5840-04 SER VO BOARD ASSY 1 2 KLA-M5840-15 SE…
1
12
Controller
Controller
KMB-100-1607
16
4
5
5
4
11
10
14
6
7
8
12
12
3
3
2
2
1
1
12
15
13
12
9
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLA-M5840-04 SERVO BOARD ASSY 1
2 KLA-M5840-15 SERVO BOARD ASSY 1
3 KLA-M5880-02 D.POWER UNIT ASSY 1
4 KLA-M11B0-01 LABEL,CONTROLLER 1
5 90K41-001390 LABEL,WARNING 1
6 KLA-M4209-72 SYSTEM UNIT ASSY 1
7 KLA-M4530-10 REMOTE IF BOARD ASSY 1 YSM40R-2
8 KLA-M441H-20 VISION BOARD ASSY 1
9 KLA-M4510-01 MOTHER BOARD ASSY 2
10 KLA-M4250-01 BACKPLANE BOARD ASSY 1
11 KLA-M4262-01 LABEL,CONTROLLER 1
12 97602-04308 SCREW,PAN HEAD W/W 12
13 90116-12JA10 SCREW,PAN HEAD W/W 2
14 90K41-001630 LABEL,CAUTION 1
15 KKE-M4141-00 DUMMY PANEL SYS 1
16 KLA-M4255-10 FLASH DISK 4G 1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date

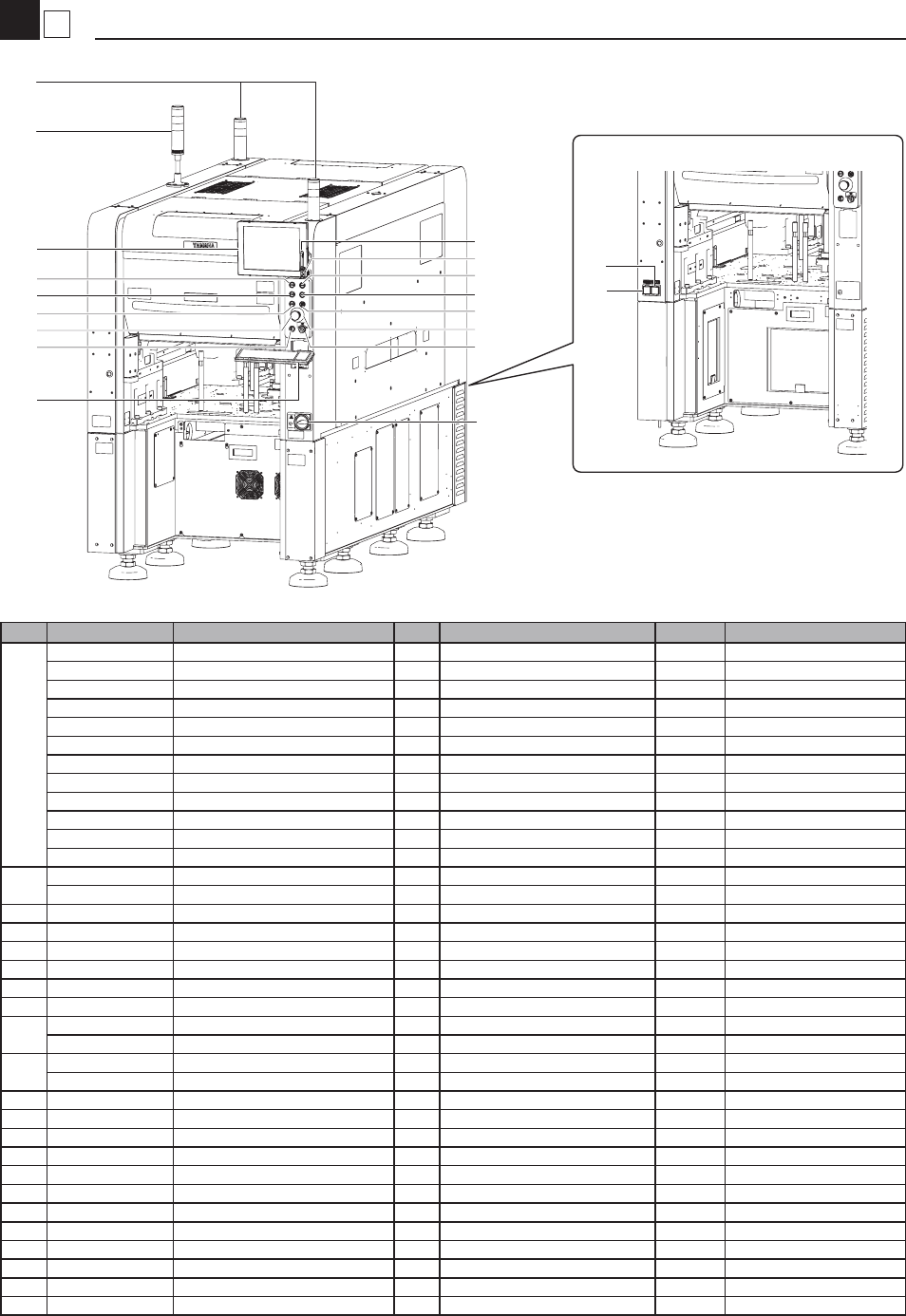

1
KLF-M4899-20 LIGHT 1 ASSY 1 L=1850 mm R.Y.G.
KLF-M4899-30 LIGHT 1 ASSY 1 L=1900 mm R.Y.G.
KLF-M4899-40 LIGHT 1 ASSY 1 L=2000 mm R.Y.G.
KLF-M4899-50 LIGHT 1 ASSY 1 L=2100 mm R.Y.G.
KLF-M4899-60 LIGHT 1 ASSY 1 L=2200 mm R.Y.G.
KLF-M4899-70 LIGHT 1 ASSY 1 L=2300 mm R.Y.G.
KLF-M4899-80 LIGHT 1 ASSY 1 L=1850 mm C.G.B.
KLF-M4899-90 LIGHT 1 ASSY 1 L=1900 mm C.G.B
KLF-M4899-A0 LIGHT 1 ASSY 1 L=2000 mm C.G.B
KLF-M4899-B0 LIGHT 1 ASSY 1 L=2100 mm C.G.B
KLF-M4899-C0 LIGHT 1 ASSY 1 L=2200 mm C.G.B
KLF-M4899-D0 LIGHT 1 ASSY 1 L=2300 mm C.G.B
2
KGS-M4896-01 ERROR LIGHT ASSY 2 YAMAHA
KHG-M4896-01 ERROR LIGHT ASSY 2 CE
3 KLW-M669V-00 HNS, SWITCH ACTIVE 2
4 KLW-M669V-20 HNS, SWITCH START 2
5 KLW-M669V-50 HNS, SWITCH RESET 2
6 KLW-M5381-00 EMG SEAL 2
7 KLW-M3992-00 HNS, SELECT 2
8 KLW-M669V-10 HNS, SWITCH READY 2
9
KLW-M669V-30 HNS, SWITCH STOP 2 YAMAHA
KLW-M669V-60 HNS, SWITCH STOP 2 CE
10
KLW-M669V-40 HNS, SWITCH ERR, CLR. 2 YAMAHA
KLW-M669V-70 HNS, SWITCH ERR, CLR. 2 CE
11 KLF-M5138-00 SWITCH, EMG SET 2
12 KLW-M6555-A0 LANE SELECT ASSY 2
13 KKX-M8596-A0 PRESSURE GAUGE 1 HEAD BLOW
14 KLF-M8596-A0 PRESSURE GAUGE 1 PNEUMATIC
15 KKE-M6554-00 MAIN SWITCH 1
16 KLF-M5150-11 KEYBOARD/BALL E 1
17 KLW-M5119-00 TOUCH LCD ASSY 2
18 KLW-M516A-00 PEN,TOUCH 2
19 KLF-M138H-00 BRACKET 1 2
20 KHM-M9939-00 GROMET 2
21 KLF-M138J-01 BALL CHAIN 2
22 KLF-M138K-00 RING 4
1
13
Exterior, etc. 1
Exterior, etc.
KMB-100-1607
1
17
3
8
18
19,20,21,22
9
10
14
13
6
12
4
5
11
16
7
2
15
