YSM40R_2-Beam_KMB_PL - 第72页
2 13 Exterior , etc. 2 Exterior , etc. KMB-100-1607 5 8 14 13 3 1 2 18 19 20 17 16 15 6 7 4 12 9 10 10 12 12 11 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M651 1-10 MAIN BREAKER,1 1 2 KM8-M…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KLF-M4899-20 LIGHT 1 ASSY 1 L=1850 mm R.Y.G.
KLF-M4899-30 LIGHT 1 ASSY 1 L=1900 mm R.Y.G.
KLF-M4899-40 LIGHT 1 ASSY 1 L=2000 mm R.Y.G.
KLF-M4899-50 LIGHT 1 ASSY 1 L=2100 mm R.Y.G.
KLF-M4899-60 LIGHT 1 ASSY 1 L=2200 mm R.Y.G.
KLF-M4899-70 LIGHT 1 ASSY 1 L=2300 mm R.Y.G.
KLF-M4899-80 LIGHT 1 ASSY 1 L=1850 mm C.G.B.
KLF-M4899-90 LIGHT 1 ASSY 1 L=1900 mm C.G.B
KLF-M4899-A0 LIGHT 1 ASSY 1 L=2000 mm C.G.B
KLF-M4899-B0 LIGHT 1 ASSY 1 L=2100 mm C.G.B
KLF-M4899-C0 LIGHT 1 ASSY 1 L=2200 mm C.G.B
KLF-M4899-D0 LIGHT 1 ASSY 1 L=2300 mm C.G.B
2
KGS-M4896-01 ERROR LIGHT ASSY 2 YAMAHA
KHG-M4896-01 ERROR LIGHT ASSY 2 CE
3 KLW-M669V-00 HNS, SWITCH ACTIVE 2
4 KLW-M669V-20 HNS, SWITCH START 2
5 KLW-M669V-50 HNS, SWITCH RESET 2
6 KLW-M5381-00 EMG SEAL 2
7 KLW-M3992-00 HNS, SELECT 2
8 KLW-M669V-10 HNS, SWITCH READY 2
9
KLW-M669V-30 HNS, SWITCH STOP 2 YAMAHA
KLW-M669V-60 HNS, SWITCH STOP 2 CE
10
KLW-M669V-40 HNS, SWITCH ERR, CLR. 2 YAMAHA
KLW-M669V-70 HNS, SWITCH ERR, CLR. 2 CE
11 KLF-M5138-00 SWITCH, EMG SET 2
12 KLW-M6555-A0 LANE SELECT ASSY 2
13 KKX-M8596-A0 PRESSURE GAUGE 1 HEAD BLOW
14 KLF-M8596-A0 PRESSURE GAUGE 1 PNEUMATIC
15 KKE-M6554-00 MAIN SWITCH 1
16 KLF-M5150-11 KEYBOARD/BALL E 1
17 KLW-M5119-00 TOUCH LCD ASSY 2
18 KLW-M516A-00 PEN,TOUCH 2
19 KLF-M138H-00 BRACKET 1 2
20 KHM-M9939-00 GROMET 2
21 KLF-M138J-01 BALL CHAIN 2
22 KLF-M138K-00 RING 4
1
13
Exterior, etc. 1
Exterior, etc.
KMB-100-1607
1
17
3
8
18
19,20,21,22
9
10
14
13
6
12
4
5
11
16
7
2
15

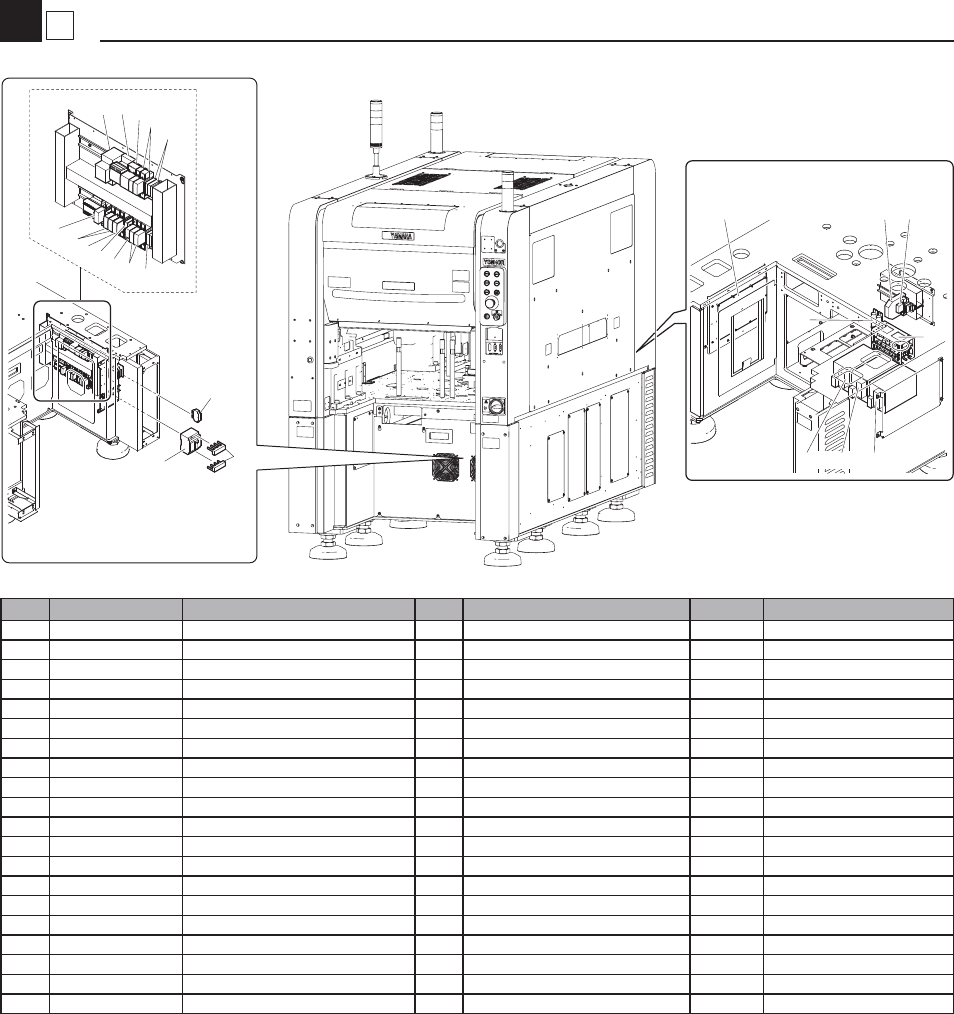

2
13
Exterior, etc. 2
Exterior, etc.
KMB-100-1607
5
8
14 13
3
1
2
18 19 20
17
16
15
6
7
4
12
9
10
10
12
12
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M6511-10 MAIN BREAKER,1 1
2 KM8-M539M-10 PROTECTOR ACCESSORY 1
3 KHN-M643A-10 TERMINAL,POWER 4
4 KHA-M6513-01 CIRCUIT PROTECTOR,1P 2
5 KHA-M6514-20 CIRCUIT PROTECTOR,4 1
6 KHN-M653E-00 BREAKER,1 2
7 KLF-M6514-00 CIRCUIT PROTECTOR,4 1
8 KKE-M6513-00 CIRCUIT PROTECTOR,1P 1
9 KKX-M6513-00 CIRCUIT PROTECTOR,1P 2
10 KHN-M6513-21 CIRCUIT PROTECTOR,1P 2
11 KLF-M6513-00 CIRCUIT PROTECTOR,1P 2
12 KHN-M643A-10 TERMINAL,POWER 5
13 KKX-M6513-10 CIRCUIT PROTECTOR,1P 1
14 KHY-M537F-00 SAFETY RELAY 1
15 KLF-M4580-00 I/O CONV. BOARD ASSY 1
16 KLF-M91E2-A0 CONV.CONT.BOX SET 1
17 KLA-M459X-01 BATT UNIT ASSY 2
18 KHN-M6561-00 POWER SUPPLY 1 1
19 KLW-M6561-00 POWER SUPPLY 1 1
20 KKE-M6561-10 POWER SUPPLY 1 1

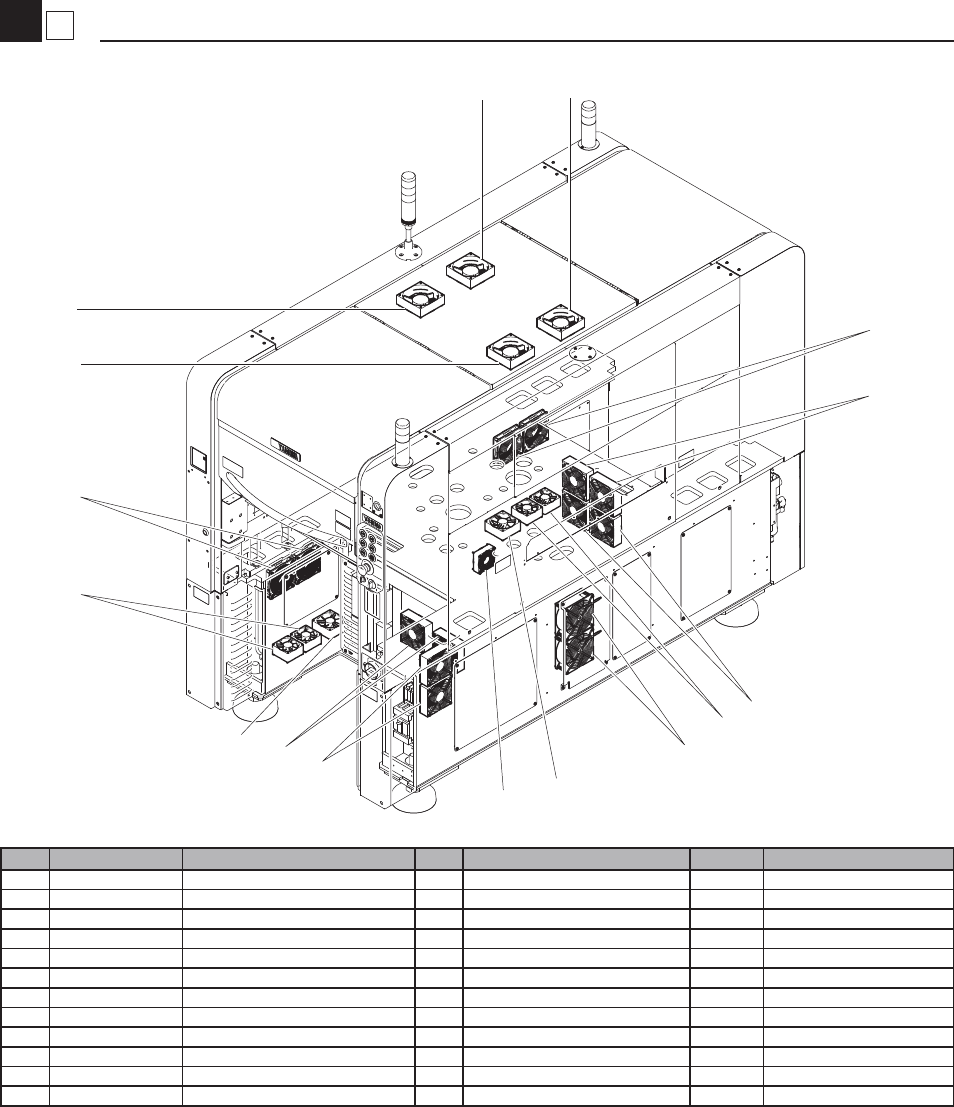

3
13
Fan
Exterior, etc.
KMB-100-1607
1 12
9
11
7
4
3
2
6
8
5
3
4
10
7
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M6185-U0 FAN MOTOR ASSY 1
2 KLF-M6185-20 FAN MOTOR ASSY 2
3 KLA-M53L2-00 FAN MOTOR ASSY 2
4 KLA-M53M4-00 FAN MOTOR ASSY 4
5 KLF-M6185-30 FAN MOTOR ASSY 2
6 KLF-M6185-10 FAN MOTOR ASSY 2
7 KLA-M53L6-00 FAN MOTOR ASSY 4
8 KLF-M6185-70 FAN MOTOR ASSY 1
9 KMB-M6185-S0 FAN MOTOR ASSY 1
10 KLF-M6185-40 FAN MOTOR ASSY 4
11 KMB-M6185-T0 FAN MOTOR ASSY 1
12 KMB-M6185-V0 FAN MOTOR ASSY 1
