YSM40R_2-Beam_KMB_PL - 第8页
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M1 151-00 PLA TE,SIDE 1 1 2 KLF-M1 152-00 PLA TE,SIDE 2 1 3 KLF-M1 153-00 PLA TE,SIDE 3 1 4 KLF-M1 154-00 PLA TE,SIDE 4 1 5 KLF-M1 155-00 PLA TE,S…
1
1
Base
Base
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M8501-00 PUMP,VACUUM 2
2 KLF-M8536-01 MUFFLER 4
3 KLF-M8537-00 JOINT 4
4 KLF-M11K3-00 ANTIVIB.RUBBER 8
5 KLF-M11N1-00 BRKT.,PUMP 1 2
6 KLF-M11N2-00 PLATE,PUMP 1
7 KLF-M11N3-01 PLATE,PUMP 1
8 KLF-M11N4-00 SLIDE RAIL 2
9 KLF-M11N7-01 PLATE,CONNECTOR 1
10 KJX-M1105-00 PLATE,HOLD R 1
11 KLF-M1111-02 PLATE 11 1
12 KLF-M1125-01 PLATE 25 1
13 KLW-M8502-01 FILTER SET 1
14 KLF-M8511-00 EXT.VALVE 1
15 KLF-M8512-00 REGULATOR 1
16 KLF-M8513-01 PRECISION REGULATOR 1
17 KLF-M8582-00 VALVE 1
18 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
19 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
20 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
21 91312-05006 BOLT HEX.SOCKET HEAD 6 M5X6
22 91312-05010 BOLT HEX.SOCKET HEAD 12 M5X10
23 91312-06010 BOLT HEX.SOCKET HEAD 6 M6X10
24 92012-04006 BOLT, BUTTON HEAD 16
25 90990-12J004 SCREW BIN.HEAD W/W 4
26 97602-04308 SCREW,PAN HEAD W/W 2
27 92902-04200 WASHER PLAIN 2
28 92902-05200 WASHER PLAIN 14
29 92902-06200 WASHER PLAIN 2
30 95302-06600 NUT HEXAGON 8
31 $UP10 JOINT 4
32 $UYD10-8 JOINT 2
33 $SL8-01 JOINT 1
34 $KM-10 MUFFLER 1
35 KLF-M11M7-03 COVER,PUMP 3 1
36 90990-11J003 SCREW,PAN HEAD W/W 6
37 KLF-M11P4-00 BRKT.,COVER 12 1
38 90990-12J004 SCREW BIN.HEAD W/W 3
39 KHW-M8582-40 VALVE 1 Spare
40 KLF-M8513-00 PRECISION REGULATOR 1
41 KLF-M1113-00 PLATE 13 1
19
31
3
3
2
2
4
22
21
28
22
28
5
24
24
24
24
26
8
8
37
38
35
36
22
28
28
10
15
32
16
40
20
23
13
25
12
33
18
17
22
34
29
11
25
20
7
6
5
30
1
39
9
14
41

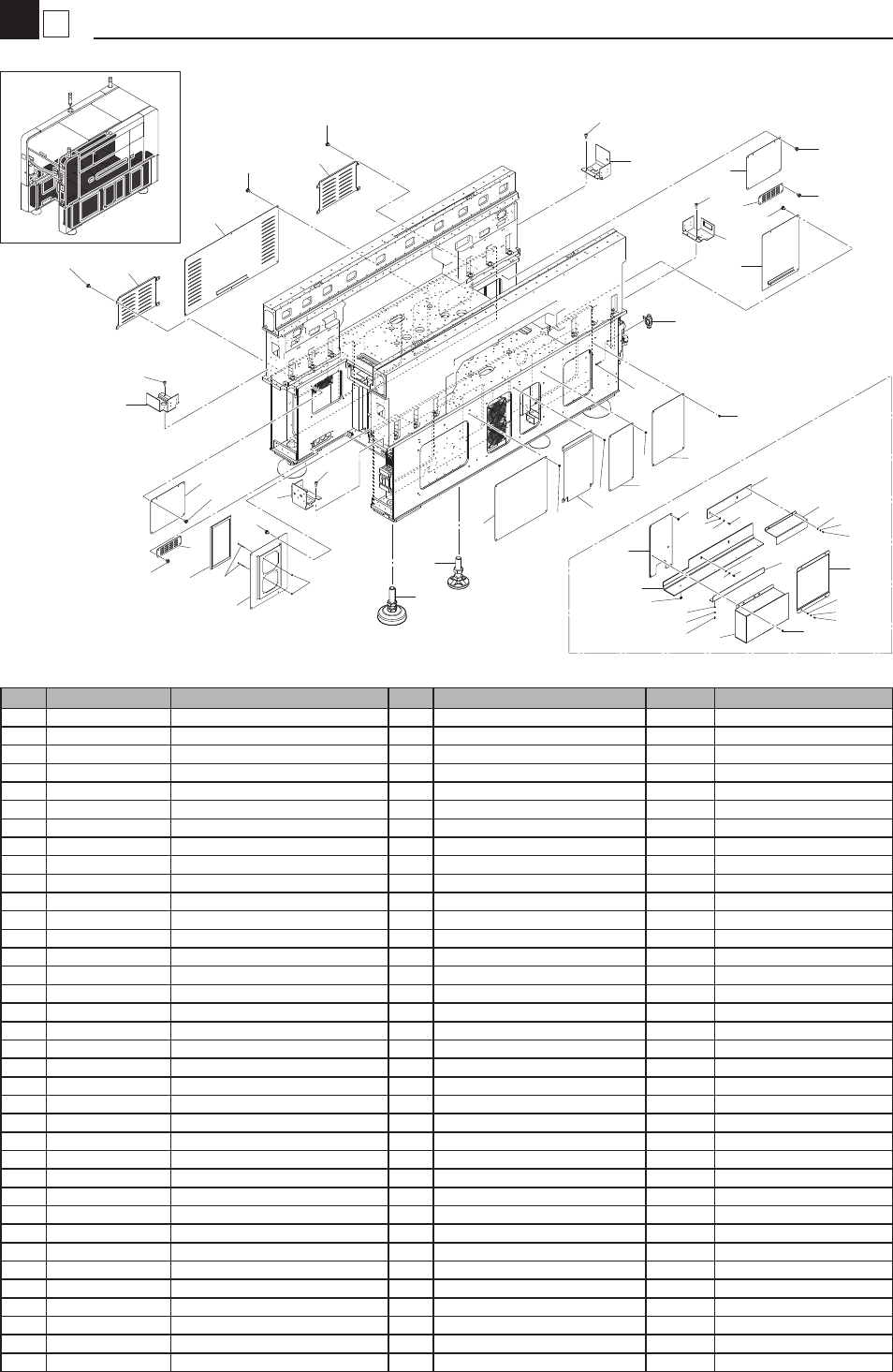

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1151-00 PLATE,SIDE 1 1
2 KLF-M1152-00 PLATE,SIDE 2 1
3 KLF-M1153-00 PLATE,SIDE 3 1
4 KLF-M1154-00 PLATE,SIDE 4 1
5 KLF-M1155-00 PLATE,SIDE 5 1
6 KLF-M1156-00 PLATE,SIDE 6 1
7 KLF-M1157-01 PLATE,SIDE 7 1
8 KLF-M1158-01 PLATE,SIDE 8 2
9 KLF-M1159-00 PLATE,SIDE 9 2
10 KLF-M1164-00 COVER,FAN 2
11 KLF-M1337-00 BRACKET 1
12 KLF-M1337-51 BRACKET 1
13 $FVU8-8 JOINT 1
14 KLF-M1339-00 BRKT.,FL 1
15 KLF-M1338-00 BRKT.MAIN SWITCH 1
16 KKE-M1180-00 LEVELING BOLT ASSY 4
17 90990-12J004 SCREW,PAN HEAD W/W 60
18 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X30
19 91312-05010 BOLT HEX.SOCKET HEAD 28 M5X10
20 KGS-M1180-00 LEVELING BOLT ASSY 4
21 KLF-M1153-10 PLATE,SIDE 3 1
22 KLF-M1154-11 PLATE,SIDE 4 1
23 KLF-M115E-01 PLATE,UPS 1
24 KLF-M115F-02 BRACKET,UPS 1
25 KHW-M1157-01 BRACKET 2,UPS 1
26 KLF-M1161-00 BRACKET 3,UPS 1
27 KLF-M1160-00 COVER,HARNESS 1
28 91312-04006 BOLT HEX.SOCKET HEAD 9
29 92902-04200 WASHER PLAIN 9
30 90172-00J040 WASHER,EXTL.TOOTHED 9
31 92902-05200 WASHER PLAIN 4
32 90172-00J050 WASHER,EXTL.TOOTHED 4
33 90990-12J001 SCREW BIN.HEAD W/W 2
34 KLF-M115J-00 FILTER,CP FAN 1
35 98502-04050 SCREW PAN HEAD (+) 8
36 95302-04600 NUT, HEXAGON 8
2
1
Sub Assy / UPS
Base
KMB-100-1607
10
12
9
8
17
17
17
20
1
17
17
17
17
18
13
6
14
17
17
17
9
8
19
19
11
5
3
4
15
16
7
19
2
10
17
17
17
20
21
22
23
24
25
26
27
29
17
30
28
19
32
31
33
28
30
29
19
32
31
17
28
30
29
UPS
36
35
34
1
2

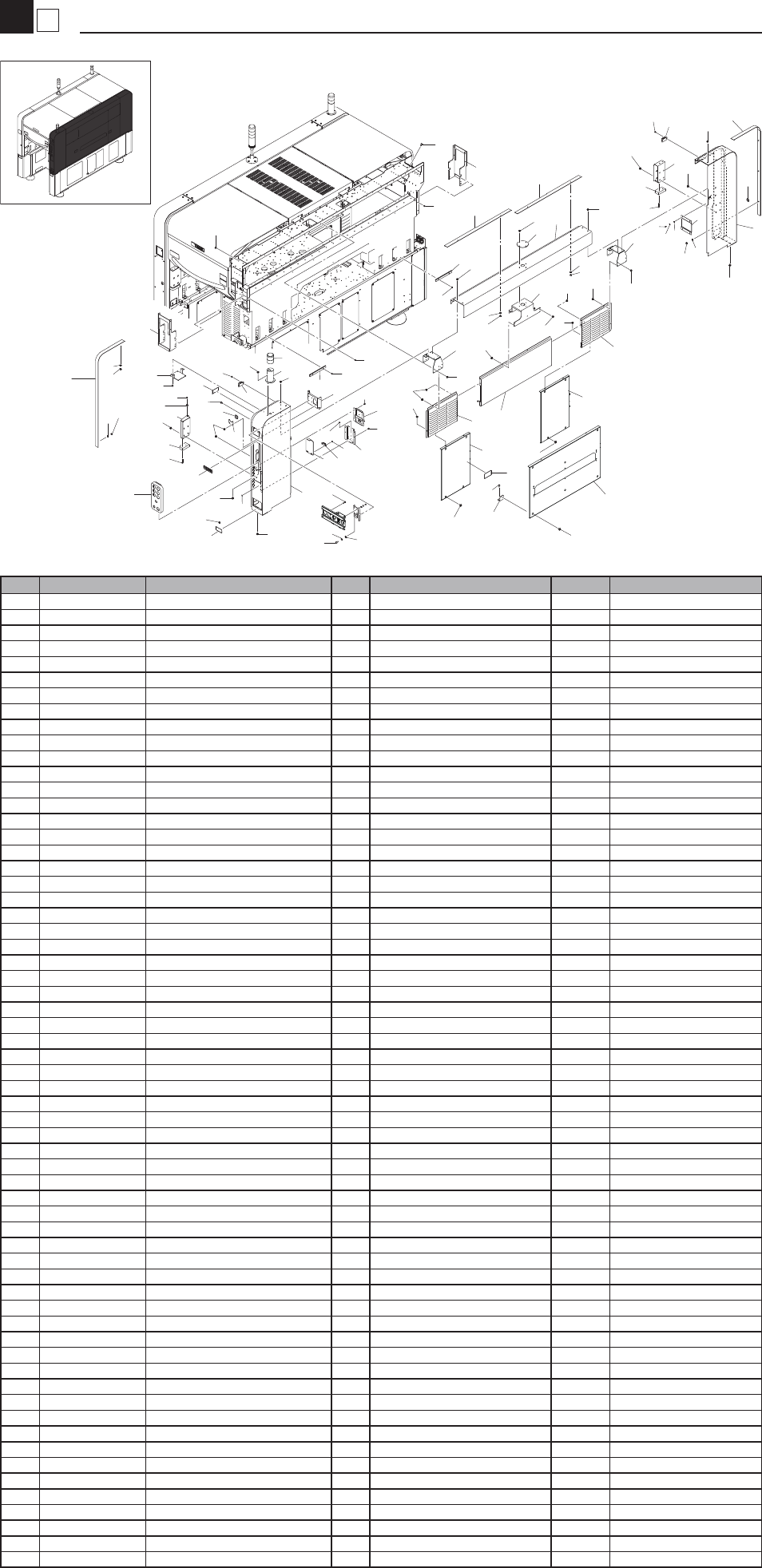

Top Cover (Right side)
Cover
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1301-04 COVER 1 1
2 KLF-M1302-03 COVER 2 1 Hole position change
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KMB-M130B-00 COVER,SW 1
6 KLF-M13A3-01 COVER A3 1
7 KLF-M13A4-02 COVER A4 RH. 1
8 KLF-M13A4-52 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M1343-00 PLATE 1
11 KLF-M131A-00 COVER A RH. 1
12 KLF-M131A-50 COVER A LH. 1
13 KLF-M131B-00 COVER B RH. 1
14 KLF-M131B-50 COVER B LH. 1
15 KLF-M1318-00 COVER 18 1
16 KLF-M133A-01 BRKT,LCD UNIT 1
17 KLF-M1372-01 COVER 72 1
18 KLF-M1335-00 BRKT.2,GATE COVER 2
19 KLF-M1332-01 BRACKET 2 1
20 KLF-M1333-02 BRKT. 1 2
21 KLF-M1336-00 RAIL,COVER 2
22 KV5-M1130-00 CATCH MG. 2
23 KLF-M130C-00 BRKT,KB C 1
24 KLF-M13B4-00 CATCH MG. 1
25 KLF-M1344-00 PLATE 1
26 KLF-M1349-00 COVER 49 1
27 KLF-M13F1-01 COVER,CE R 1
28 KLF-M13F2-01 COVER,CE L 1
29 KLF-M13F3-00 GUIDE,FES. R 1
30 KLF-M13F4-00 GUIDE,FES. L 1
31 KMB-M13D6-00 SEAL 1(YSM40R) 1
32 90K41-001250 LABEL,WARNING 2
33 90K41-001260 LABEL,WARNING 1
34 90K41-001290 LABEL,WARNING 1
35 K93-M1392-00 SPACER 2
36 KH1-M13A9-00 BUSH 1
37 90990-23J008 GROMMET 1
38 90990-01J074 BOLT HEX.SOCKET HEAD 6
39 90990-12J001 SCREW BIN.HEAD W/W 64
40 90990-12J004 SCREW BIN.HEAD W/W 10
41 90172-00J040 WASHER,EXTL.TOOTHED 14
42 90172-00J050 WASHER,EXTL.TOOTHED 8
43 91312-03004 BOLT HEX.SOCKET HEAD 2 M3X4
44 91312-04005 BOLT HEX.SOCKET HEAD 9 M4X5
45 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
46 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
47 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
48 91312-05008 BOLT HEX.SOCKET HEAD 28 M5X8
49 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
50 95702-04500 NUT FLANGE 17
51 98902-03005 SCREW BINDING HEAD 16
52 98902-04008 SCREW BINDING HEAD 4
53 90990-23J006 GROMMET 1
54 92902-05200 WASHER PLAIN 8
55 KLF-M1375-00 COVER 75 1
56 KLF-M1376-00 COVER 76 1
57 KLF-M1308-00 COVER 1-2 1
58 KMB-M26FM-01 FLAME 1-1 2
59 KLF-M13F6-00 BAMPER 4
60 KLF-M133D-00 SEAL BLAIND 4
61 98902-03010 SCREW BINDING HEAD 4
62 KGS-M4896-01 ERROR LIGHT ASSY. 1
47
47
11
41
41
3
51
22
39
39
48
16
27
61
59
39
29
46
5
31
39
39
49
54
42
52
1
25
24
43
44
40
40
17
32
40
6
7
8
48
18
55
56
39
39
39
39
39
39
39
39
39
39
28
30
12
51
53
2
22
39
46
50
41
14
13
10
9
39
19
39
39
39
20
39
44
57
41
57
41
50
41
21
48
50
20
44
23
35
26
37
34
39
36
38
33
15
21
4
44
50
50
60
58
58
38
38
62
