1.3 Maintenance Spots Lower Section of Linear Guide 3M28 Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 3) Follow the steps below for the lubrication. 1. Close the air valve and allow the air to bleed out of the ma…

(24) Head Up/Down Section

1.3 Maintenance Spots

Oil Inlets

Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 1)

Apply grease with a dispense gun.

* Use No. 14 (olive) nozzle.

Cam Follower of Top Block 3M26

Upper Section of Linear Guide 3M27

Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 3)

Follow the steps below for the lubrication.

1. Close the air valve and allow the air to bleed out of the machine.

2. Rotate the rotary turret with the hand-rotating wheel to move the linear

guide to be lubricated between Stations #3 and #4

(Turret Angle: 108 degrees).

3. Set the dispense gun to "1".

4. Insert the nozzle to be used into the oil inlet and inject grease slowly,

spending about 10 seconds.

Note: Inject grease (quantity: 0.06 to 0.1 g) only once.

* Use the HL2-type nozzle.

Grease should be applied every 3 months after the initial month.

Fig. 4A48

0509-003 1-42

AIM01ETRP

1.3 Maintenance Spots

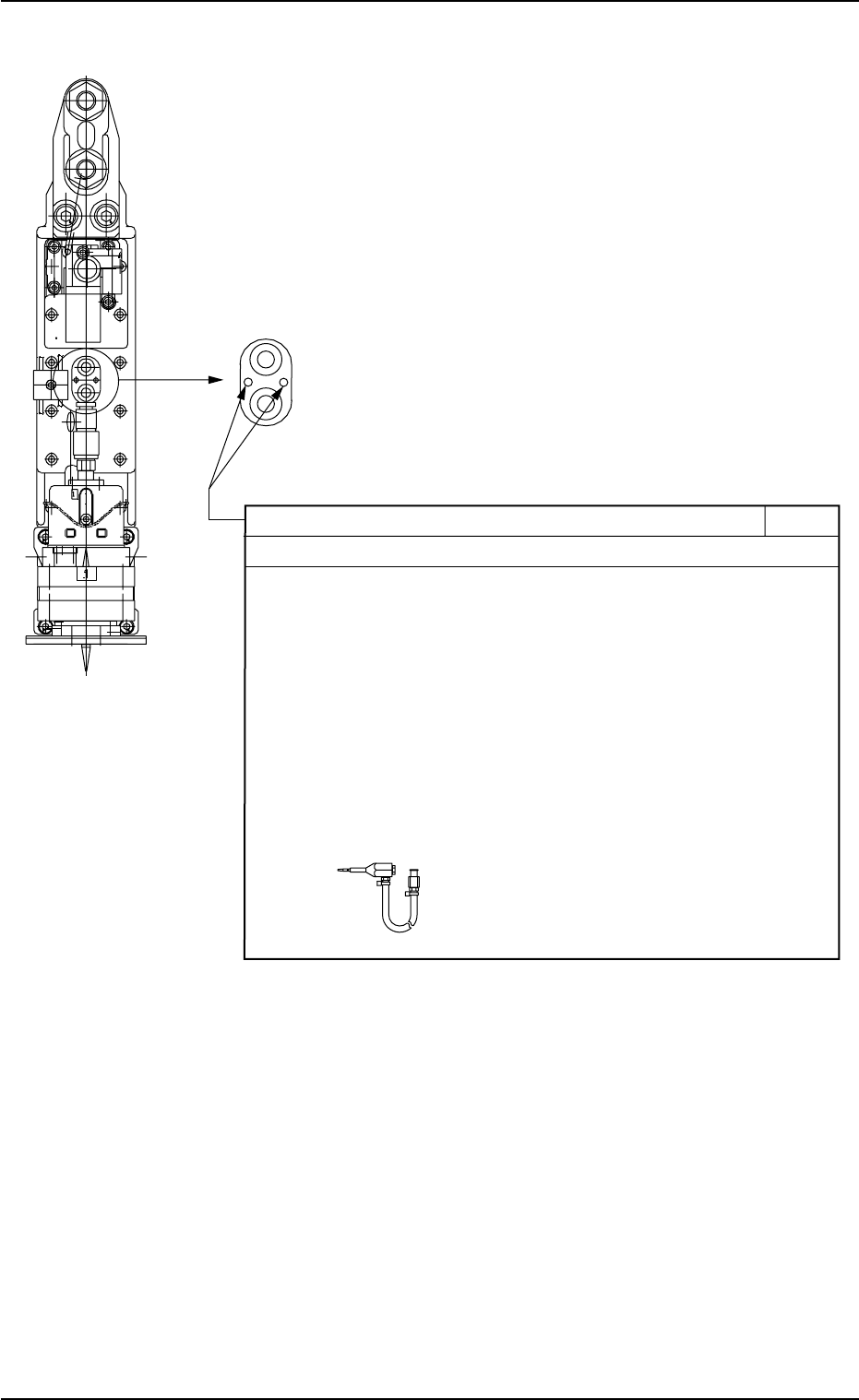

Lower Section of Linear Guide 3M28

Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 3)

Follow the steps below for the lubrication.

1. Close the air valve and allow the air to bleed out of the machine.

2. Rotate the rotary turret with the hand-rotating wheel to move the

linear guide to be lubricated between Stations #5 and #6

(Turret Angle: 108 degrees).

3. Set the dispense gun to "1".

4. Insert the nozzle to be used into the oil inlet and inject grease slowly,

spending about 10 seconds.

Note: Inject grease (quantity: 0.06 to 0.1 g) only once.

* Use the HL2-type nozzle.

Grease should be applied every 3 months after the initial month.

Oil Inlets

Fig. 4A49

0509-002 1-43

AIM01ETRP

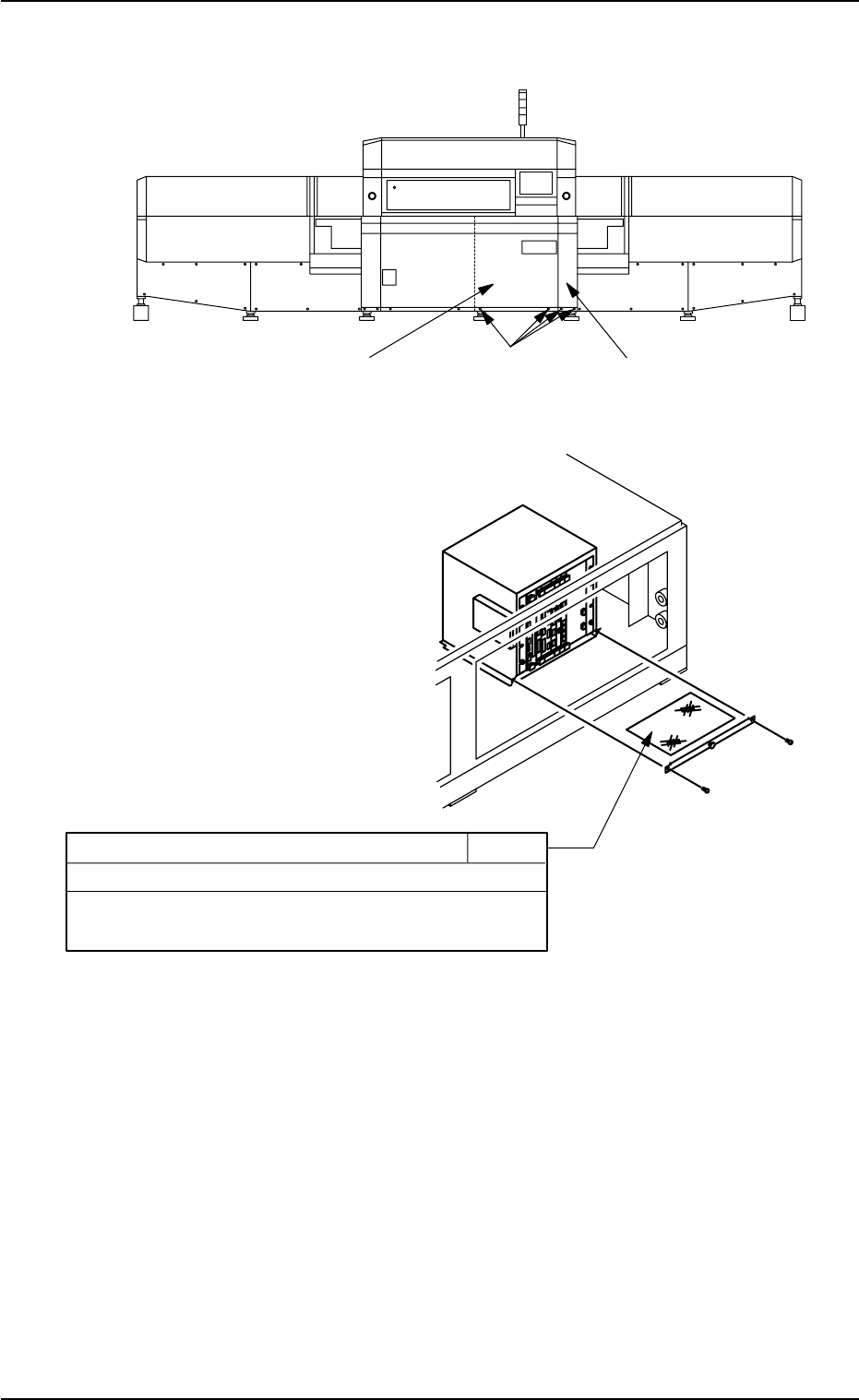

(25) Control Box Section

1.3 Maintenance Spots

Fig. 4A50

0305-001 1-44

AIM01ETRP

Front Cover B

Setscrews

Front View of Machine

Front Cover A

Filter 1M40

Every Month Cleaning

Clean the filter of the control box with a vacuum cleaner.
