(4) Attach the diffusion plate to the head. T ighten 3 special anti-loosening screws (silicon-varnished ones) with a tightening torque of 10 kgfcm, using the 2 mm bit (standard accessory part: 630 1 16 3673). Do not allo…

(2) Attachment of Miniature Stroke Bearing to

Head

(2-1) Insert the MSB outer cylinder from under

the head.

Align the cylinder such that the cutout

of the MSB outer cylinder faces the

inside of the head.

(2-2) Insert the MSB shaft from the top of the

head with the MSB inserting jig being

attached.

(2-3) Detach the MSB inserting jig.

If the jig is slippery, wipe it with a

cloth soaked in industrial alcohol.

(2-4) Attach the anchor plate to the MSB outer

cylinder and secure it with the screw

(M3L10).

Apply "Screw Lock (1401B)" to the screw

and tighten it with a tightening torque of 7

kgfcm.

(3) Attachment of Holder to Head

(3-1) Apply "DAPHNE EPONEX GREASE No.

1" thinly to the bearing guide section of the

holder and the pin end.

(3-2) Match the holder guide with the cutout of

the head’s center shaft and insert the

holder into the top of the head.

(3-3) Push the holder into the shaft until it stops

and match the marker of the cam unit

with the center of the cam follower.

(3-4) Apply "Screw Lock (1401B)" to the set-

screws and tighten them with the 1.5 mm

bit (Standard Accessory Part: 630 116

3659) and a tightening torque of 5 kgfcm.

To avoid damaging the tapped hole,

use a hexagon wrench (TONE,

BONDUS) that has large diagonal

dimensions.

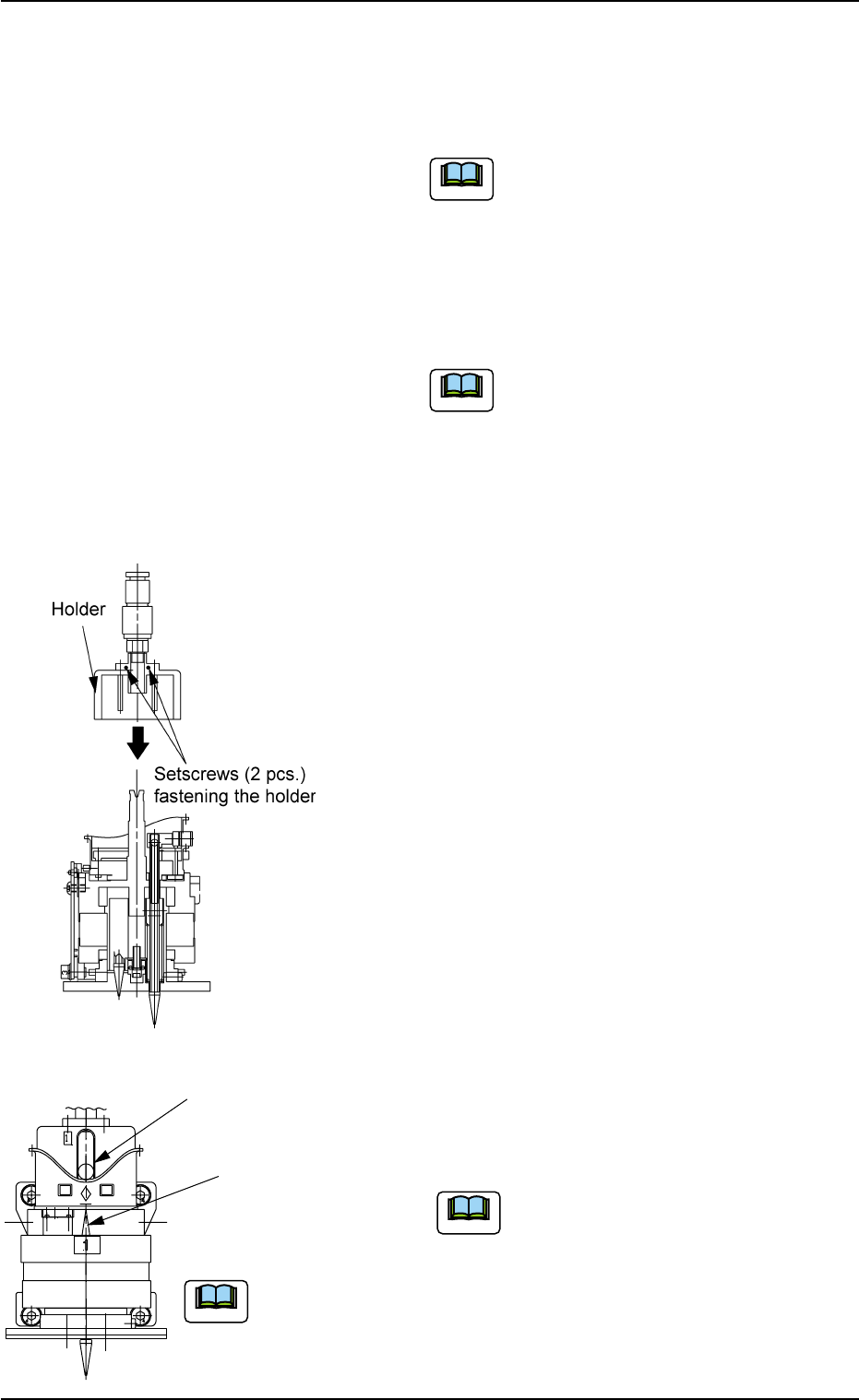

Fig. 4A81

1.4 Maintenance Method

Cam Follower

Marker of Cam Unit

Fig. 4A81-1

0305-001 1-63

AIM01ETRP

Note

(4) Attach the diffusion plate to the head.

Tighten 3 special anti-loosening screws

(silicon-varnished ones) with a tightening

torque of 10 kgfcm, using the 2 mm bit

(standard accessory part: 630 116 3673).

Do not allow any solvent, alcohol, etc.,

to adhere to the diffusion plate. Other-

wise, the diffusion plate may crack.

(5) Apply "DAPHNE EPONEX GREASE No. 1"

thinly to the cam face of the holder.

(6) Attachment of Head Assembly to Head Assembly Holder

(6-1) Fit the pilot pin hole on the rear side of the head assembly into the

pilot pin on the holder side.

(6-2) Fasten the head assembly, using 2 screws (M4X12) for the up-

per face and 2 screws (M4X16) for the lower face.

(Tightening Torque: Approx. 44 kgfcm)

Do not make a mistake in selecting the length of screws. Other-

wise, the screw thread of the head will be damaged.

(6-3) Insert the hose.

Do not apply a wrench, etc., to the magnet for head origin

detection. Otherwise, the magnet will be demagnetized.

If the magnet is demagnetized, the origin may not be de-

tected.

(7) Perform the "Head/Nozzle" and the "Head Origin" offset teaching

operations on the attached nozzle.

Refer to "5.1 "Head/Nozzle" Tab" and "5.2 "Head Origin"

Tab" in "Section 6" of "Vol. 2: Operation (Supervisor)" for

the offset teaching operations.

• The head origin offset must be ±3 degrees or less.

• The head center offset must be ±3 mm or less.

1.4 Maintenance Method

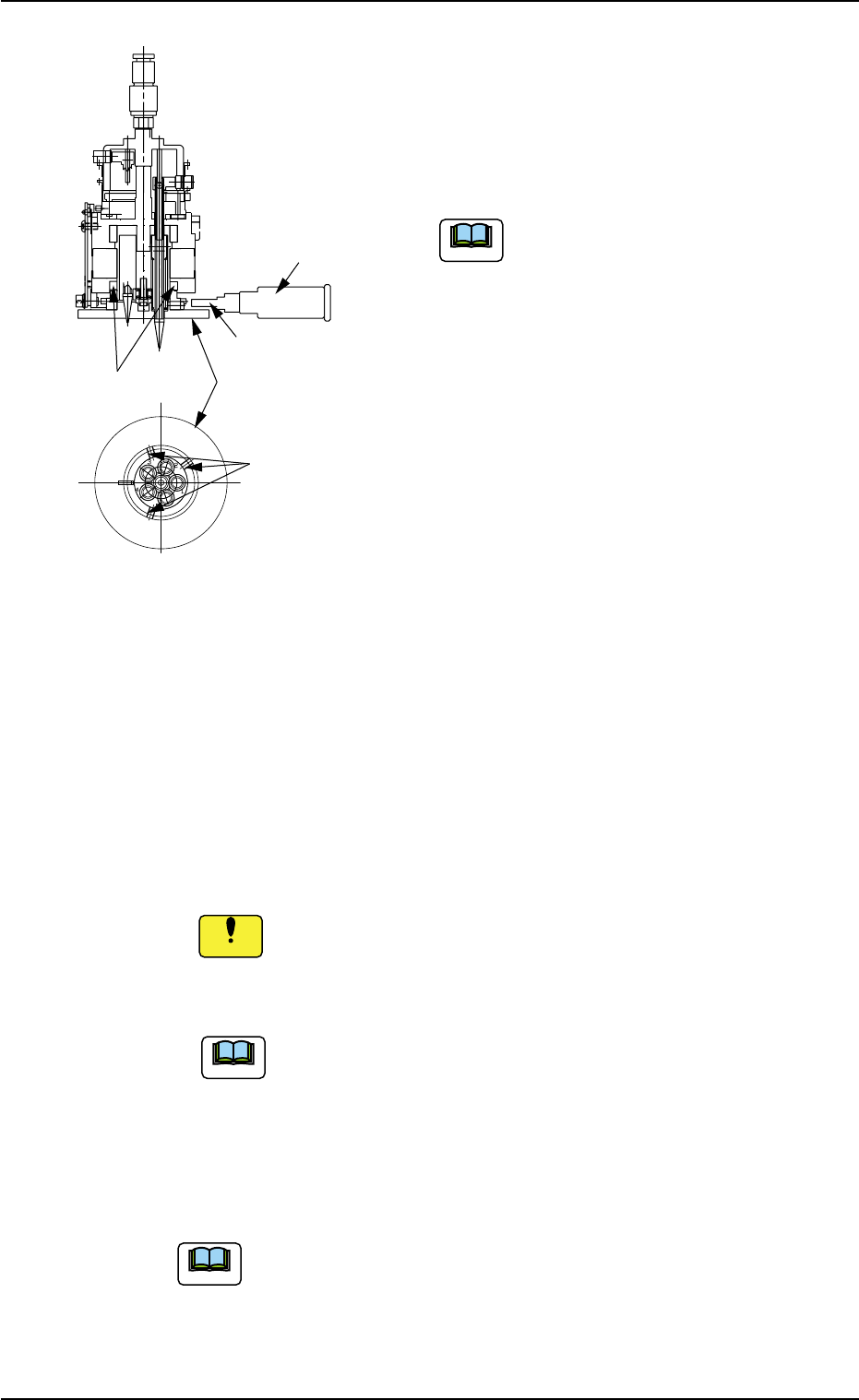

Fig. 4A82

Note

0509-003 1-64 AIM01ETRP

Setscrews

(3 pcs.)

Magnet for Head

Origin Detection

Diffusion Plate

2 mm Bit

Torque Screwdriver

(630 044 2786)

Note

Notice

1.4.7 Lamp Replacement of Light Source Device for Recognition

Lighting

(1) Light Source Devices

Light Source Devices : #MHF-P100LRD-SO-2

Lamp : LM-100

(2) Lamp Replacement Procedure

• Turn off the power switch of the light source device and check that

the LED (Orange) of the power switch extinguishes.

• Loosen the setscrew on the main body of the light source device and

open the lamp house cover.

• Lift the lever located on the left side of the lamp in the arrow direction.

The lamp will also be lifted up.

• Pull out the lamp straight up from the lamp holder.

• Detach the lamp from the socket.

When the lamp is inserted or pulled out, be sure not to forcibly

screw the terminal into or unscrew it from the socket. Other-

wise, the socket may be damaged.

Fig. 4A83

Do not touch the lamp right after it has been turned

off because it is very hot. Wait for about 3 to 5

minutes or until it cools down.

Be sure to wear gloves made of thick material (for

example, cotton work gloves) to replace the lamp

right after it has been turned off.

1.4 Maintenance Method

0509-003 1-65 AIM01ETRP

CAUTION

Note
