1.4.7 Lamp Replacement of Light Source Device for Recognition

Lighting

(1) Light Source Devices

Light Source Devices : #MHF-P100LRD-SO-2

Lamp : LM-100

(2) Lamp Replacement Procedure

• Turn off the power switch of the light source device and check that

the LED (Orange) of the power switch extinguishes.

• Loosen the setscrew on the main body of the light source device and

open the lamp house cover.

• Lift the lever located on the left side of the lamp in the arrow direction.

The lamp will also be lifted up.

• Pull out the lamp straight up from the lamp holder.

• Detach the lamp from the socket.

When the lamp is inserted or pulled out, be sure not to forcibly

screw the terminal into or unscrew it from the socket. Other-

wise, the socket may be damaged.

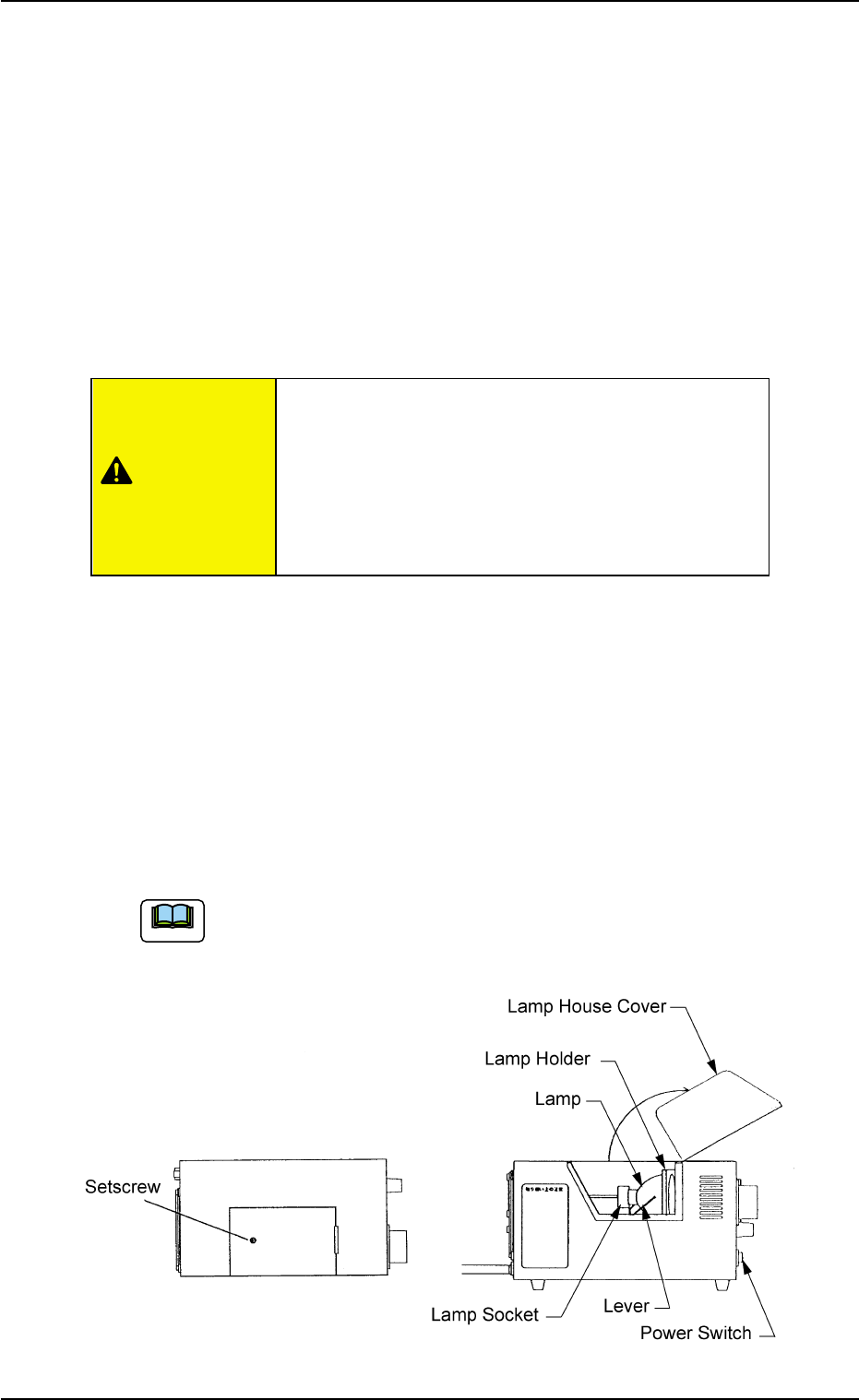

Fig. 4A83

Do not touch the lamp right after it has been turned

off because it is very hot. Wait for about 3 to 5

minutes or until it cools down.

Be sure to wear gloves made of thick material (for

example, cotton work gloves) to replace the lamp

right after it has been turned off.

1.4 Maintenance Method

0509-003 1-65 AIM01ETRP

CAUTION

Note

• Return the lever to the original position.

• Put a new lamp in the lamp socket and push it down until it reaches

the bottom of the lamp holder. At this time, direct the side of the lamp

where the projected section is located so that the projection matches

the indented section of the lamp holder.

• Close the lamp house cover and shift down the lock lever to fasten

the cover.

• Turn on the power switch of the light source device and check that

the LED (orange) of the power switch illuminates.

• The lamp replacement is completed.

Perform lighting check operation after lamp replacement.

Fig. 4A83-1

1.4 Maintenance Method

0305-001 1-66 AIM01ETRP

1.4.8 Replacement of Cutter Blade

Time of Replacement

Replace a cutter blade with a new one when the cutting quality has

deteriorated due to wear, cracks, etc.

Replacement Procedure

(1) Zero the feeder carriage and turn off the power supply.

Set the angle of the rotary turret to 108° (origin) to prevent

interference between the lower and upper blades.

(2) Open the central safety guard of the feeder unit.

(3) Detach the upper blade by removing Bolts A (M5 × 16).

Fig. 4A84

(4) Remove Bolts B (M5 × 12) fastening the lower blade holding plate

with the torque L-type wrench (Standard Accessory Part: 630 063

9759) and detach the plate.

While detaching the lower blade holding plate, be careful not

to touch the nozzles and diffusion plates. Also, avoid hitting

them with a tool.

1.4 Maintenance Method

Upper Blade

Lower Blade Holding Plate

Bolts A

Bolts B

0509-005 1-67 AIM01ETRP
