1.4 Maintenance Method 1.4.9 Lubrication of Linear Guide in Feeder Carriage Section Grease should be applied every 6 months after the initial month. • • • • • Preparation for Lubrication (1) T urn off the power supply to…

Fig. 4A84-1

(5) Detach the lower blade by removing Bolts C (M5 × 12).

When the lower blade cannot be detached easily, try to pull it

right and left alternately.

(6) Attach a new lower blade and secure it with Bolts C (M5 × 12).

(7) Attach the new lower blade holding plate and secure it with Bolts B

(M5 × 12).

(8) Attach a new upper blade and secure it with Bolts A (M5 × 16).

(9) Close the central safety guard of the feeder unit.

(10) Turn on the power supply of machine and confirm that the rotary

turret works normally, using "Smooth Manual Axis Operation (Low

Speed)" for the rotary turret.

Before operation, be sure to confirm that the lower blade holding

plate is securely attached.

Refer to "2.2.1 "Rotary Turret" Tab" in "Section 6 (Vol. 2)" for details.

1.4 Maintenance Method

Lower Blade Bolts C

Note

0509-006 1-68 AIM01ETRP

Notice

1.4 Maintenance Method

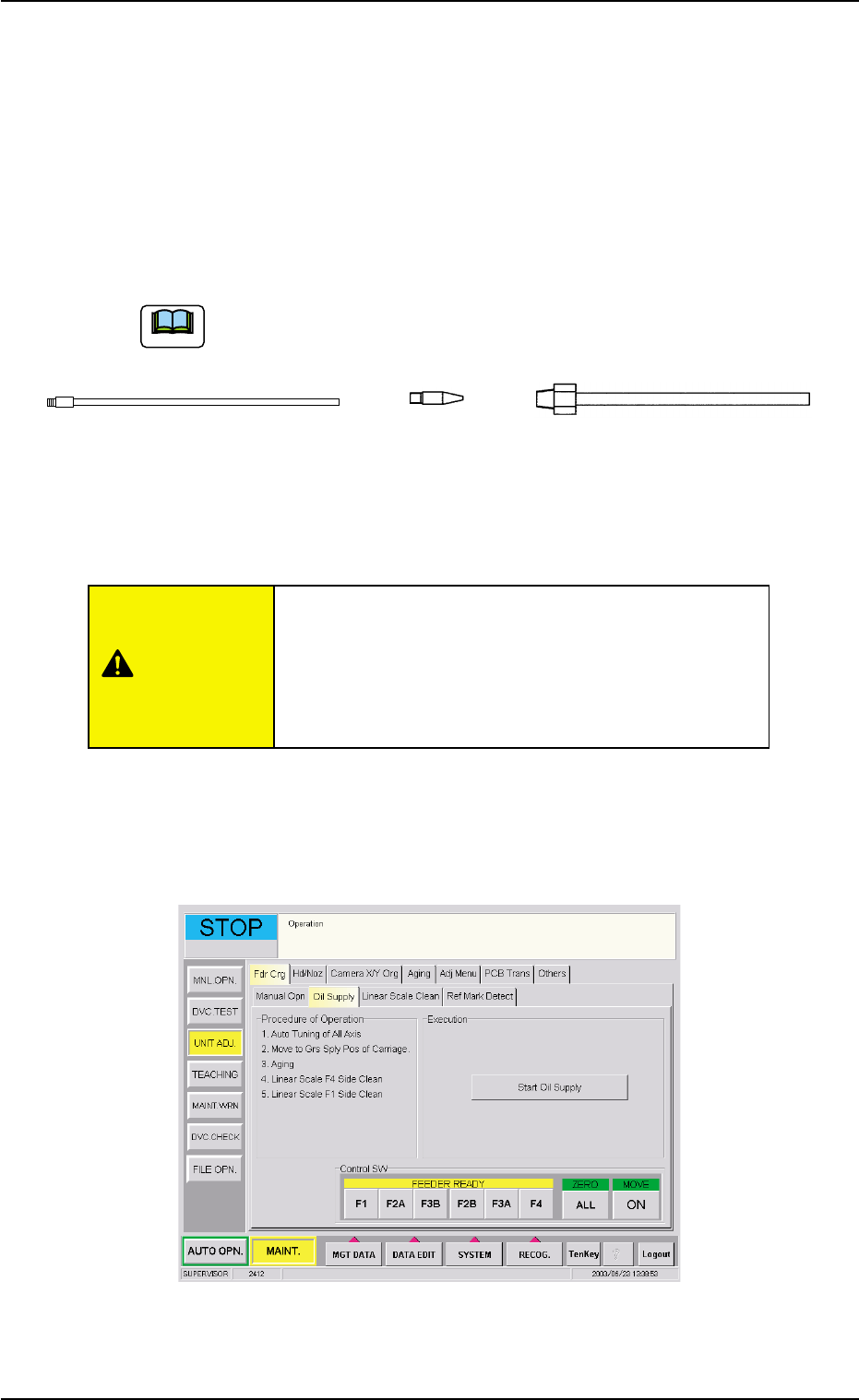

1.4.9 Lubrication of Linear Guide in Feeder Carriage Section

Grease should be applied every 6 months after the initial month.

••

• Preparation for Lubrication

(1) Turn off the power supply to the machine and wipe off old grease

on the rail of the linear guide with a rag.

(2) Prepare the FL- and P-type attachments.

The combination of the U- and P-type attachment can also be

used for lubrication from the front side of the machine.

Fig. 4A85

••

• Lubrication Procedure

The linear guide in the feeder carriage section must

be lubricated with the [POWER ON] button on the

operation panel being pressed ("ON" condition).

It is dangerous. Be sure to lubricate alone (without

any other attended personnel).

(1) Press the [UNIT ADJ.] button on the submenu bar that appears after

the [MAINT.] button is selected.

When the [Oil Supply] tab is pressed in the "Fdr Crg" tab sheet, the

following tab sheet appears.

Fig. 4A85-1 "Oil Supply" Tab Sheet

CAUTION

FL Type

P Type

U Type

0509-004 1-69 AIM01ETRP

Note

1.4 Maintenance Method

(2) When the [Start Oil Supply] button is pressed in the "Oil Supply" tab

sheet, the following sheet appears.

Fig. 4A85-2

(3) Press the [ALL] button (entitled "ZERO"). In two seconds, press the

[ENABLE] button on the operation panel. All devices are zeroed.

(4) Press all the buttons (entitled "FEEDER READY").

(5) Press the [ON] button entitled "MOVE". In 2 seconds, press the [EN-

ABLE] button on the operation panel.

All axis automatic tuning takes place and the following sheet ap-

pears. (The feeder carriage moves slightly.)

0305-001 1-70

AIM01ETRP
