1.4 Maintenance Method

(2) When the [Start Oil Supply] button is pressed in the "Oil Supply" tab

sheet, the following sheet appears.

Fig. 4A85-2

(3) Press the [ALL] button (entitled "ZERO"). In two seconds, press the

[ENABLE] button on the operation panel. All devices are zeroed.

(4) Press all the buttons (entitled "FEEDER READY").

(5) Press the [ON] button entitled "MOVE". In 2 seconds, press the [EN-

ABLE] button on the operation panel.

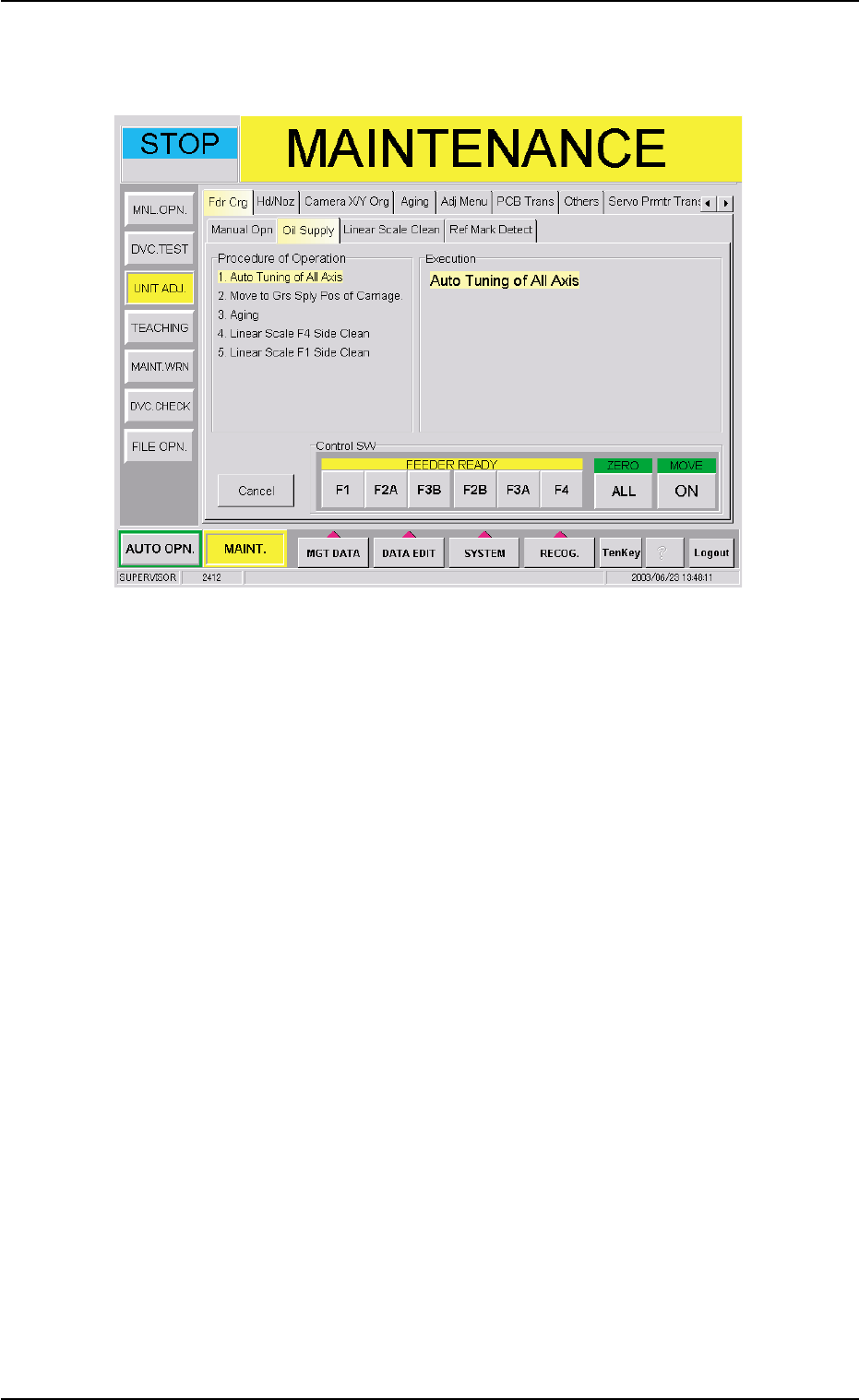

All axis automatic tuning takes place and the following sheet ap-

pears. (The feeder carriage moves slightly.)

0305-001 1-70

AIM01ETRP

1.4 Maintenance Method

(6) Press the [ON] button entitled "MOVE". In 2 seconds, press the [EN-

ABLE] button on the operation panel.

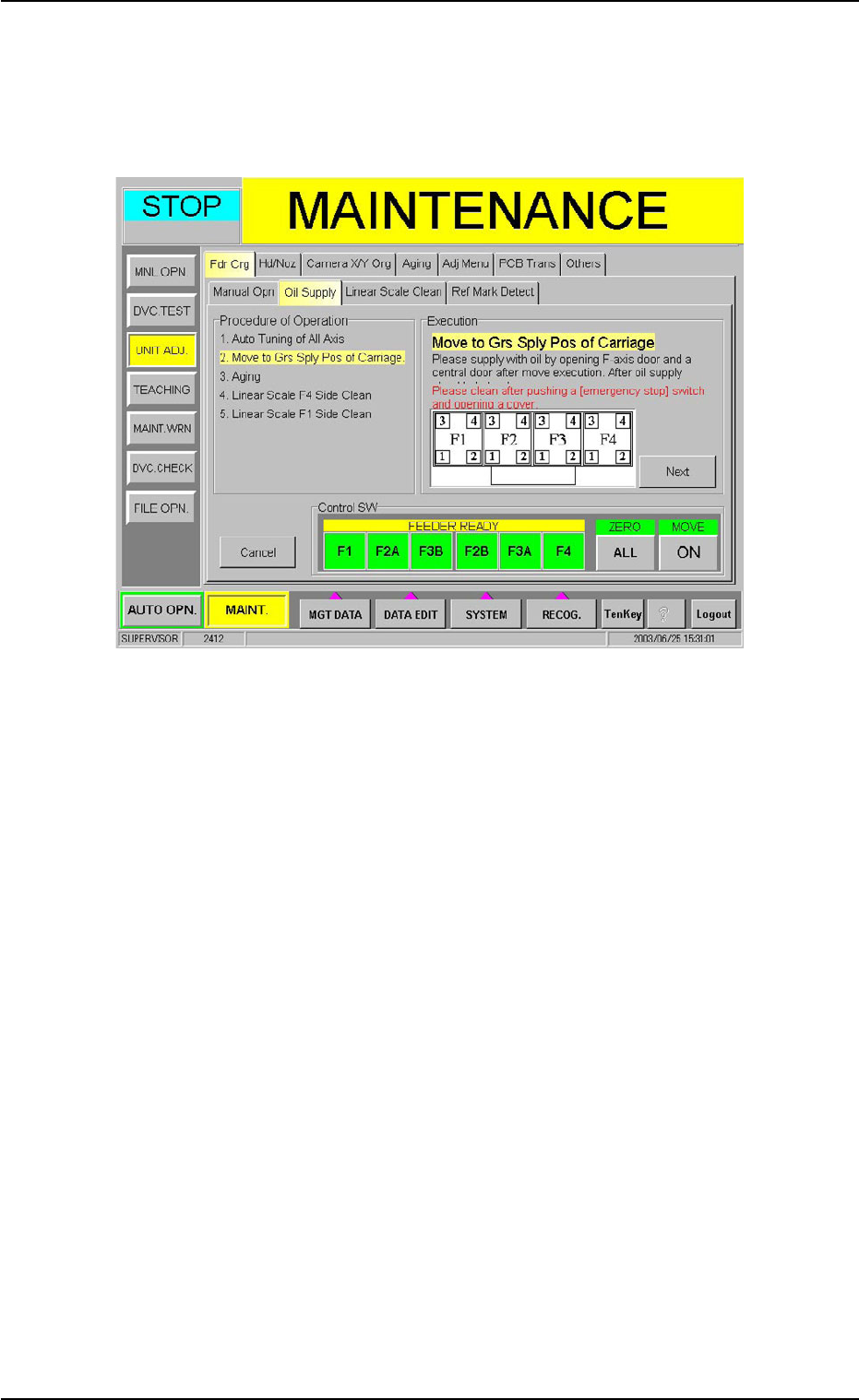

The feeder carriage moves to the grease supply position and the

following sheet appears.

Fig. 4A85-3

(7) Press the [EMERGENCY STOP] switch and open all the doors.

Apply grease to the nipples on the slide blocks of linear guides.

After that, close all the doors.

(8) Unlock the [EMERGENCY STOP] switch and press the [RESET]

button. Press the [POWER ON] button to power the machine.

Press the [ALL] button (entitled "ZERO"). In 2 seconds, press the

[ENABLE] button on the operation panel.

0305-001 1-71

AIM01ETRP

1.4 Maintenance Method

(9) Press the [Next] button. The following sheet appears.

Fig. 4A85-5

Press all the buttons (entitled "FEEDER READY").

When the [ENABLE] button on the operation panel is pressed in

two seconds after the [ON] button (entitled "MOVE"), the aging op-

eration of the feeder carriage section starts.

(10) After the aging is completed, the following tab sheet appears.

Fig. 4A85-6
