1.4 Maintenance Method

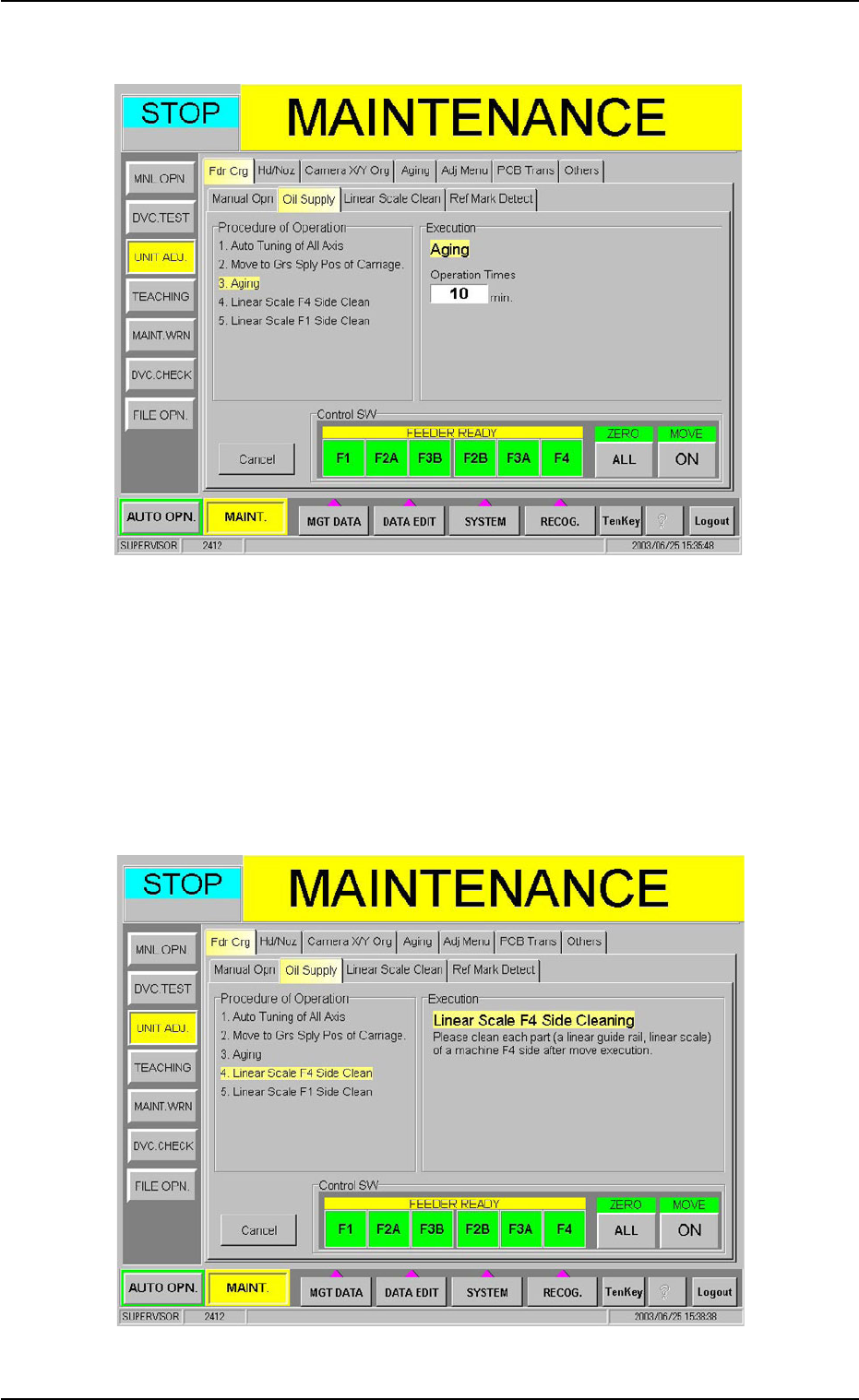

(9) Press the [Next] button. The following sheet appears.
Fig. 4A85-5
Press all the buttons (entitled "FEEDER READY").
When the [ENABLE] button on the operation panel is pressed in
two seconds after the [ON] button (entitled "MOVE"), the aging op-
eration of the feeder carriage section starts.
(10) After the aging is completed, the following tab sheet appears.
Fig. 4A85-6
0305-001 1-72
AIM01ETRP
1.4 Maintenance Method
(11) When the [ENABLE] button on the operation panel is pressed in

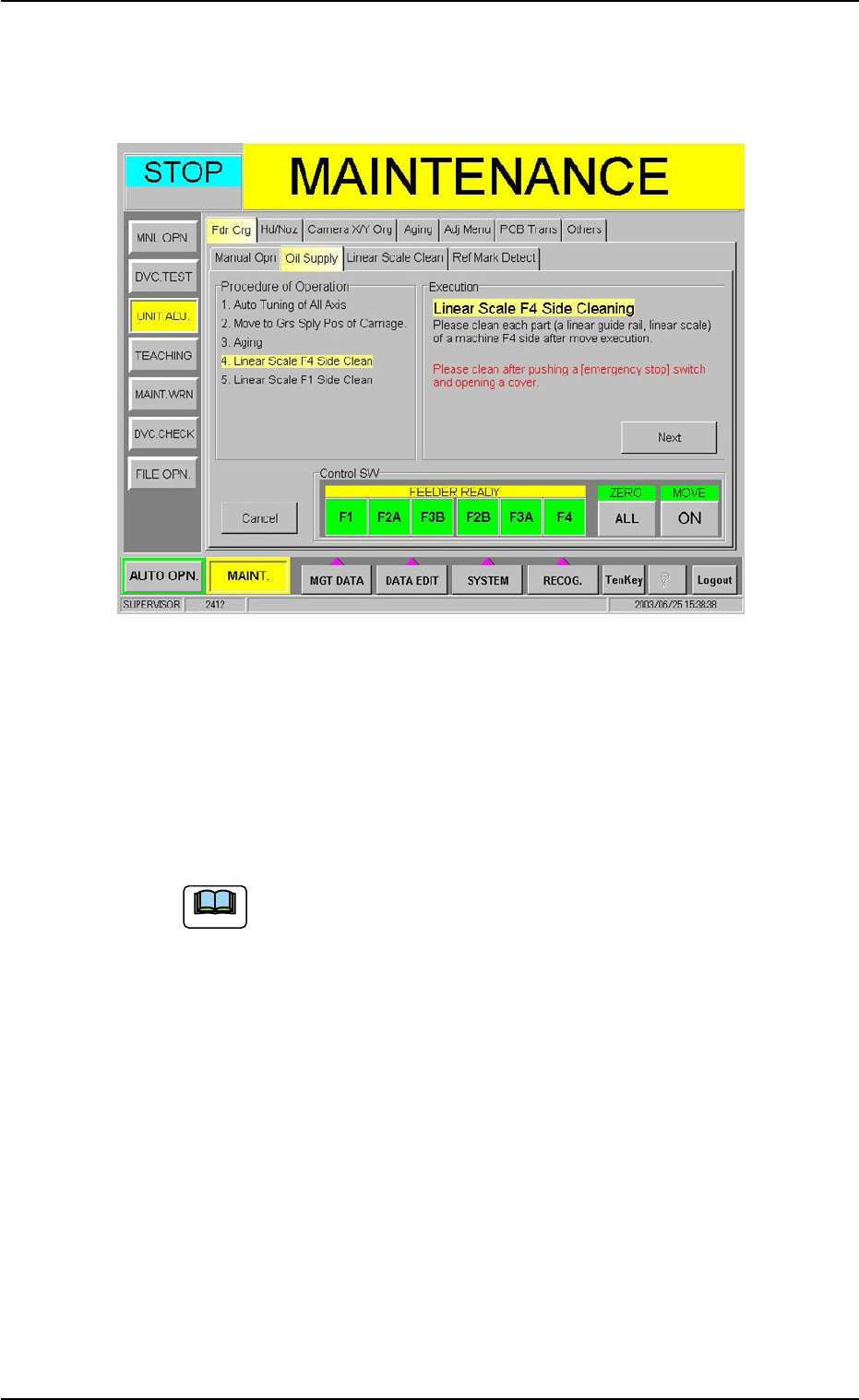

two seconds after the [ON] button (entitled "MOVE"), the following
sheet appears.
Fig. 4A85-7
(12) Press the [EMERGENCY STOP] switch.
Open the feeder carriage cover on the F4 side.
Clean the linear scale on the F4 side with a cotton swab soaked in
alcohol (absolute ethanol).
After the cleaning, close the feeder carriage cover on the F4 side.
Never use any organic compounds other than alcohol.
0305-001 1-73
AIM01ETRP
Note
(13) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [ALL] button (entitled "ZERO"). In two seconds, press
the [ENABLE] button on the operation panel.

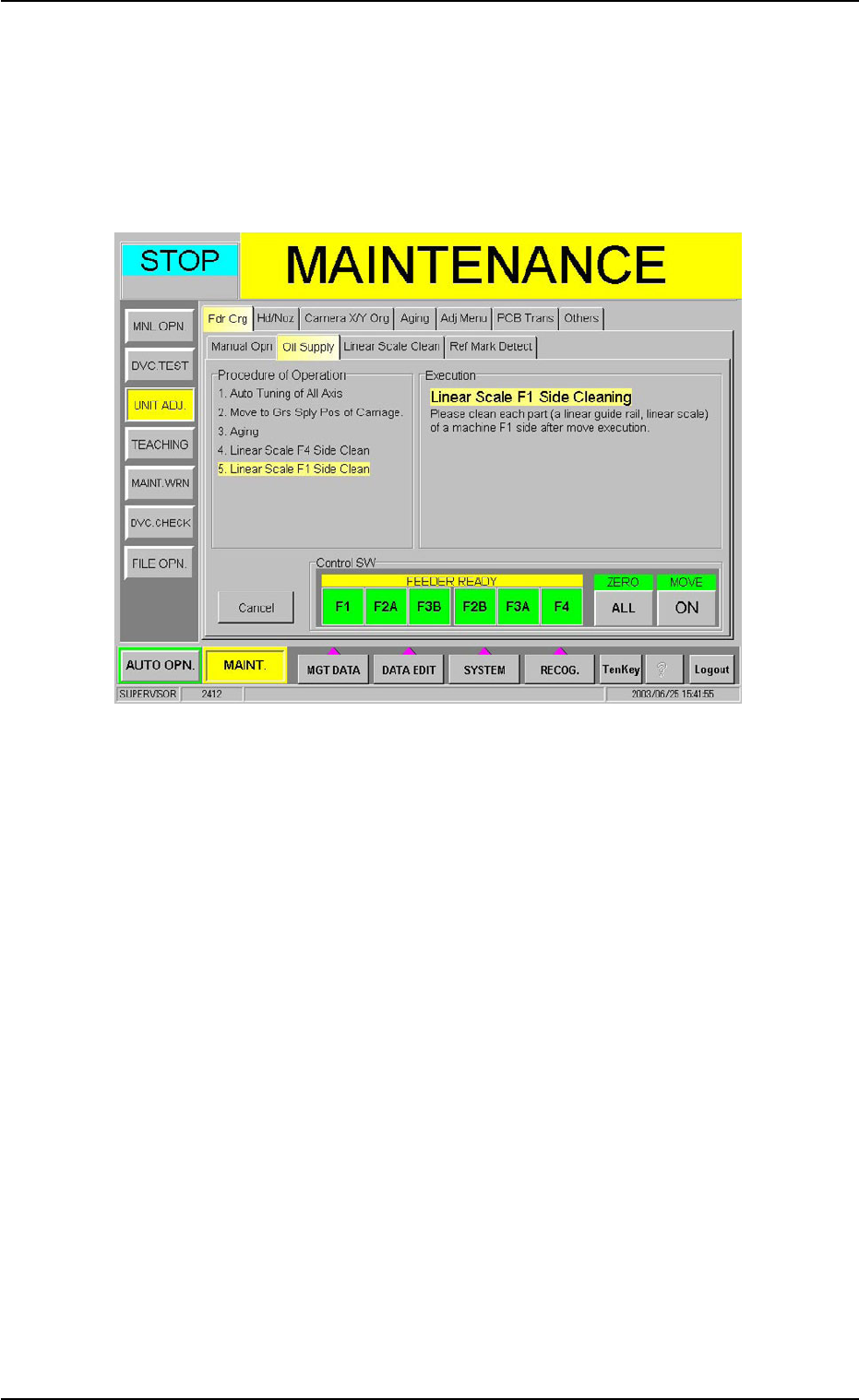

Press the [Next] button. The following sheet appears.
Fig. 4A85-8
(14) Press all the buttons (entitled "FEEDER READY").
Press the [ON] button (entitled "MOVE"). In two seconds, press the
[ENABLE] button on the operation panel.
Follow the same procedure as described in Step (12) to clean the
linear scale on the F1 side.
(15) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [Next] button. The work will be completed.
