1.4 Maintenance Method (16) Confirm whether the reference mark on the linear scale can be detected or not. (16-1) When the [Ref Mark Detect] tab is pressed in the "Fdr Crg" tab sheet, the following tab sheet ap…
(13) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [ALL] button (entitled "ZERO"). In two seconds, press
the [ENABLE] button on the operation panel.
Press the [Next] button. The following sheet appears.
Fig. 4A85-8
(14) Press all the buttons (entitled "FEEDER READY").
Press the [ON] button (entitled "MOVE"). In two seconds, press the
[ENABLE] button on the operation panel.
Follow the same procedure as described in Step (12) to clean the
linear scale on the F1 side.
(15) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [Next] button. The work will be completed.
1.4 Maintenance Method
0305-001 1-74 AIM01ETRP
1.4 Maintenance Method
(16) Confirm whether the reference mark on the linear scale can be
detected or not.
(16-1) When the [Ref Mark Detect] tab is pressed in the "Fdr
Crg" tab sheet, the following tab sheet appears.

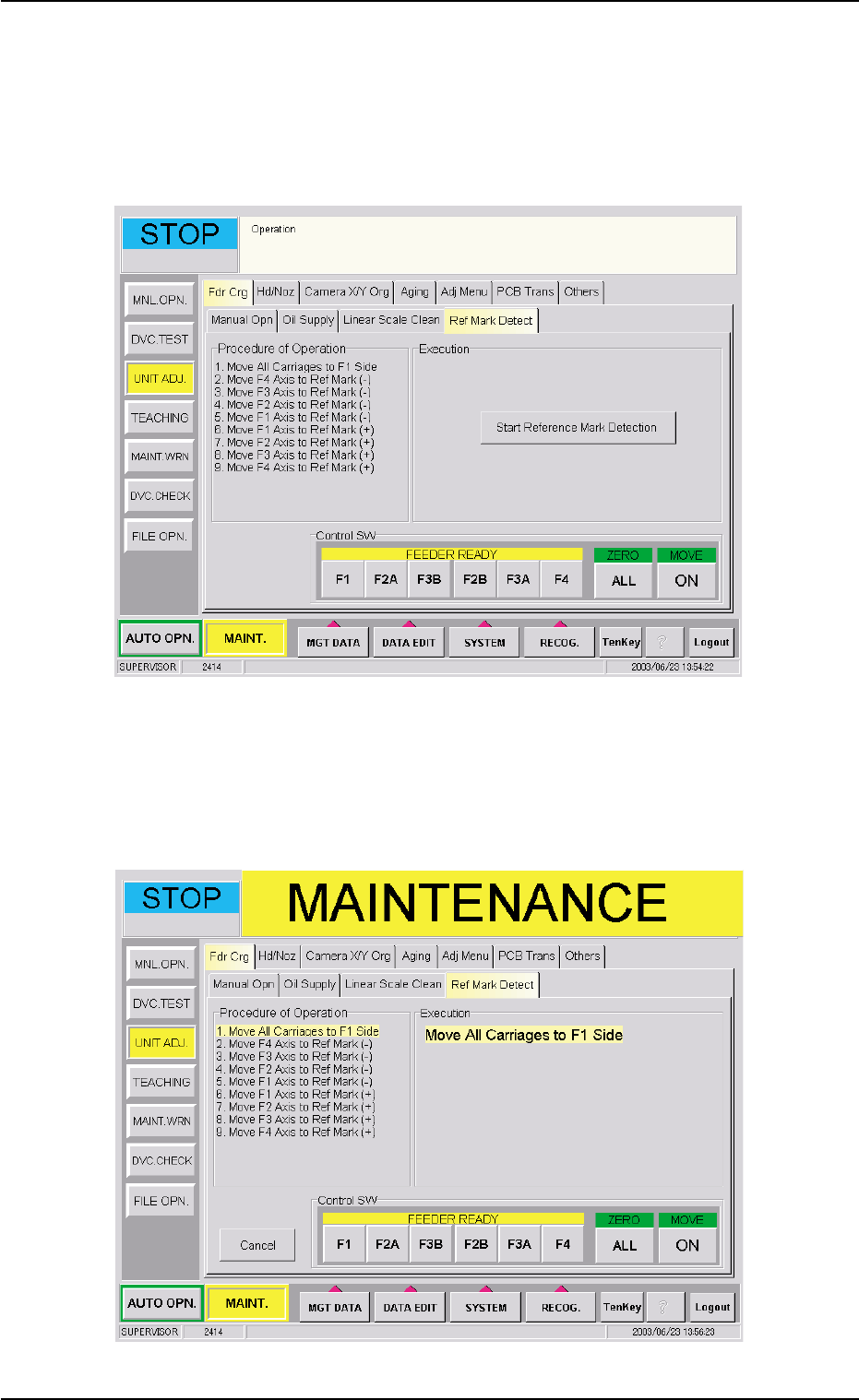

Fig. 4A85-11 "Ref Mark Detect" Tab Sheet
(16-2) When the [Start Reference Mark Detection] button is
pressed in the "Ref Mark Detect" tab sheet, the following
sheet appears.
Fig. 4A85-12
0309-002 1-75
AIM01ETRP
1.4 Maintenance Method
(16-3) Press the [ON] button entitled "MOVE". In 2 seconds,
press the [ENABLE] button on the operation panel.
Feeder Carriages #3 and #4 move to the F1 side and the
following sheet appears.

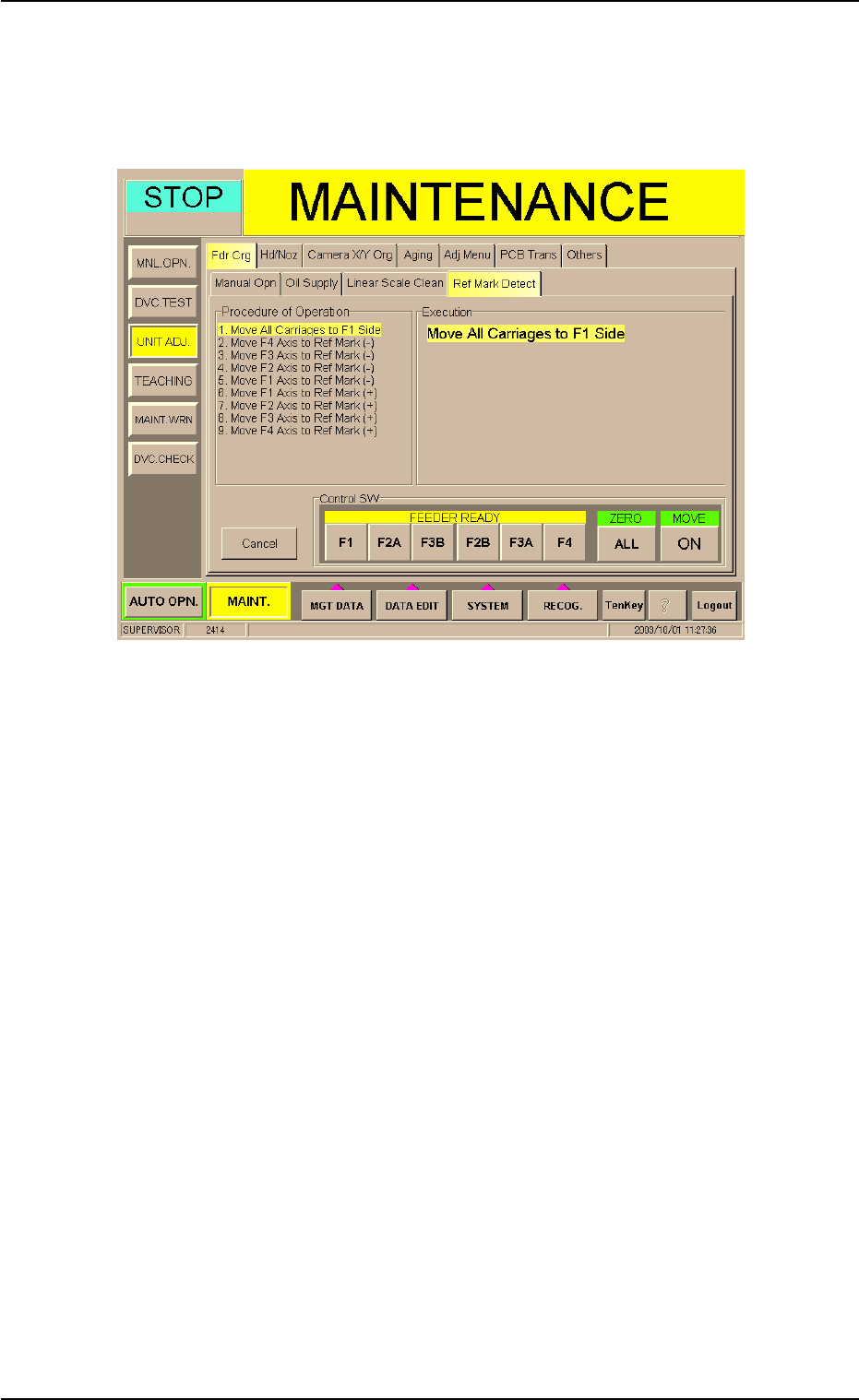

Fig. 4A85-13
(16-4) Press the [Next] button.
When the [ENABLE] button on the operation panel is
pressed in 2 seconds after the [ON] button (entitled
"MOVE"), "2. Move F4 Axis to Ref Mark (-)" is executed.
Follow the same procedure repeatedly and confirm that
the reference marks (Procedure of Operation: 3 through
9) are detected.
