1.4 Maintenance Method

(2) When the [Start Linear Scale Cleaning] button is pressed in the "Linear

Scale Clean" tab sheet, the following sheet appears.

Fig. 4A86-2

(3) Press the [Move Fdr Axis to F1 Origin] button or the [Move Fdr Axis

to F4 Origin] button. In 2 seconds, press the [ENABLE] button on

the operation panel.

The feeder carriage moves toward the specified origin.

(4) Press the [EMERGENCY STOP] switch and open the feeder car-

riage covers.

(5) Clean the linear scales with a cotton swab soaked in alcohol (abso-

lute ethanol).

Never use any organic compounds other than alcohol.

(6) Close all feeder carriage covers.

(7) Turn the [EMERGENCY STOP] switch clockwise to cancel the

emergency stop condition.

(8) Press the [RETURN] button in the "EMERGENCY STOP" window.

0305-001 1-78 AIM01ETRP

Note

1.4 Maintenance Method

(9) Hold down the [POWER ON] button on the operation panel for more

than 1 second to reset the machine to its normal condition. The

following window appears.

Fig. 4A86-3

(10) Press the [ALL] button entitled "ZERO". In 2 seconds, press the

[ENABLE] button on the operation panel. All devices are zeroed.

(11) Press one of the [F1], [F2A], [F3B], [F2B], [F3A] and [F4] buttons

entitled "FEEDER READY".

(12) Clean the linear scales on the opposite side in the same way.

0305-001 1-79 AIM01ETRP

1.4 Maintenance Method

• Cleaning of Linear Scale Encoder Heads

(1) Be sure to turn off the power breaker before cleaning work.

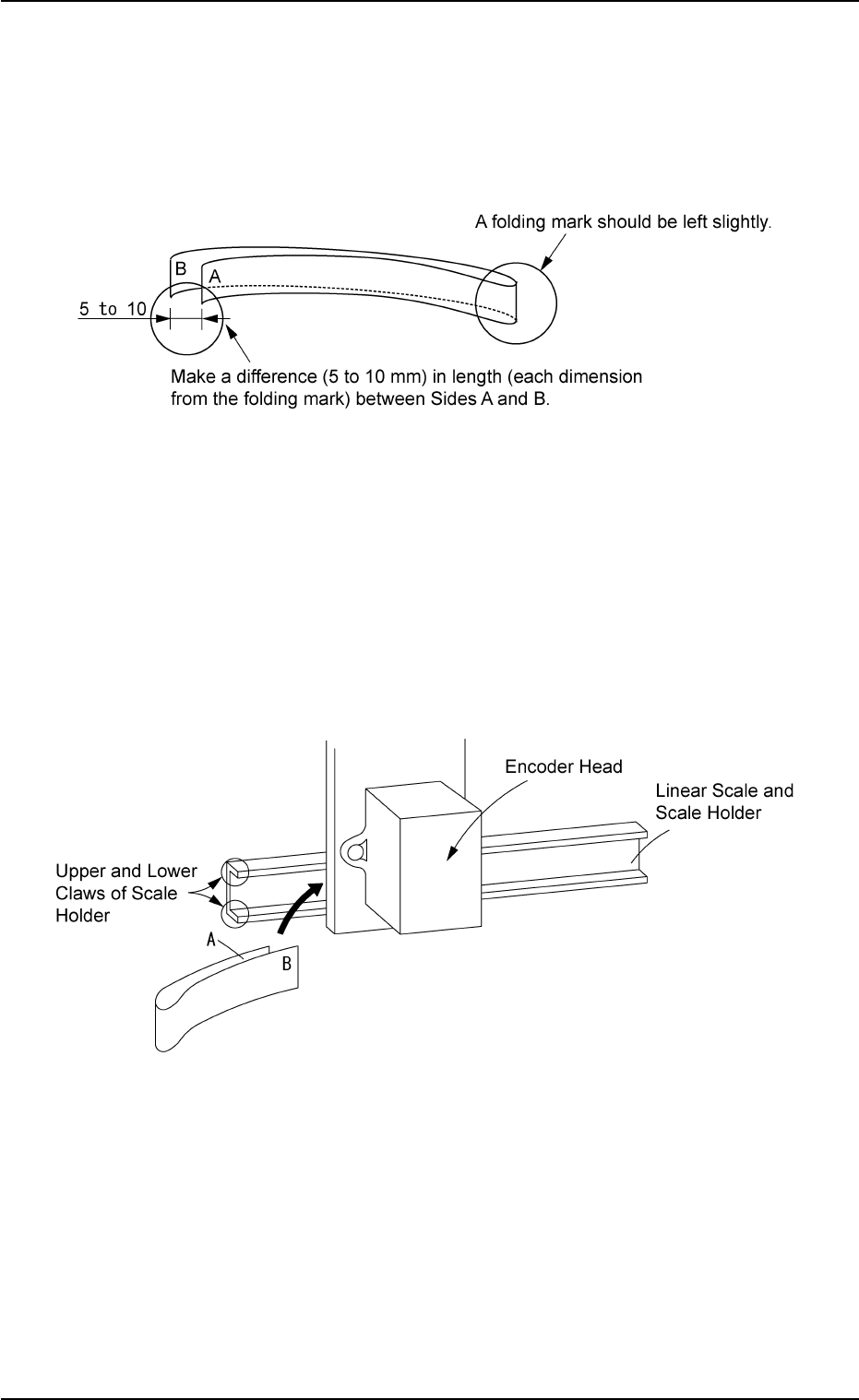

(2) Fold the head cleaning paper as follows.

Fig. 4A87

(3) Wet both surfaces of Sides A and B (head cleaning paper) adequately

with alcohol (absolute ethanol).

(4) Insert the head cleaning paper into the clearance beside the en-

coder head such that Side B (engaged between the upper and lower

claws of the scale holder) faces the encoder side.

Fig. 4A88

0305-001 1-80 AIM01ETRP
