1-84-5 AIM01ETRP
(4) After the oil has been supplied, confirm that the oil nut is tightened
securely. Then, close the front door and attach the upper cover.
(5) Turn on the power supply to let the oil circulate for approx. 5 min-
utes. After that, turn off the power supply.
When the power supply is set to "ON", the pump in the cool-
ing section is activated to let the oil circulate.
(6) Detach the upper cover again and open the front door.
(7) Keep the machine intact for approximately 30 minutes. After that,
check the oil gauge if the oil level is near the center of the red circle.
If the oil is not supplied enough, replenish the oil supply. If too much
oil is supplied, drain the excess oil from the oil outlet of the rotary
turret.
Fig. 4A92-9
(8) After the oil level is adjusted, wrap a seal tape around the oil nut and
retighten the nut.
(9) Confirm that no oil is oozing out of the oil nut.
When no oil is oozing out, attach the overhead cover firmly with the
screws.
Note
Oil Outlet of Rotary Turret
Gearbox
Section
Rotary Turret Section
Cam Box Section
1.4 Maintenance Method
0509-001
1-84-6 AIM01ETRP
Approximately 14 liters of oil is required for the whole area,
including approximately 11 liters of oil for the area between the
rotary turret and the cooling section.
The following oil quantities are required for the other sections.
Oil Filter : Approx. 400 cc (0.4 liters)
Cooling Section : Approx. 1 liter
Rotary Turret Section : Approx. 10 liters
Cam Box (Separate Container) : Approx. 2.2 liters

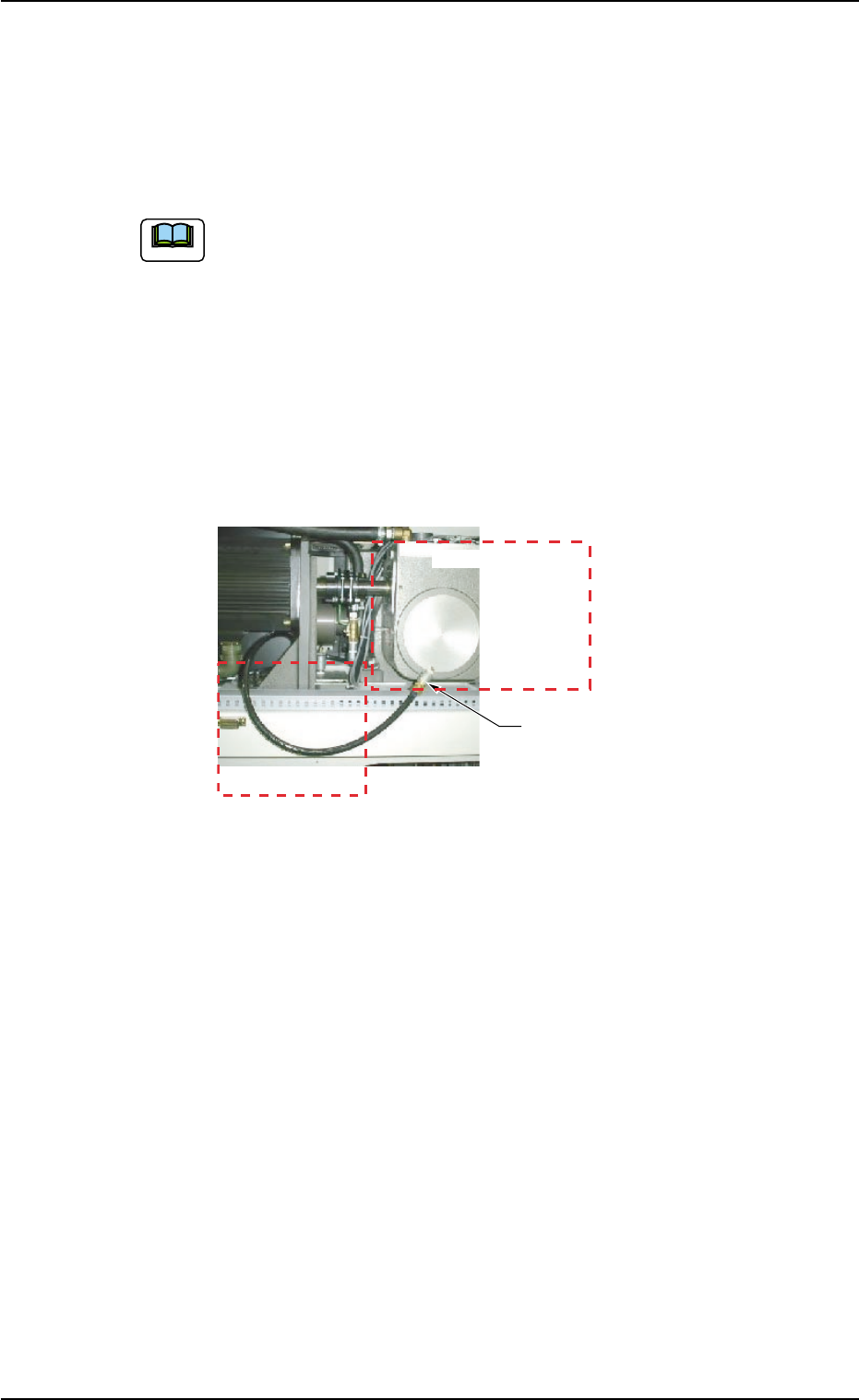

Fig. 4A92-10 "Cam Box"
Cam Box Oil Inlet
Cam Box Oil
Outlet
Note
1.4 Maintenance Method
0509-001
1-84-7 AIM01ETRP
1.4.14 Replacement of Exhaust Cleaner Element
(1) Detach the oil case.
If the drain cock is loosened, the collected grease will come
out.

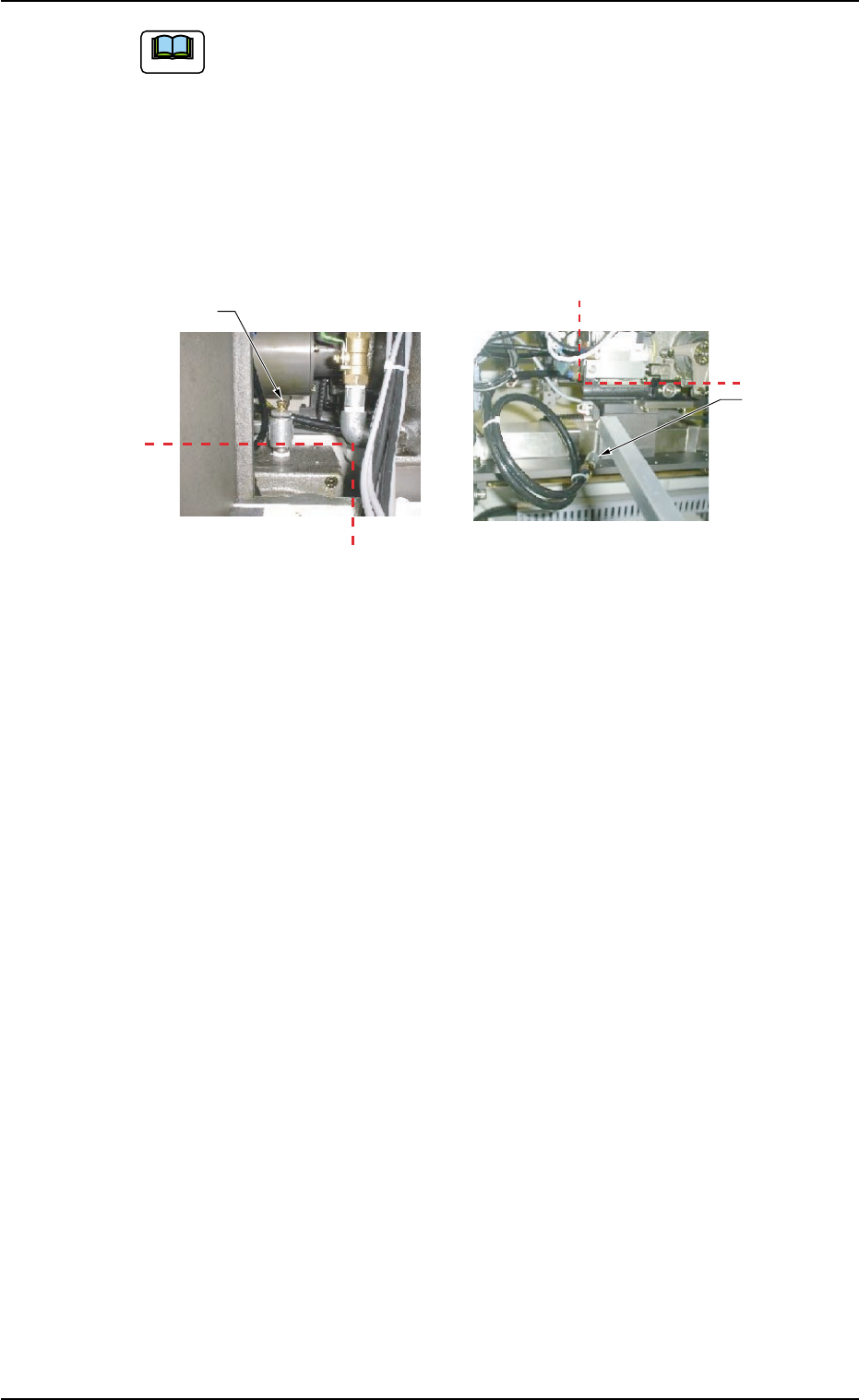

Fig. 4A92-11
(2) Remove the nut from the element and then the washer.
Fig. 4A92-12
Exhaust Cleaner
Oil Case Detached
Oil Case
Drain Cock
Element
Nut Removed Washer Removed
Washer
Nut
1.4 Maintenance Method
0509-001
Note
