1-84-8 AIM01ETRP (3) Pull out the element. A double-faced tape is used to affix the rubber packing to the upper area of the element. It may stick to the main body side due to its weak adhesion. In this case, be sure to p…
1-84-7 AIM01ETRP
1.4.14 Replacement of Exhaust Cleaner Element
(1) Detach the oil case.
If the drain cock is loosened, the collected grease will come
out.
Fig. 4A92-11
(2) Remove the nut from the element and then the washer.
Fig. 4A92-12
Exhaust Cleaner
Oil Case Detached
Oil Case
Drain Cock
Element
Nut Removed Washer Removed
Washer
Nut
1.4 Maintenance Method
0509-001
Note
1-84-8 AIM01ETRP

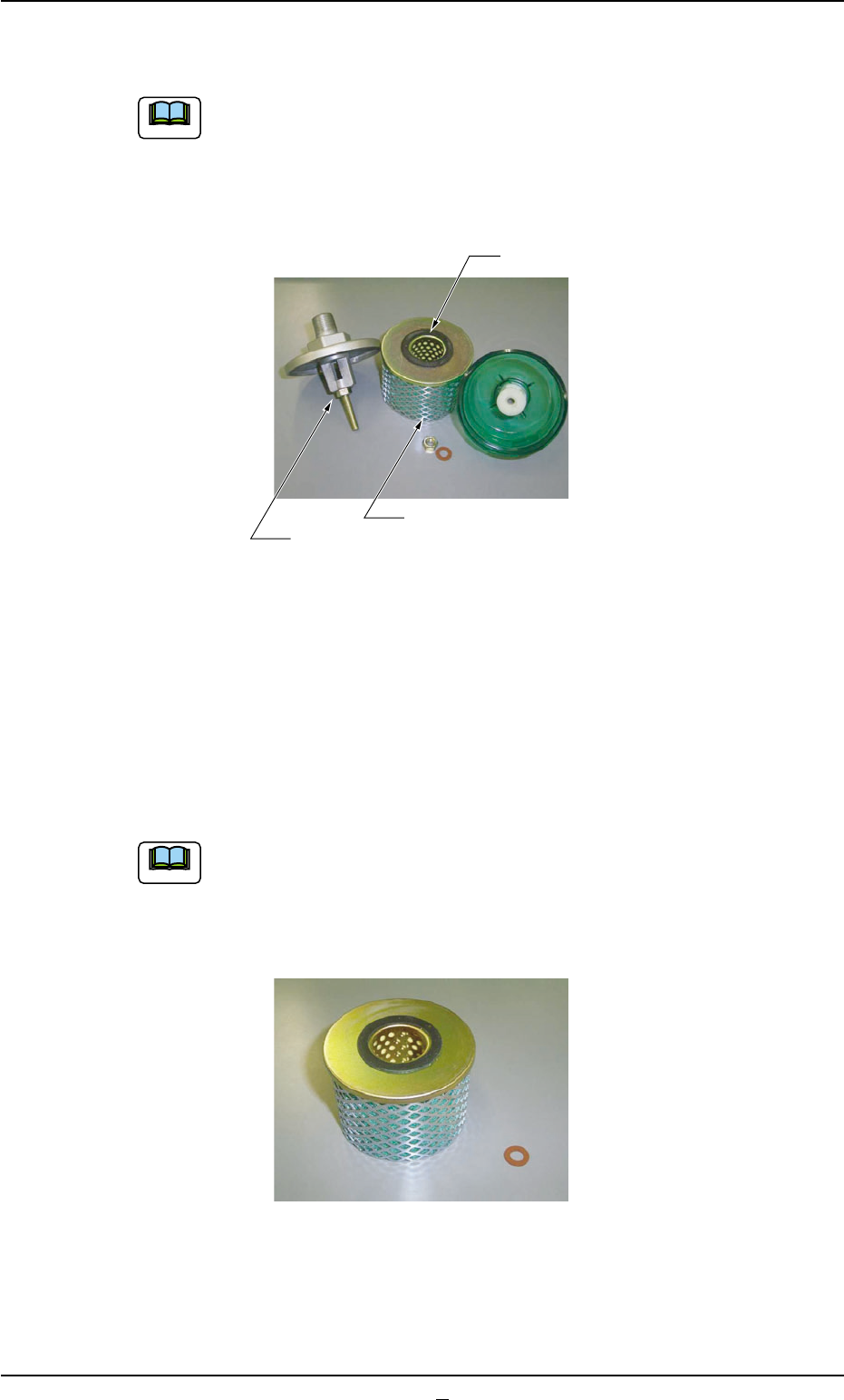

(3) Pull out the element.
A double-faced tape is used to affix the rubber packing to the
upper area of the element. It may stick to the main body side
due to its weak adhesion.
In this case, be sure to peel off the rubber packing from the
main body.
Fig. 4A92-13
(4) Clean the main body and the oil case.
Wipe off the grease that has accumulated in the oil case with a rag.
(5) After cleaning the main body and the oil case, follow the reverse
order of the detachment to attach the oil case.
A rubber packing is already affixed to the element for replace-
ment.
Be sure to replace the washer with the provided one at the
same time.
Fig. 4A92-14
Note
Element Detached
Rubber Packing
Element
Main Body
Note
Element for Replacement
1.4 Maintenance Method
0509-001
1.5 Maintenance Check List
This session describes how to perform the maintenance work periodi-
cally.
Use the tables below as check lists.
Refer to "1.3 Maintenance Spots" for the maintenance of each indi-
vidual spots of the machine.
1.5.1 Daily Maintenance
Table 4A20
1.5 Maintenance Check List
Air Source
Vacuum System
Dust Collector and
Waste Tape Box
Component
Recognition Section
Main Machine
Section Intermediate
Base/Component
Receiving Box
Cutter Section
Main Air Pressure
Air Blowing Pressure
Sub Air Pressure
Vacuum Pressure
Waste Tape Box
Upper Surface of
Glass for Ring
Lighting
Upper Surface of
Intermediate Base
Component
Receiving Box
Component Drop
Prevention Cover
1D1
1D2
1D3
1D4
1D5
1D6
1D7
1D8
1D9
4A10
Inspection
4A11 Inspection
4A12 Cleaning
4A13 Cleaning
4A14 Cleaning
4A15 Cleaning
-----
-----
-----
-----
-----
-----
-----
-----
-----
Lens
Cleaning Cloth
Vacuum
Cleaner
Vacuum
Cleaner
Maintenance Spots
Description Grease
Cleaning
tools,
Nozzles, etc.
Check
Name
No.
Fig.
No.
