1. 3 Machine Information 1.3.1 "Machine Information" Window V arious machine information is displayed while the machine is running. While the "Machine Information" window is active, the machine keeps …

100%1 / 417
Check Code Display Section A Display Section B
0b0201 Operation Area Feeder Close saf. guard at crg. home pos. 1.
Axis Safety Guard
0b0202 Operation Area Feeder Close saf. guard at crg. home pos. 2A.
Axis Safety Guard
0b0203 Operation Area Feeder Close saf. guard at crg. home pos. 3B.
Axis Safety Guard
0b0204 Operation Area Feeder Close saf. guard at crg. home pos. 2B.
Axis Safety Guard
0b0205 Operation Area Feeder Close saf. guard at crg. home pos. 3A.
Axis Safety Guard
0b0206 Operation Area Feeder Close saf. guard at crg. home pos. 4.
Axis Safety Guard
0b0236 Operation Area Feeder Close saf.guard at crg. Home pos. 1B.
Axis Safety Guard
0b0301 Operation Area Feeder Open saf. guard at crg. home pos.
Axis Safety Guard
0d0101 Out Of Origin Zero X/Y chute width.
0d0102 Out Of Origin Zero L conveyor width.
0d0103 Out Of Origin Zero R conveyor width.
0d0104 Out Of Origin Zero conveyor width.
0d0105 Out Of Origin Zero all devices with the [ZERO] button.
0d0106 Out Of Origin Zero PCB support pins up/down.
0d0107 Out Of Origin Zero PCB locate lever.
0d0108 Out Of Origin Zero X/Y table axis.
0d0109 Out Of Origin Zero camera X/Y axis.
0d0201 Feeder Axis Servo Restore Load Power again, or Check F1saf.guard if open/close
Down
0d0202 Feeder Axis Servo Restore Load Power again, or Check F2saf.guard if open/close
Down
0d0203 Feeder Axis Servo Restore Load Power again, or Check F3saf.guard if open/close
Down
0d0204 Feeder Axis Servo Restore Load Power again, or Check F4saf.guard if open/close
Down
0509-002 2-10 AIM01ETRP
1.2 "CHECK" Windows
1.3 Machine Information
1.3.1 "Machine Information" Window
Various machine information is displayed while the machine is running.
While the "Machine Information" window is active, the machine
keeps on running.

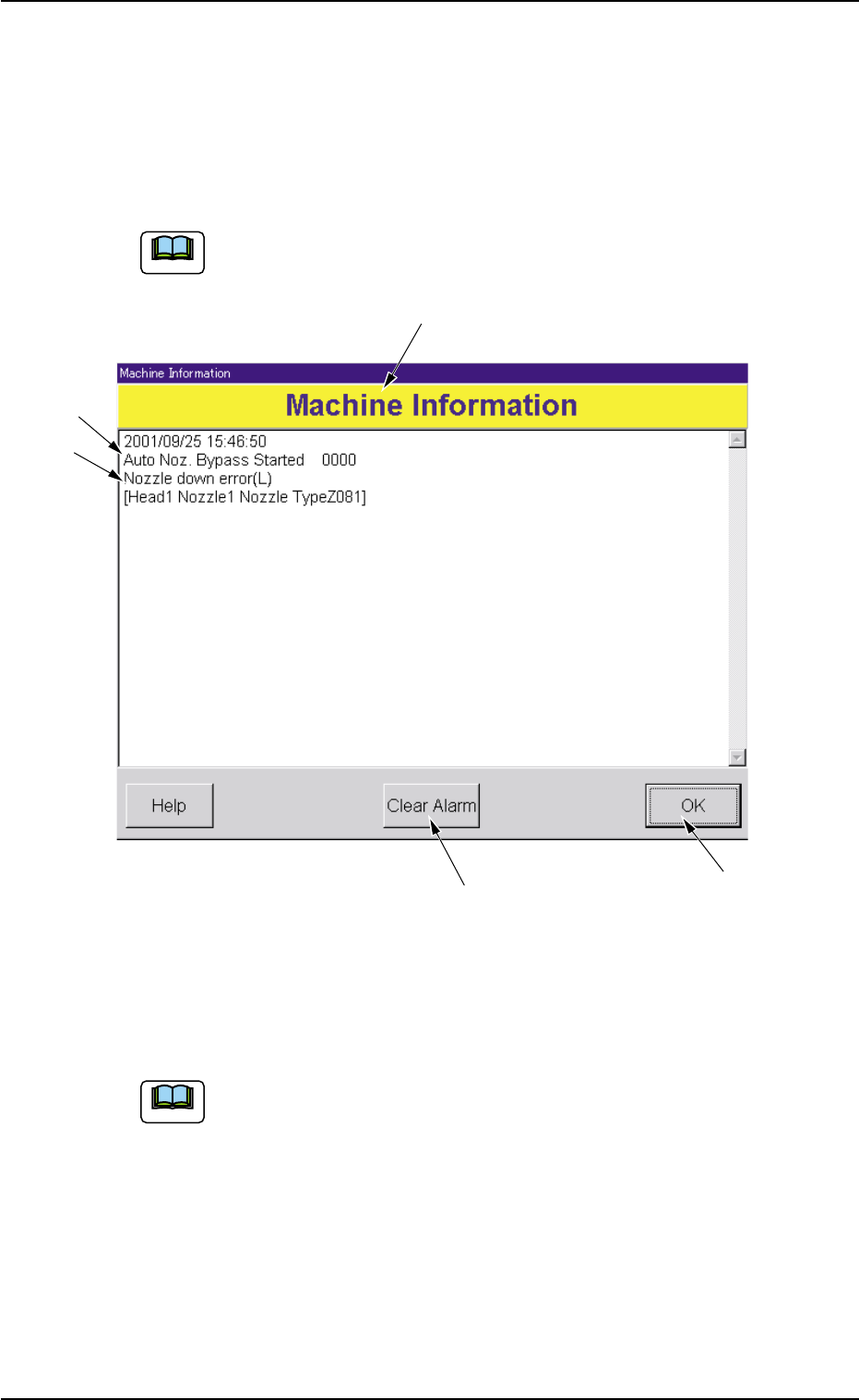

Fig. 4B3 Example of "Machine Information"
*1 Machine Information
The machine information is displayed.
Refer to "1.3.2 List of Check Messages" for details.
*5
*4
*1
*2
*3
0509-002 2-11 AIM01ETRP
1.3 Machine lnformation
Note
Note
*2 Display Section A
Displayed is the outline of the machine information.
*3 Display Section B
Displayed are the details of the machine information.
*4 [OK] Button
When pressed, this button closes the "Machine Information" window.
*5 [Clear Alarm] Button
When pressed, this button cancels an alarm (sound) only.
0305-001 2-12 AIM01ETRP
