Safe-31 AIM01E-P Safety Precautions Alert Labels and Description T able 1X8 No. Alert Labels and Description *1 Description z This label indicates that high voltage is applied. Do not touch the labeled areas. Otherwise, …
Safe-30 AIM01E-P
Safety Precautions
0502-002

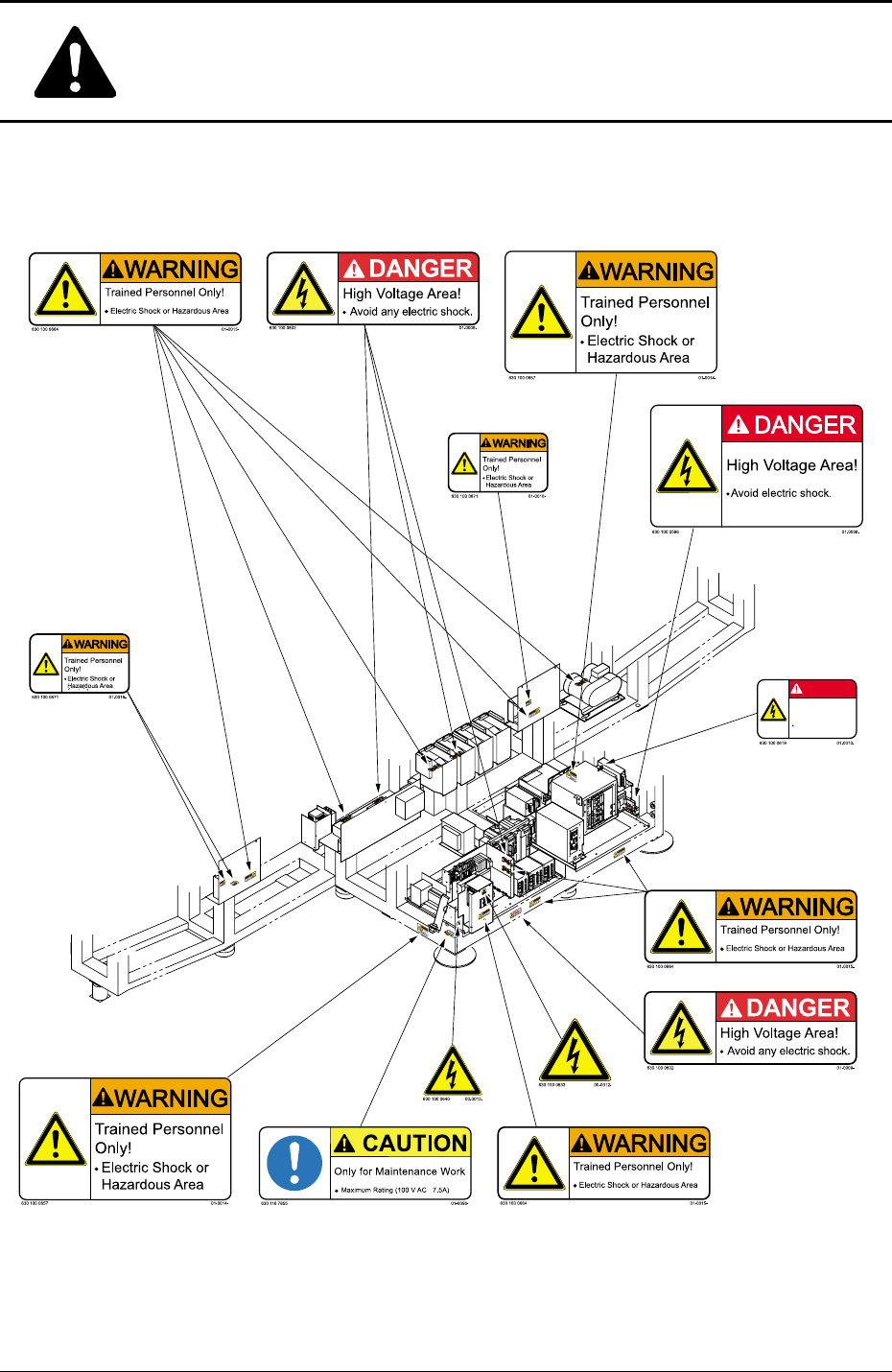

Fig. 1X30 Frame Structure (Bottom View)
(7)
(7)
(7)
(1-1)
(1-1)
(1-1)
(1-1)
(7)
(7)
(1-2)
(1-2)
(24)
(7)
(7)
DANGER
DANGER
High Voltage Area!
Avoid electric shock.
Safe-31 AIM01E-P
Safety Precautions
Alert Labels and Description
Table 1X8
No. Alert Labels and Description
*1
Description
z This label indicates that high voltage is applied.
Do not touch the labeled areas. Otherwise, you will be given an electrical shock.
*2
Description
z Keep clear of the labeled sections because they are activated. Otherwise, part of
your body may be trapped in the moving mechanisms, causing a major injury.
*3
Description
z Before maintenance work (inspections, cleaning, lubrication, or adjustment), turn
off the power and air sources of the machine and follow the specified instruction.
Only qualified personnel should operate the machine carefully.
High Voltage Area!
Avoid any electric shock.
DANGER
or
*1-1 *1-2
0502-002
Moving Mechanisms!
DANGER
or
*2-1
*2-2
DANGER
DANGER
Cut off power and air sources
during maintenance or inspection.
Electric Shock or Hazardous Area
No maintenance or inspections are allowed
with the machine powered.
Safe-32 AIM01E-P
Safety Precautions
Table 1X9
No. Alert Labels and Description
*4
Description
z Those who wear implanted pacemakers are not allowed to work inside the machine.
Otherwise, the pacemakers may be affected by magnetism, causing a serious
accident.
*5
Description
z Person with pacemaker may have magnetic shock. Keep more than 200 mm
distance from exterior surface while servicing.
Do not place any magnetic objects such as iron to this magnetic track. Doing so
may result in injury.
Person trained by the manufacturer must perform the mounting and dismounting
of this magnetic track by using the special jigs.
*6
Description
z Do not operate the machine with the door being kept open. Otherwise, part of
your body may be trapped in the moving mechanisms, causing a major injury.
0502-002
WARNING
WARNING
Strong Magnetic Field
Those who wear an implanted pacemaker
are not allowed to work inside the door.
Otherwise, the pacemaker may be affected
by magnetism.
WARNING
WARNING
Keep the door closed
during operation.
Otherwise, part of your body may be trapped
in the moving mechanisms, causing an injury.
Do not keep the door open during operation.
