Retrofit instructions: Flexible dual conveyo r, SIPLACE D4 04/2007 Edition 22 2.4 Converting the conveyor : Switch the placement mach ine off at the main power switch. : Remove the middle protective covers over the conve…
Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
21
2.3.1 Definitions
2
Please note 2
2
2
2
Caution 2
2
2
2.3.2 Tools and consumables required
– 1 set of metal drill bits (4.0 mm)
– Power drill
– Conveyor fixed side panel, setup gauge, DC/SC HS60/D4 (item no.: 03054247-xx)
– Dual conveyor, fixed panel distance jig, DC HS60/D4 (item no.: 03054248-xx)
– Flex conveyor drilling template, HS-60/D4 (item no.: 03053716-xx)
– 10 x Circlip, DIN 6799 - 5-ST (00048327-xx).
2
2
2
Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
22
2.4 Converting the conveyor
: Switch the placement machine off at the main power switch.
: Remove the middle protective covers over the conveyor.
: Remove all four doors of the extension kit.
2
: Release the brake on the conveyor rail by loosening the clamping screws.
2
There is a compression spring underneath the screw. Make sure that it does not jump out and that
you do not lose it. 2
2
2
2
2
2
2
2
2
Clamping screw
Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
23

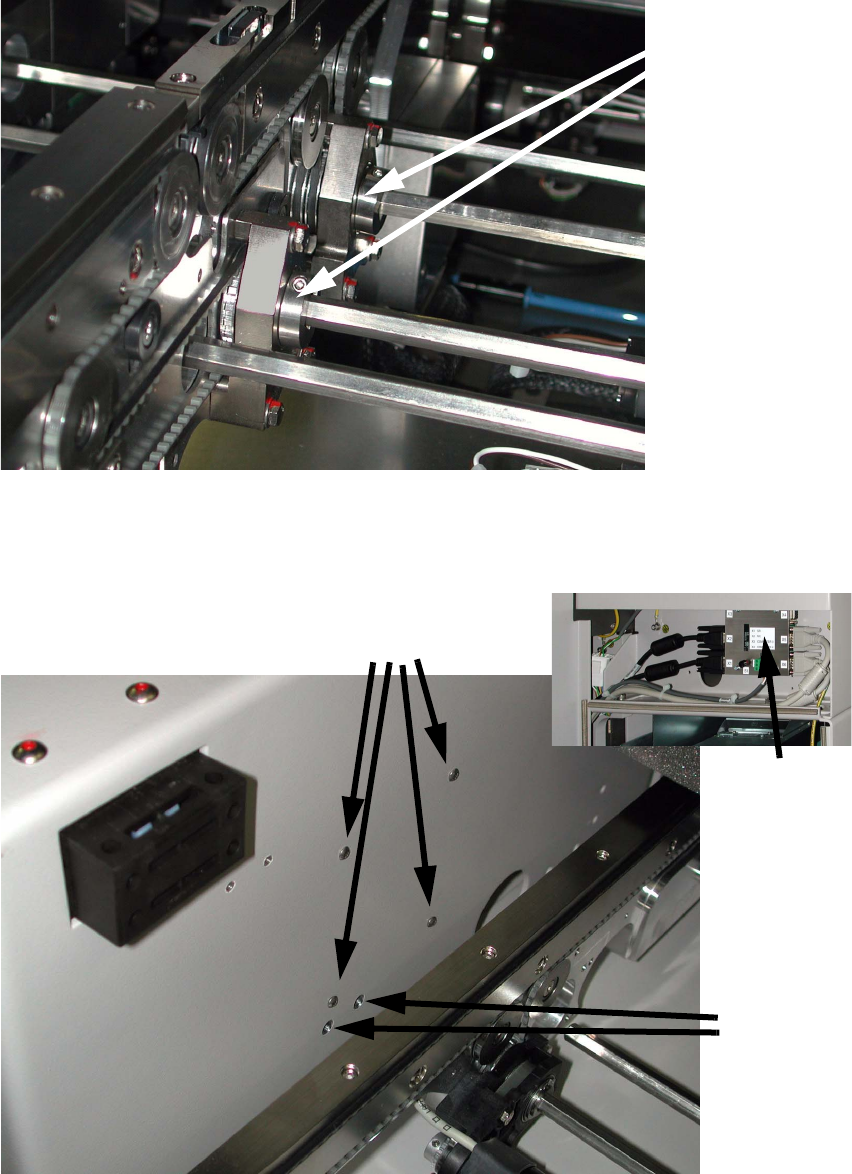

: Loosen the screws of all clamping rings on the conveyor, so that the clamping rings can be
moved on the hexagonal shafts.
2
: Loosen the four screws on the video multiplexer and remove the multiplexer.
Do NOT remove the two screws underneath.
2
2
Clamping rings
Loosen these four screws
DO NOT
loosen
these
screws.
Video
multiplexer
