Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
25
: Fold down the video multiplexer carefully in order to reach the drilling position.
2
2
: Before you continue drilling the holes cover up the units and all sensitive parts in order to pro-
tect them agaist drilling dust.
2
2
Video multiplexer
Drilling position
Cover against drilling swarf
Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
26

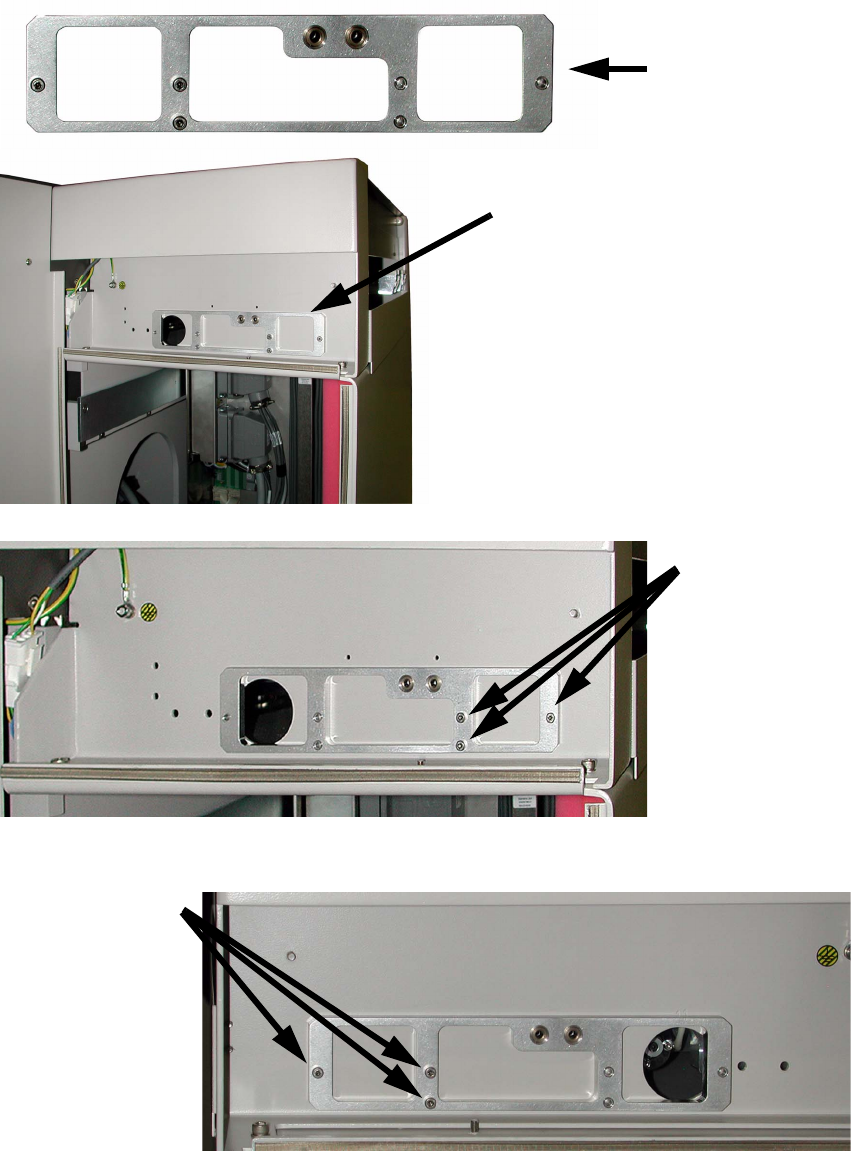

: Screw the drilling gauge to the outside of the extension kit underneath the cover
(Flex conveyor drilling template, HS-60/D4 (item no.: 03053716-xx).
2
Drilling template
Drilling template assembly position
(locations 2/4)
the right three screws
for locations 2/4
the left three screws
for locations 1/3
Retrofit instructions: Flexible dual conveyor, SIPLACE D4
04/2007 Edition
27

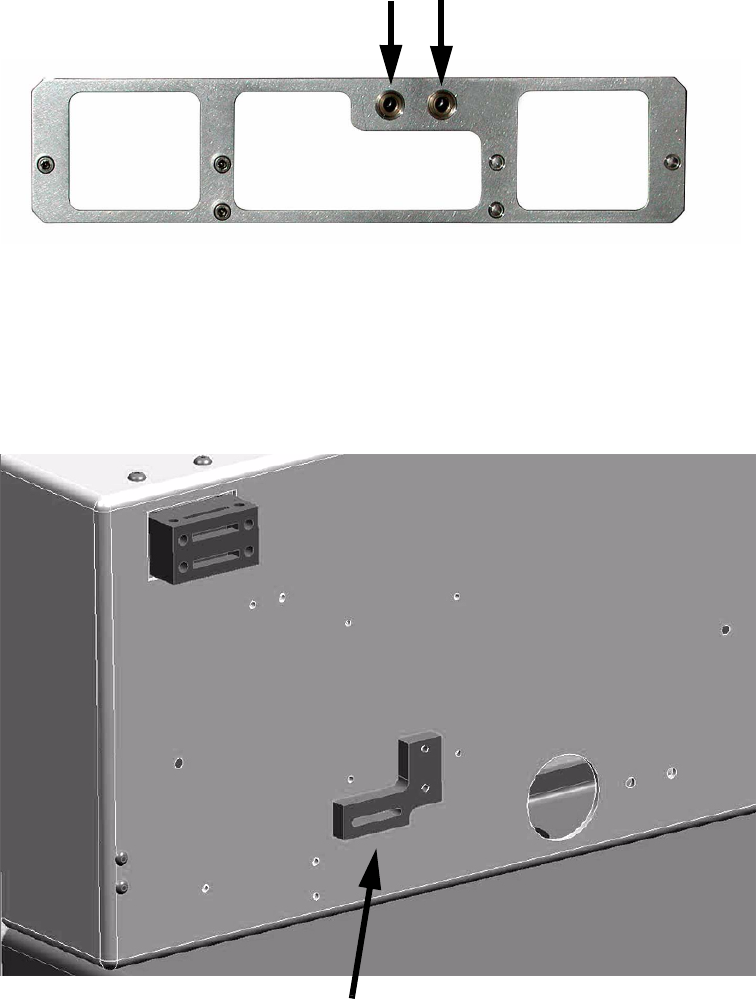

: Use a power drill / cordless screwdriver and a metal drill bit (Ø 4.0 mm) to drill two holes
through the gauge and into the extension kit.
2
: Remove the drilling swarf on and around the drill holes using a vacuum cleaner, for example.
: Debur the drill holes using a Rose bit.
2
: Screw on all the four separating layers.
2
Drill holes
Separating layer:
the long side (3 screws) must always point downwards,
the vertical side (2 screws) must always be inside.
