尺寸及布置

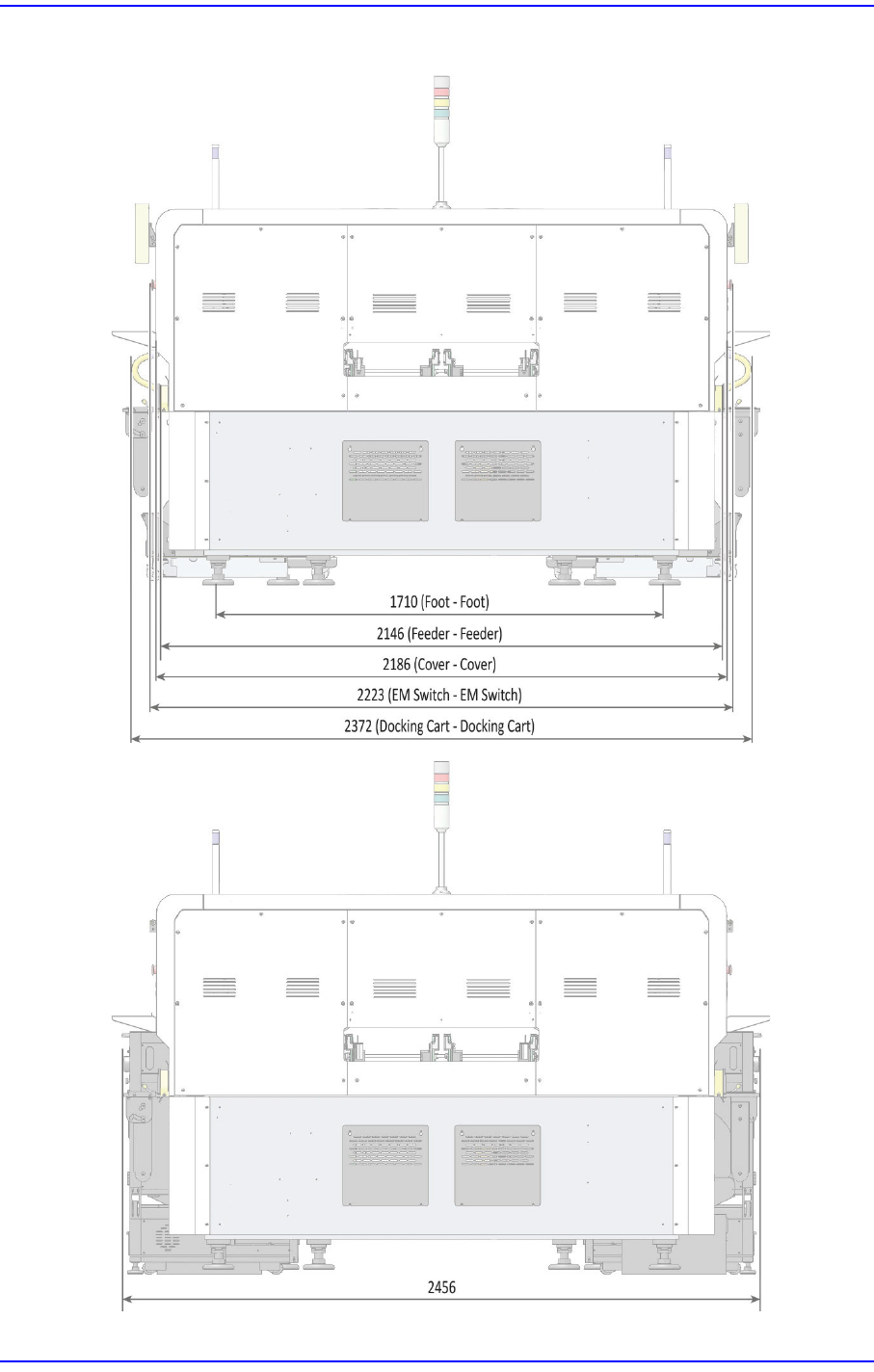

本体尺寸及重量
宽度
分类
规格(Conveyor edge to edge)
备注
Width
L510(Exit Buffer 260): 890 mm ± 1.5 mm
L400, L510(Exit Buffer 260): 920 mm ± 1.5 mm
(for HM520NEO)
L510(Exit Buffer 330): 960 mm ± 1.5 mm
L510(Exit Buffer 360): 990 mm ± 1.5 mm
L510(Exit Buffer 460): 1,090 mm ± 1.5 mm
L750(Exit Buffer 260): 1,120 mm ± 1.5 mm
Conveyor
clearance next
equipment ：5mm
3mm
Cutting-edge Modular Mounter HM Series Administrator's Guide
xviii

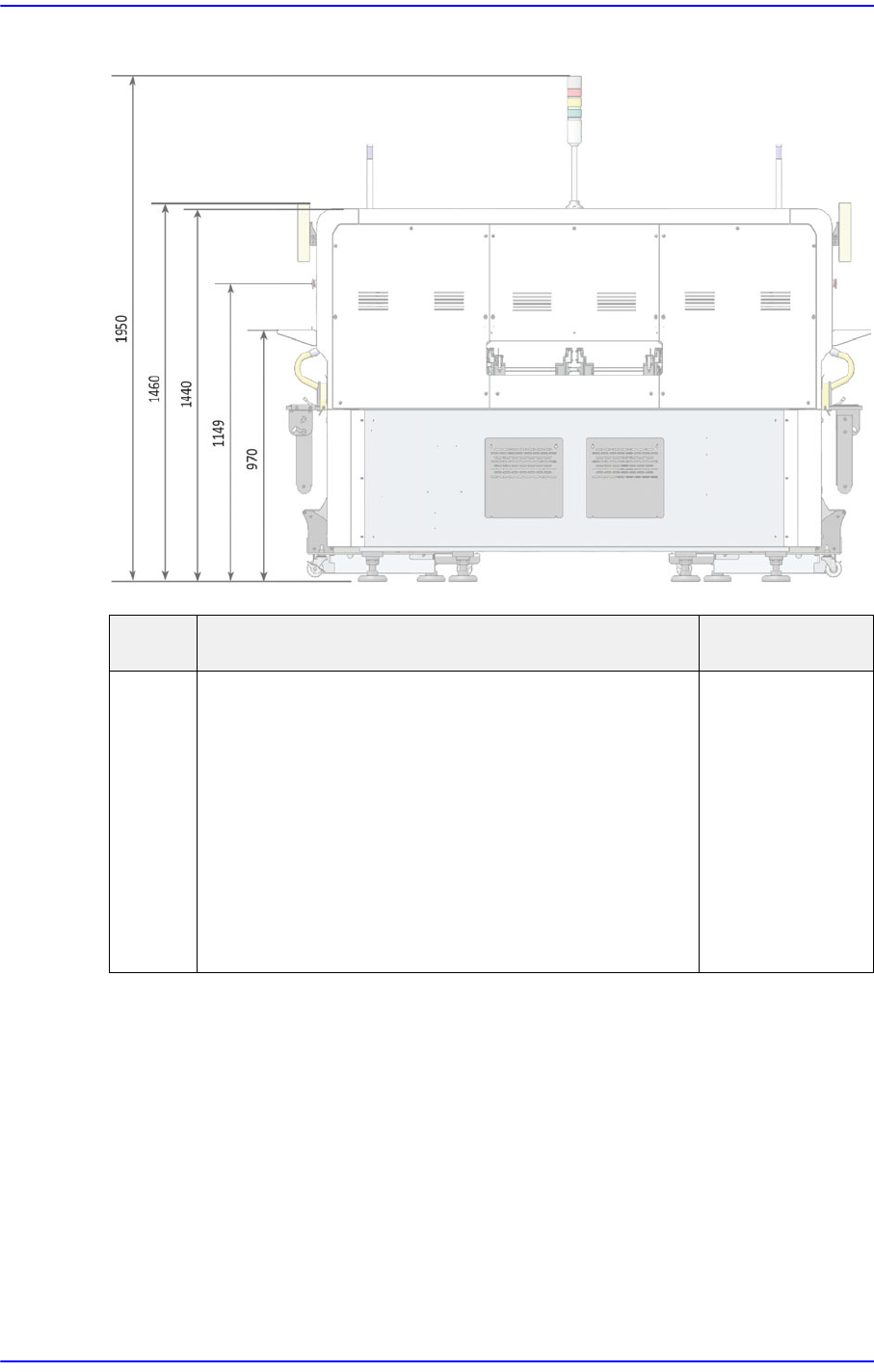

高度
分类
规格 备注
Height 1,440 mm 5 mm (Top cover:PCB H900)
1,149 mm (EMG Switch)
970 mm (Keyboard)
1460 mm (Monitor)
1,950 mm (Signal tower:PCB H900)
Conveyer 900mm＋20(Adjustable)/-
10(Adaptable
(1)
)
America & Europe：Conveyer 950mm
(2)
＋
20(Adjustable)/-10(Adaptable
(1)
)
1) Need to move
stopper
bracket of
docking cart.
2) Use Optional
higher pad and
bracket
