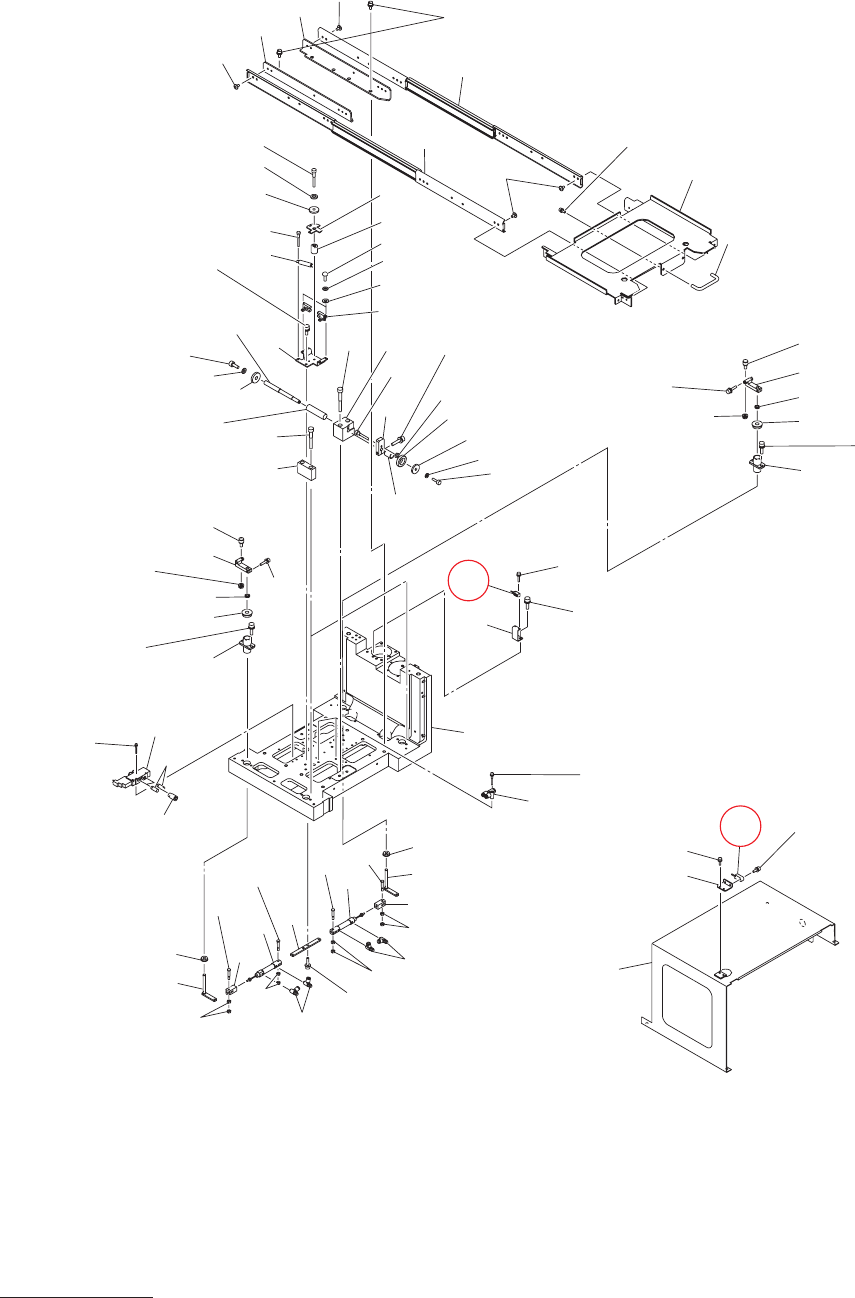

MODEL FP-G200L 0801-002 エレベータ部 ELEV A TOR SECTION Fig. EL-5 マガジン搭載部１ Magagine Mounter 1 See Fig. EL-4 Key No.302 474 473 . 455 . 477 476 . 460 . 480 479 . 463 . 477 476 . 458 . 423 414 401 401 422 414 457 473 475 433 434…
MODEL FP-G200L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
302 6301310244 BASE 1 806EL-510-002 210A2248
307 6301291550 ROTOR 1 806EL-510-007 213G0200
308 6301281902 BRACKET 1 806EL-510-008 211F8492
310 6301474861 BRACKET 1 806EL-510-010 211FB069
311 6301291628 BLOCK 1 806EL-510-011 211G3646
312 6301291635 SHAFT 1 806EL-510-012 213A1090
313 6301281964 SHAFT 1 806EL-510-013 213A1068
315 6301291659 BRACKET 1 806EL-510-015 211F8649
324 6301620565 COVER 1 806EL-510-324 211AC663
325 6301292267 COVER 1 806EL-510-325 211A8875
331 6301280622 MOTOR,AC-SERVO 1 -M03 806EL-510-201 4M150212
335 6301280660 PULLEY,TIMING 1 806EL-510-205 223Q0575
336 6301280677 PULLEY,TIMING 1 806EL-510-206 223Q0576
337 6301280684 BELT,TIMING 1 806EL-510-207 223L0274
338 6300960808 COUPLING 1 806EL-510-208 223C0165
345 6301129679 BEARING,RADIAL 3 806EL-510-215 222D0380
346 6301501413 MECH PARTS(CABLEVEYOR) 1 806EL-510-216 226J2305
351 6300007527 BOLT,HEX-SCT 2 M3X10 221A0007
352 6300007589 BOLT,HEX-SCT 4 M3X30 221A0013
353 6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
354 6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
355 6300007640 BOLT,HEX-SCT 1 M4X14 221A0019
356 6300007657 BOLT,HEX-SCT 6 M4X16 221A0020
357 6300007664 BOLT,HEX-SCT 2 M4X20 221A0021
358 6300007763 BOLT,HEX-SCT 13 M5X16 221A0031
359 6300007770 BOLT,HEX-SCT 4 M5X20 221A0032
360 6300007794 BOLT,HEX-SCT 4 M5X30 221A0034
361 6300007909 BOLT,HEX-SCT 16 M6X25 221A0045
362 4110024307 SCR FLT 5X10 4 M5X10 FLT 221D0226
363 4111410604 NUT HEX 5 4 M5 221F0107
366 4111412806 WASHER SPR 3 6 SW3 221H0281
367 4111415807 WASHER F 3X6X0.5 4 FWS3 221H0338
368 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
369 4111412905 WASHER SPR 4 14 SW4 221H0284
370 4111414008 WASHER V 4X9X0.8 14 FW4 221H0315
371 4111416705 WASHER SPR 5 17 SW5 221H0287
372 4111414107 WASHER V 5X10X1 17 FW5 221H0318
EL-4
EL-4 list-1
MODEL FP-G200L
0801-002
エレベータ部
ELEV
ATOR SECTION
Fig. EL-5
マガジン搭載部１
Magagine Mounter 1
See Fig. EL-4
Key No.302
474
473
.
455
.
477
476
.
460
.
480
479
.
463
.
477
476
.
458
.
423
414
401
401
422
414
457
473
475
433
434
452
413
477
476
.
458
.
464
471
472
412
432
440
462
437
456
475
436
461
431
439
403
466
438
473
454
435
478
476
458
421
415
402
428
465
425
425
404
465
405
424
465
405
425
404
425
465
410
428
402
410
414
474
473
.
455
.
429
402
430
426
477
476
.
459
.
402
429
430
427
403
474
473
.
455
.
477
476
.
459
.
411
443
477
476
.
459
.
472
471
.
451
.
474
473
.
457
.
409
406
407
408
472
471
.
452
.
474
473
.
466
.
474
473
.
466
.
472
471
.
451
.
474
473
.
453
.
411
441
See Fig. EL-4
Key No.324
注) Key No.411(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 411 (with a circle) is an important maintenance component.
Because high-grade technique is required for the r
eplacement of this component,
consult our service personnel.
EL-5 illust-1
MODEL FP-G200L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301292571 GUIDE,LINEAR 2 806EL-510-401 222L0717
402 6300011401 BEARING,RADIAL 4 806EL-510-402 222D0019
403 6300963717 CAM FOLLOWER 2 806EL-510-403 222H0118
404 6301282497 CYLINDER 2 -B0428,-B0429,-B0430,-B0431
806EL-510-404 224C0549
405 6301282510 AIR LINE EQPT 4 806EL-510-405 225B0514
406 6301292151 SOLENOID VALVE 1 -Y0534 806EL-510-406 4L810336
407 6300969221 AIR LINE EQPT 2 806EL-510-407 225B0374
408 6301282527 PIPE FITTINGS 1 806EL-510-408 225F0603
409 6300955026 AIR LINE EQPT 2 806EL-510-409 225B0367
410 6300363012 LINK 2 806EL-510-410 214B0010
411 6301165882 SENSOR,PELEC 2 -B0427,-B0515
806EL-510-411 23G00227
412 6300325287 SENSOR,PHOTO 2 -B0432,-B0516
806EL-510-412 23G10029
413 6300018332 SPRING,TENSION 1 806EL-510-413 222N0109
414 6300725803 MACHINE SCREW 24 806EL-510-414 221D0107
415 6300725797 HANDLE 1 806EL-510-415 226C0111
421 6301292274 PLATE 1 806EL-510-301 211D9801
422 6301292311 PLATE 1 806EL-510-302 211D9805
423 6301292328 PLATE 1 806EL-510-303 211D9806
424 6301283302 HINGE 1 806EL-510-304 226F0151
425 6301283296 PIN,HINGE 4 806EL-510-305 216D0465
426 6301283326 LEVER 1 806EL-510-306 216S2678
427 6301283333 LEVER 1 806EL-510-307 216S2679
428 6301283357 LEVER 2 806EL-510-308 216S2680
429 6301283319 HOLDER 2 806EL-510-309 216B1432
430 6301283340 COLLAR 2 806EL-510-310 216A1159
431 6301283500 BLOCK 2 806EL-510-311 211G3588
432 6301283777 BRACKET 1 806EL-510-312 211F8534
433 6301299662 DISK 1 806EL-510-313 213D1172
434 6301302263 SHAFT 1 806EL-510-314 213A1116
435 6301292434 BLOCK 1 806EL-510-315 211G3659
436 6301292687 SHAFT 1 806EL-510-316 213A1094
437 6301292281 PLATE 1 806EL-510-317 211D9802
438 6301283876 GRIP 1 806EL-510-318 226D0110
439 6301283883 COLLAR 1 806EL-510-319 216A1161
440 6301294810 SPRING,COMP 1 806EL-510-320 222M1342
441 6301294759 BRACKET 1 806EL-510-321 211F8702
443 6301294742 BRACKET 1 806EL-510-323 211F8701
451 6300007541 BOLT,HEX-SCT 4 M3X14 221A0009
452 6300007572 BOLT,HEX-SCT 3 M3X25 221A0012
453 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
454 6300007633 BOLT,HEX-SCT 1 M4X12 221A0018
455 6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
456 6300007671 BOLT,HEX-SCT 1 M4X25 221A0022
457 6300007688 BOLT,HEX-SCT 3 M4X30 221A0023
458 6300007756 BOLT,HEX-SCT 5 M5X12 221A0030
459 6300007763 BOLT,HEX-SCT 6 M5X16 221A0031
460 6300007770 BOLT,HEX-SCT 1 M5X20 221A0032
EL-5
EL-5 list-1
