4OM-1505
1-3
1. Outline of Maintenance : Chap.1
•
Vacuum Cleaner
If the suction hole of the vacuum cleaner is changed to a smaller one, some
spots can be cleaned more easily.
•
Air Blow Brush for Camera
Use one on the market.
•
Container
, etc.
Use a container big enough to hold water drained from the air regulator while
cleaning the regulator.
•
Industrial
Alcohol
Use the industrial alcohol described in T4A1 for this machine.
Maker Product Name
DAN Chemical Co., Ltd Denatured Ethanol AP-7
Nihon Alcohol Hanbai Co., Ltd SOLMIX AP-7
T4A1
When the industrial alcohol in T4A1 is unavailable, follow the mixture ratio in
T4A2.
Chemical Element CAS No. Mixture Ratio
Ethyl Alcohol 64-17-5 80 to 90 %
Normal Propanol 71-23-8 5 to 10 %
Isopropyl Alcohol 67-63-0 5 % or less
T4A2
Obtain the material safety data sheet (MSDS) from the maker to learn the
precautionary points on handling and check the contents described in detail for
correct use.
0906-001
4OM-1505
1-4
1. Outline of Maintenance : Chap.1
1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
Specied Greases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSA
N)
•
MOLYNOC GREASE
AP1 (NIPPON OIL CORPORATION)
Note
(a) Before lubrication, wipe off old grease. Otherwise, the effect of grease and
oil will decrease.
(b) Obtain the material safety data sheet (MSDS) from the maker to learn the
precautionary points on handling and check the contents described in detail
for correct use.
Same Types of Lubricants
•
Lubricants equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU
KOSAN)
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease No. 1 NIPPON OIL CORPORATION
Jomo Lisonix Grease No. 1 JAPAN ENERGY CORPORATION
Dynamax No. 1 COSMO OIL LUBRICANTS
Lithtan 1 ESSO OIL
MP Grease No. 1 KYGNUS
Gemico MP-1 Tonen General Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
T4A3
•
Lubricants equivalent to MOLYNOC Grease AP1 (NIPPON OIL
CORPORATION)
Grease Names Makers
DAPHNE Grease M No. 1 IDEMITSU KOSAN
Jomo Lisonix Grease M-No. 1 JAPAN ENERGY CORPORATION
Jomo Lisonix Grease M-No. 1 COSMO OIL LUBRICANTS
BEACON Q2 ESSO OIL
Gemico MD2 TonenGeneral Sekiyu K.K.
M5 GREASE 1 KYGNUS
T4A4
0906-001
4OM-1505
1-5
1. Outline of Maintenance : Chap.1
Specied Tools for Lubrication
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Hand Grease Gun
Standard : KH-120
Part No : 228A0022
Maker : Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manual of the hand grease gun for the
usage.
F4A2
•

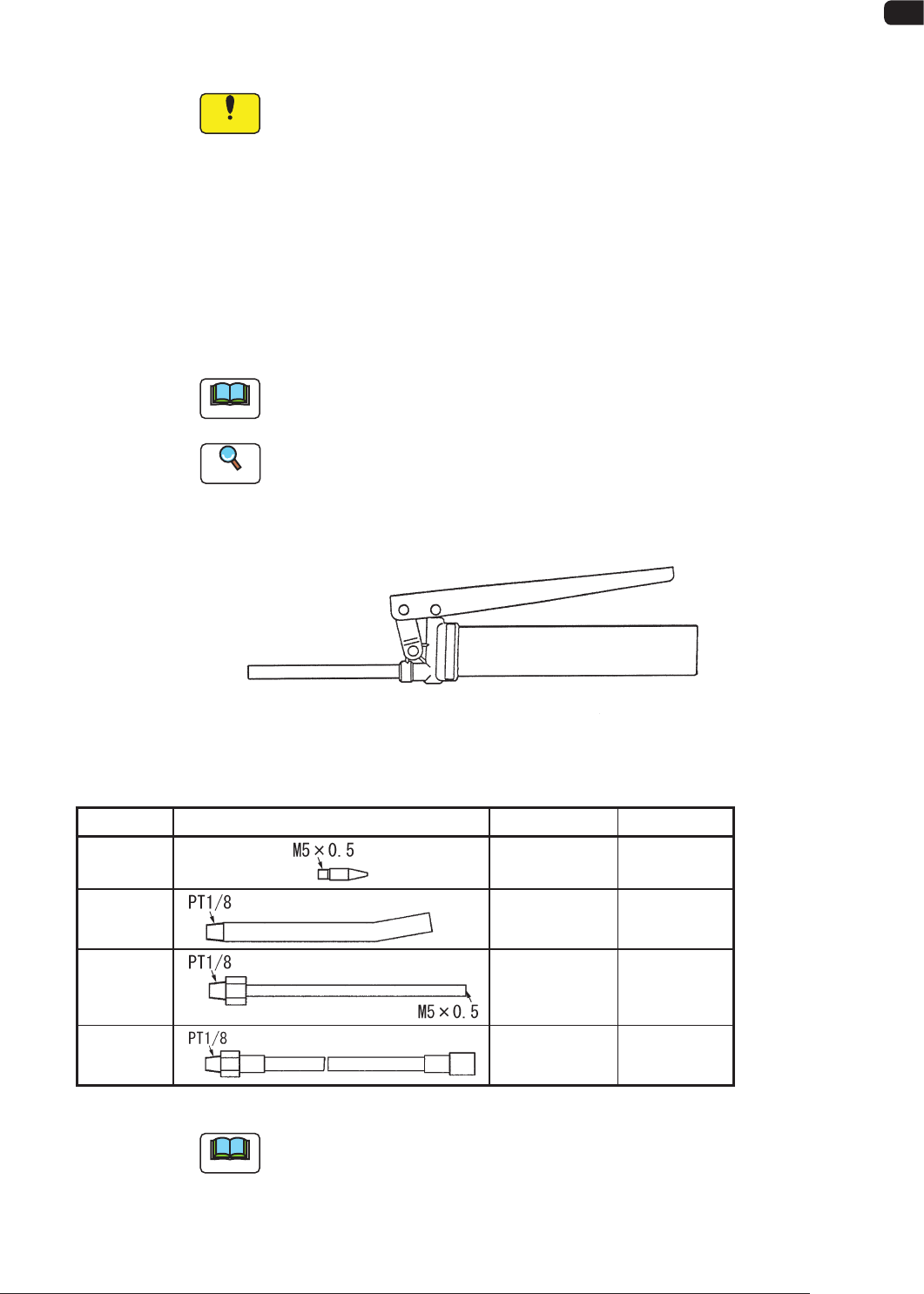

Attachments for Hand Grease Gun KH-120
Standard Shape Part No. Remarks
P Type
216M0441 THK
H Type
216M0439 THK
U Type
216M0438 THK
SPK-3C
228A0021
Yamada
Corporation
T4A5
Note
It is not attached to the machine. Purchase it separately if necessary.
