4OM-1505 1-17 3. Maintenance Spots : Chap.1 3. Maintenance Spots 3.1 Whole V iew Notice Any operations with a cover(s) being removed are included. After the maintenance work, be sure to attach the cover . PEC Recognition…
4OM-1505
1-16
2. Maintenance Check List : Chap.1
2.6 Every 5 Years Maintenance
Grease Symbols
DE1: DAPHNE EPONEX GREASE No. 1
Object Units
Inspection, Cleaning,
and Lubrication Spots
Work Grease Required Tools Check
3.2.2
Squeegee Head
Section
Squeegee Head Y-Axis
Linear Guide
(Left Side), (Right Side)
Lubrication
DE1 Grease Gun,
U and P Types or SPK-3C
Stencil Recognition
X-Axis Linear Guide
Lubrication
DE1 Brush and Spatula
3.2.3
Stencil Holder Section
Stencil Y-Axis Linear
Guide
(Front Side), (Rear Side)
Lubrication
DE1 Brush, Grease Gun,
U and P Types or SPK-3C
3.2.4
PEC Recognition
Section
PEC Recognition
X-Axis Linear Guide
Lubrication
DE1 Brush and Spatula
PEC Recognition
Y-Axis Linear Guide
(Front Left Side), (Front
Right Side), (Rear Side)
Lubrication
DE1 Brush, Grease Gun and
H Type
3.2.5
Conveyor Section
Linear Guide for L
Conveyor Width Change
Lubrication
DE1 Brush and Spatula
Linear Guide for R
Conveyor Width Change
Lubrication
DE1 Brush and Spatula
3.2.6
PCB Chuck Section
Linear Guide for Chute
Width Change
(Left Side), (Right Side)
Lubrication
DE1 Brush and Spatula
Linear Guide for PCB
Clamping
Lubrication
DE1 Brush and Spatula
3.2.7
Table Section
Table θ-Axis Linear Guide
Lubrication
DE1 Grease Gun and H Type
Table X-Axis
Linear Guide
(Front Left Side), (Front
Right Side), (Rear Side)
Lubrication
DE1 Brush, Grease Gun,
U and P Types or SPK-3C
T4A11
0906-001
4OM-1505
1-17
3. Maintenance Spots : Chap.1
3. Maintenance Spots

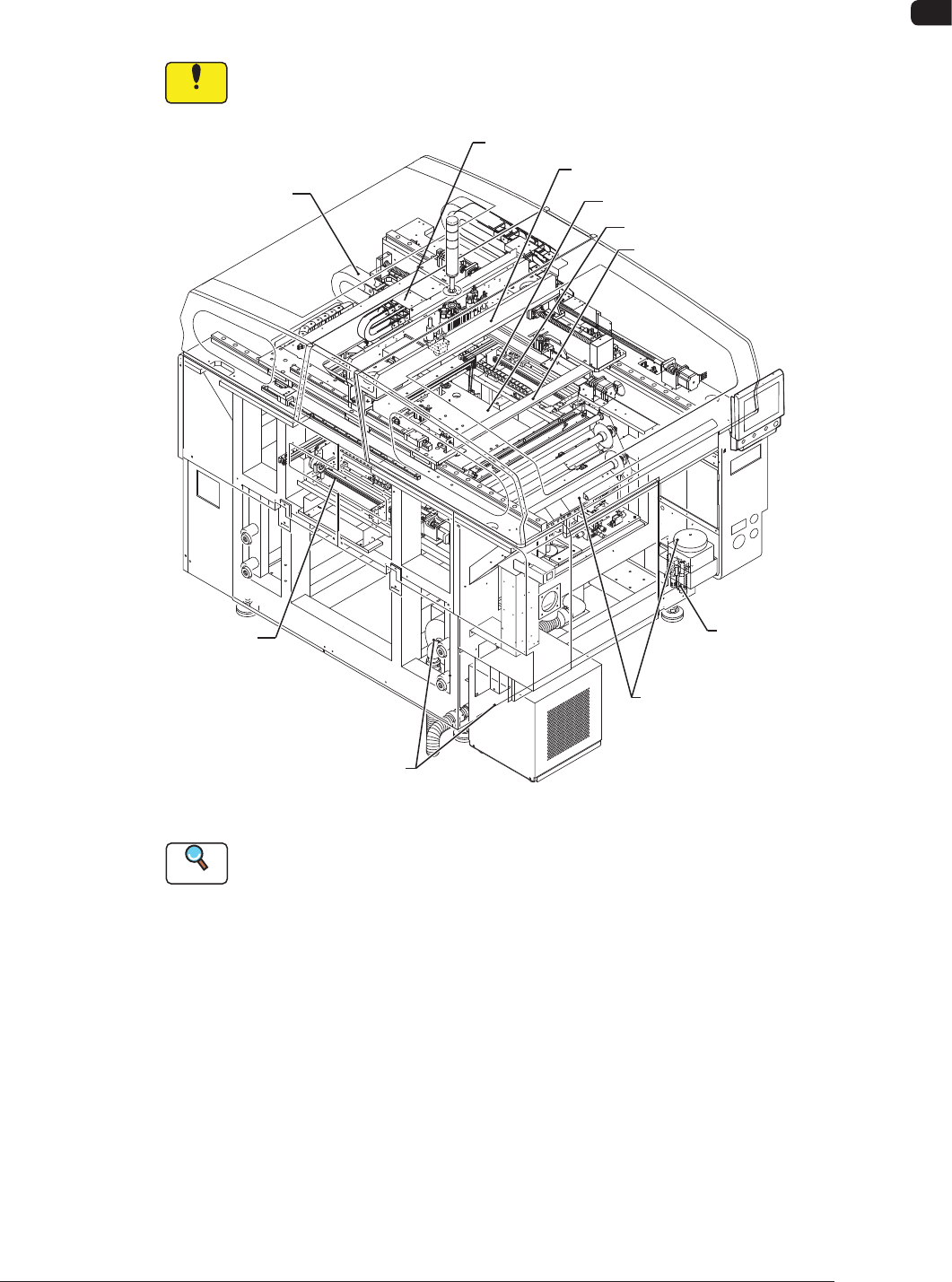

3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover.
PEC Recognition Section
Air Source
Stencil Holder Section
Stencil Recognition Section
Cleaning Section
Blower Unit
L Conveyor Section
R Conveyor Section
Table Section
Squeegee Head Section
F4A3
Reference
Refer to "3.2" and the subsequent items for the detailed information on the spots
of each section to be maintained and how to maintain them.
1002-002
4OM-1505
1-18
3. Maintenance Spots : Chap.1
3.2 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each individual
units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classied based
on frequency.

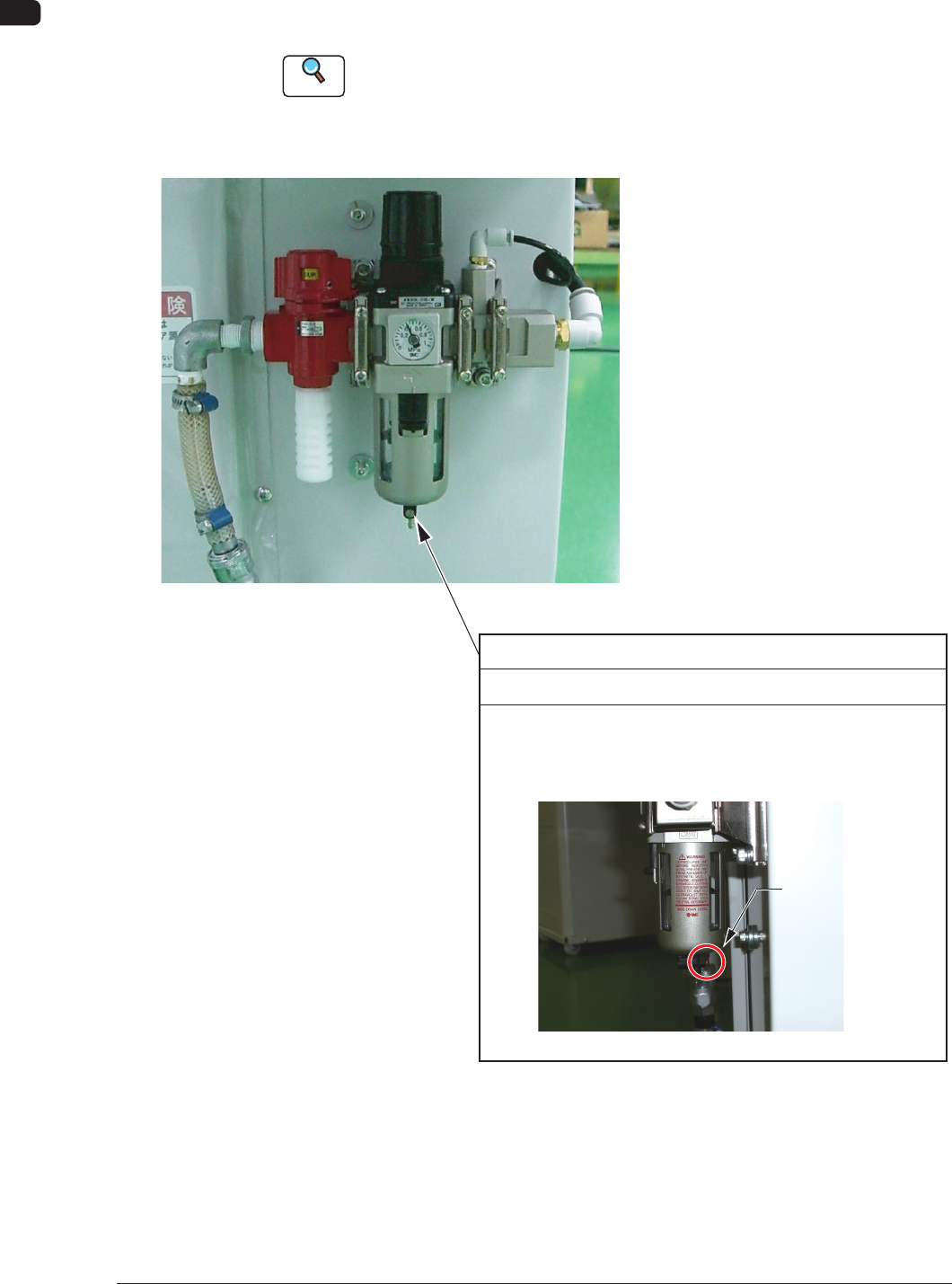

3.2.1 Air Source
Drain
Follow the steps below to purge the drain.
(1) Put a container under the drain outlet.
(2) Press the orange button.
Every Week Cleaning
Drain Button
F4A4
0906-001
