4OM-1505 1-22 3. Maintenance Spots : Chap.1 3.2.3 Stencil Holder Section Upper Surface of Stencil Holder Every Day Cleaning Wipe off dirt and dust accumulated on the upper and side surfaces with a rag. Stencil Printing P…
4OM-1505
1-21
3. Maintenance Spots : Chap.1

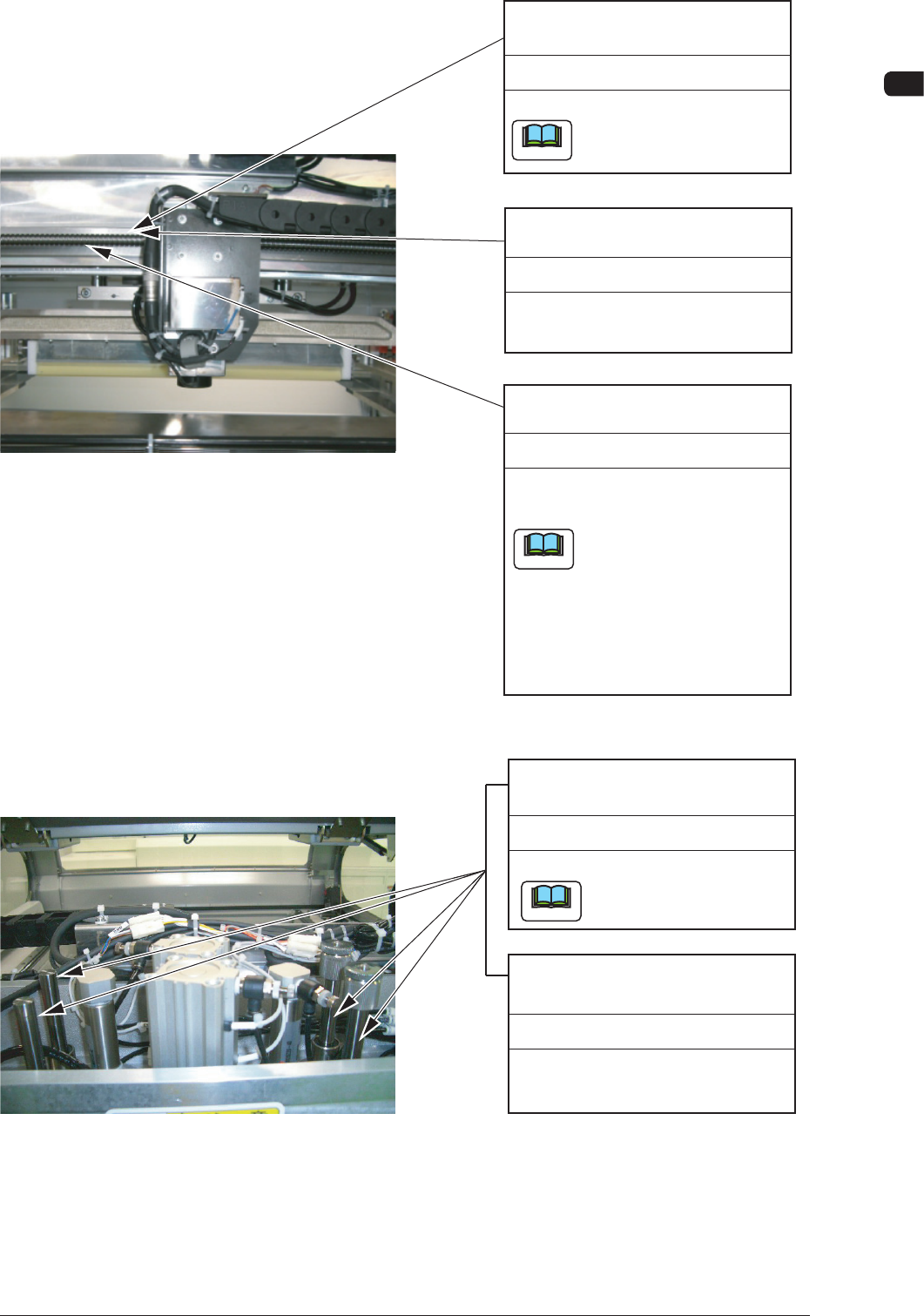

Stencil Recognition X-Axis
Ball Screw
Every 6 Months Lubrication
Stencil Recognition X-Axis
Linear Guide
Every 5 years Lubrication
Apply grease with a brush or a
spatula.
Apply grease with a brush or a
spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Rear Side
Note
Clean the stopper with an oiled rag.
Every Month Cleaning
Stencil Recognition X-Axis
Linear Guide
Note
Do not leave any waste
threads after cleaning.
F4A8
Guide Bushing for Squeegee
Up/Down Movement
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Guide Bushing for Squeegee
Up/Down Movement
Apply grease with a brush or a
spatula.
Every 6 Months Lubrication
Front Side
Note
F4A9
0906-001
4OM-1505
1-22
3. Maintenance Spots : Chap.1

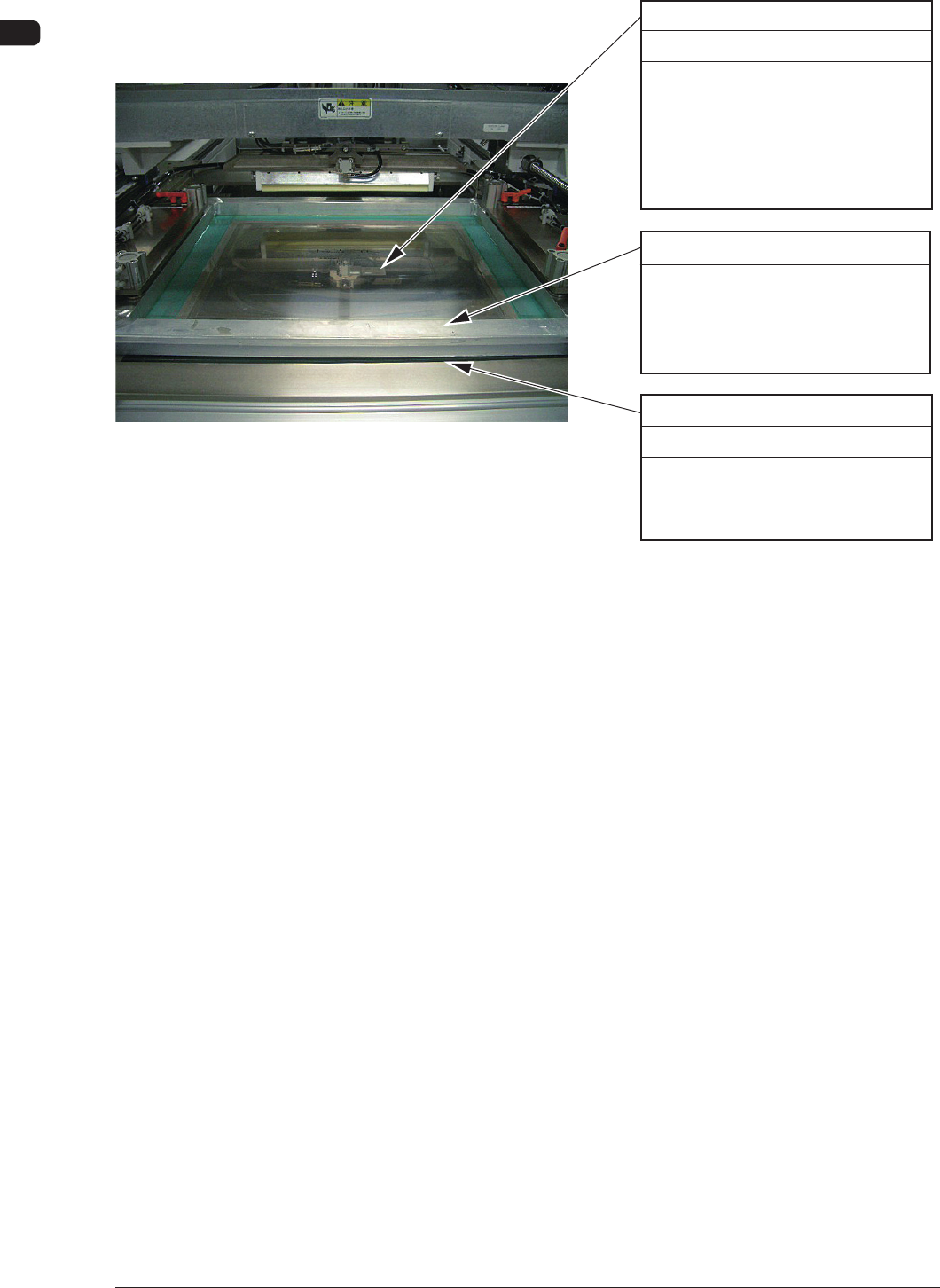

3.2.3 Stencil Holder Section
Upper Surface of Stencil Holder
Every Day Cleaning
Wipe off dirt and dust accumulated
on the upper and side surfaces
with a rag.
Stencil Printing Pattern
Every Day Cleaning
After using the stencil, use an
ultrasonic cleaner (industrial
alcohol solvent) to clean the stencil
such that the mesh (pores) of
the stencil (stencil patterns) is
not clogged.
Lower Surface of Stencil
Every Day Cleaning
Clean the lower surface of
the stencil with a rag soaked in
industrial alcohol (solvent).
Front Side
F4A10
0906-001
4OM-1505
1-23
3. Maintenance Spots : Chap.1
Stencil Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Every 5 years Lubrication
Stencil Y-Axis Linear Guide
(Right Side)
Inject new grease from the grease
nipple with a grease gun or a brush.
The used attachments should
be the U- and P-types or the
SPK-3C.
If a large amount of grease is
applied, it may be dispersed
ver a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Every 6 months Lubrication
Stencil Y-Axis Ball Screw
Apply grease with a brush.
Front Right Side
Front Right Side
Note
Note
Note
F4A11
Stencil Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Every 5 years Lubrication
Stencil Y-Axis Linear Guide
(Left Side)
The used attachments should
be the U- and P-types or
the SPK-3C.
Inject new grease from the grease
nipple with a grease gun or a brush.
Front Left Side
Note
Do not leave any waste
threads after cleaning.
Note
F4A12
0906-001
