4OM-1505 1-24 3. Maintenance Spots : Chap.1 3.2.4 PEC Recognition Section PCB Stopper PCB W arpage T op Holder (Plunger End Section) In the case that dust is attached to the pressing surface, remove it. Every W eek Clean…

100%1 / 181
4OM-1505
1-23
3. Maintenance Spots : Chap.1

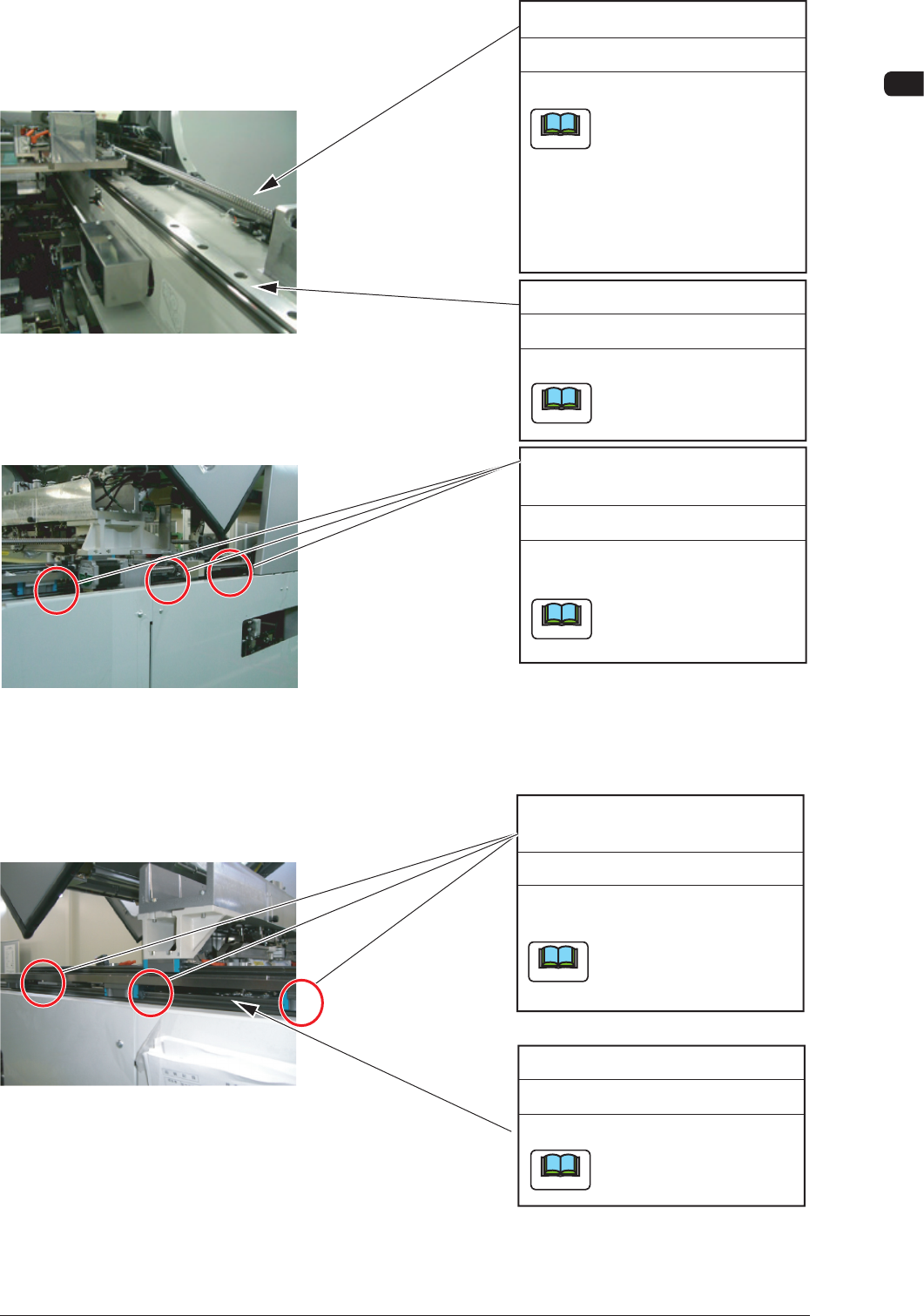

Stencil Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Every 5 years Lubrication
Stencil Y-Axis Linear Guide
(Right Side)
Inject new grease from the grease
nipple with a grease gun or a brush.
The used attachments should
be the U- and P-types or the
SPK-3C.
If a large amount of grease is
applied, it may be dispersed
ver a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Every 6 months Lubrication
Stencil Y-Axis Ball Screw
Apply grease with a brush.
Front Right Side
Front Right Side
Note
Note
Note
F4A11
Stencil Y-Axis Linear Guide
Every Month Cleaning
Clean the stopper with an oiled rag.
Every 5 years Lubrication
Stencil Y-Axis Linear Guide
(Left Side)
The used attachments should
be the U- and P-types or
the SPK-3C.
Inject new grease from the grease
nipple with a grease gun or a brush.
Front Left Side
Note
Do not leave any waste
threads after cleaning.
Note
F4A12
0906-001
4OM-1505
1-24
3. Maintenance Spots : Chap.1
3.2.4 PEC Recognition Section
　
　

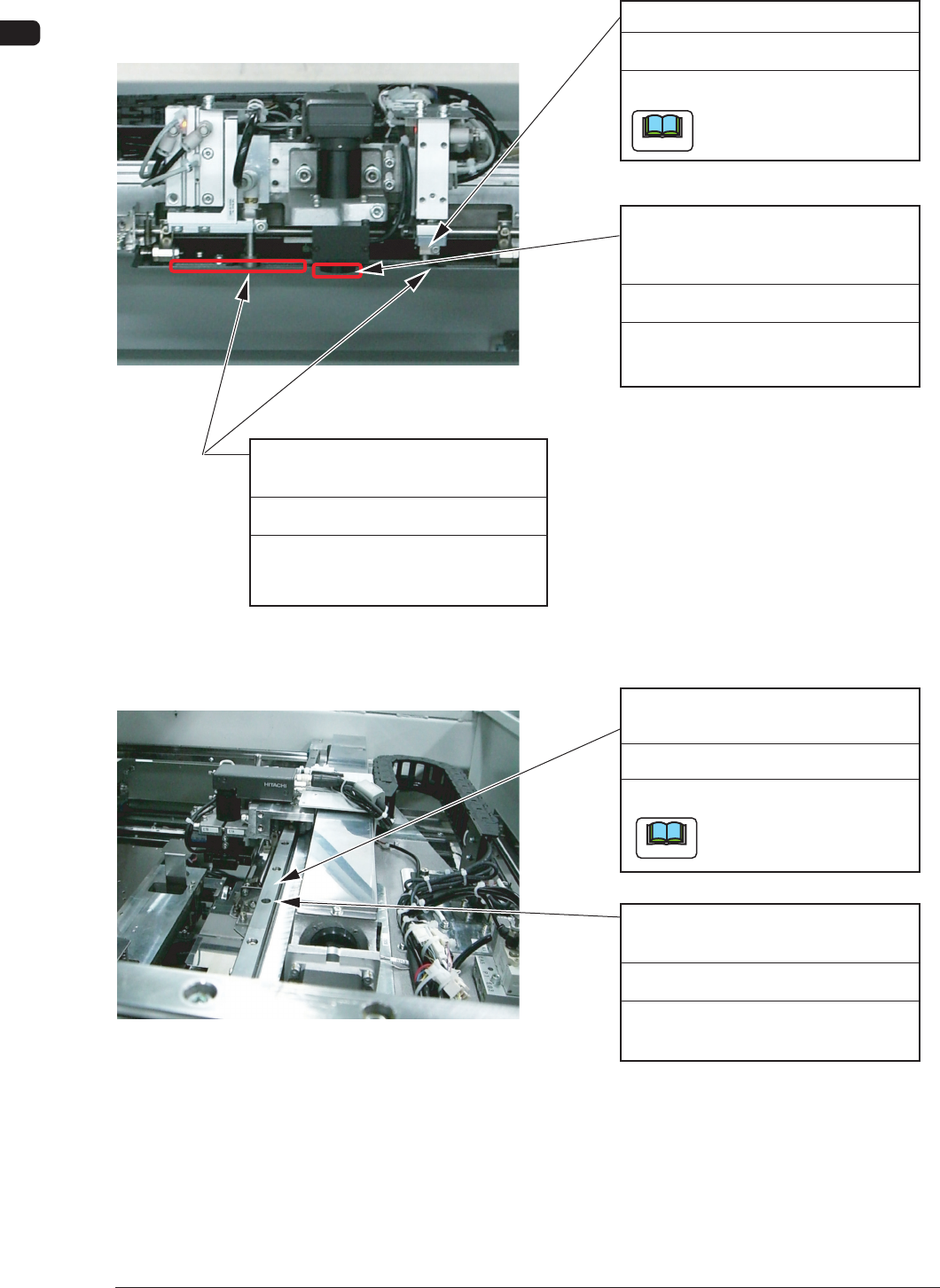

PCB Stopper
PCB Warpage Top Holder
(Plunger End Section)
In the case that dust is attached
to the pressing surface, remove it.
Every Week Cleaning
Clean the stopper with an oiled rag.
Every Week Cleaning
Do not leave any waste
threads after cleaning.
Camera (Lens)
PEC Recognition Lighting Glass
Surface
Remove dirt and dust with an ari
blow brush for camera.
Every Month Cleaning
PEC Recognition X-Axis
Linear Guide
Every Month Cleaning
PEC Recognition X-Axis
Linear Guide
Apply grease with a brush or a
spatula.
Every 6 Months Lubrication
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Note
Note
F4A13
1002-002
4OM-1505
1-25
3. Maintenance Spots : Chap.1

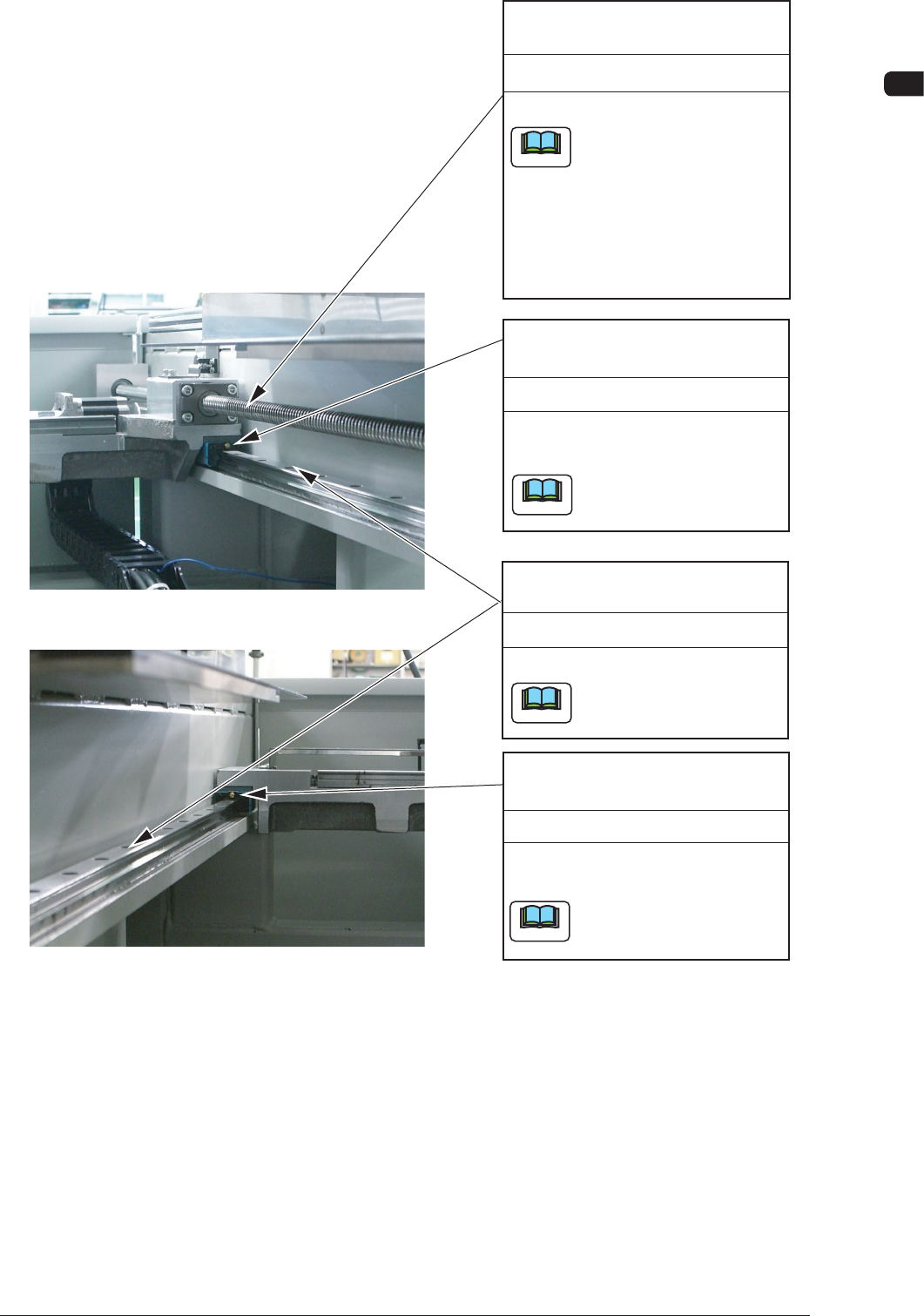

PEC Recognition Y-Axis
Linear Guide (Front Left Side)
Every 6 Months Lubrication
Use the H-type attachment.
PEC Recognition Y-Axis
Linear Guide (Front Right Side)
Every 6 Months Lubrication
Use the H-type attachment.
Inject new grease from the grease
nipple with a brush or a grease gun.
Inject new grease from the grease
nipple with a brush or a grease gun.
PEC Recognition
Y-Axis Linear Guide
Every Month Cleaning
Do not leave any waste
threads after cleaning.
PEC Recognition
X-Axis Ball Screw
Apply grease with a brush or a spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the stencil.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Every 6 Months Lubrication
Note
Clean the stopper with an oiled rag.
Note
Note
Note
F4A14
